DeltaMate CPU Block - MPII

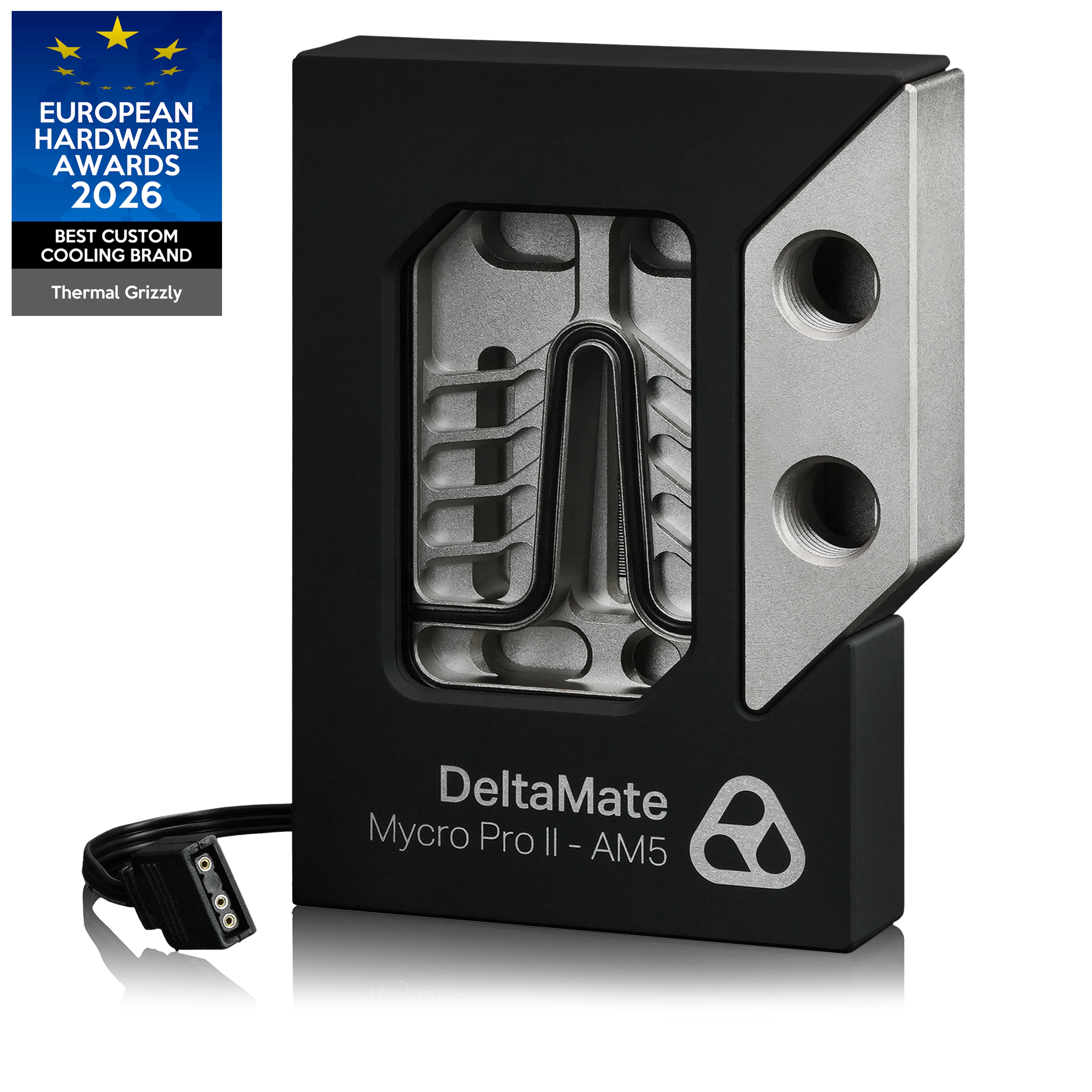

Ultra-High-Performance premium CPU water block for AMD socket AM5 with a nickel-plated copper cooling plate featuring Ultra-High-Performance microfins (0.2 mm), optimized flow distribution, and a full-metal housing with an RGB-illuminated viewing window made of borosilicate glass

Not in stock

$409.38

Content: 1 pcs.

Prices incl. VAT plus shipping costs

Lighting
CPU-Type
EAN: 4260711992742
MPN: TG-DM-CPU-001

Product information "DeltaMate CPU Block - MPII AM5 "

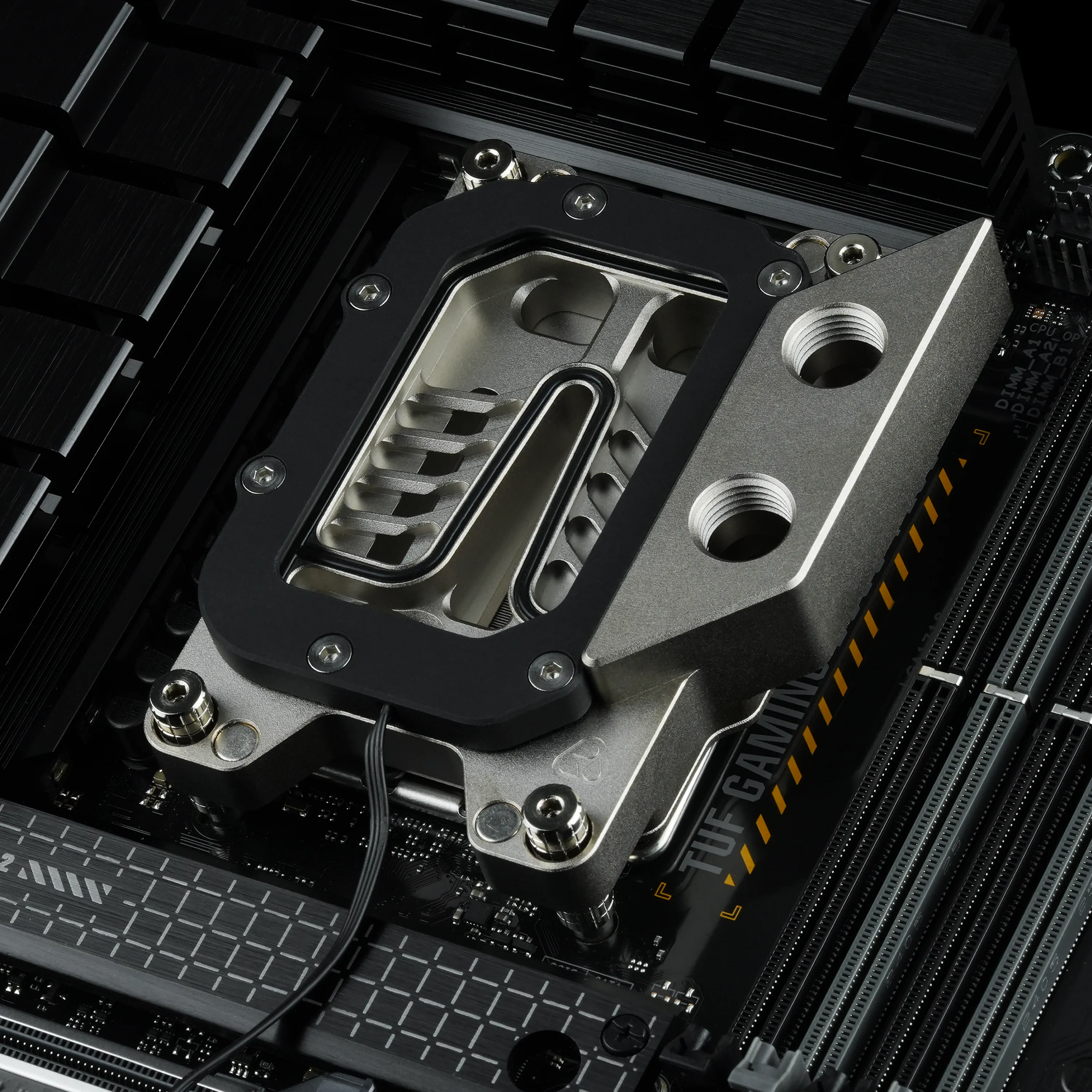

The Thermal Grizzly DeltaMate CPU Block - MPII AM5 is a premium CPU water block optimized for AMD’s AM5 socket and is backward compatible with socket AM4. It consists of four primary components: a nickel-plated Ultra-High-Performance cold plate, a solid nickel-plated brass housing, a viewing window made of borosilicate glass, and an anodized aluminum cover. The sealing O-rings used are made of high-quality EPDM rubber and are characterized by excellent durability, elasticity, and resistance to coolants, heat, and aging.

1_Content_MPII_AM5

Features

  • Ultra-High-Performance premium CPU water block for AMD sockets AM5 and AM4
  • Nickel-plated copper cooling plate with Ultra-High-Performance CCD microfins (0.2 mm)
  • Optimized flow distribution through I/O die microfins (0.4 mm)
  • Full-metal housing with an RGB-illuminated viewing window made of borosilicate glass
  • Particularly durable brass threaded inserts, including standard G1/4" ports
  • Included cover for optionally concealing all screws and the mounting system

Ultra-High-Performance-Coldplate

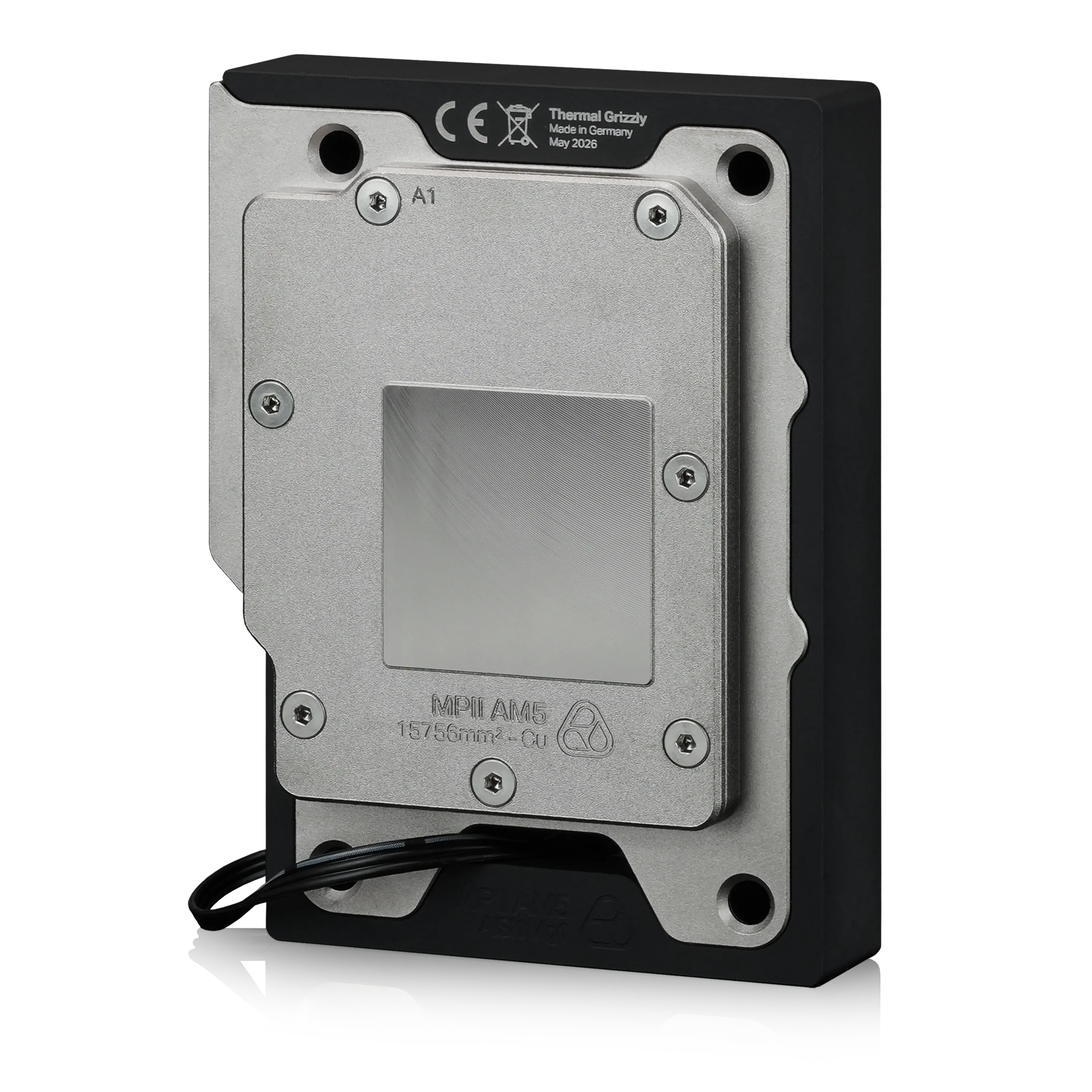

Thermal Grizzly’s Ultra-High-Performance cold plates for CPU and GPU coolers are milled with minimal and highly optimized slot and fin widths. In the case of the DeltaMate CPU Block - MPII AM5 Black, the cold plate features a hybrid structure on the nickel-plated copper cooling plate. Above the CCDs, the slot and fin width of the 25 fins measure 0.2 mm each. This high number of thin fins provides a very large surface area on which the coolant can dissipate heat quickly and efficiently. In the upper area above the I/O die, 29 fins with a width of 0.4 mm are used for optimized flow distribution.

2_Content_MPII_AM5
thermal_conductivity_TG
maximum heat Dissipation

long_term_durability_TG
stable cpu temperatures

microfin_TG
optimized microfin structure

argb_TG
addressable RGB lighting

3_Content_MPII_AM5

DeltaMate CPU Block with RGB and Schott BOROFLOAT® Glass

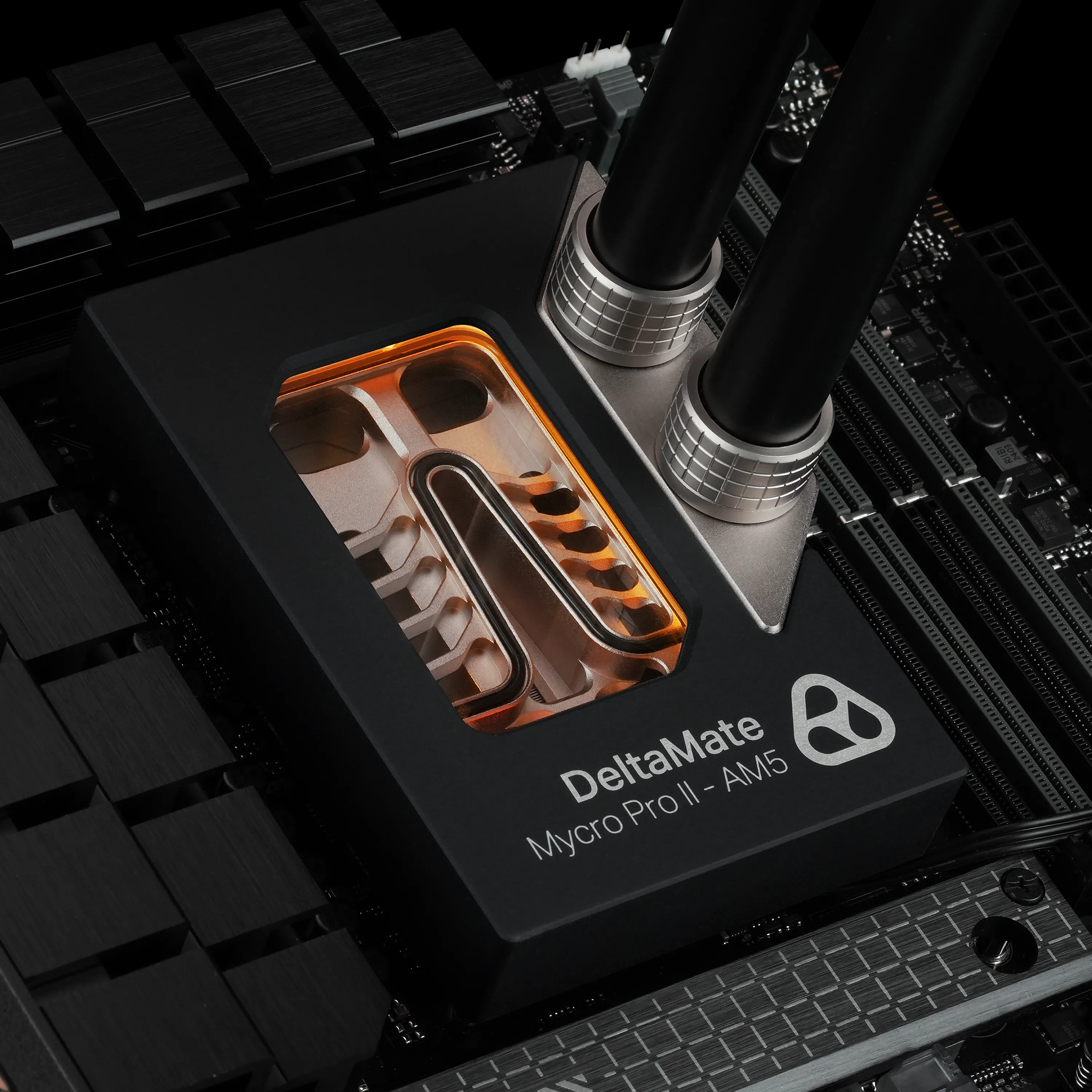

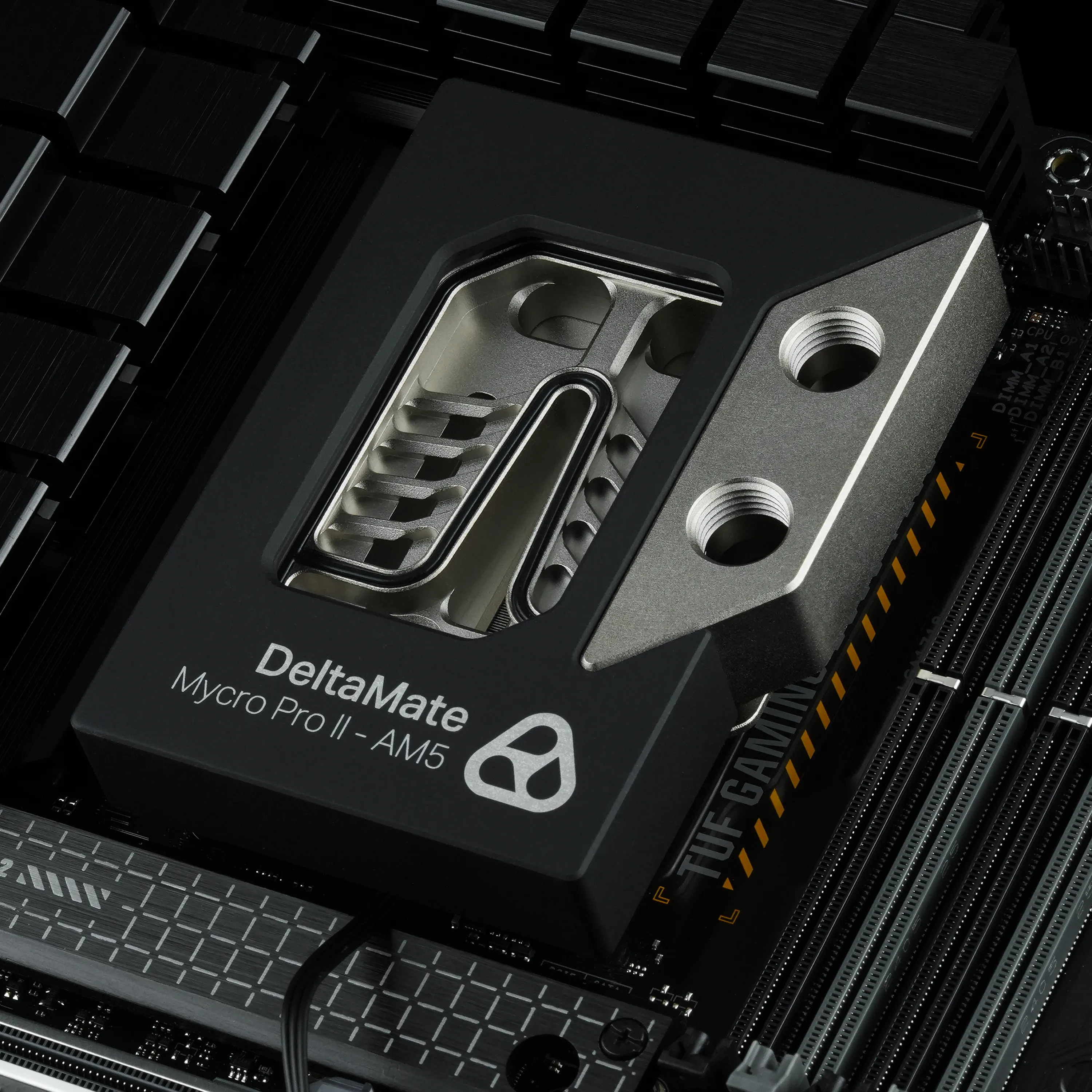

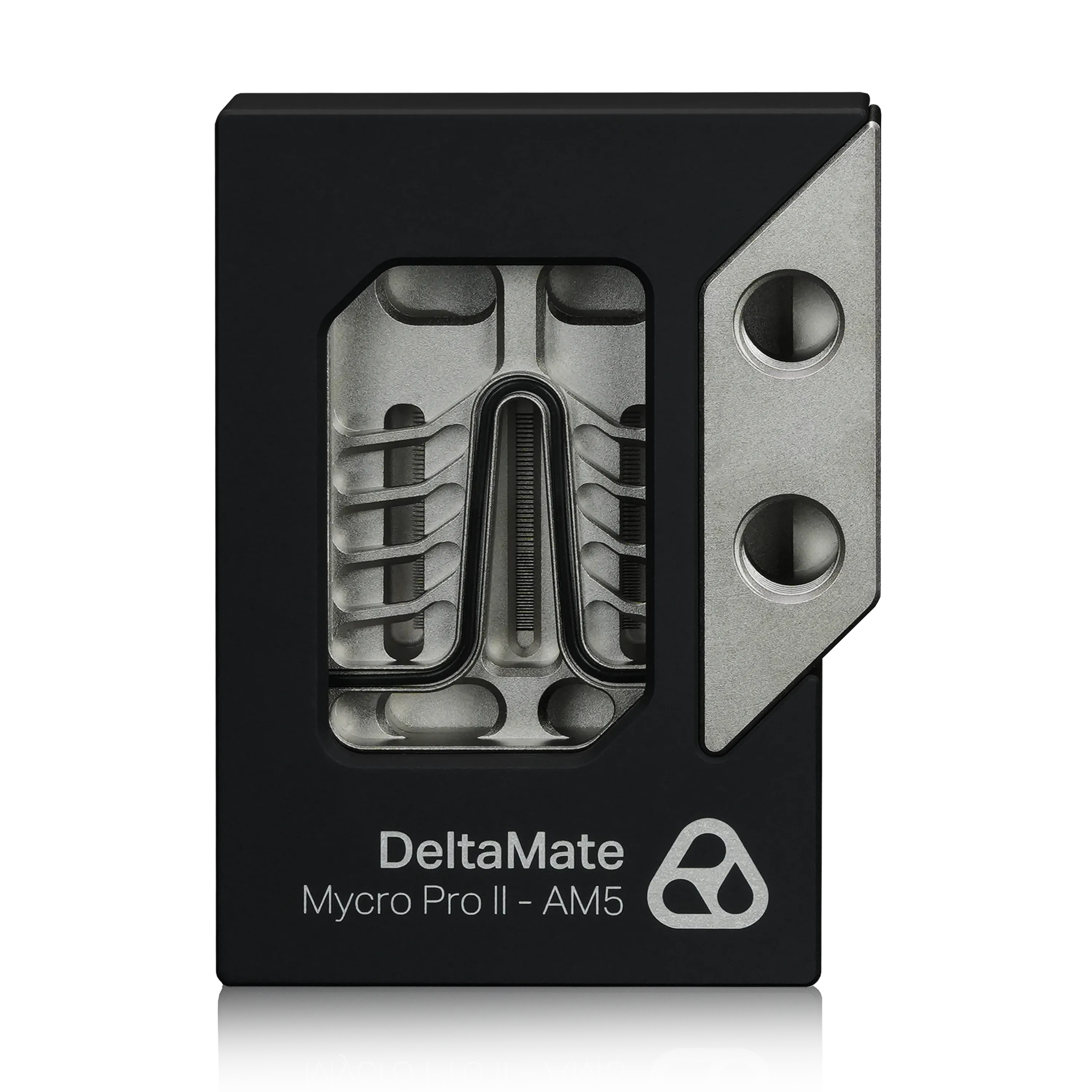

The G1/4-inch ports are offset toward the upper right in the solid brass housing and are designed to be especially robust. This offset arrangement also provides a clear view of the cooler structure through the borosilicate glass window. RGB LEDs highlight the elegant design of the water block and can be controlled via a 3-pin ARGB header (+5V/DATA/GND) through the motherboard.

The borosilicate glass refracts the light of the integrated RGB lighting differently than acrylic glass. After cutting with the waterjet cutter, the edges of the Schott BOROFLOAT® glass are sanded by hand, which enhances this effect. Borosilicate glass is also UV-resistant, highly scratch-resistant, and less susceptible to alcohol-based cleaners.

4.1_Content_MPII_AM5
4.2_Content_MPII_AM5

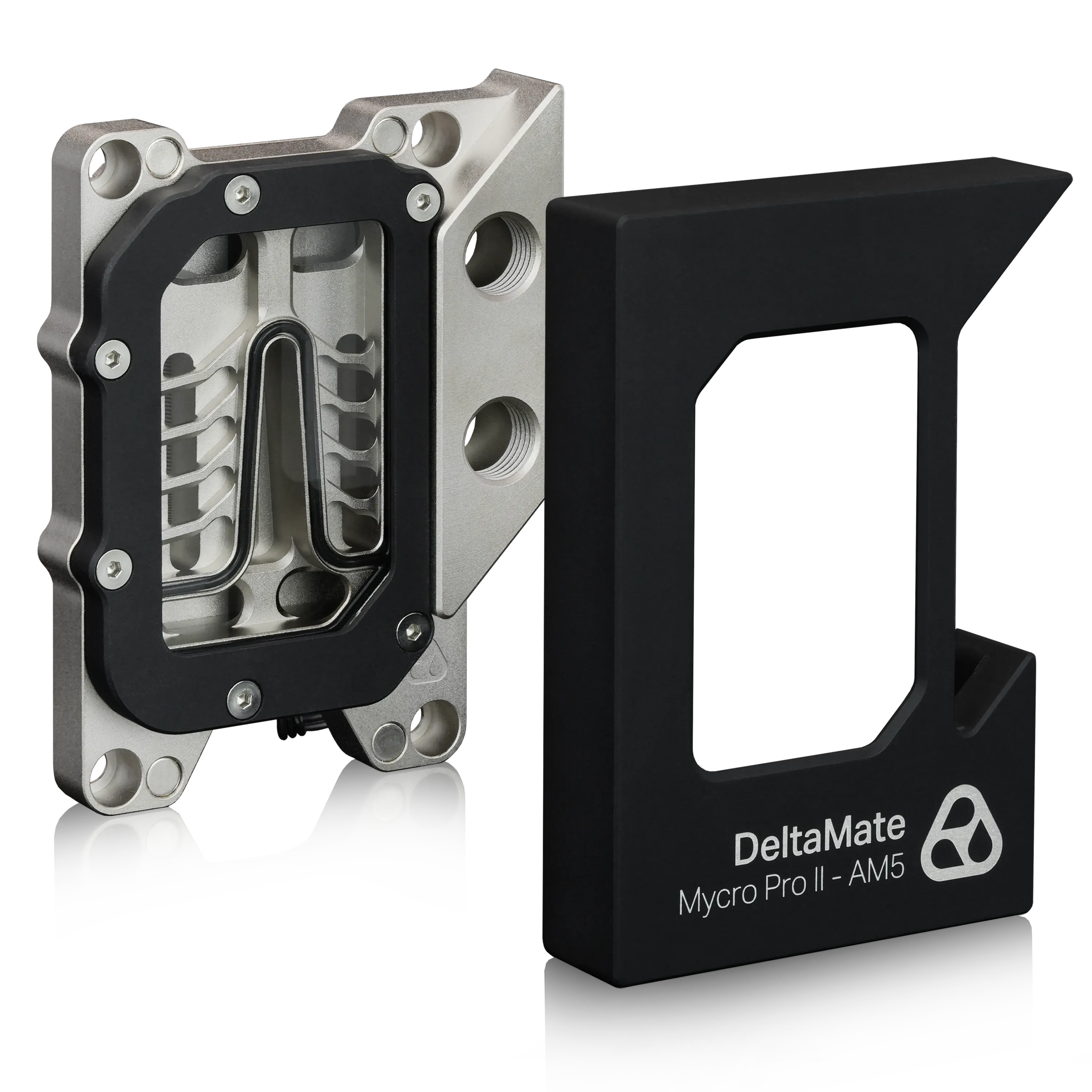

The included cover can be mounted magnetically on the water block. This allows the cooler to be installed in the system in two different visual configurations, depending on preference.

Product-Specific Notes

  • The DeltaMate CPU Block - MPII AM5 is compatible with the AM5 High Performance Heatspreader.
  • The G1/4-inch threads of the inlet and outlet ports are each 6 mm deep.

General Notes on Water-Cooling Products

  • Do NOT use in combination with water-cooling components made of aluminum where the coolant comes into contact with aluminum, such as radiators with aluminum tubing.
  • We recommend suitable coolants that contain biocides and corrosion inhibitors and are free of particles that could restrict water flow or clog the loop.
  • The custom water-cooling system should be tested for leaks with an air pressure tester for at least 1 hour before filling.
  • After filling, the system should be regularly inspected during the first 24 hours for any potential coolant leaks.

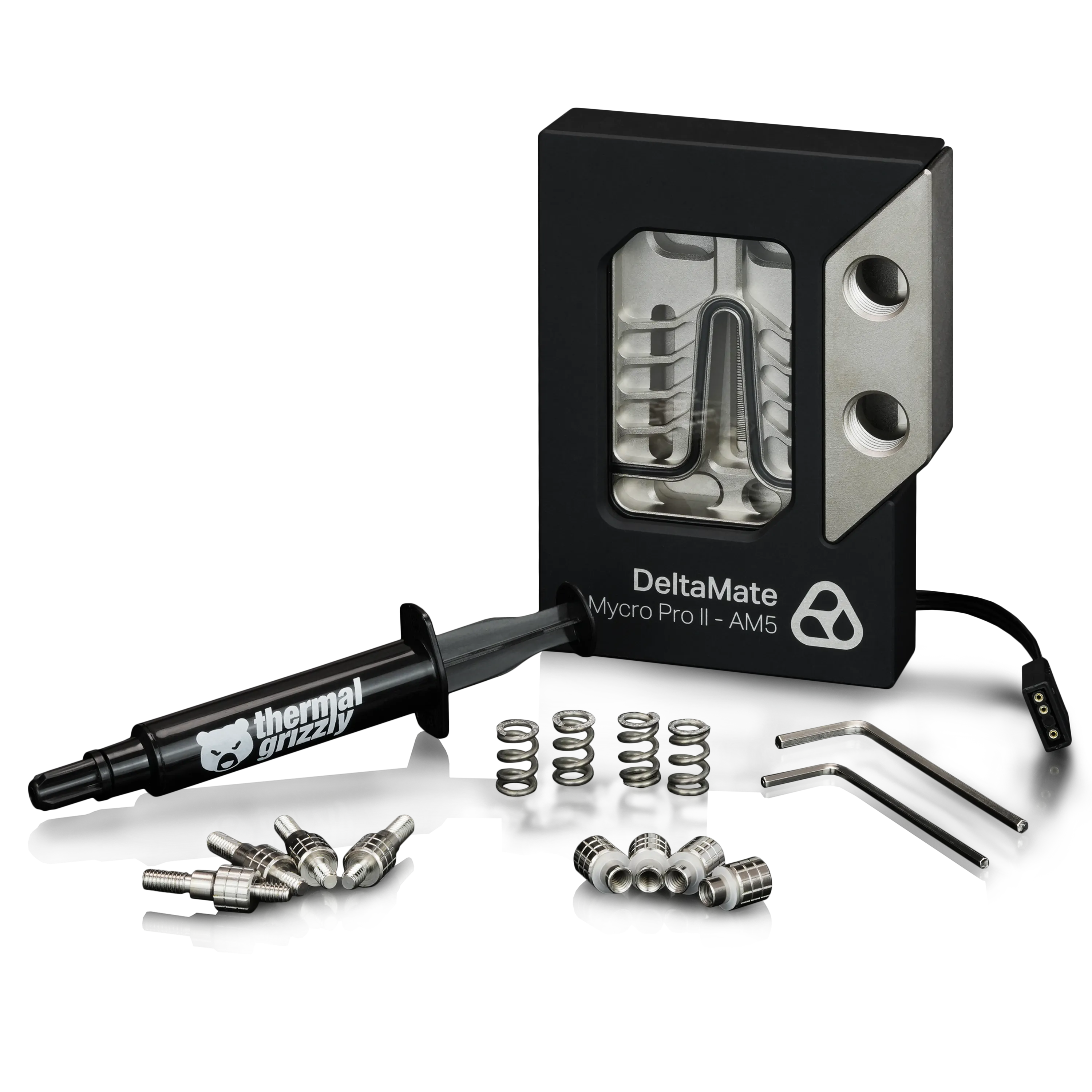

Scope of delivery

  • 1x Thermal Grizzly DeltaMate CPU Block - MPII AM5
  • 1x Duronaut, 6g
  • 1x Pressure test certificate for 1 bar
  • 1x Allen Key 2 mm
  • 1x Allen Key 2.5 mm
  • Mounting Kit:
    • 4x Knurled Nuts
    • 4x Standoff #6-32 Screws
    • 4x Steel Springs
    • 4x Polyamid M4 Washers
5_Content_MPII_AM5

Product information "DeltaMate CPU Block - MPII AM5 "

The Thermal Grizzly DeltaMate CPU Block - MPII AM5 is a premium CPU water block optimized for AMD’s AM5 socket and is backward compatible with socket AM4. It consists of four primary components: a nickel-plated Ultra-High-Performance cold plate, a solid nickel-plated brass housing, a viewing window made of borosilicate glass, and an anodized aluminum cover. The sealing O-rings used are made of high-quality EPDM rubber and are characterized by excellent durability, elasticity, and resistance to coolants, heat, and aging.

1_Content_MPII_AM5

Features

  • Ultra-High-Performance premium CPU water block for AMD sockets AM5 and AM4
  • Nickel-plated copper cooling plate with Ultra-High-Performance CCD microfins (0.2 mm)
  • Optimized flow distribution through I/O die microfins (0.4 mm)
  • Full-metal housing with an RGB-illuminated viewing window made of borosilicate glass
  • Particularly durable brass threaded inserts, including standard G1/4" ports
  • Included cover for optionally concealing all screws and the mounting system

Ultra-High-Performance-Coldplate

Thermal Grizzly’s Ultra-High-Performance cold plates for CPU and GPU coolers are milled with minimal and highly optimized slot and fin widths. In the case of the DeltaMate CPU Block - MPII AM5 Black, the cold plate features a hybrid structure on the nickel-plated copper cooling plate. Above the CCDs, the slot and fin width of the 25 fins measure 0.2 mm each. This high number of thin fins provides a very large surface area on which the coolant can dissipate heat quickly and efficiently. In the upper area above the I/O die, 29 fins with a width of 0.4 mm are used for optimized flow distribution.

2_Content_MPII_AM5
thermal_conductivity_TG
maximum heat Dissipation

long_term_durability_TG
stable cpu temperatures

microfin_TG
optimized microfin structure

argb_TG
addressable RGB lighting

3_Content_MPII_AM5

DeltaMate CPU Block with RGB and Schott BOROFLOAT® Glass

The G1/4-inch ports are offset toward the upper right in the solid brass housing and are designed to be especially robust. This offset arrangement also provides a clear view of the cooler structure through the borosilicate glass window. RGB LEDs highlight the elegant design of the water block and can be controlled via a 3-pin ARGB header (+5V/DATA/GND) through the motherboard.

The borosilicate glass refracts the light of the integrated RGB lighting differently than acrylic glass. After cutting with the waterjet cutter, the edges of the Schott BOROFLOAT® glass are sanded by hand, which enhances this effect. Borosilicate glass is also UV-resistant, highly scratch-resistant, and less susceptible to alcohol-based cleaners.

The included cover can be mounted magnetically on the water block. This allows the cooler to be installed in the system in two different visual configurations, depending on preference.

4.1_Content_MPII_AM5
4.2_Content_MPII_AM5

Product-Specific Notes

  • The DeltaMate CPU Block - MPII AM5 is compatible with the AM5 High Performance Heatspreader.
  • The G1/4-inch threads of the inlet and outlet ports are each 6 mm deep.

General Notes on Water-Cooling Products

  • Do NOT use in combination with water-cooling components made of aluminum where the coolant comes into contact with aluminum, such as radiators with aluminum tubing.
  • We recommend suitable coolants that contain biocides and corrosion inhibitors and are free of particles that could restrict water flow or clog the loop.
  • The custom water-cooling system should be tested for leaks with an air pressure tester for at least 1 hour before filling.
  • After filling, the system should be regularly inspected during the first 24 hours for any potential coolant leaks.

Scope of delivery

  • 1x Thermal Grizzly DeltaMate CPU Block - MPII AM5
  • 1x Duronaut, 6g
  • 1x Pressure test certificate for 1 bar
  • 1x Allen Key 2 mm
  • 1x Allen Key 2.5 mm
  • Mounting Kit:
    • 4x Thumb Nuts
    • 4x Standoff #6-32 Screws
    • 4x Steel Springs
    • 4x Polyamid M4 Washers
5_Content_MPII_AM5
Downloads "DeltaMate CPU Block - MPII"
Color: black
Lighting: digital aRGB LEDs
Material: Aluminum, EPDM rubber, Glass, nickel-plated brass, nickel-plated copper
Max. operating pressure: 1 bar (at 20°C)
Socket manufacturer: AMD
Socket type: AM5
Threading: G1/4" female
