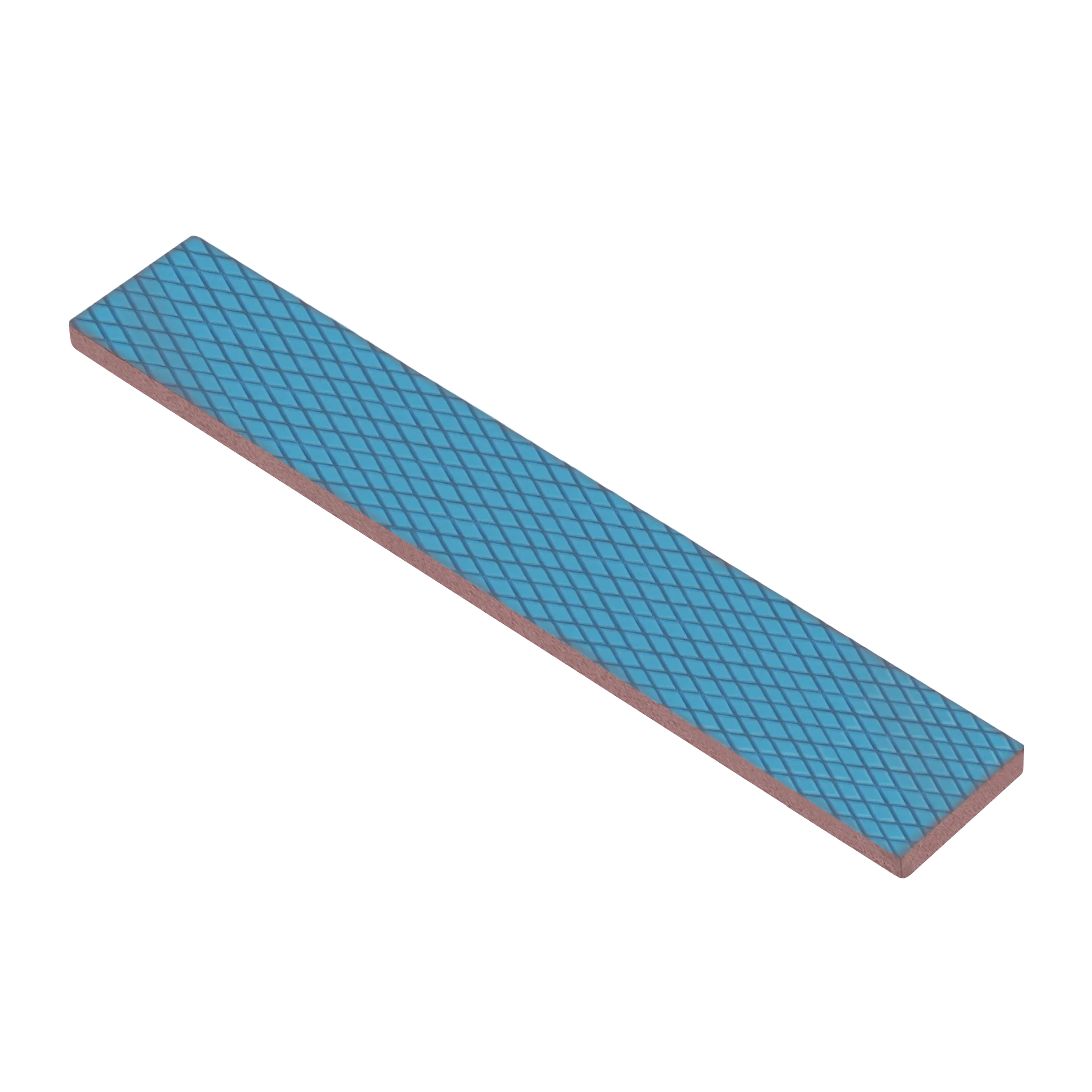

Minus Pad Extreme
The ultra-high performance minus pad extreme has a highly flexible surface with very high thermal conductivity.
Even the smallest differences in the components can be compensated very well and ensure optimal heat transfer.
Product number:
S-TG-MPE-120-20-05
EAN:
4260711990496
MPN:
TG-MPE-120-20-05
Product information "Minus Pad Extreme
- 120 x 20 mm
- 0.5 mm"
The minus pad extreme thermal pad is silicone based with modelling clay like consistency. This allows a perfect surface shaping with maximum possible compression. The minus pad extreme is electrically insulating.
Due to the consistency only one-time use is recommended. The thermal conductivity was improved by about 260 % over the minus pad 8 which allows best cooling for tough cooling operations such as voltage regulators and memory ICs.
- Most excellent thermal conductivity
- No bleeding
- long-term stability
- high compression rate
The minus pad extreme is available in size 120 x 20 mm and 100 x 100 mm with thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.
Downloads "Minus Pad Extreme"

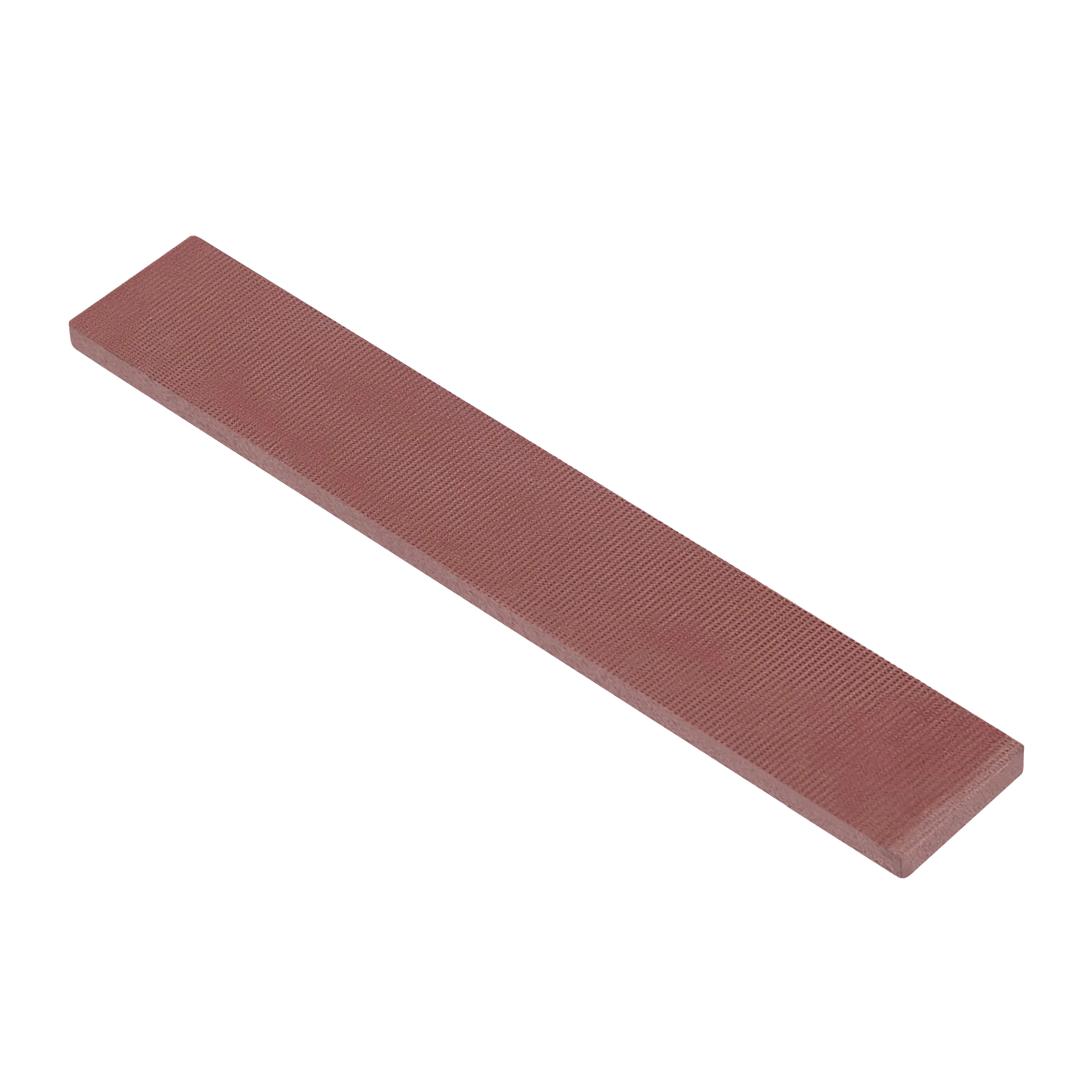

| Color: | blue, pink |
|---|---|
| Degree of hardness: | Shore 00-65 |
| Density: | 3.38g/cm³ |
| Electrically insulating: | Yes(8KV/mm ASTM D149) |
| Flammability: | V-0 |
| Operating temperature: | -100°C to +200°C |
| Size: | 120 x 20 mm |
| Thickness: | 0.5 mm |
