The WireView Pro II - Noctua Edition offers the full feature set of the WireView Pro II. This includes individual measurement of each 12V line (per-pin measurement), allowing the graphics card's current, voltage, temperature, and power consumption to be continuously monitored. If individually configurable limits are exceeded, the WireView Pro II - Noctua Edition can issue visual and audible warnings.
The included splitter cable can also be used to configure an automatic system shutdown. The integrated memory function automatically records measurement data. This allows parameters such as power consumption, power, and temperature to be analyzed retrospectively. Optional software is also available for configuration and data analysis. However, the device can also be used completely without software.
Noctua Cooling Solution for Quieter Operation

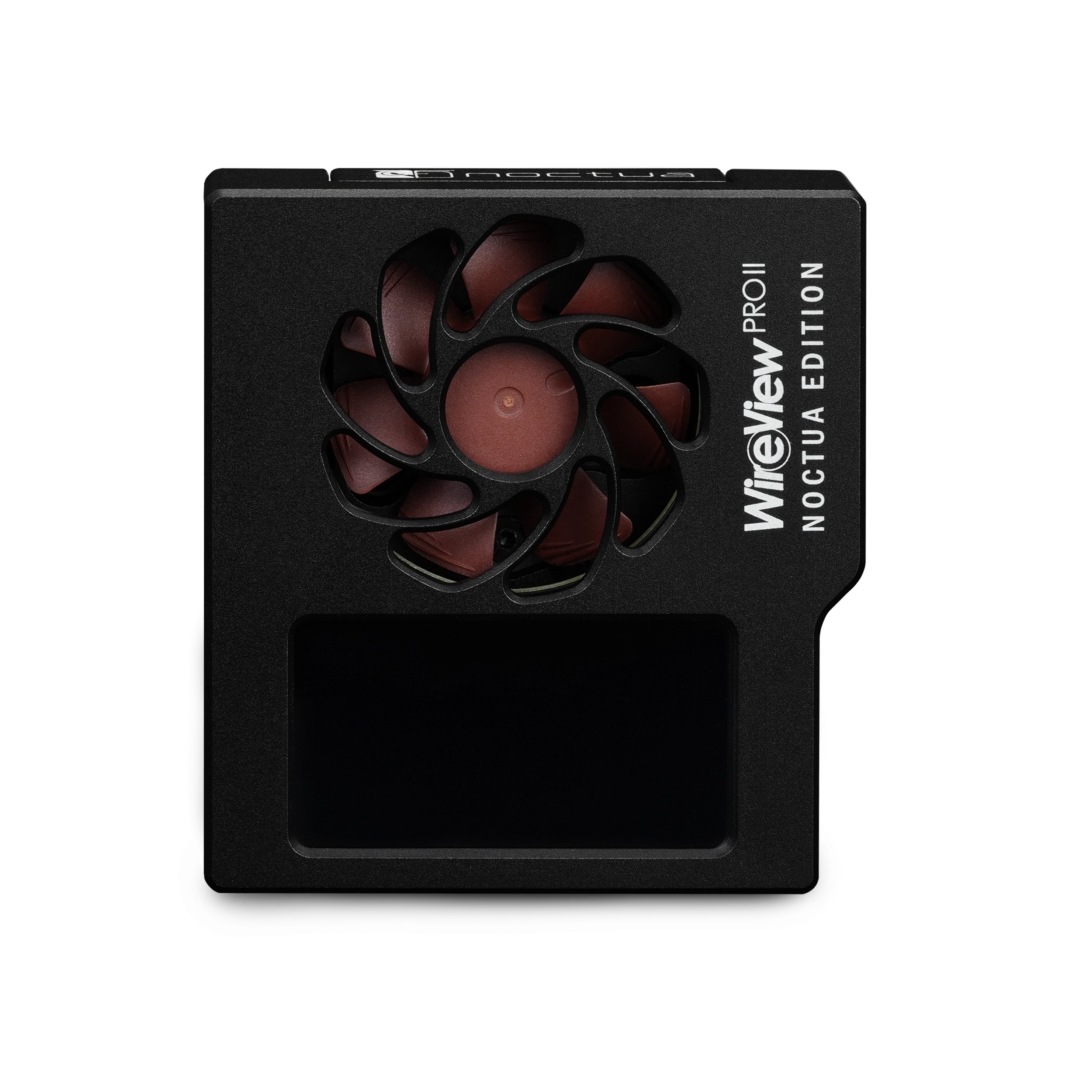

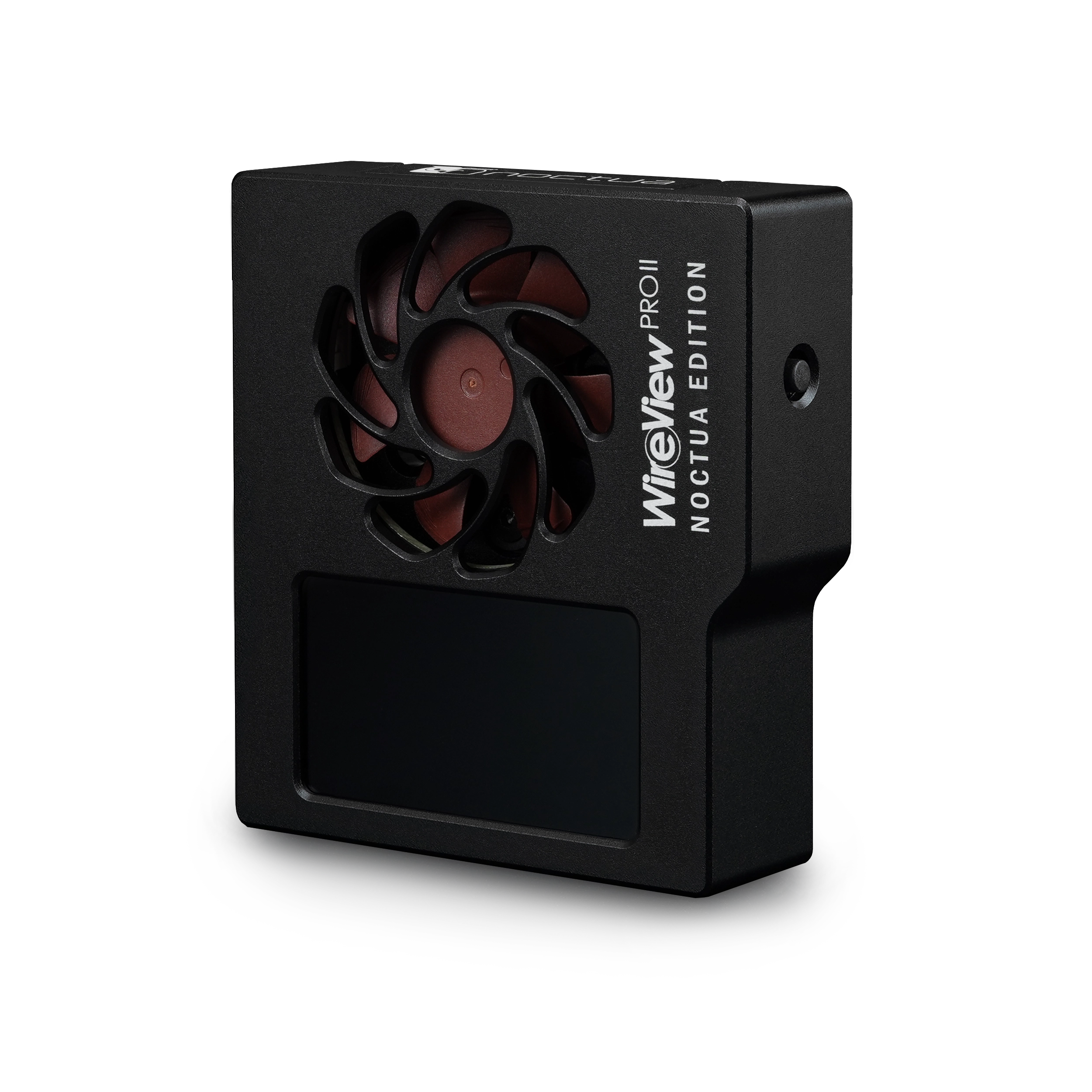

The Noctua Edition adds a Noctua NF-A4x10 PWM fan and a specially adapted cooling system to the WireView Pro II. The enlarged CNC-machined aluminum housing provides additional space for heat dissipation. An additional cooling plate with a thermal pad improves thermal transfer within the housing. The fan operates semi-passively and is activated depending on temperature and load. The specially developed fan grille is designed specifically for the Noctua fan used. Internal tests conducted by Noctua show that the Noctua Edition achieves improved heat dissipation compared to the standard version under particularly high thermal conditions. When active, it also operates at lower noise levels. A test of the Noctua Edition compared to a standard WireView Pro II conducted by Noctua can be found at the following link:
Noctua-Specific Design, Installation & Extended Warranty

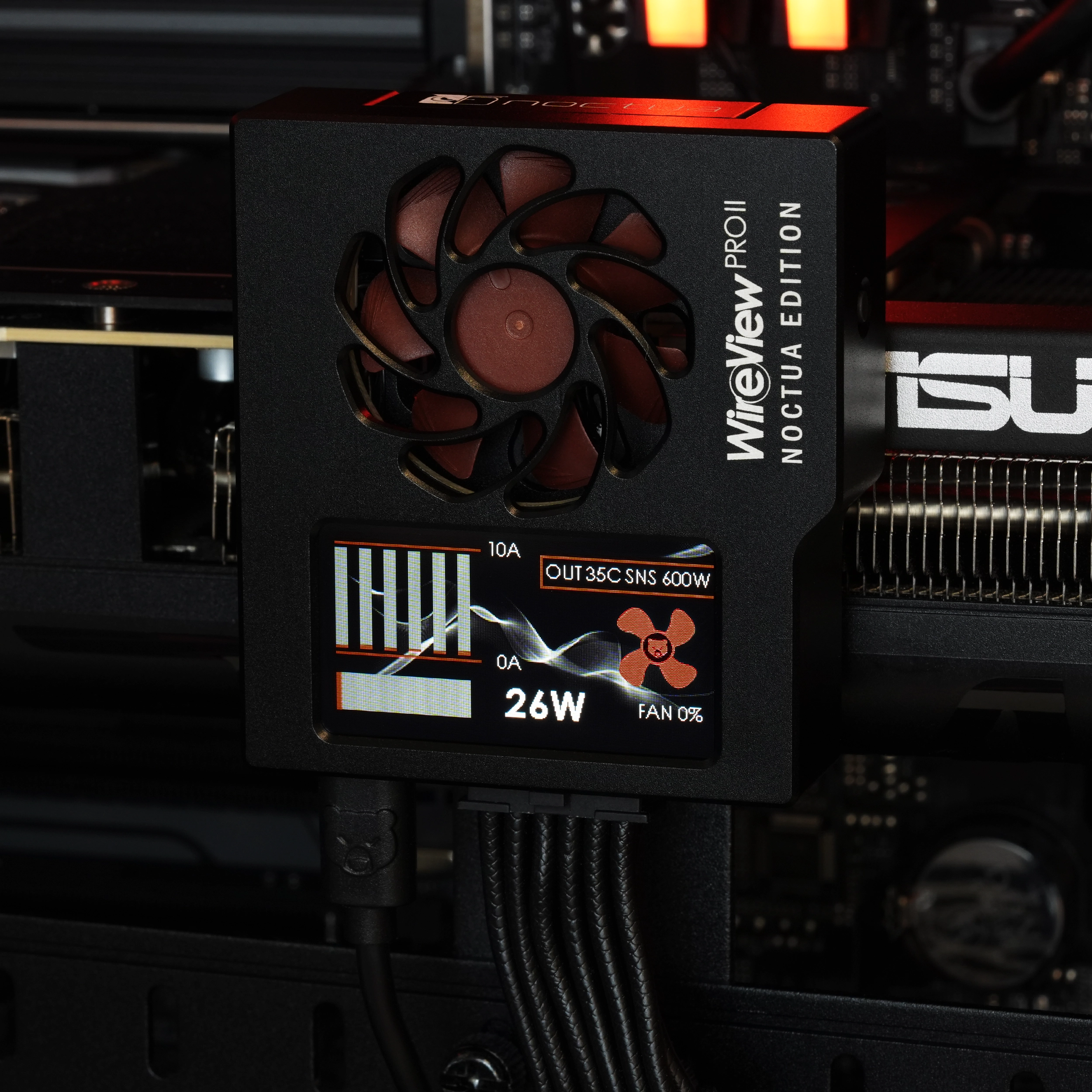

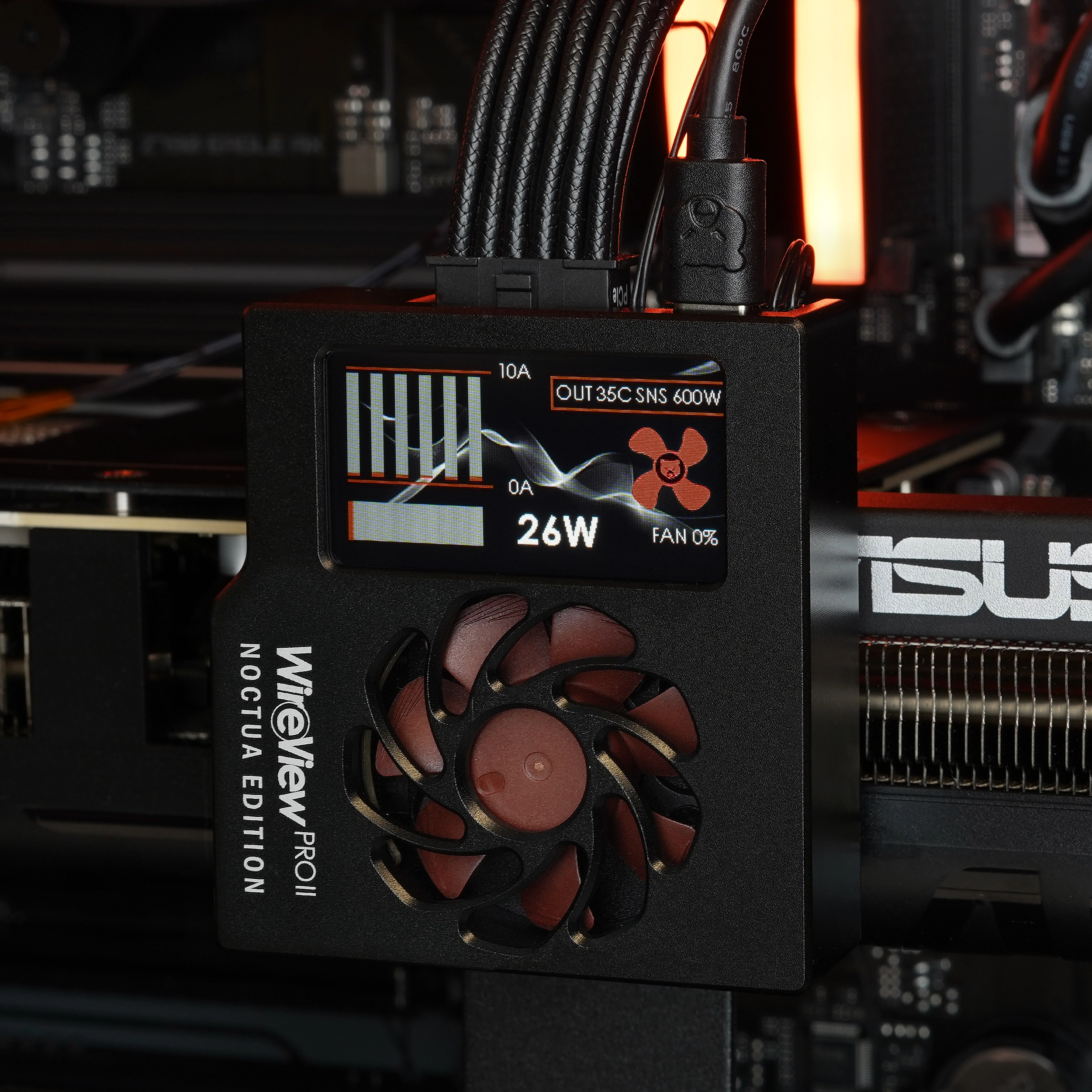

The Noctua Edition also differs visually from the standard version. The TFT IPS display features a specially adapted Noctua design and can be used with various display layouts. The display can also be rotated by 180°, allowing the orientation to be adjusted to the respective installation position.
The WireView Pro II - Noctua Edition is available in Normal (N) and Reversed (R) variants. Depending on the graphics card and cable routing, this allows for clean cable routing downwards. An additional 90° adapter provides further flexibility when positioning the connector. Before purchasing, the compatibility list and technical drawing should be checked to ensure that the selected variant is suitable for the graphics card and planned installation.
Like the WireView Pro II, the Noctua Edition also comes with the extended two-year warranty for damage to the graphics card's 12VHPWR or 12V-2x6 connector, provided that the applicable conditions are met. With the WireView Pro II - Noctua Edition, Thermal Grizzly combines the extensive monitoring and measurement features of the WireView Pro II with a specially developed Noctua cooling solution and an adapted design.
