Contact Sealing Frame
Combination of contact frame and CPU guard

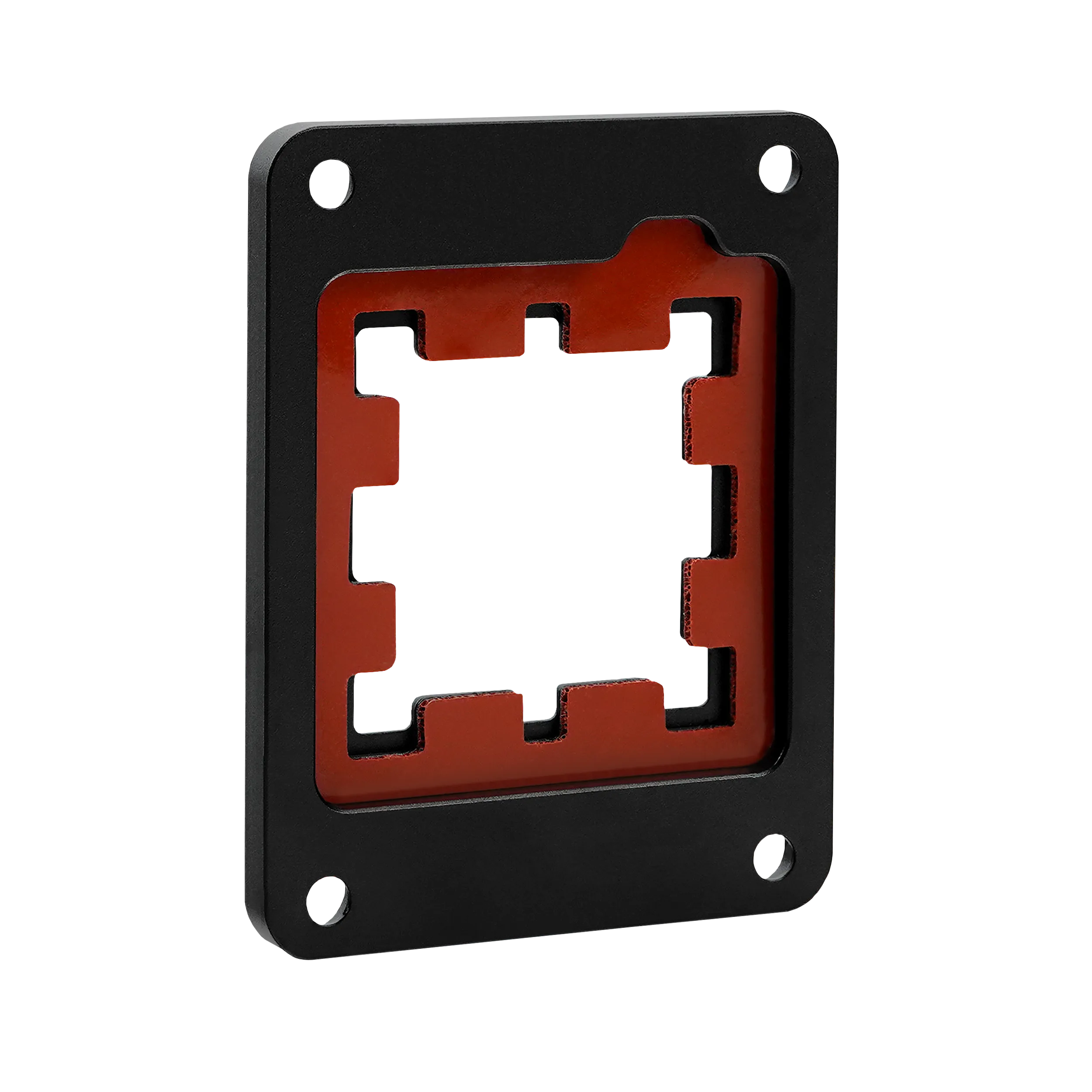

The AM5 Contact & Sealing Frame is a combination of Contact Frame and CPU-Guard for AMD's Ryzen-7000 processors. As a Contact Frame, the AM5 Contact & Sealing Frame creates optimal contact pressure of the CPU into the socket, while an optional, included inlay made of silicone foam serves to protect the exposed components on the CPU.
- Encloses the heatspreader
- Replaces the SAM of the mainboard
- Made of anodized aluminium
Optimized Inner Contour for Even Pressure Distribution

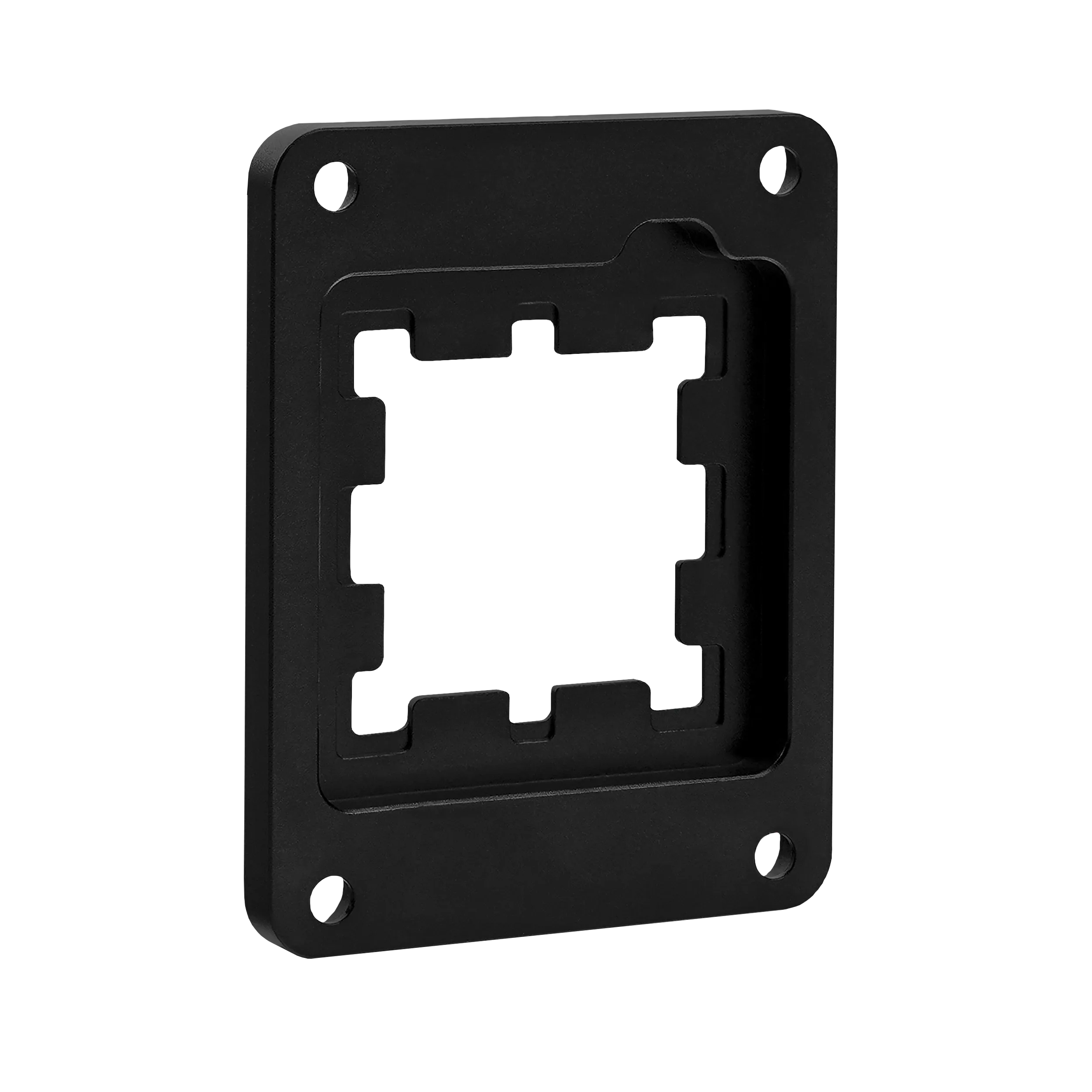

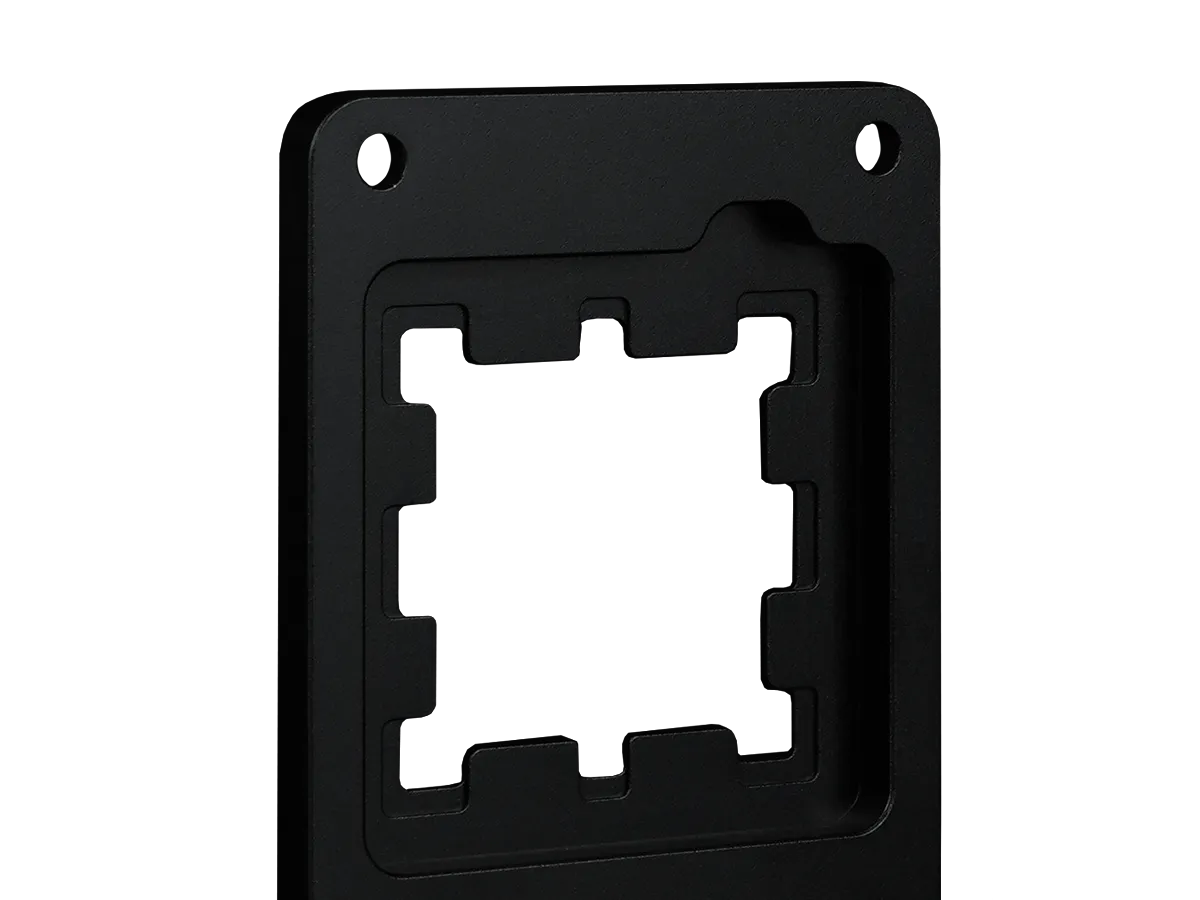

The precision-milled inner contour of the AM5 Contact & Sealing Frame creates multiple contact points to the heatspreader compared to the standard SAM. These contact points distribute the contact pressure on the CPU evenly. This ensures that the contact surfaces of the CPU rest uniformly on the pins of the socket. For example, problems with the detection of system memory can be avoided this way.
Innovative Silicone Foam Inlay for Protection and Sealing

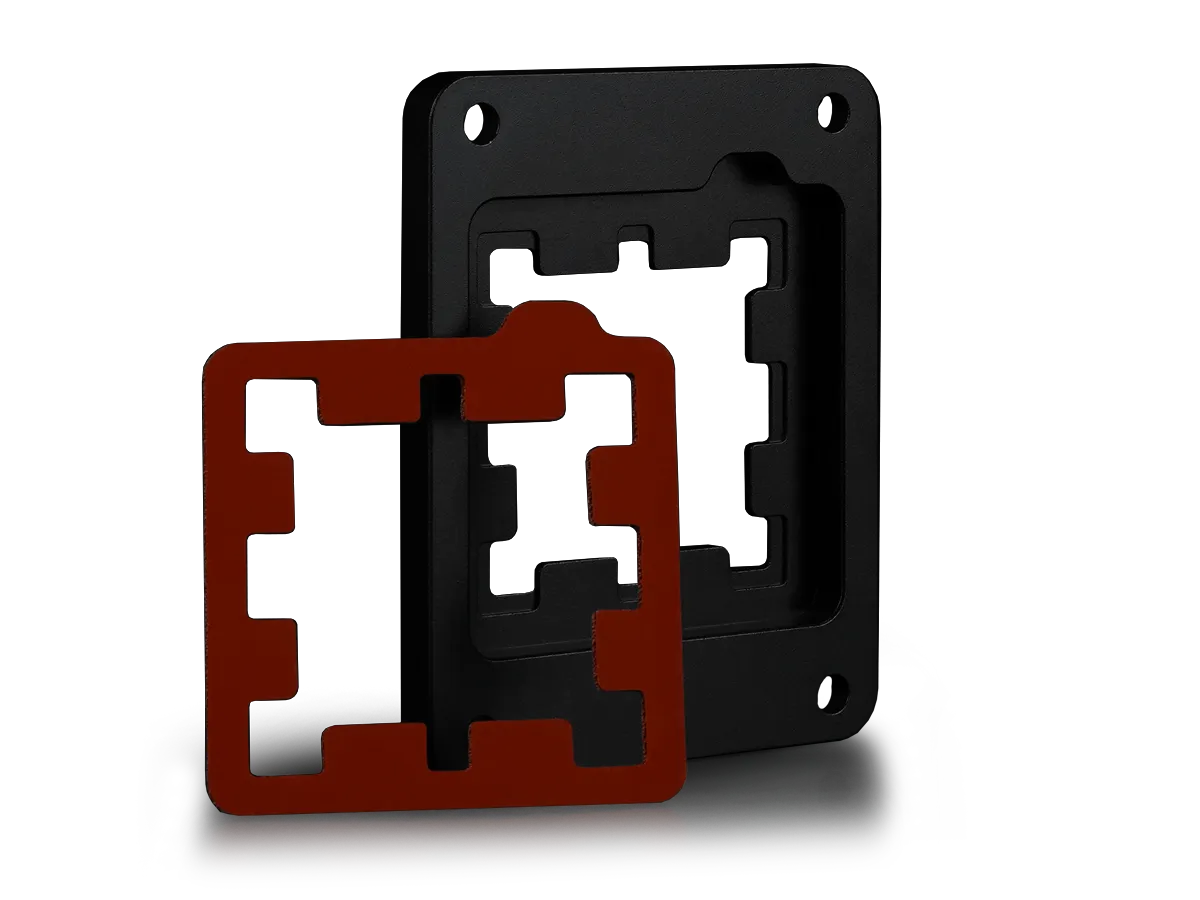

The AM5 Contact & Sealing Frame comes with a silicone foam inlay. This can be placed on the PCB of the processor, similar to the AMD Ryzen 7000 CPU Guard. When installing the AM5 Contact & Sealing Frame, the gap between the heatspreader and the aluminium frame is sealed by the silicone foam by pressing the foam onto the PCB. This prevents thermal paste or liquid metal from getting onto the CPU's unprotected components. The foam inlay is optional when used with thermal pastes, but mandatory when used with liquid metal.
User-Friendly Assembly with Clear Marking and Compatibility

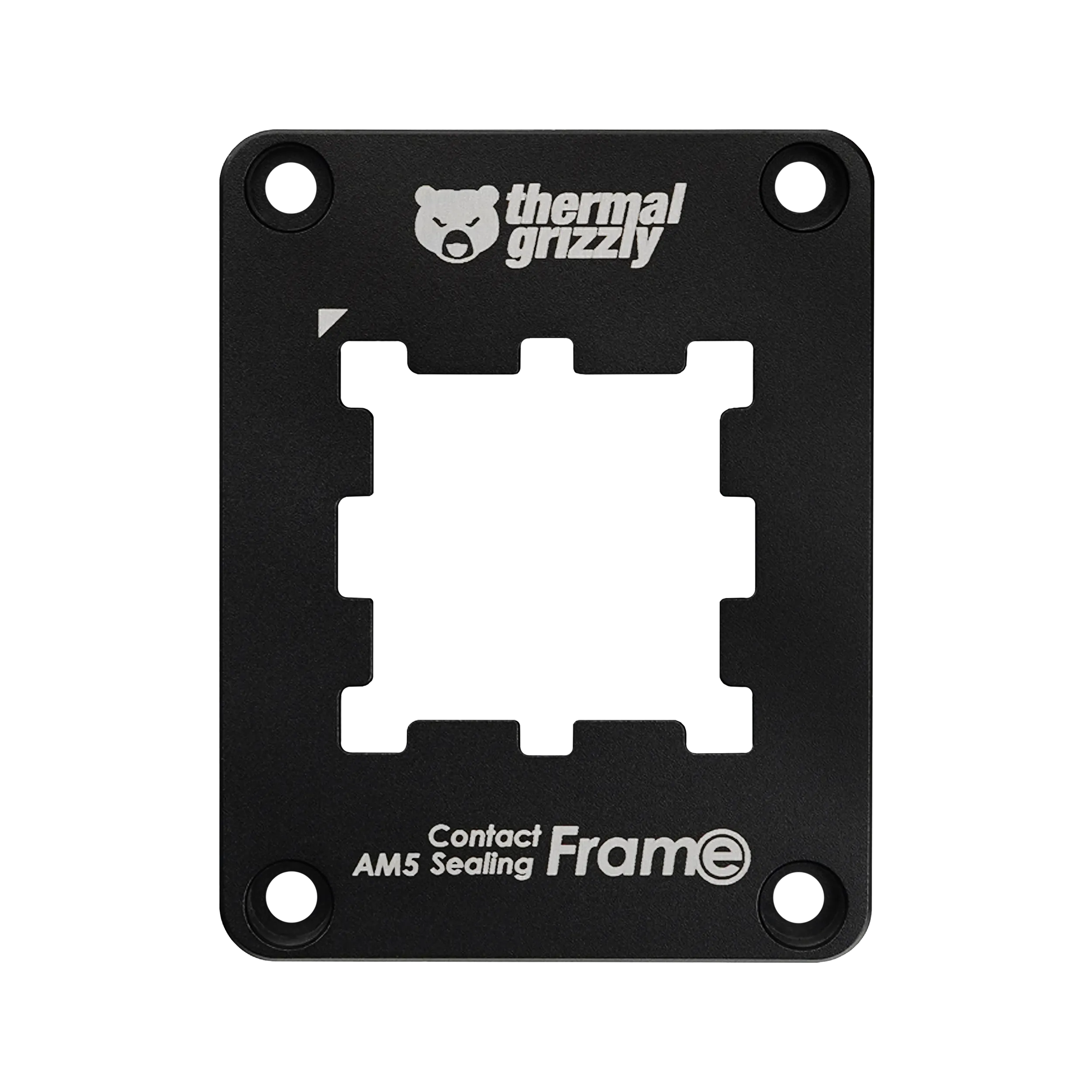

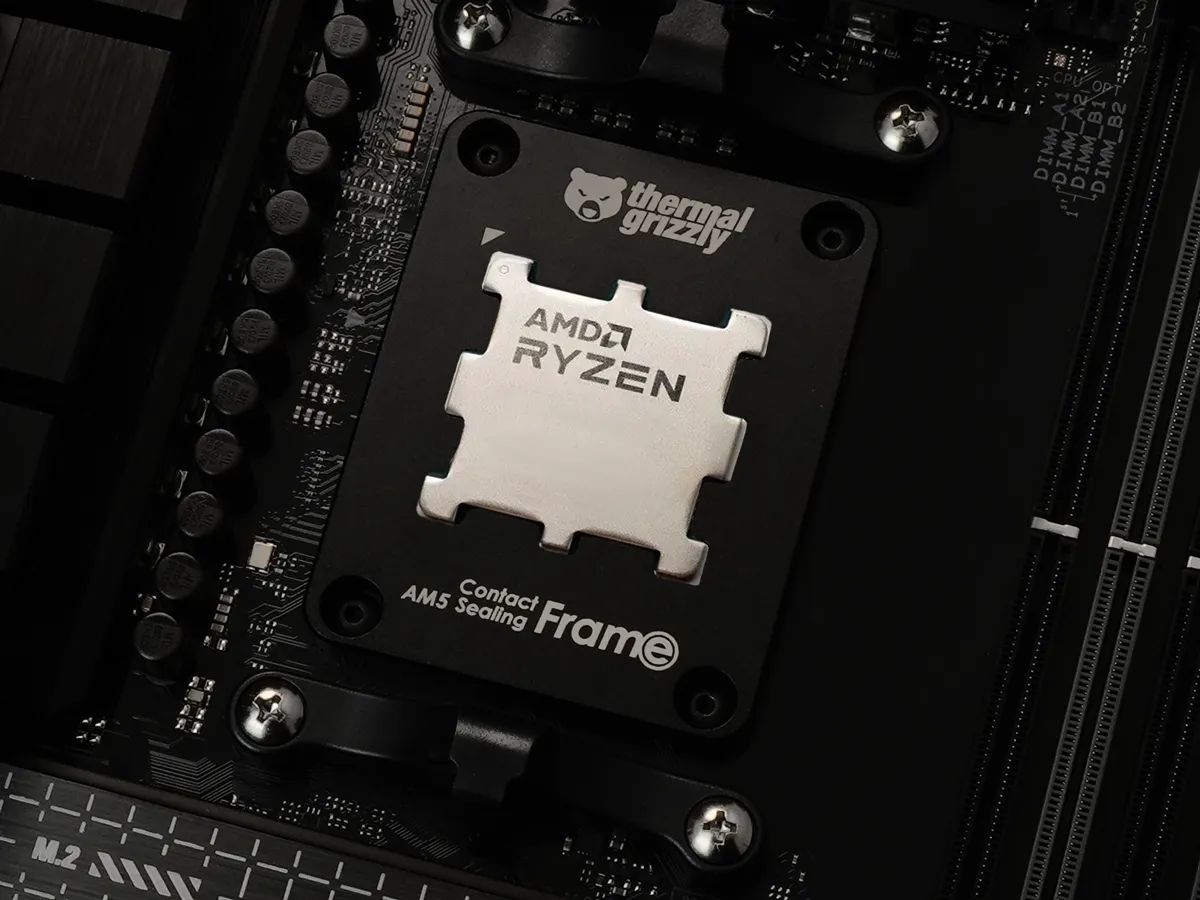

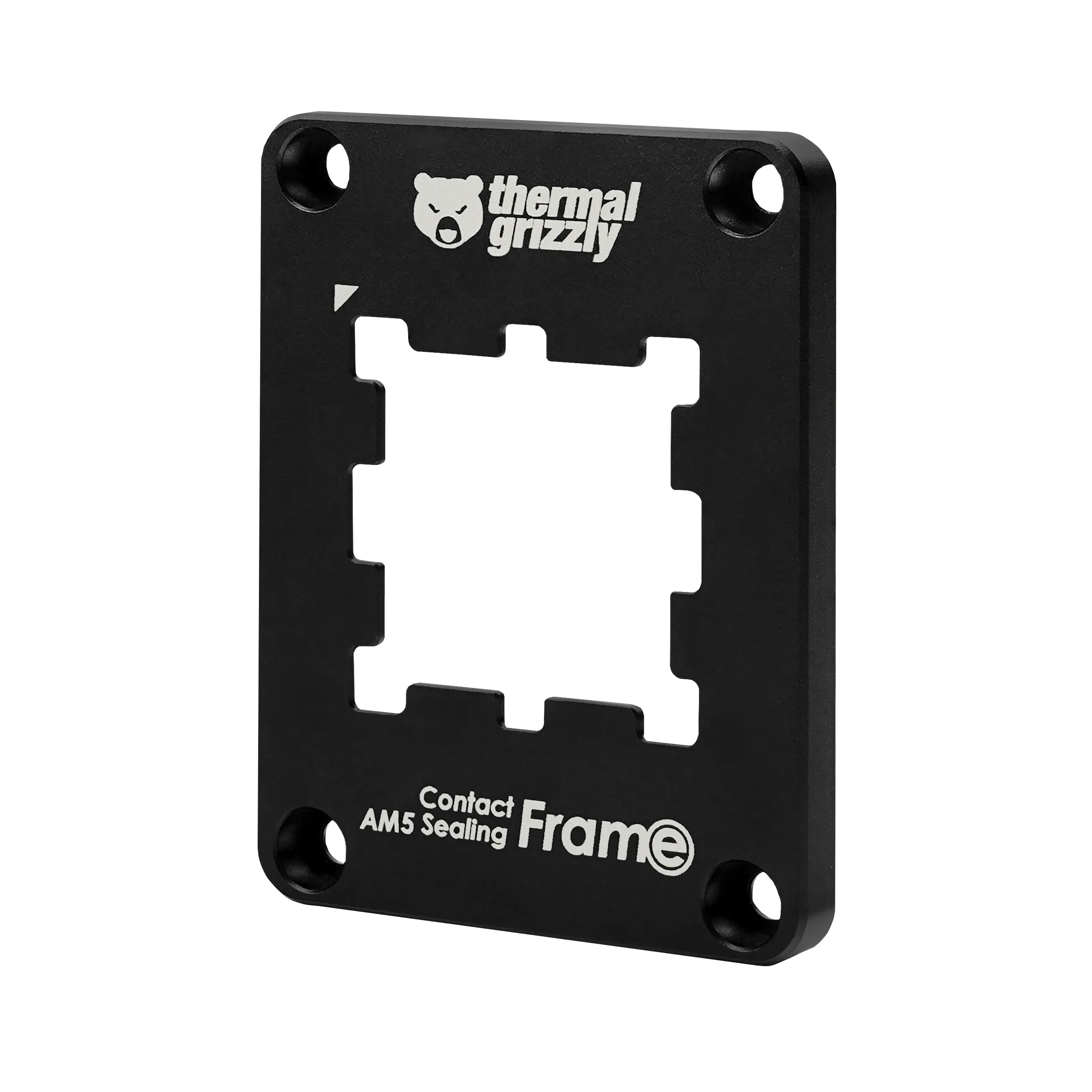

To simplify installation, there is a corresponding marking on the top of the AM5 Contact & Sealing Frame. Since the socket has a bulge on the upper - the "northern" - edge, mounting is only possible in one orientation. Four screws are included for mounting the frame and compatibility with the Thermal Grizzly AM5 backplates is given.
Ryzen 8X00G Compatibility
Note: The AM5 Contact & Sealing Frame is compatible with the APUs of the Ryzen 8X00G series. Further information on the compatibility of the AMD Ryzen 5 8500G, AMD Ryzen 5 8600G and AMD Ryzen 7 8700G with our products can be found in the following video: “AMD Ryzen 8000 Delidded - Liquid Metal Changes Everything!”
Note on Ryzen 9000 compatibility
According to initial internal tests, the AM5 Contact & Sealing Frame is compatible with AMD's Ryzen 9000 processor series. The compatibility test only includes the normal 9000 CPUs. Ryzen 9000X3D CPUs will be tested as soon as available.
Attention: Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!

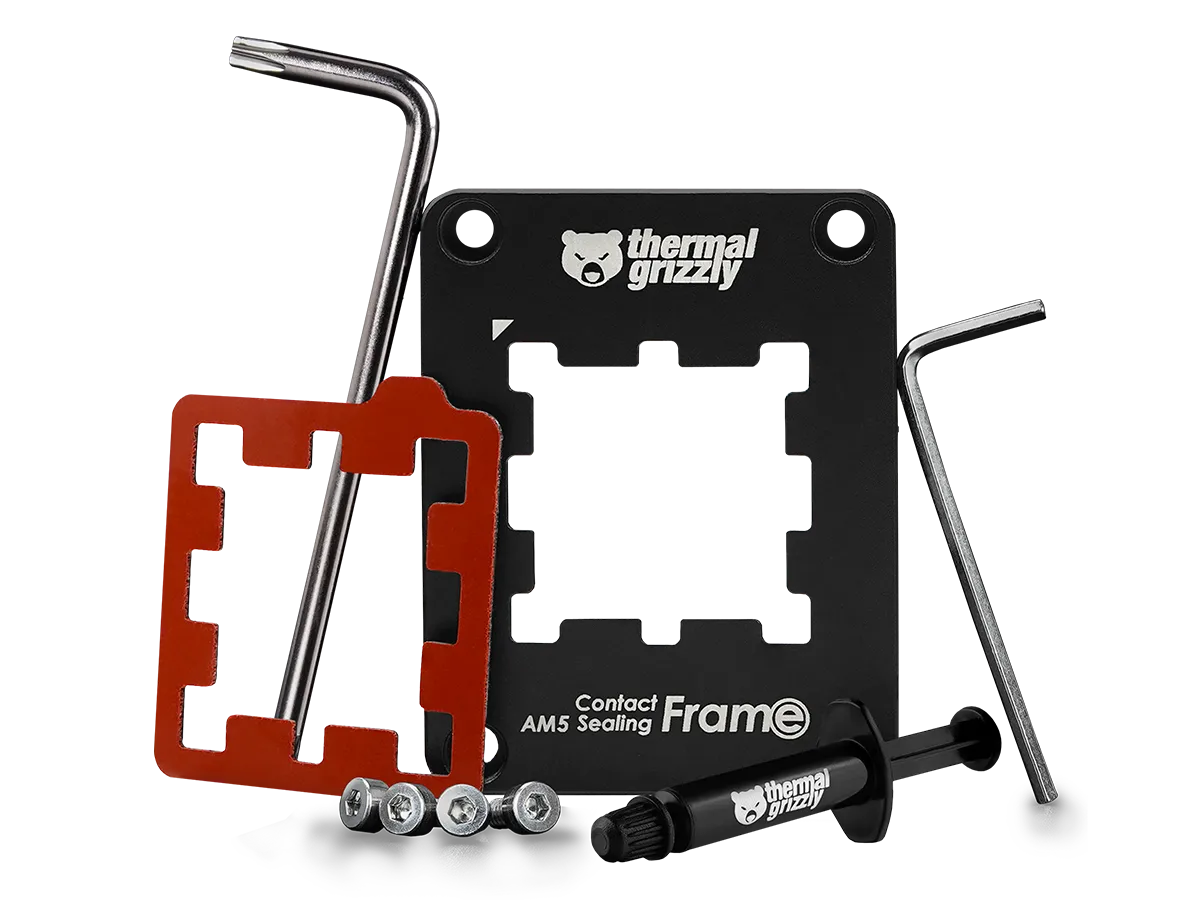

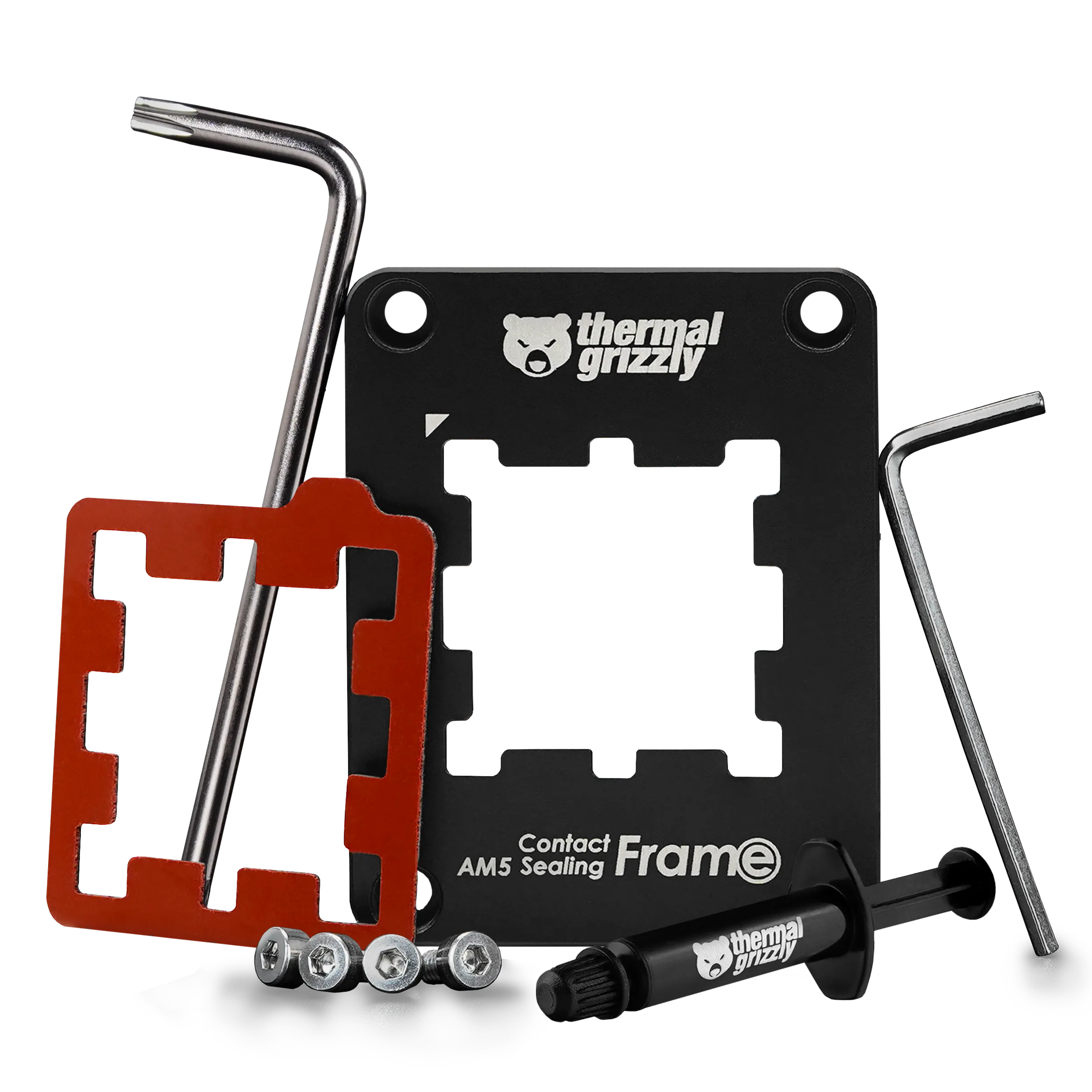

Scope of delivery

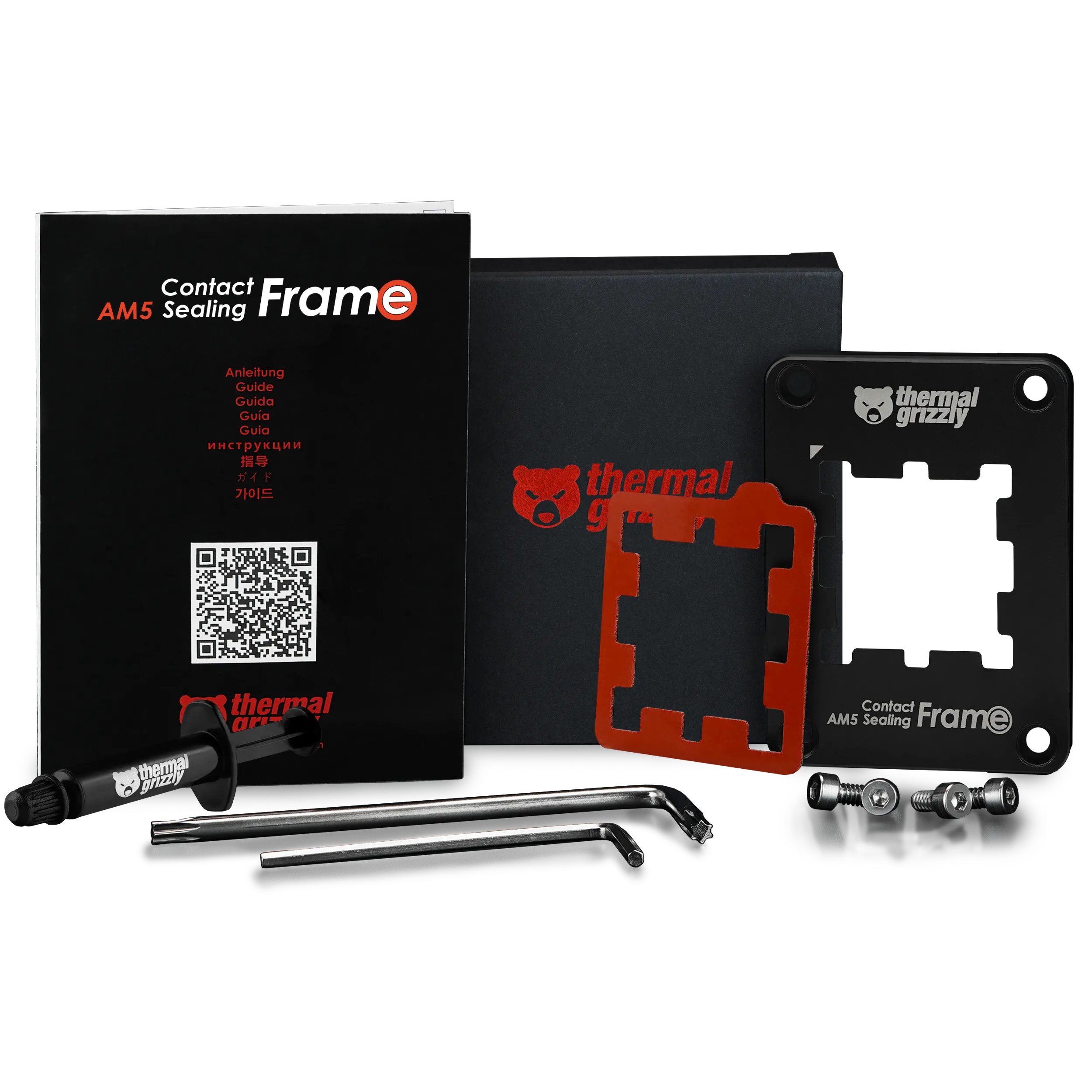

- 1x AM5 Contact & Sealing Frame
- 1x Insulator Sheet Red/Black
- 4x pan-head screws UNC thread 1/4"
- 1x hexagon socket wrench 5/64"
- 1x angle wrench Torx T20
Color: | black |
---|---|
Material: | Aluminum |
Socket manufacturer: | AMD |
Socket type: | AM5 |
