CPU Contact Frame

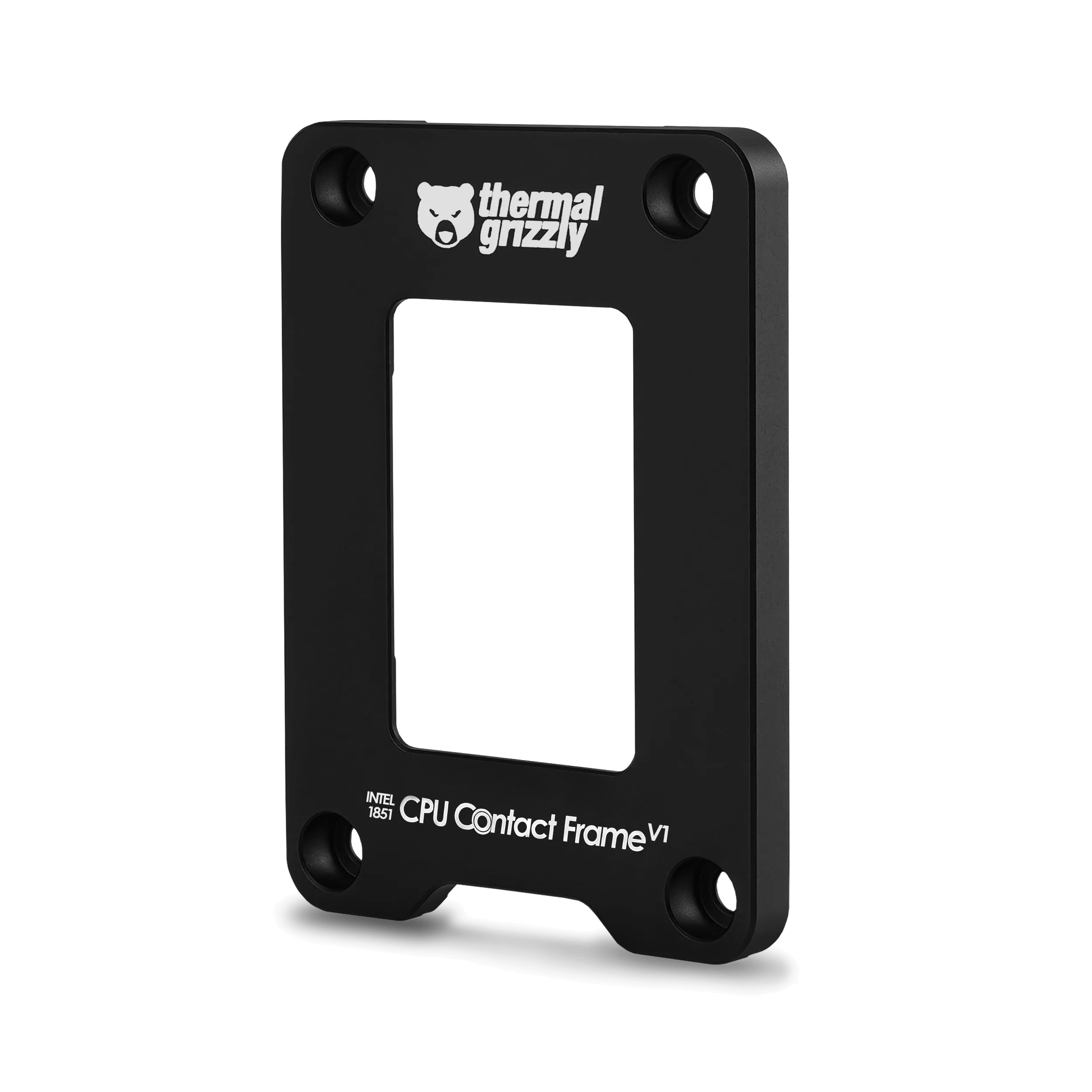

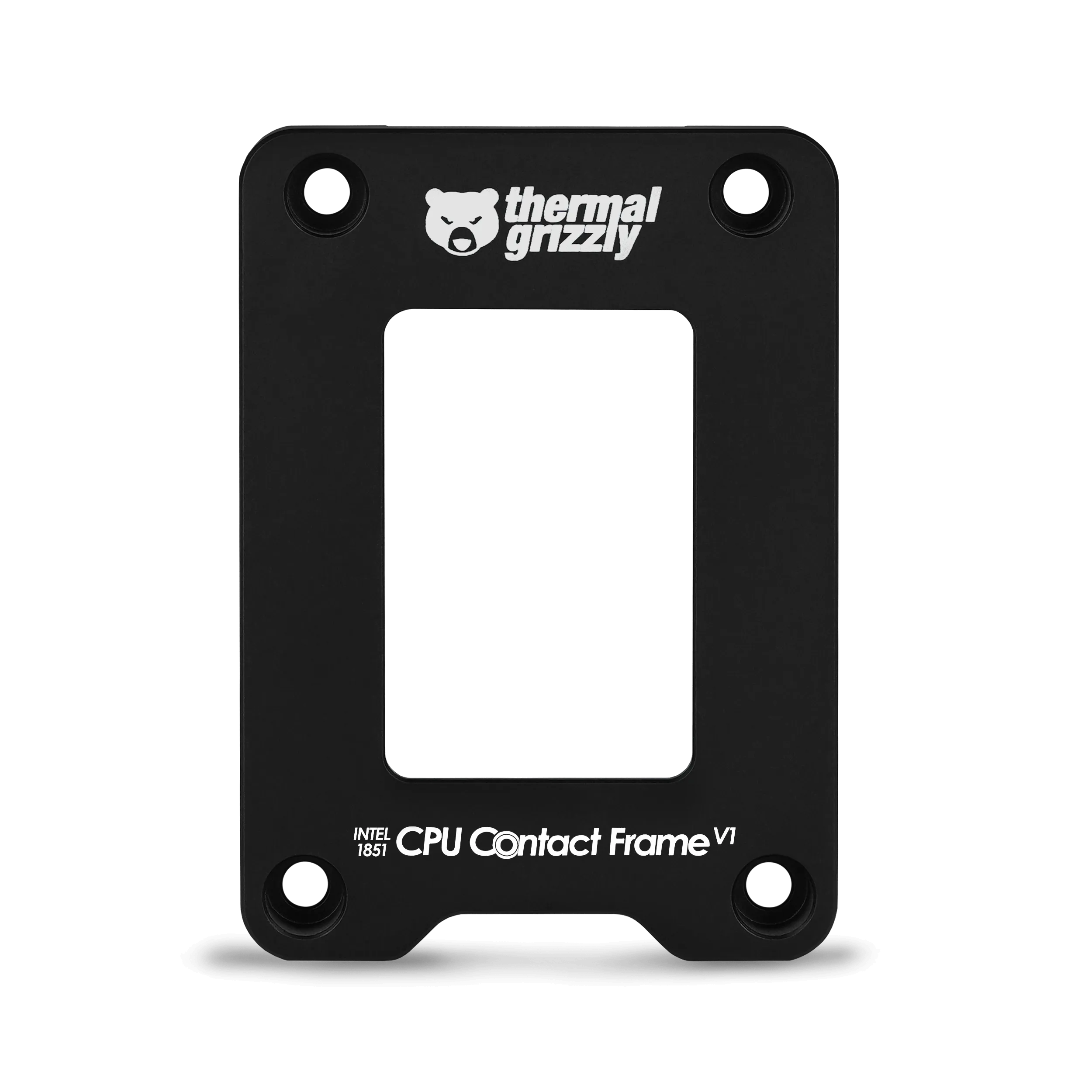

The Thermal Grizzly Intel 1851 CPU Contact Frame V1 is a mounting aid for Intel motherboards with the LGA1851 socket. The contact frame replaces the standard ILM of the motherboard, optimizing the pressure applied to the CPU in the socket. This improves heat transfer from the CPU heat spreader to the CPU cooler.

$36.15

Content: 1 pcs.

Prices incl. VAT plus shipping costs

CPU Type
EAN: 4260711991103
MPN: TG-CF-i1851-V1

Product information "Intel 1851 CPU Contact Frame"

The Intel 1851 CPU Contact Frame V1 is the version of the well-known mounting aid tailored to Intel motherboards with the LGA1851 socket. By using the Intel 1851 CPU Contact Frame V1, the concave bending of the CPU’s Integrated Heat Spreader (IHS) caused by the standard Integrated Loading Mechanism (ILM) is avoided. This results in better contact between the CPU cooler and the IHS, improving cooling performance.

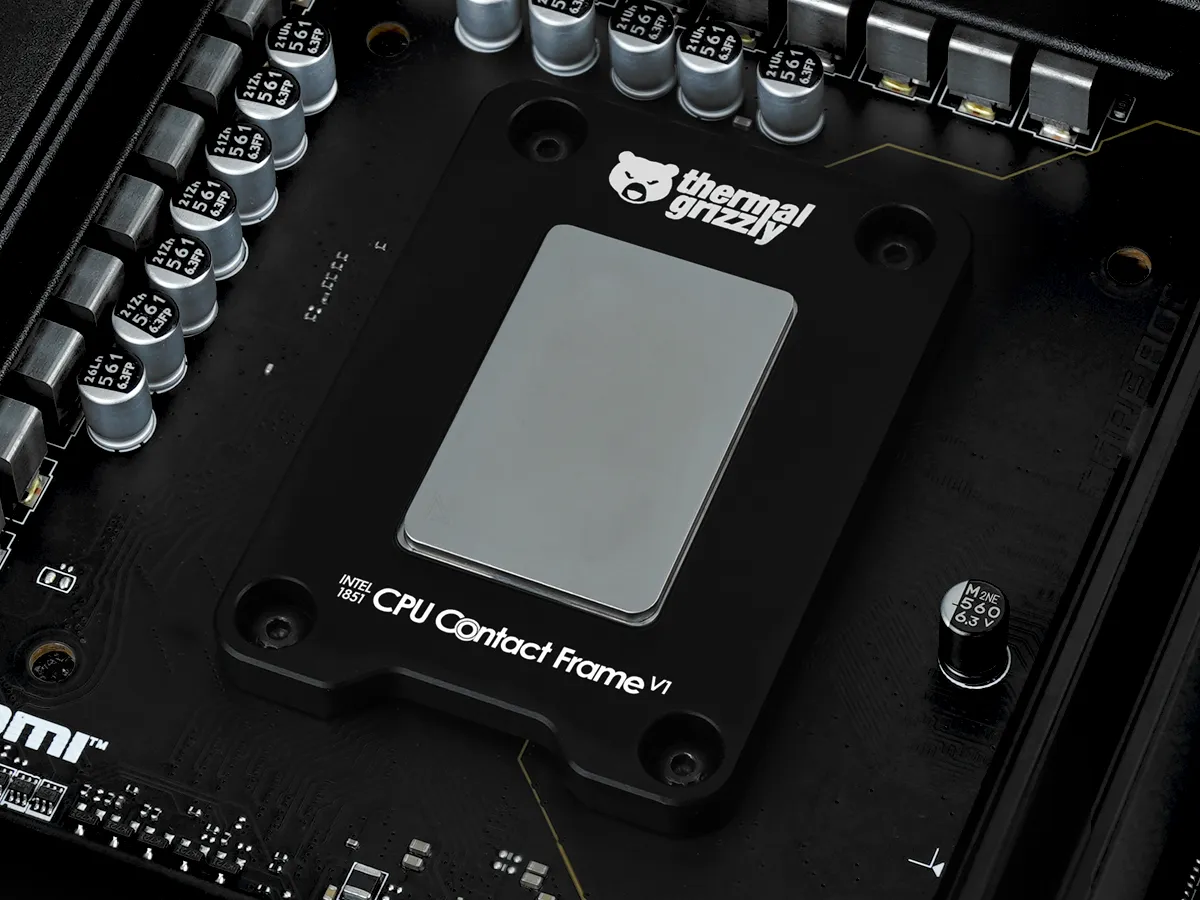

Contact Frame eingebaut in Mainboard

Properties

  • Reduction of CPU temperatures
  • Easy to install
  • Anodized aluminum


Easy installation

Installing the contact frame is very simple and requires only a few steps. First, the motherboard's Integrated Loading Mechanism (ILM) must be removed. Depending on the CPU cooler and the CPU used, processor temperatures can be noticeably reduced. When switching from the Reduced-Load ILM (RL-ILM) used on some LGA1851 motherboards, temperature reductions of up to 4°C can be expected, and up to 6°C when switching from the standard ILM.

compatibility

The Intel 1851 CPU Contact Frame V1 is compatible with Intel Core Ultra 200 Series processors for the LGA1851 socket. Additionally, the frame is compatible with CPUs whose Integrated Heat Spreader (IHS) has been sanded down by no more than 0.2 millimeters. Care must be taken during installation to ensure no electronic components are located under the frame, especially with Mini-ITX form factor motherboards.


Attention:

Removing the Integrated Loading Mechanism (ILM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!

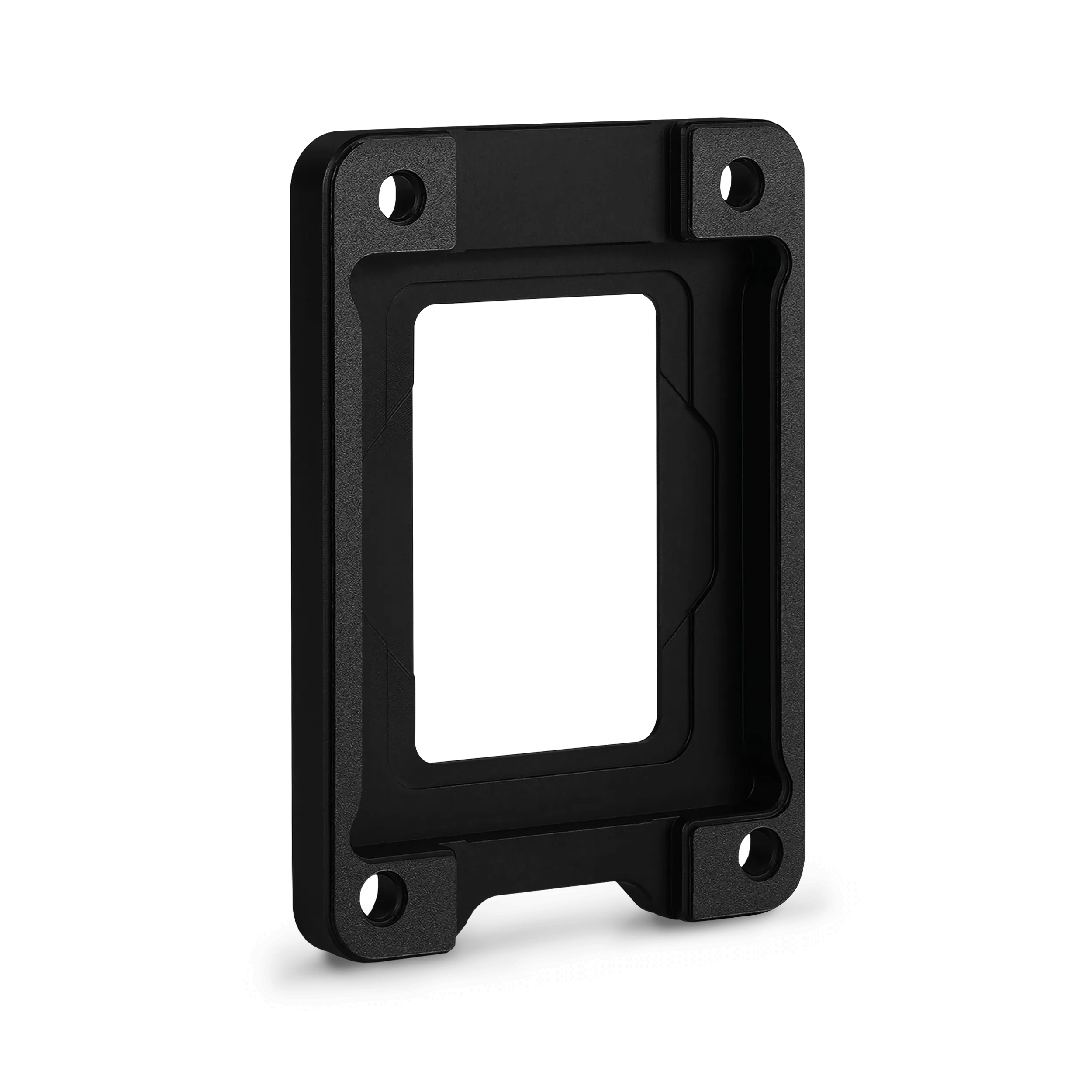

Rückseite Contact Frame
Zubehör Contact Frame

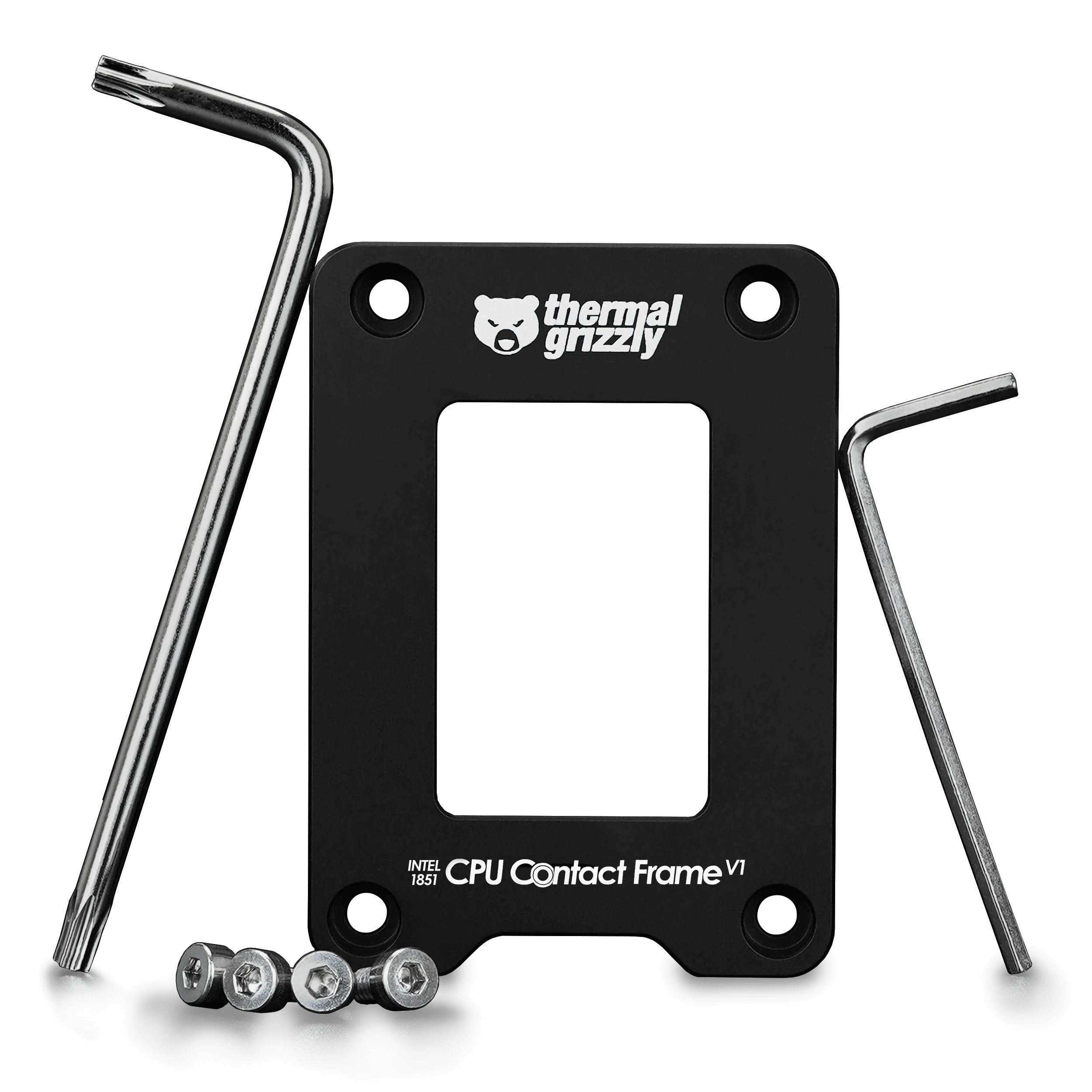

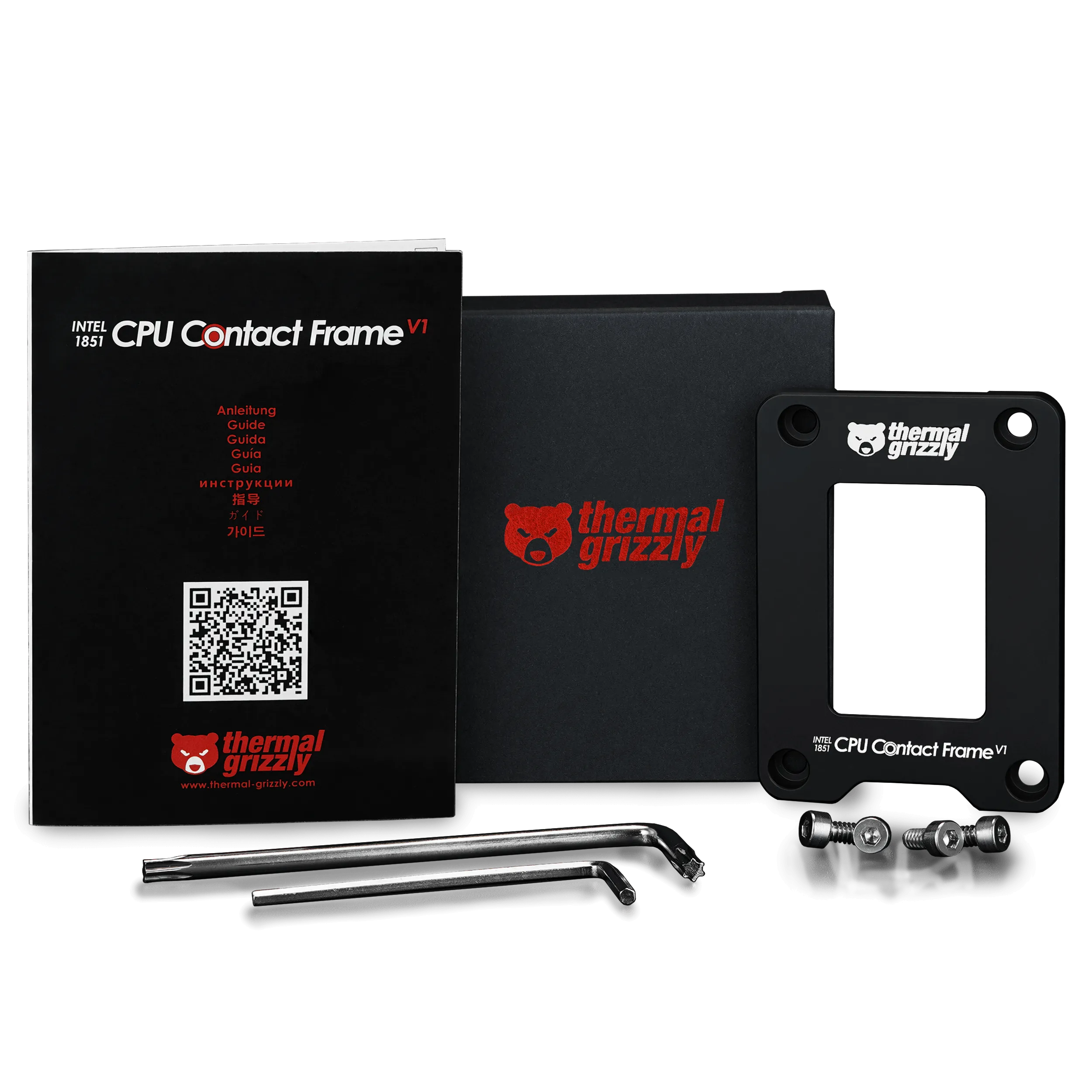

Scope of delivery

  • 1x Intel 1851 CPU Contact Frame V1
  • 4x Cylinder head screws with 3/8" UNC threads
  • 1x 5/64" hex key
  • 1x Torx T20 key

Product information "Intel 1851 CPU Contact Frame"

The Intel 1851 CPU Contact Frame V1 is the version of the well-known mounting aid tailored to Intel motherboards with the LGA1851 socket. By using the Intel 1851 CPU Contact Frame V1, the concave bending of the CPU’s Integrated Heat Spreader (IHS) caused by the standard Integrated Loading Mechanism (ILM) is avoided. This results in better contact between the CPU cooler and the IHS, improving cooling performance.

Contact Frame eingebaut in Mainboard

Properties

  • Reduction of CPU temperatures
  • Easy to install
  • Anodized aluminum


Easy installation

Installing the contact frame is very simple and requires only a few steps. First, the motherboard's Integrated Loading Mechanism (ILM) must be removed. Depending on the CPU cooler and the CPU used, processor temperatures can be noticeably reduced. When switching from the Reduced-Load ILM (RL-ILM) used on some LGA1851 motherboards, temperature reductions of up to 4°C can be expected, and up to 6°C when switching from the standard ILM.

Rückseite Contact Frame

compatibility

The Intel 1851 CPU Contact Frame V1 is compatible with Intel Core Ultra 200 Series processors for the LGA1851 socket. Additionally, the frame is compatible with CPUs whose Integrated Heat Spreader (IHS) has been sanded down by no more than 0.2 millimeters. Care must be taken during installation to ensure no electronic components are located under the frame, especially with Mini-ITX form factor motherboards.


Attention:

Removing the Integrated Loading Mechanism (ILM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!

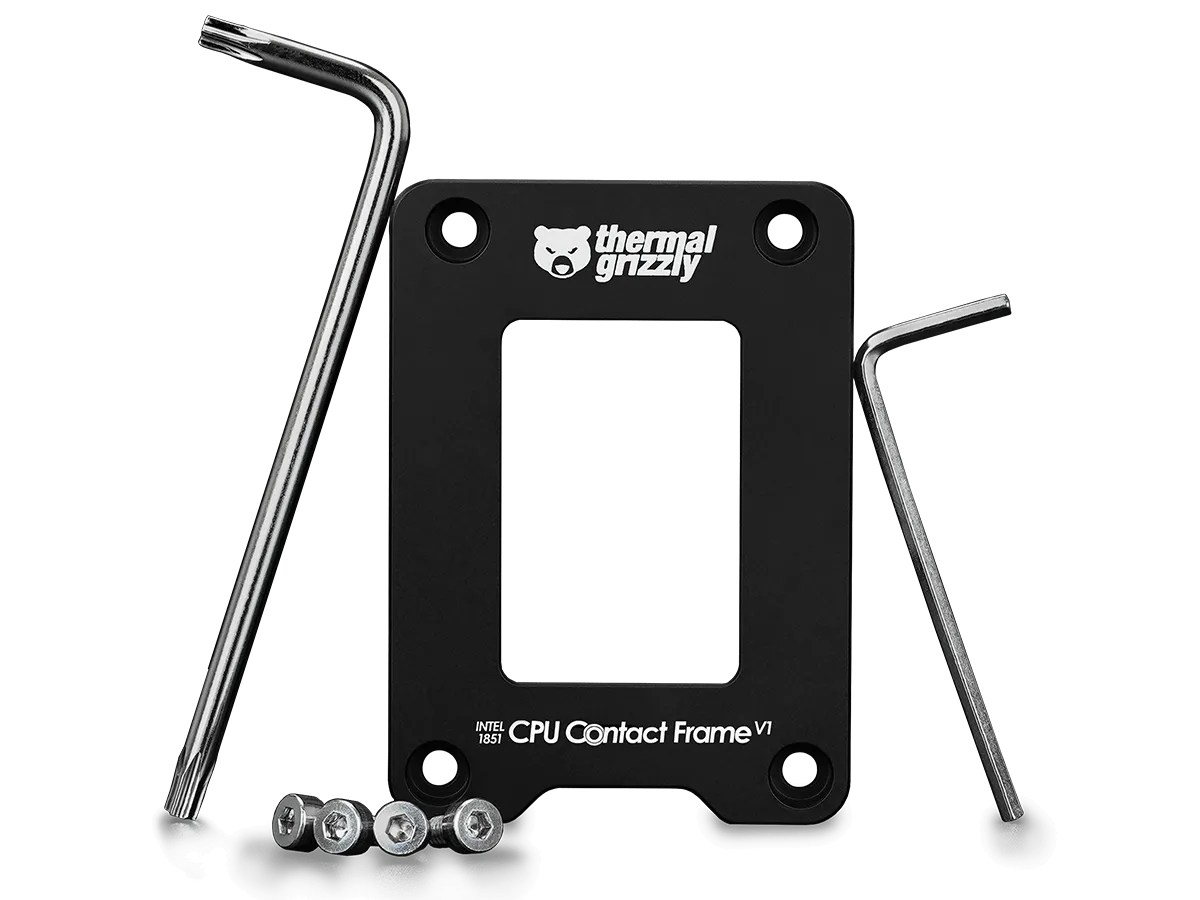

Zubehör Contact Frame

Scope of delivery

  • 1x Intel 1851 CPU Contact Frame V1
  • 4x Cylinder head screws with 3/8" UNC threads
  • 1x 5/64" hex key
  • 1x Torx T20 key
