DeltaMate GPU Block - Through Terminal

DeltaMate Terminal

Optional brass terminal with one inlet and one outlet, each featuring G1/4-inch threading on both the top and bottom sides.

$46.68

Content: 1 pieces

Connections

piece

EAN: 4260711992117 Copied!

MPN: TG-DM-ACC-001 Copied!

Product information "DeltaMate GPU Block - Through Terminal"

The DeltaMate GPU Block - Through Terminal is an optional terminal for Thermal Grizzly’s DeltaMate GPU water blocks, which come pre-installed with a Direct Terminal. The massive, 270 gramms heavy DeltaMate GPU Block Terminals are precision-machined from high-quality brass and subsequently nickel-plated. As an alloy of copper and zinc, brass offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than pure copper.

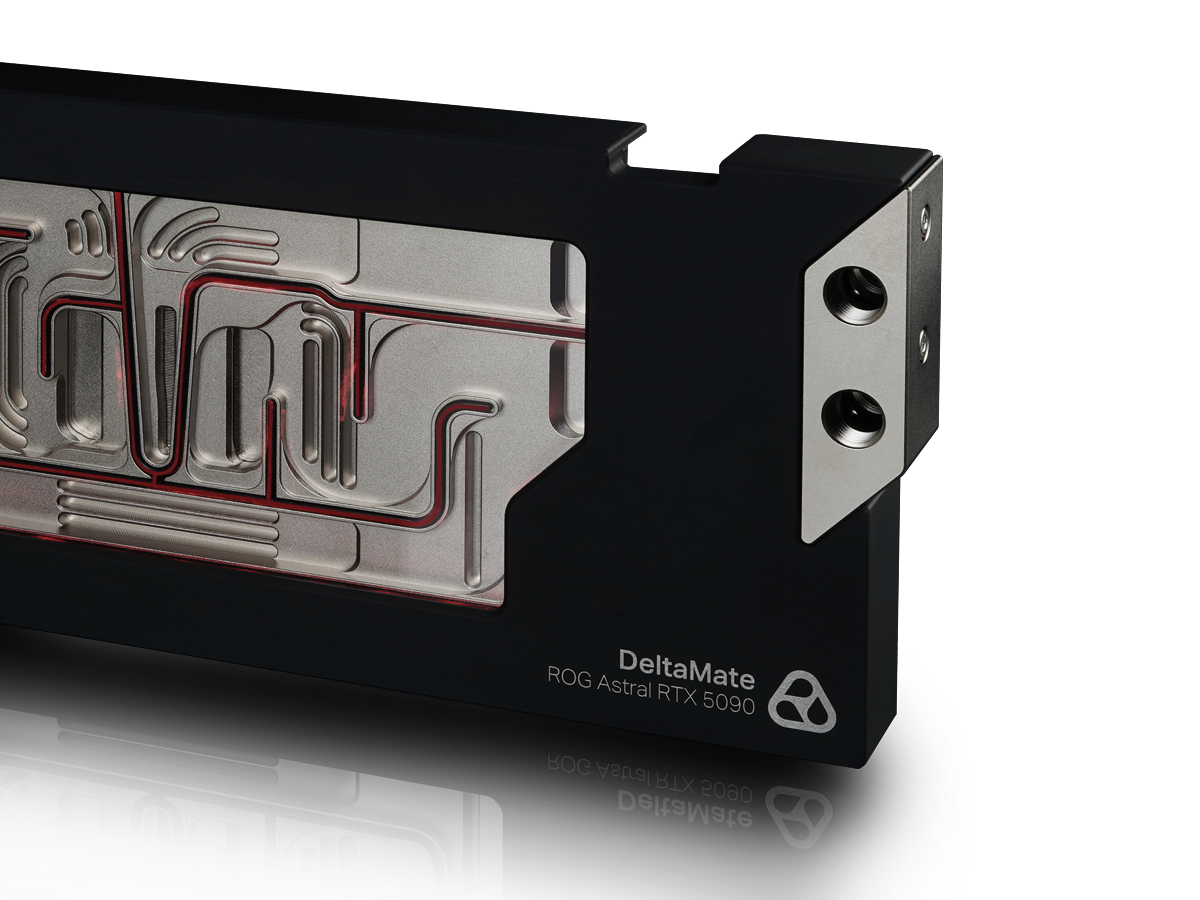

DM_Astral_5090_mitFittings_Nickel_mitTerminal

Features

The included sealing rings (O-rings) are made from EPDM (ethylene propylene diene monomer rubber), known for its exceptional elasticity as well as resistance to ozone and UV radiation. The Through Terminal features one inlet and one outlet with G1/4-inch threads on both the top and bottom sides. The package includes two DeltaMate sealing plugs and two O-rings.

Optional 4-port pass-through fitting with inlets and outlets on the top and bottom
Two in/out ports per side, each with G1/4-inch threading
Machined from nickel-plated brass
Recommended for experienced users!
Compatibility list available online

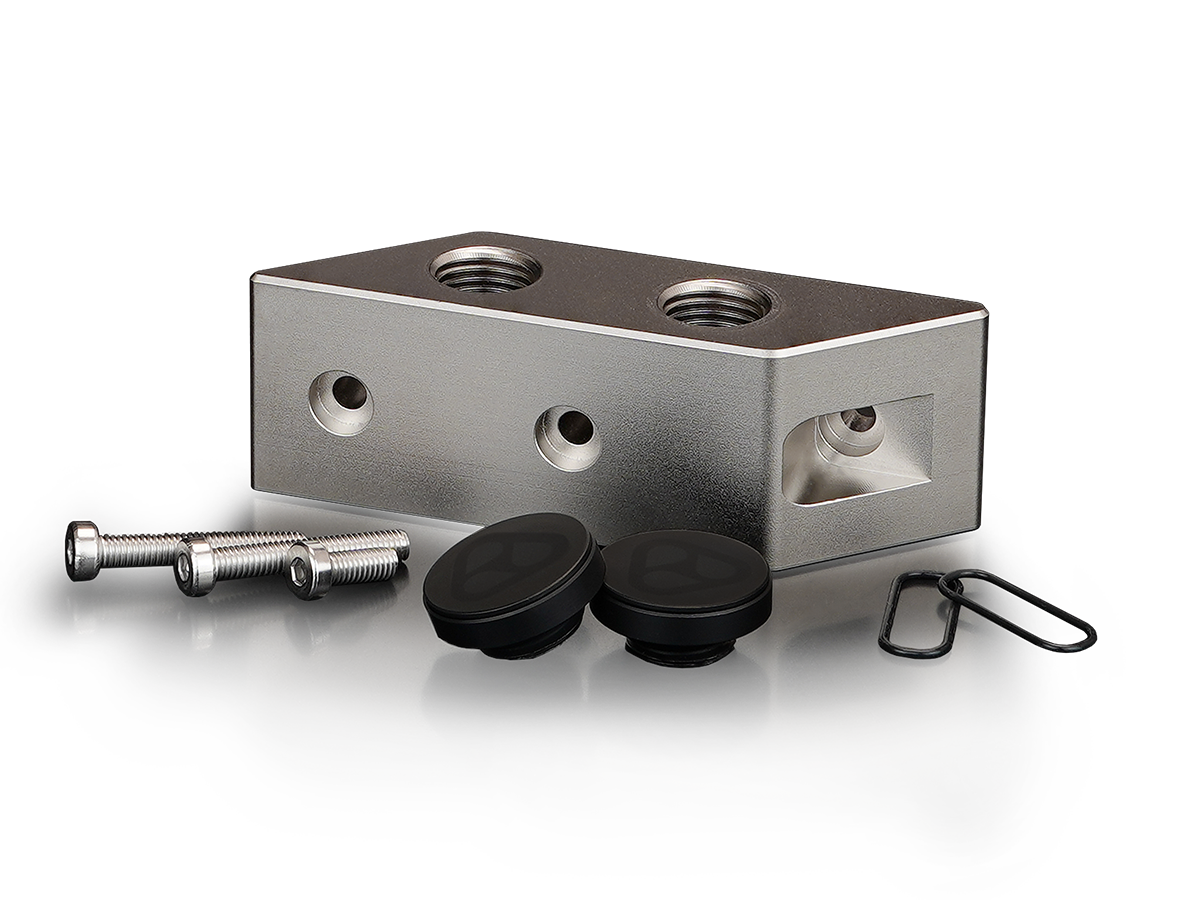

Scope of delivery

DeltaMate GPU Block - Through Terminal
2x DeltaMate Plug
2x sealing ring
2x Screw DIN7984 M4 x 25 SS A2
1x Screw DIN7984 M4 x 10 SS A2

Note

The DeltaMate GPU Block - Through Terminal is not a standalone product and can only be used in combination with a DeltaMate GPU water block. An up-to-date list of all compatible DeltaMate GPU water blocks can be found in the Downloads section on the product page for the DeltaMate GPU Block - Through Terminal in the Thermal Grizzly online shop.

DeltaMate Fittings & Optional Through Terminal

Thermal Grizzly offers a wide range of fittings for integrating a DeltaMate GPU Block into the cooling loop. These high-quality, precision-machined brass fittings are available in various color options and in all common sizes for soft and hard tubes. The fittings are coordinated with one another and can be combined in many different ways.

The DeltaMate GPU Block Through Terminal is an optional 4-port pass-through terminal with inlet and outlet ports on the top and bottom for DeltaMate GPU water blocks. The Through Terminal provides additional options for routing the tubes when building a custom water-cooling system.
