Product information "Direct Die Frame - Ryzen 7000"

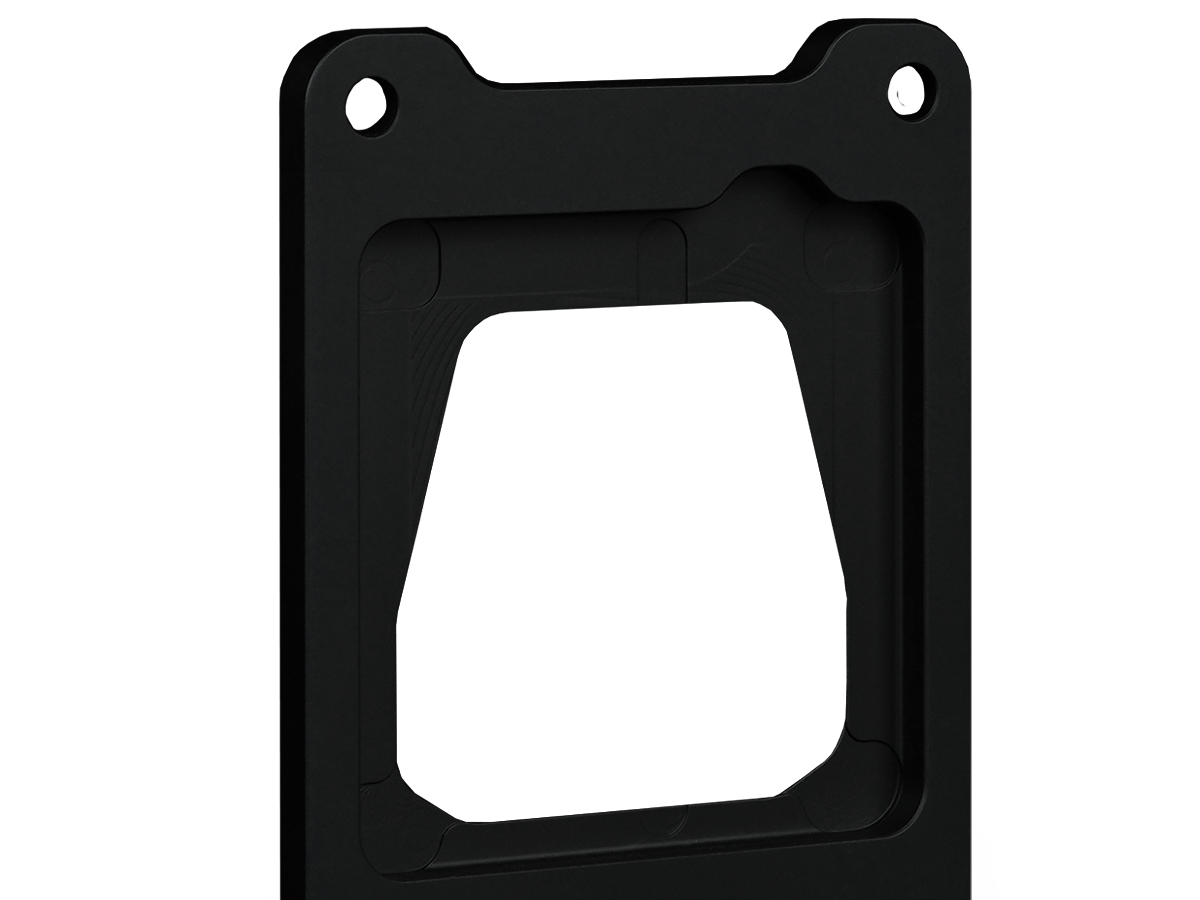

The AMD Ryzen 7000 Direct Die Frame is a CPU mounting frame for mounting Ryzen 7000 processors without the integrated heat spreader.

By omitting the heat spreader, the CPU cooler can be mounted directly on the processor's chiplets, allowing for significantly lower temperatures during operation.

This is not only interesting for extreme overclockers on the hunt for records, but also for gamers and content creators.

For gaming PCs and desktop workstations, cooling the processor is important so that they are not slowed down during rendering operations, for example, or enable the highest possible FPS when gaming. Silent PCs for multimedia applications also benefit from better heat dissipation from the processor. In addition to a good cooling solution, PC enthusiasts use "delidding" CPUs to optimise heat Dissipation.

When delidding a CPU, the heat spreader of the processor is removed. Often this is done to replace the thermal conductive materials used by the manufacturer with higher quality thermal pastes or liquid metal such as Thermal Grizzly's Conductonaut before the heat spreader is remounted. With the so-called "direct die", the heat spreader is completely omitted so that the base plate of the CPU cooler has direct contact with the CPU.

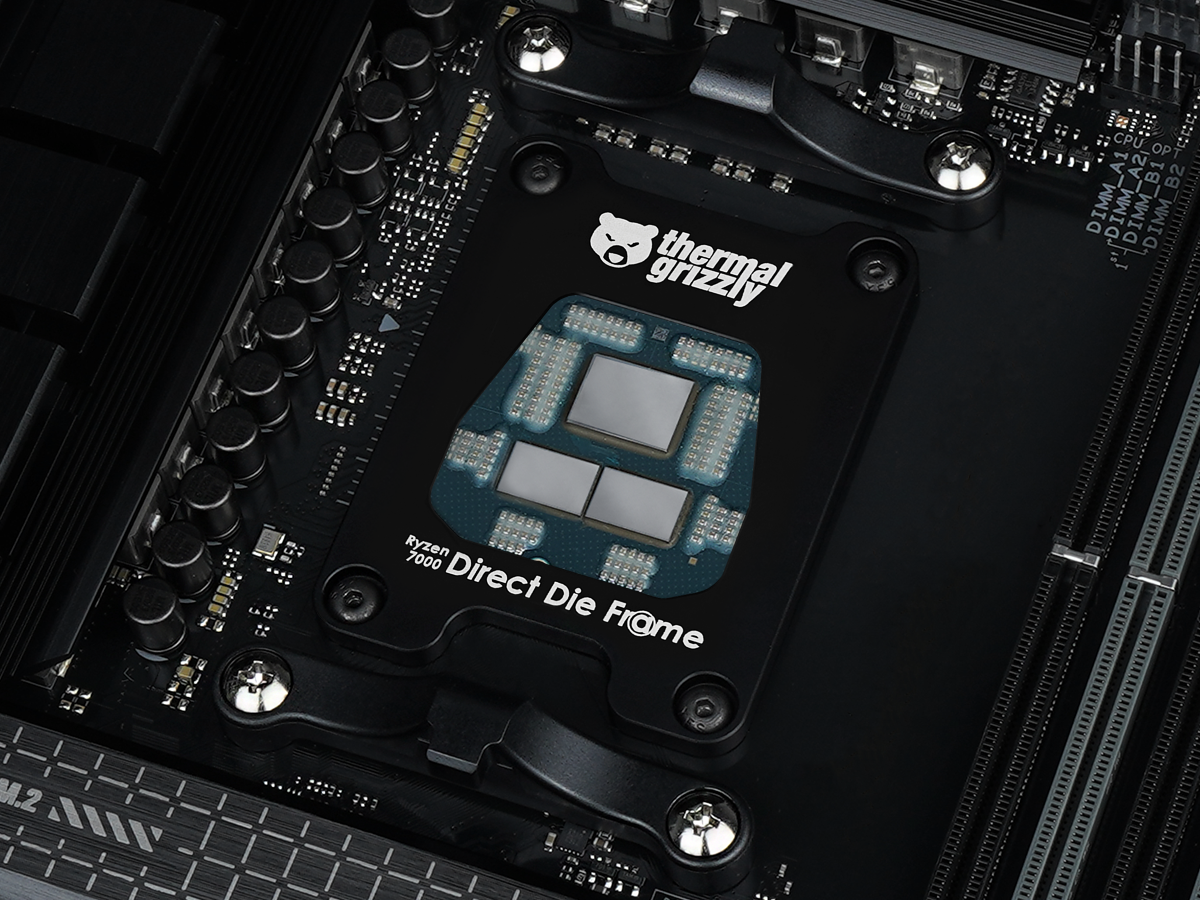

When the CPU cooler is mounted directly on the CPU chips, the heat that is generated during operation of the CPU is dissipated directly to the cooler and does not first have to be transferred through the heat spreader. This makes heat dissipation more efficient and the CPU is cooled better. The purpose of the AMD Ryzen 7000 Direct Die Frame is to protect the exposed chiplets of the Ryzen 7000 CPU. Without a direct die frame, the CPU's function can be impaired by the contact pressure of the CPU cooler. Here, problems with the RAM in particular are very common and, in the worst case, the CPU can become unusable.

  • Compatible with AMD Ryzen 7000
  • Allows mounting of delidded Ryzen CPUs
  • Easy mounting
  • Anodised Aluminium

Ryzen 8X00G Compatibility

Attention: The Ryzen 7000 Direct Die Frame is NOT COMPATIBLE with the APUs of the Ryzen 8000G series! For more information on the compatibility of the AMD Ryzen 5 8500G, AMD Ryzen 5 8600G and AMD Ryzen 7 8700G with our products, please watch the following video: “AMD Ryzen 8000 Delidded - Liquid Metal Changes Everything!”

Note on Ryzen 9000 compatibility

According to initial internal tests, the AMD Ryzen 7000 Direct Die Frame is NOT compatible with AMD's Ryzen 9000 processor series. The compatibility test only includes the normal 9000 CPUs. Ryzen 9000X3D CPUs will be tested as soon as available.

Attention. Important compatibility note:
The AMD Ryzen 7000 Direct Die Frame is NOT compatible with the AMD Ryzen 7000X3D processors! Thermal Grizzly will not be held responsible for any damage to the CPU!

This incompatibility of the AMD Ryzen 7000X3D only affects the AMD Ryzen 7000 Direct Die Frame. Processors that are already delidded can be used with the AM5 High Performance Heatspreader and AM5 Mycro Direct Die series water coolers.

Customers who purchased the AMD Ryzen 7000 Direct Die Frame explicitly for use with an AMD Ryzen 7000X3D should contact Thermal Grizzly customer service via eMail at the following address: support@thermal-grizzly.com

Attention: Removing the heatspreader (“delidding”) of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty!

Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!

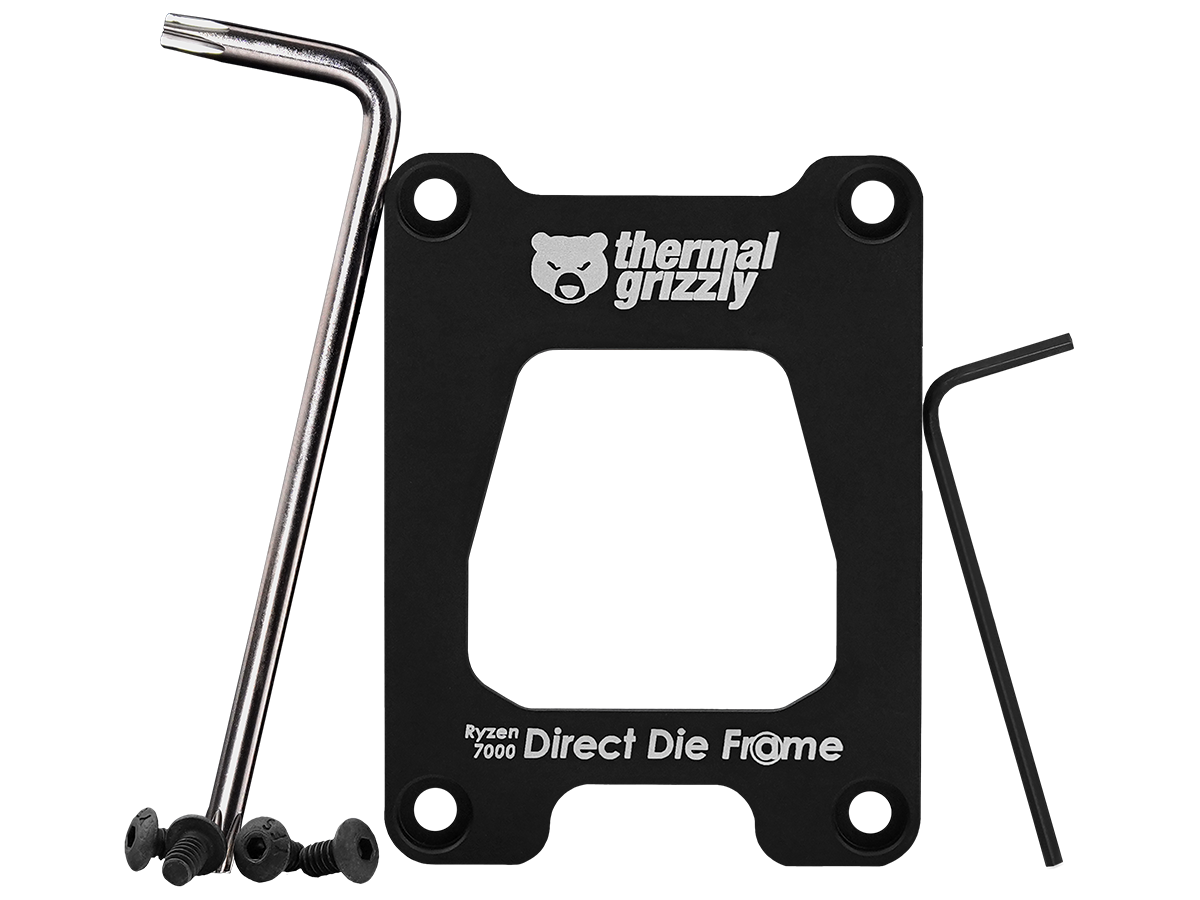

Scope of delivery

  • Ryzen 7000 Direct Die Frame
  • 4x pan-head screws UNC thread 1/4"
  • 1x hexagon socket wrench 5/64"
  • 1x angle wrench Torx T20
Downloads "Direct Die Frame"
Color: black
Material: Aluminum
Socket manufacturer: AMD
Socket type: AM5
