TG Caliper

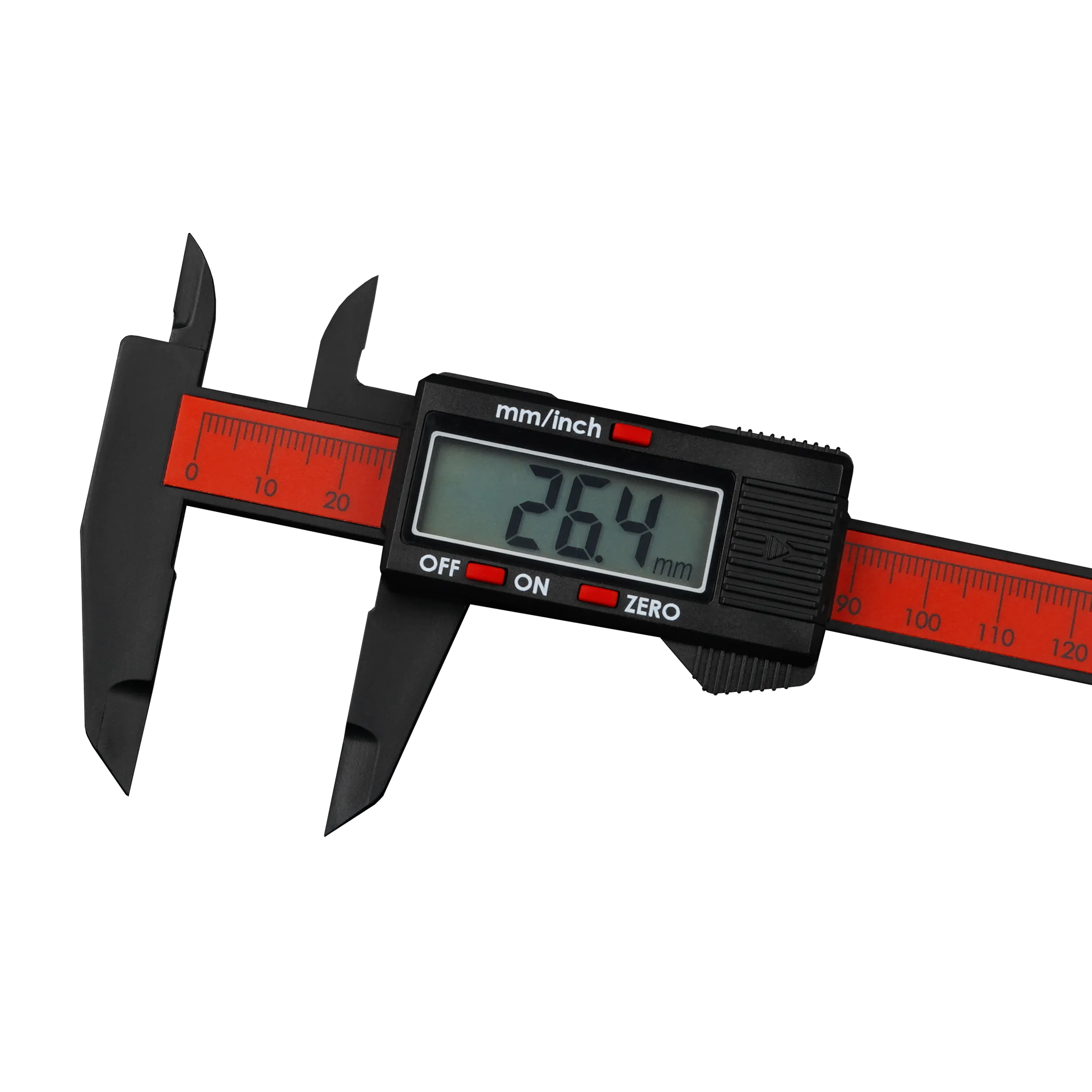

The TG Caliper is an affordable digital caliper made of high-hardness ABS plastic that covers the most important measuring functions in the PC DIY segment.

$11.58

Content: 1 pcs.

Prices incl. VAT plus shipping costs

Measuring Range
EAN: 4260711992100
MPN: TG-CAL-150

Product information "TG Caliper”

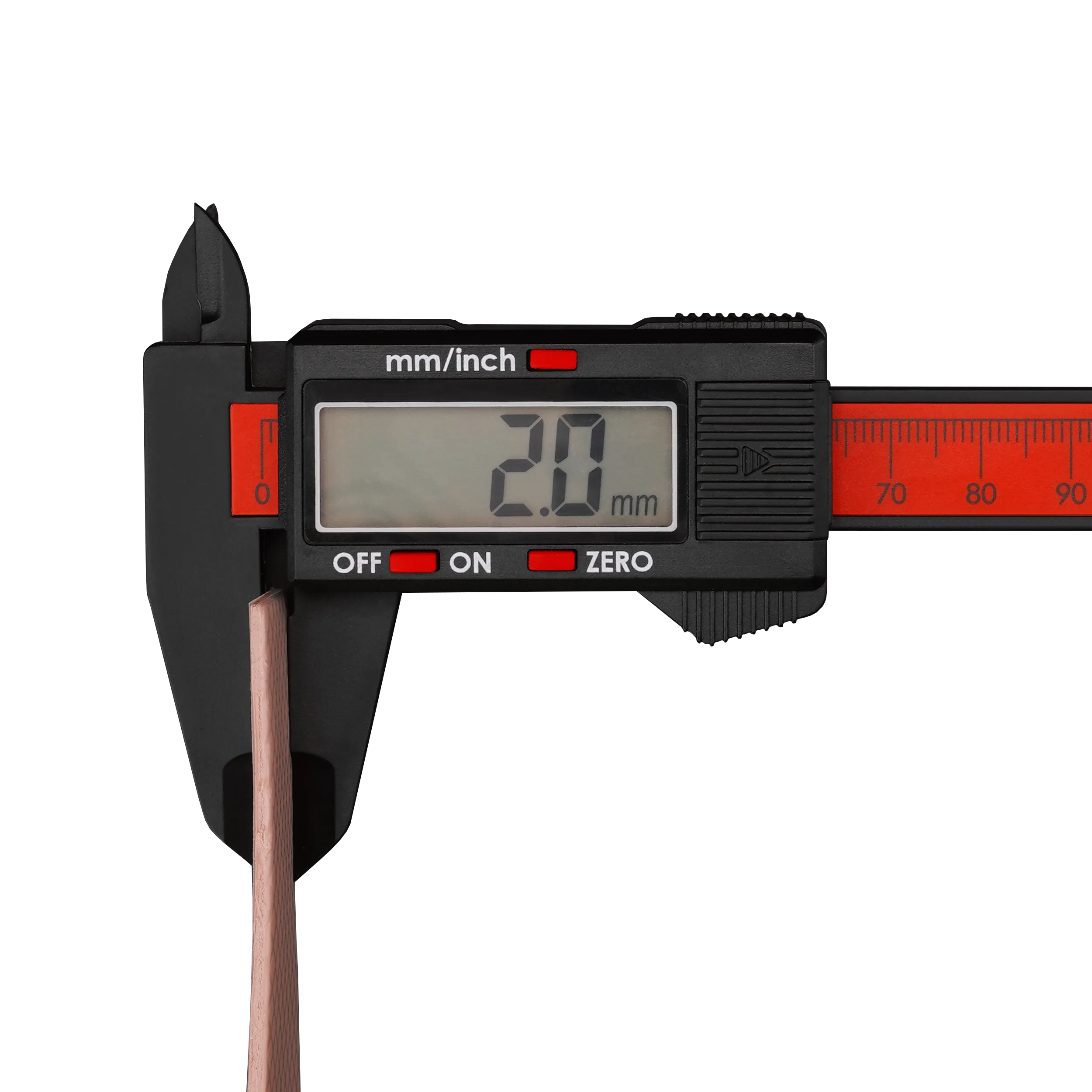

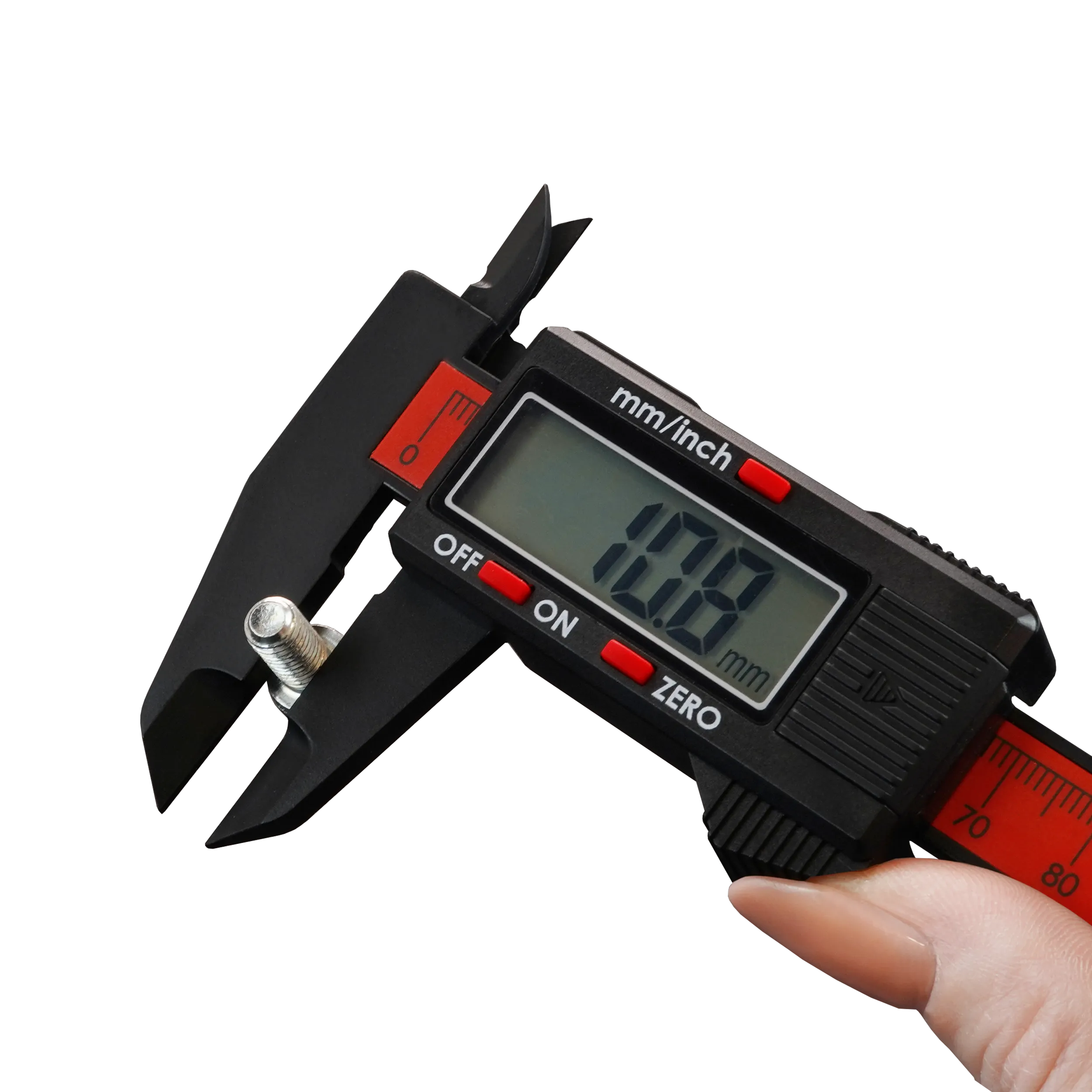

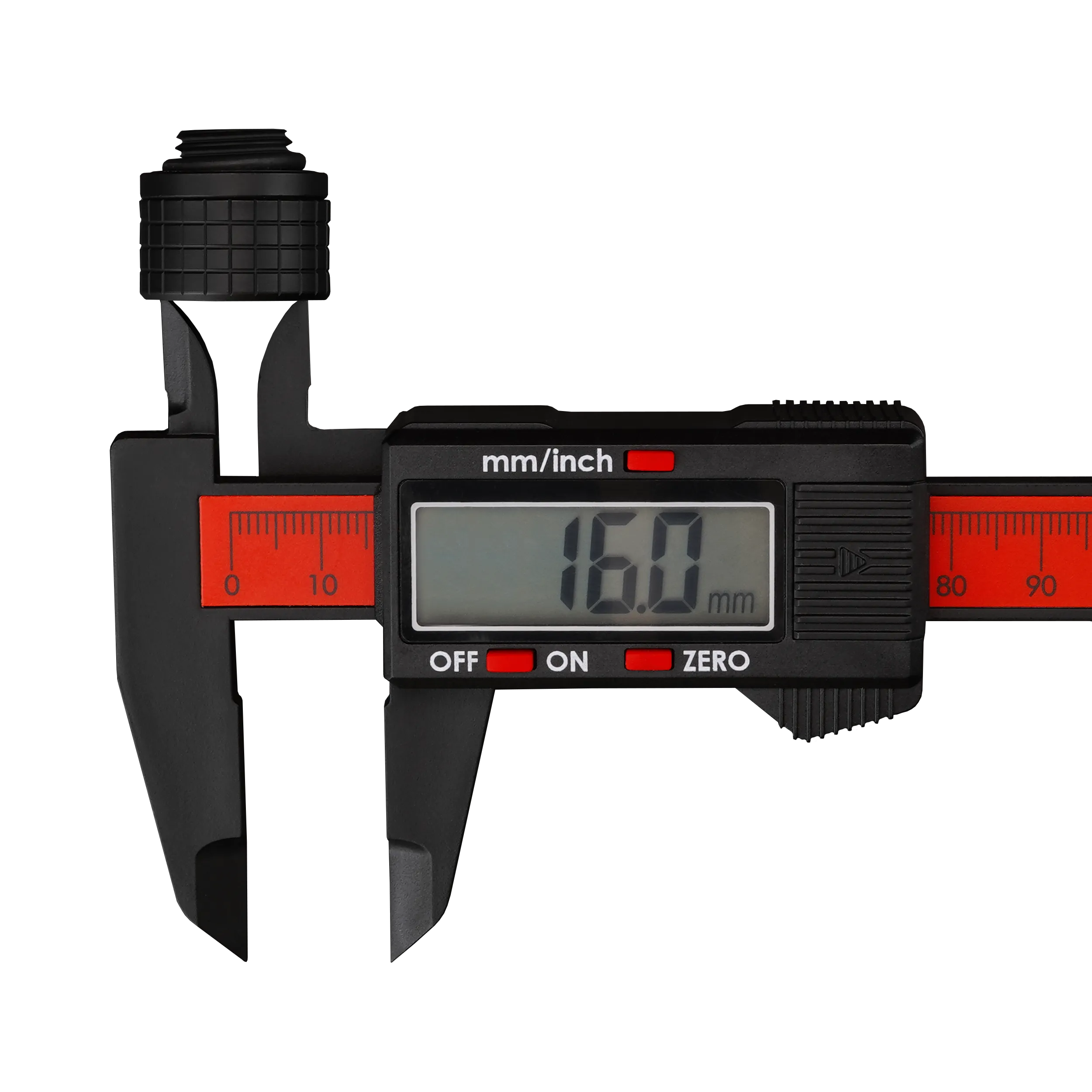

The TG Caliper is an affordable digital caliper that can be used, for example, to measure the thickness of thermal pads or the length of screws. Other typical measurements include determining inside and outside diameters as well as the wall thickness of soft and hard tubes. The measuring range is up to 150 mm / 6 inches. The measured values are displayed on the LCD in either the metric or imperial system, with a resolution/readout of 0.1 mm / 0.01 inch and an accuracy of ±0.2 mm / 0.01 inch. A zero function allows two measurements to be compared easily.

1_Content_TGCaliper

Properties

  • Display on LCD in mm/in

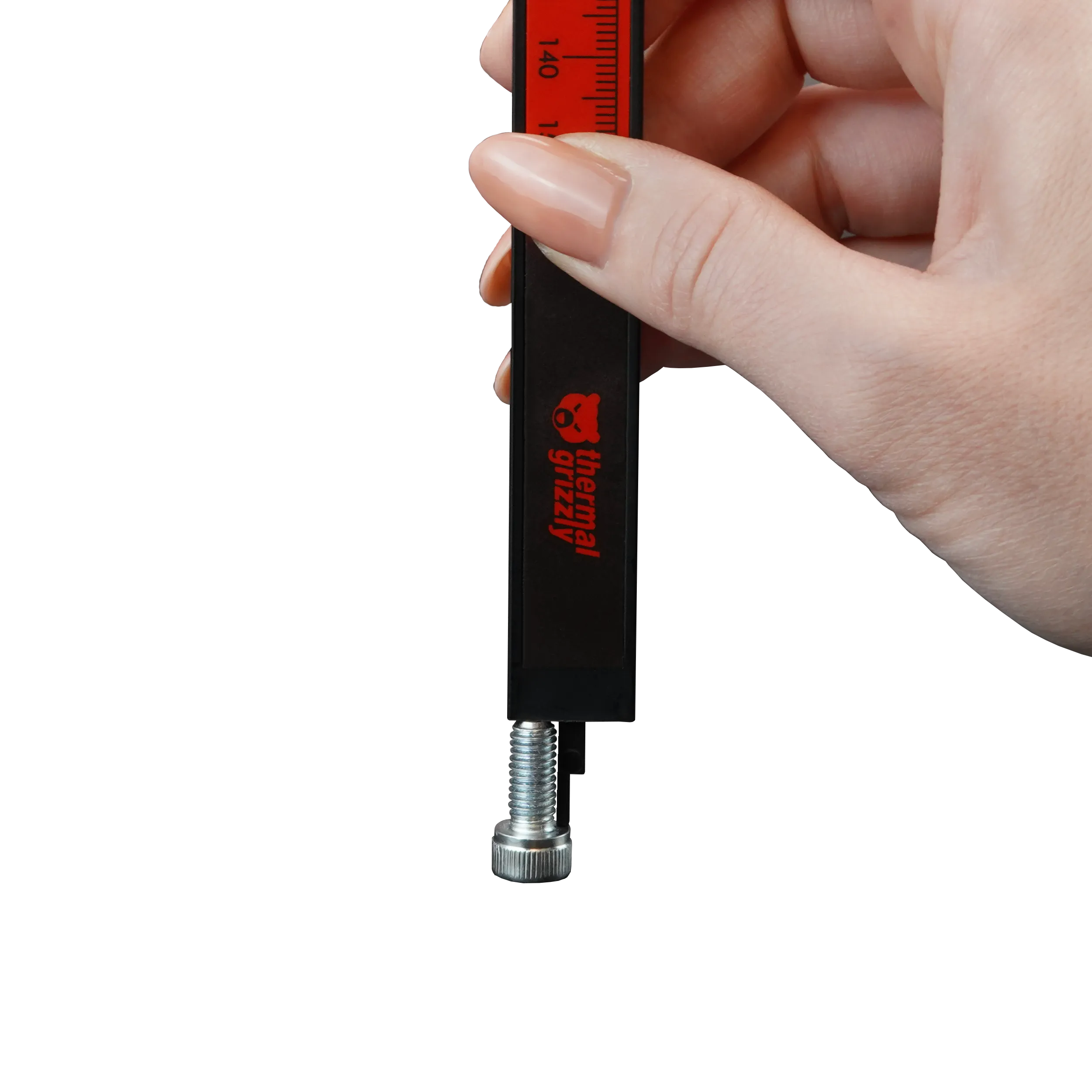

  • Outside, inside, step, and depth measurements
  • Made of high-hardness ABS plastic
  • ZERO function & ergonomic handling
  • Dust- and splash-resistant (IP54)
  • Batteries included

The caliper, made of high-hardness ABS plastic, is rust-resistant as well as dust- and splash-resistant (IP54). An ergonomically textured thumbrest makes handling the caliper easier. The device is powered by an LR44 battery, and two of them are included in the scope of delivery.

General Notes

  • Keep measuring surfaces clean.
  • Clean only with alcohol-based cleaners.
  • Protect from:
    • Moisture and dust
    • Electrical voltage
    • Impact damage
  • Remove the batteries when the caliper is not in continuous use.
2_Content_TGCaliper

Battery Disposal (according to the German Battery Act - BattG)

Batteries and rechargeable batteries contain both valuable resources and harmful substances. For this reason, consumers are legally required to return them to authorized collection points. Batteries and rechargeable batteries must not be disposed of in household waste.

Used batteries and rechargeable batteries can be returned free of charge to municipal collection points or recycling centers, as well as to any retailer that sells batteries or rechargeable batteries. Additionally, returns can be made at our shipping warehouse. All types of batteries are affected, regardless of shape, size, weight, material composition, or intended use.

The law therefore also applies to batteries that are built into or included with products.

3_Content_TGCaliper

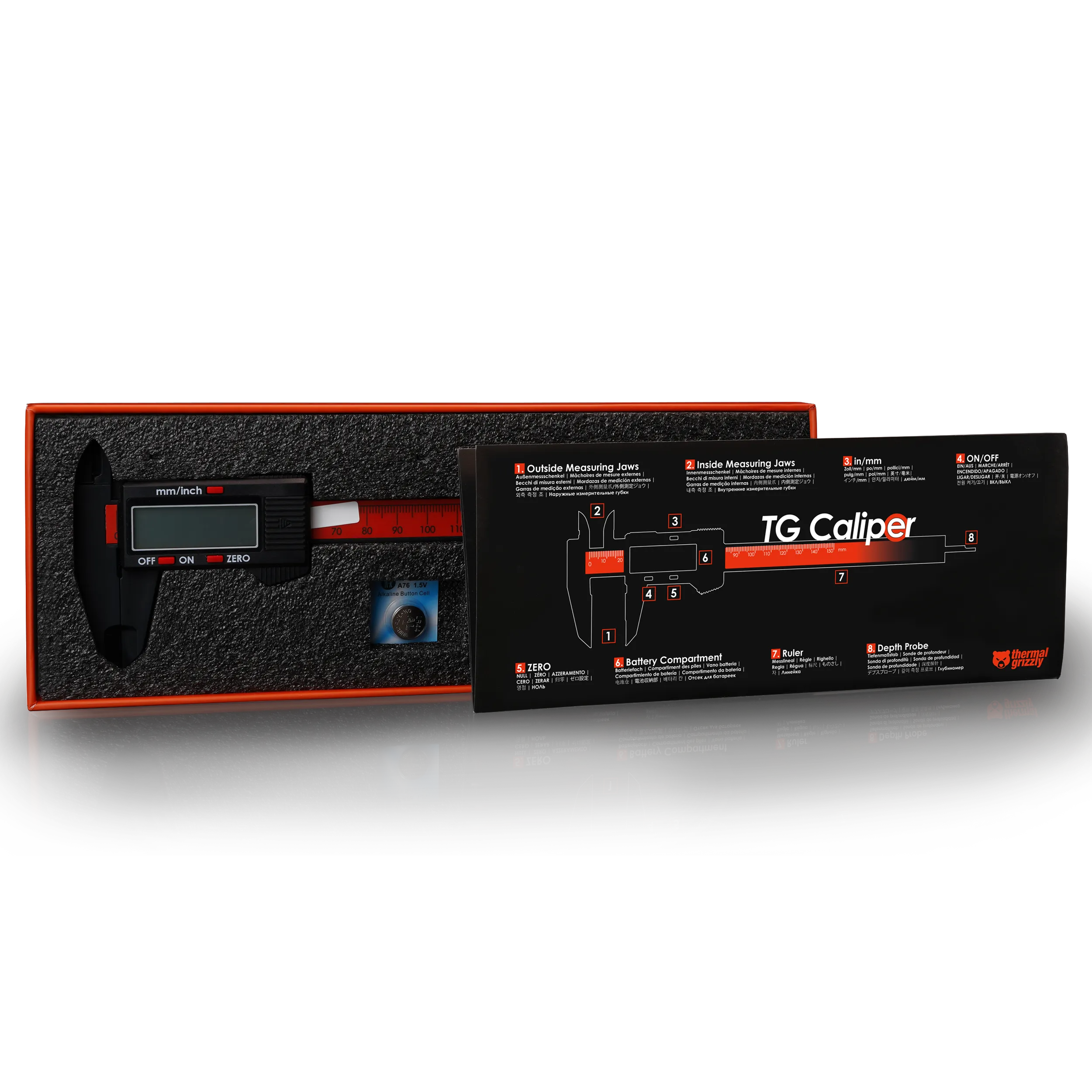

Scope of Delivery

  • TG Caliper
  • Spare battery

Product information "TG Caliper”

The TG Caliper is an affordable digital caliper that can be used, for example, to measure the thickness of thermal pads or the length of screws. Other typical measurements include determining inside and outside diameters as well as the wall thickness of soft and hard tubes. The measuring range is up to 150 mm / 6 inches. The measured values are displayed on the LCD in either the metric or imperial system, with a resolution/readout of 0.1 mm / 0.01 inch and an accuracy of ±0.2 mm / 0.01 inch. A zero function allows two measurements to be compared easily.

1_Content_TGCaliper

Properties

  • Display on LCD in mm/in
  • Outside, inside, step, and depth measurements
  • Made of high-hardness ABS plastic
  • ZERO function & ergonomic handling
  • Dust- and splash-resistant (IP54)
  • Batteries included

The caliper, made of high-hardness ABS plastic, is rust-resistant as well as dust- and splash-resistant (IP54). An ergonomically textured thumbrest makes handling the caliper easier. The device is powered by an LR44 battery, and two of them are included in the scope of delivery.

General Notes

  • Keep measuring surfaces clean.
  • Clean only with alcohol-based cleaners.
  • Protect from:
    • Moisture and dust
    • Electrical voltage
    • Impact damage
  • Remove the batteries when the caliper is not in continuous use.
2_Content_TGCaliper

Battery Disposal (according to the German Battery Act - BattG)

Batteries and rechargeable batteries contain both valuable resources and harmful substances. For this reason, consumers are legally required to return them to authorized collection points. Batteries and rechargeable batteries must not be disposed of in household waste.

Used batteries and rechargeable batteries can be returned free of charge to municipal collection points or recycling centers, as well as to any retailer that sells batteries or rechargeable batteries. Additionally, returns can be made at our shipping warehouse. All types of batteries are affected, regardless of shape, size, weight, material composition, or intended use.

The law therefore also applies to batteries that are built into or included with products.

3_Content_TGCaliper

Scope of Delivery

  • TG Caliper
  • Spare battery
Downloads "TG Caliper"
Display: LCD
Material: ABS plastic
Color: black
