TG Kapton Insulation Sheet Black Edition

TG Kapton Insulation Sheet

Kapton Insulation Sheet is an assembly aid for electrically conductive thermal interface material (TIM). It is ideal for masking components such as SMDs on a CPU or GPU if they are to be used with Conductonaut liquid metal, Carbonaut or KryoSheet.

$10.41

Content: 1444 mm² ($0.72 / 100 mm²)

Prices incl. VAT plus shipping costs

Color

Yellow

Black

Menge

50 pcs.

EAN: 4260711992223

MPN: TG-KIS-B-10-60-50

Product information "TG Kapton Insulation Sheet Black Edition"

The Kapton Insulation Sheet Black Edition is a polyimide film that can be used at high temperatures up to 260 °C and serves as an installation aid for electrically conductive thermal interface materials (TIM), such as Conductonaut liquid metal, Carbonaut, or KryoSheet.

Black Edition: Thinner, stronger, and ideal for precise masking

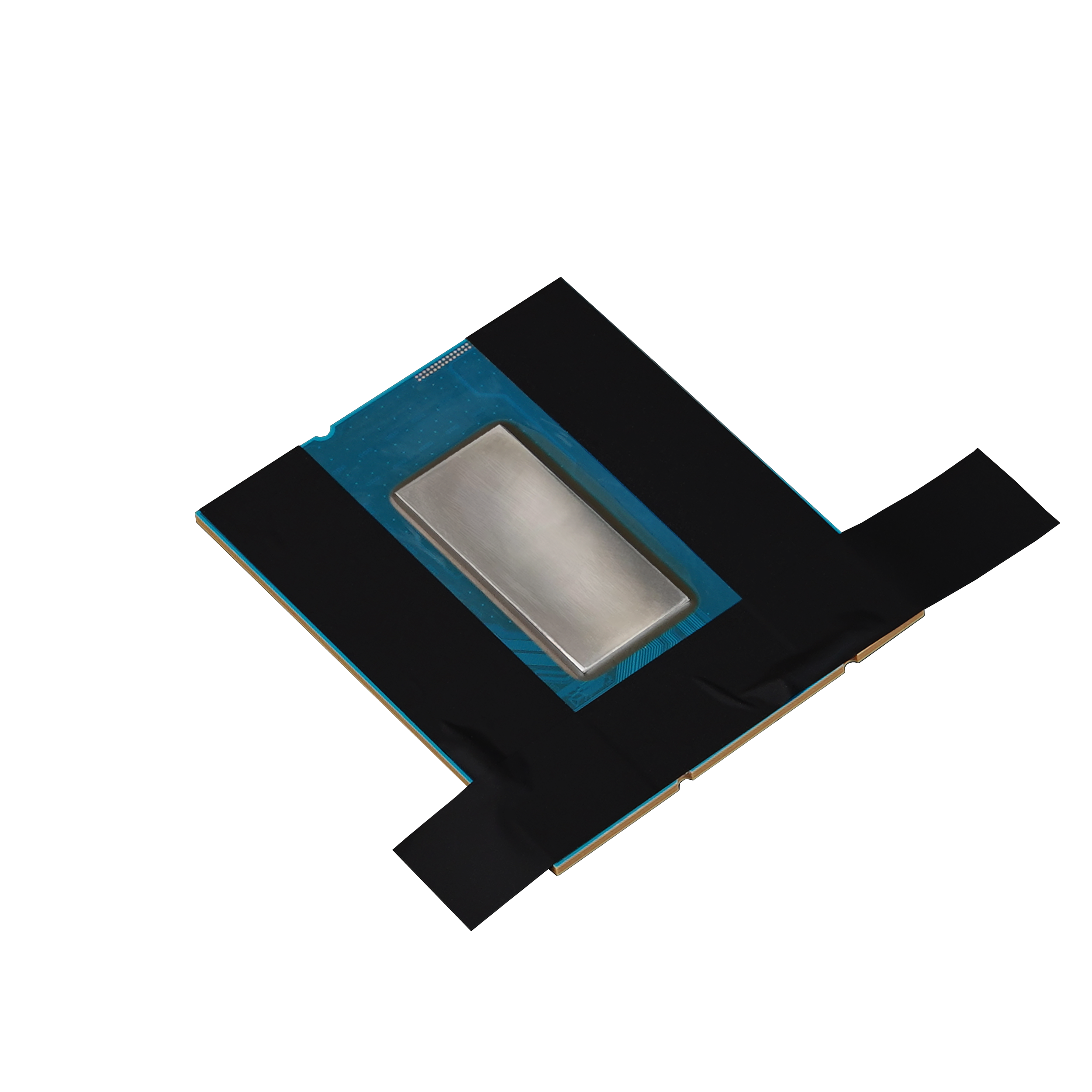

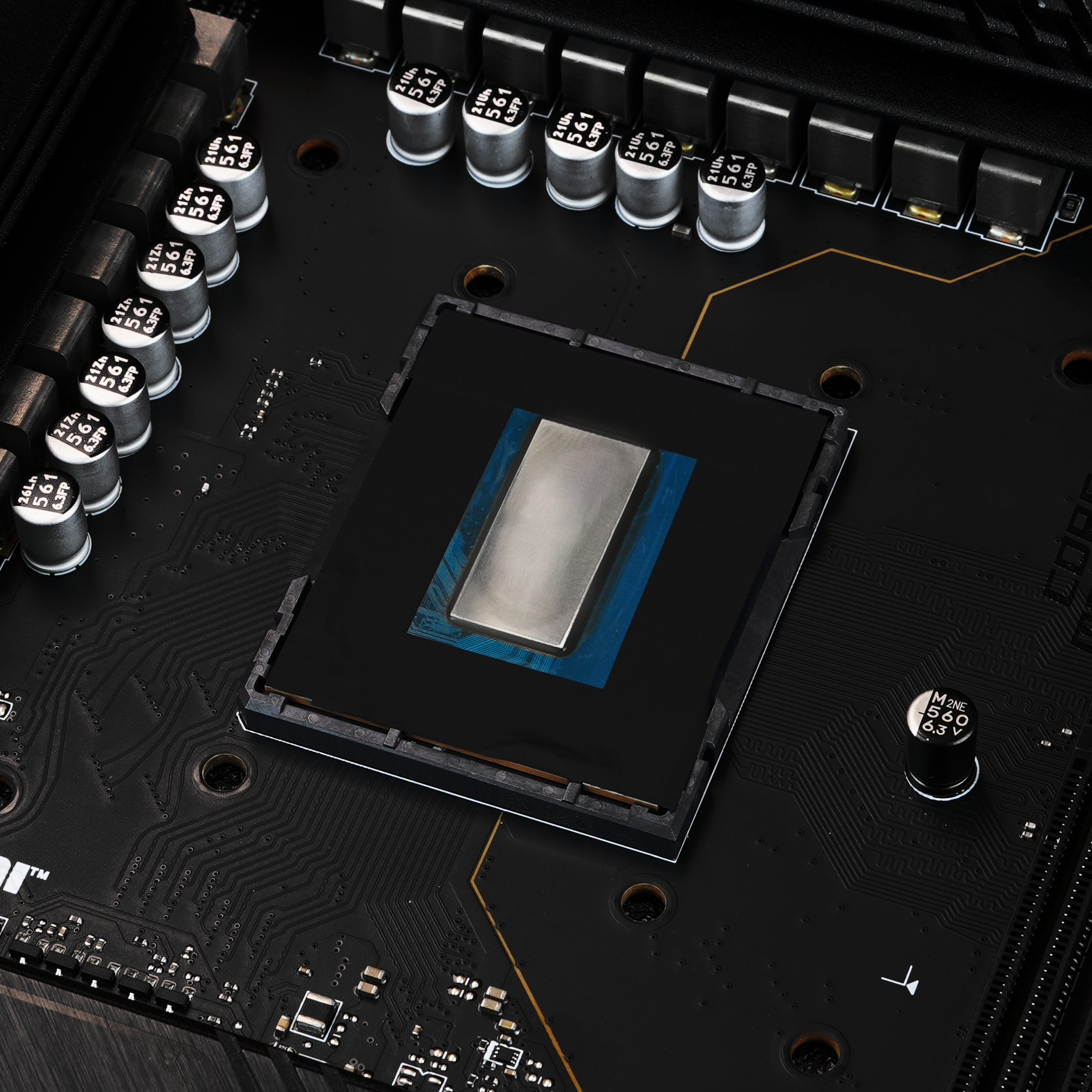

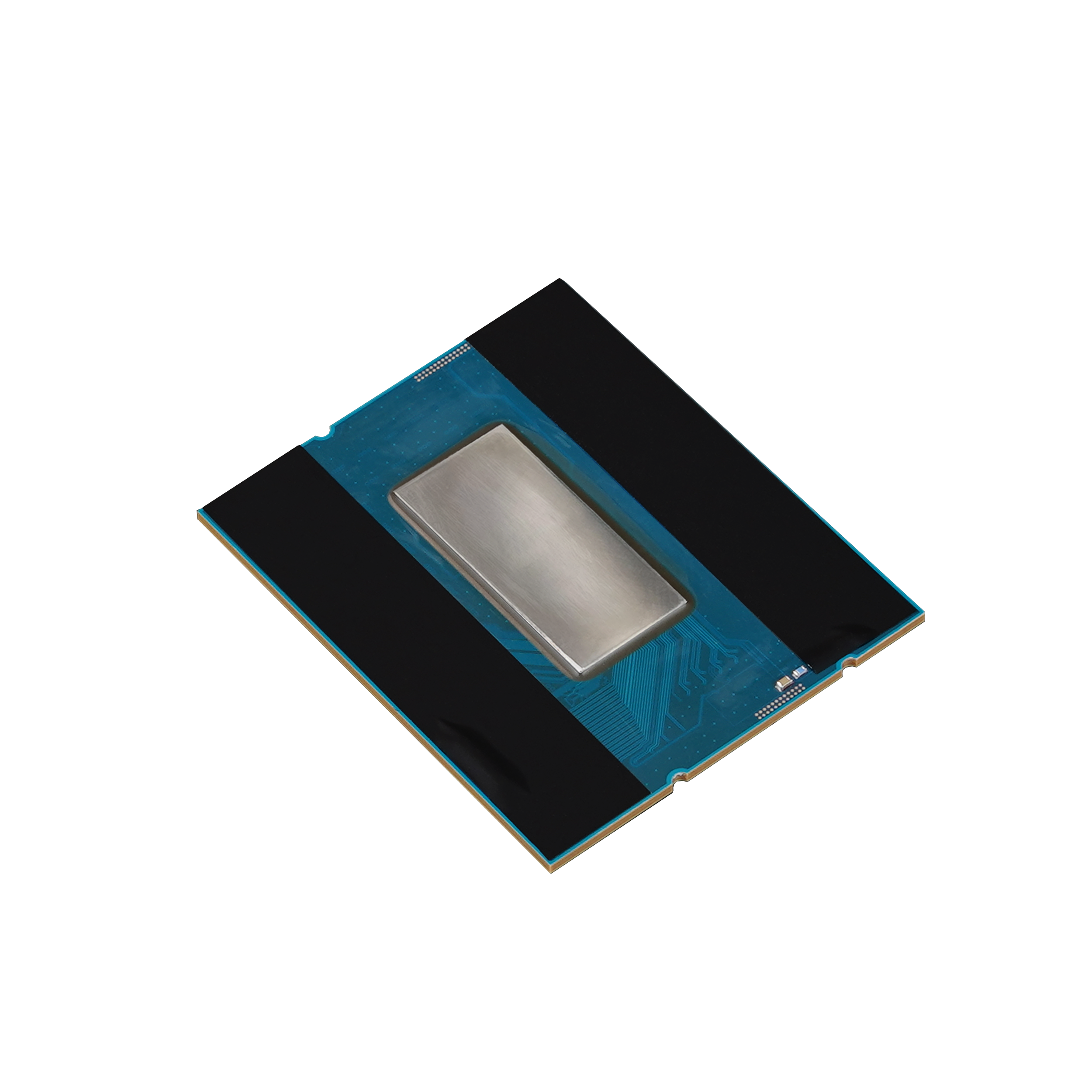

It is ideal for masking components such as SMDs on a CPU or GPU when using these materials. Compared to the standard Kapton Insulation Sheet, the Black Edition is slightly thinner (30 µm instead of 40 µm) and offers a significantly higher breakdown voltage of 5 kV. The Kapton Insulation Sheet Black Edition is supplied as 10 carrier sheets, each containing 5 Kapton adhesive strips. Each strip measures 10 mm in width and 60 mm in length, with a thickness of 30 µm. It is recommended to thoroughly clean the contact surfaces before applying the insulation sheet (e.g., using isopropyl alcohol).

properties

50 adhesive strips 10×60 mm
Thickness of 30 µm
Electrically insulating
Max temperature: 260 °C
Breakdown voltage: over 5 kV
Clean the adhesive surface beforehand!

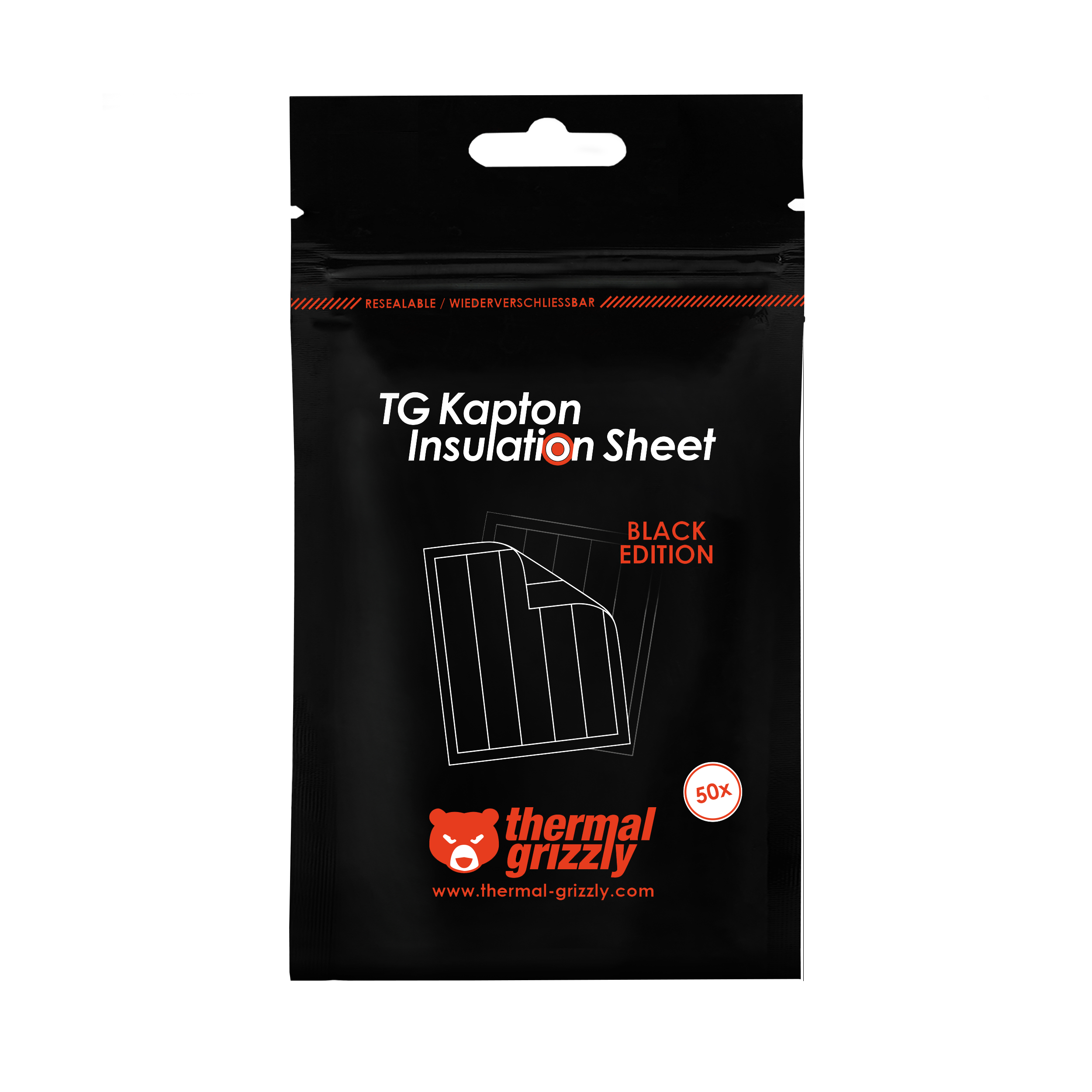

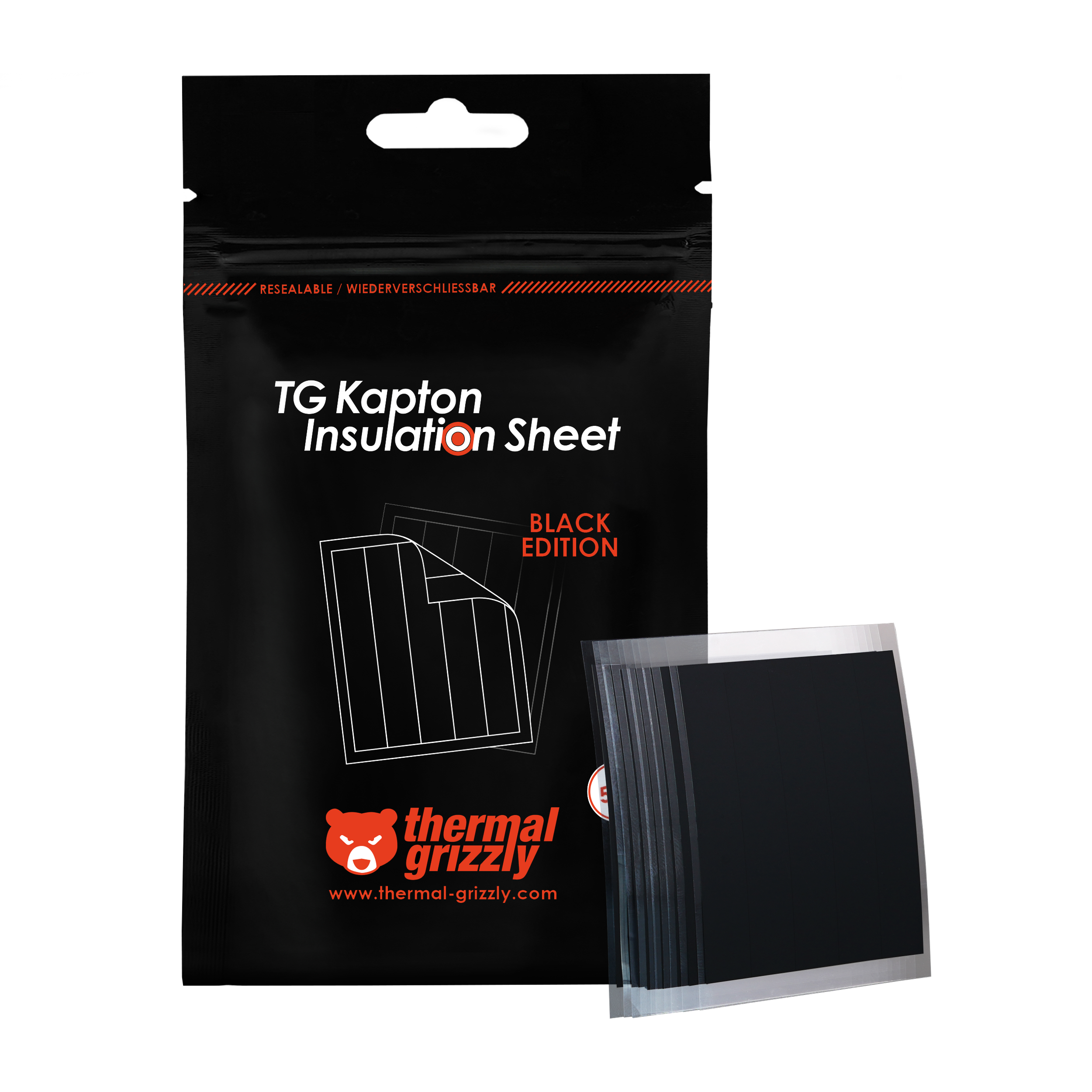

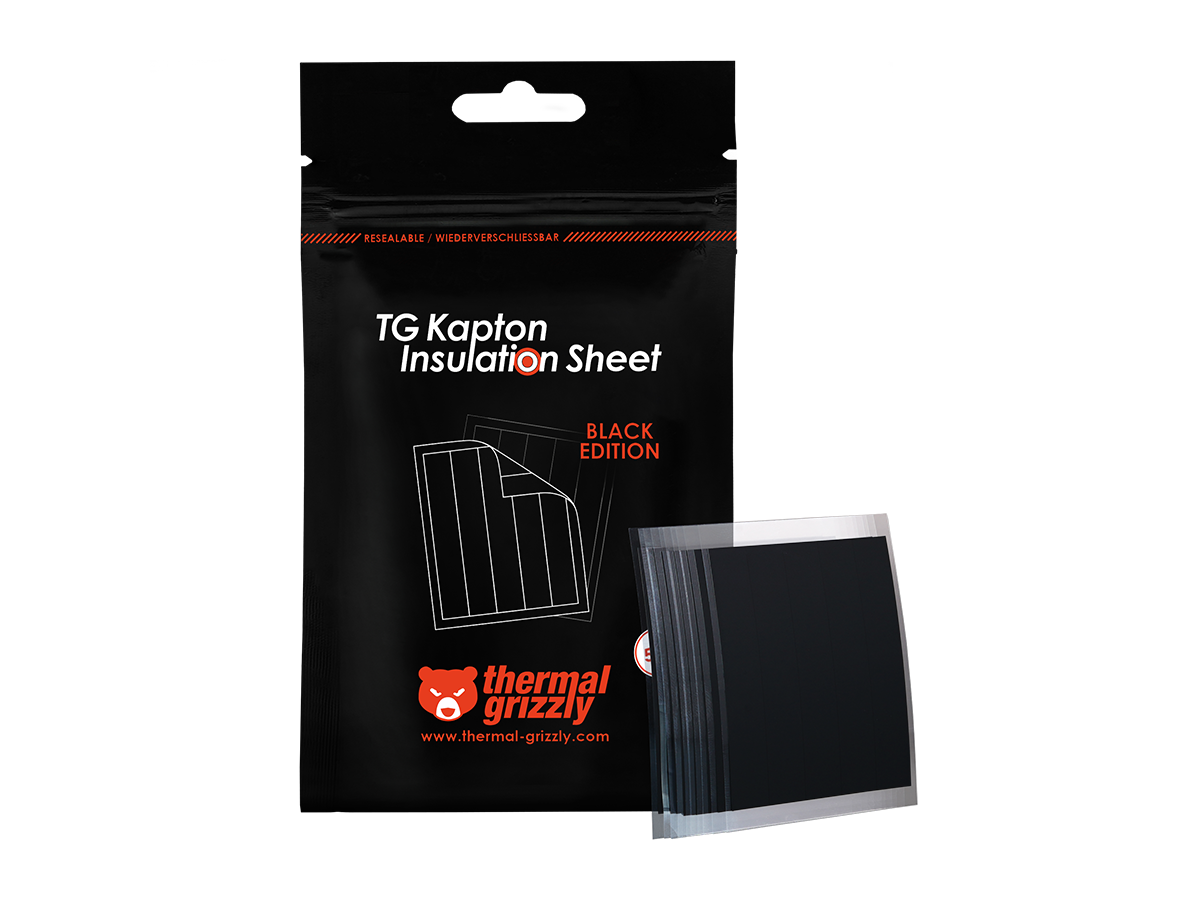

Scope of delivery

10x carrier foil with 5 Kapton Insulation Sheets each

Note on use with High Performance Heatspreaders and Direct-Die coolers

The TG Kapton Insulation Sheet should not be used in combination with High Performance Heatspreaders or Direct-Die coolers. Instead, a thin layer of TG Shield should be applied to protect the electronic components. The reason for this is that High Performance Heatspreaders (HPHS) and Direct-Die coolers rest directly on the CPU package. When a Kapton Insulation Sheet is used, the internal structure of the HPHS or Direct-Die cooler may rest on the Insulation Sheet, preventing contact between the CPU die and the HPHS or cooler.

Kapton Insulation Sheets comparison

Properties	Kapton Insulation Sheet	Kapton Insulation Sheet Black Edition
Material	Polyimid (PI)	Polyimid (PI)
Color	Yellow	Black, matte
Total thickness	40 µm	30 µm
Long-term temperature resistance	180 °C	180 °C
Short-term temperature resistance	280 °C	260 °C
Breakdown Voltage	Over 1 kV	5 kV
Electrically insulating	Yes	Yes

Product information "TG Kapton Insulation Sheet Black Edition"

Black Edition: Thinner, stronger, and ideal for precise masking

properties

50 adhesive strips 10×60 mm
Thickness of 30 µm
Electrically insulating
Max temperature: 260 °C
Breakdown voltage: over 5 kV
Clean the adhesive surface beforehand!

Scope of delivery

10x carrier foil with 5 Kapton Insulation Sheets each

Note on use with High Performance Heatspreaders and Direct-Die coolers

Kapton Insulation Sheets comparison

Properties	Kapton Insulation Sheet	Kapton Insulation Sheet Black Edition
Material	Polyimid (PI)	Polyimid (PI)
Color	Yellow	Black, matte
Total thickness	40 µm	30 µm
Long-term temperature resistance	180 °C	180 °C
Short-term temperature resistance	280 °C	260 °C
Breakdown Voltage	Over 1 kV	5 kV
Electrically insulating	Yes	Yes

TG Kapton Insulation Sheet

How do I cut TG Kapton Insulation Sheet to size and apply it correctly for electrical insulation?

Cut TG Kapton Insulation Sheet to size with clean, sharp scissors or a blade on a suitable surface, never directly on the circuit board or CPU substrate. Apply the film to clean, dry surfaces that need electrical insulation. The actual heat transfer surface must remain clear. Avoid torn edges, wrinkles and overlapping layers under the cooler. In direct-die installations, even a thin additional layer can change the contact height. Use the protection method specified in the cooler's instructions for these installations.

Is TG Kapton Insulation Sheet electrically conductive, and how do I prevent short circuits?

TG Kapton Insulation Sheet is used to electrically insulate suitable contact areas. Its protective effect requires a clean surface. The film must not get between the cooler and the contact surface, as this would impair heat transfer. For applications with specific voltage requirements, thickness and electrical specifications must be checked separately.

Which version of TG Kapton Insulation Sheet do I need, and how do the variants differ?

Both versions are suitable for continuous temperature exposure up to 180 °C. The standard TG Kapton Insulation Sheet withstands temperatures up to 280 °C for short periods. The transparent, yellowish film allows the covered components to remain visible. TG Kapton Insulation Sheet Black Edition withstands temperatures up to 260 °C for short periods. Its matte black surface is suitable when components should also be visually concealed or when the yellowish film does not suit the design.

Where can I find the instructions, datasheet or technical drawing for TG Kapton Insulation Sheet?

Instructions, data sheets and, where available, technical drawings for TG Kapton Insulation Sheet can be found in the downloads section of the product page. Make sure the document matches your version and revision. If the required file is missing, tell us the item number and the information you are looking for. Please note that a public CAD file is not available for every product.

Downloads "TG Kapton Insulation Sheet"

Datasheet

Breakdown voltage:	5 kV
Color:	matt black
Electrically insulating:	Yes(8KV/mm ASTM D149)
Material:	polyimide
Thickness:	0,03 mm
