Thermal Grizzly Shield protective coating

TG Shield

Thermal Grizzly Shield 5ml is a high temperature protective coating designed to protect against liquid metal or other electrically conductive heat transfer agents. Optimized for fast drying and provides reliable component protection. The high application temperature allows use on all common CPUs.

$13.92

Content: 5 mL ($2.78 / 1 mL)

Content

5 ml

EAN: 4260711990427 Copied!

MPN: TG-ASH-050-RT Copied!

Product information "TG Shield"

Thermal Grizzly TG Shield is a high-temperature protective coating for use to protect against liquid metal or other electrically conductive heat transfer agents.

Optimal protection for sensitive PC components

TG Shield is optimized for fast drying and provides reliable protection of PC components when used in combination with liquid metal or other electrically conductive heat transfer agents.

The integrated brush allows for precise and easy application. The high application temperature allows the use on all common CPUs.

TG Shield

When do I need TG Shield, and how do I apply the protection correctly?

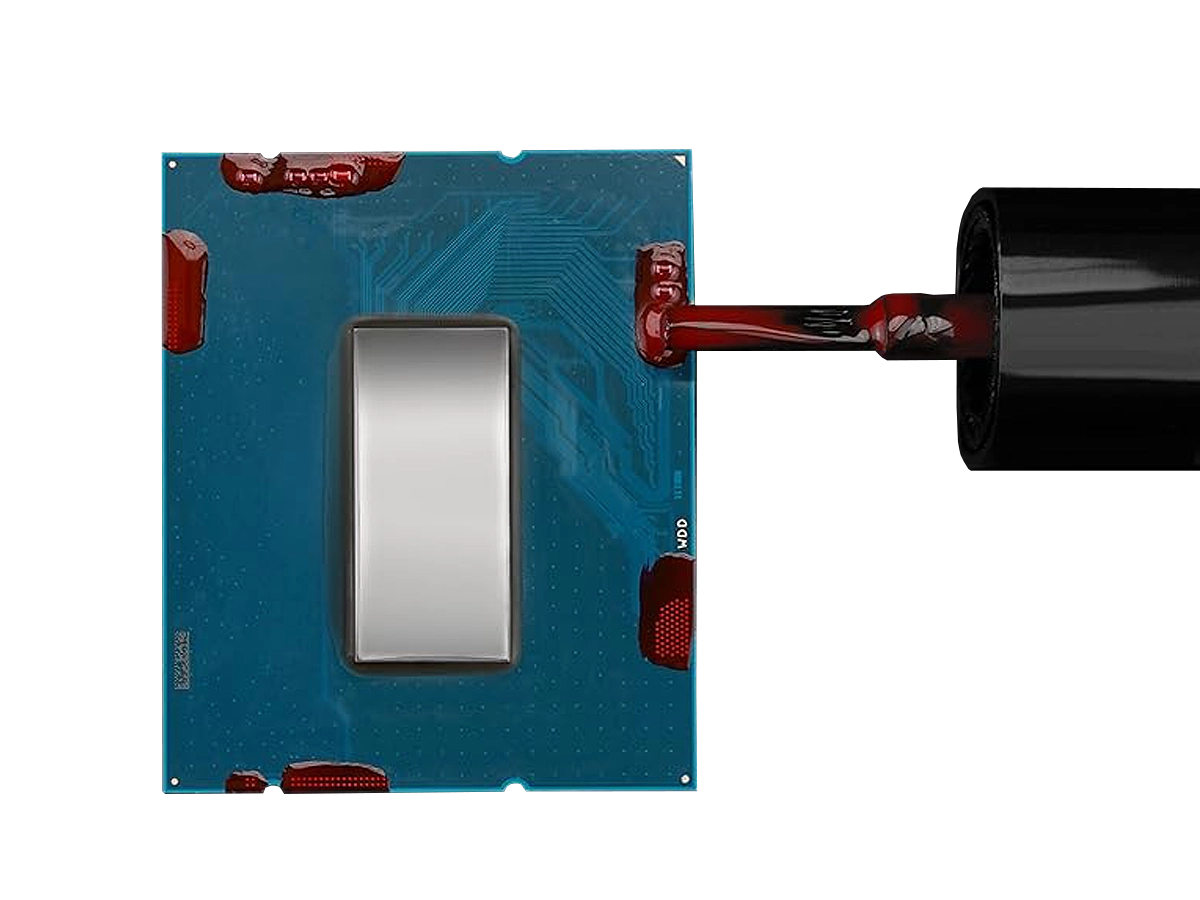

TG Shield is suitable for protecting electrically sensitive contacts or components from electrically conductive thermal interface materials such as liquid metal. With non-conductive paste, the coating is normally not needed for short-circuit protection. Use the integrated brush to apply a thin, continuous coat of TG Shield to the SMD components that need protection around the planned liquid metal contact area. The surface must be clean and dry. Keep the actual heat transfer surface, socket contacts and connectors clear. Allow the coating to dry completely before applying liquid metal, and check it for gaps.

Is TG Shield electrically conductive, and how do I prevent short circuits?

Once fully dry, TG Shield forms an electrically insulating protective layer. Liquid metal such as Conductonaut remains electrically conductive itself. Therefore, vulnerable components must be protected without gaps and the heat transfer surfaces must be kept clean. The coating is not a substitute for correct dosing and does not constitute blanket approval for high-voltage applications. TG Shield itself is not electrically conductive when dry.

How long does TG Shield need to dry, and how do I remove it?

TG Shield requires approximately 30 minutes of drying time at 20 °C. Thicker layers and unfavorable ambient conditions can extend drying time. Therefore, apply liquid metal only once the layer has dried completely. For removal, use only agents suitable for both the coating and the underlying material. Acetone can dissolve the coating, but it can also attack plastics, markings and adhesives. Therefore, work carefully and do not immerse the entire circuit board. TG Remove can remove TG Shield.

Where can I find instructions, technical specifications, safety datasheets and compliance documents for TG Shield?

Instructions, technical data sheets, drawings and available safety or conformity documents for TG Shield can be found in the downloads section of the product page. Check that the item number and revision match. A technical data sheet does not replace a safety data sheet. If a file or language version is missing, send us the exact product name and specify the document you need. Public CAD files, additional certificates or formulation details are not available for every product.

What is included with TG Shield, and how can I obtain missing or replacement parts?

TG Shield is supplied in a 5 ml bottle with an integrated application brush. Close it carefully after use. If the bottle is damaged, has leaked or is missing the specified brush, send us proof of purchase and photos of the packaging and contents. For missing parts or accessories needed separately, send us the exact item number, proof of purchase and a photo with the relevant part marked. We will check whether a suitable part is available and what costs or shipping conditions apply. Do not use unverified replacement parts with different dimensions.

How should I store TG Shield, and how long can an opened or unopened pack be stored?

Close TG Shield immediately after use and store it in its original packaging according to the label and safety data sheet. Avoid heat, direct sunlight and contamination inside the container. A coating that has thickened significantly or become contaminated should not be thinned with arbitrarily chosen solvents. Unopened TG Shield has a shelf life of 5 years. Once opened, it should be used within 1 year.

Downloads "TG Shield"

Color:	red
Curing time:	30 min at 20°C
Operating temperature:	-20°C to +150°C
