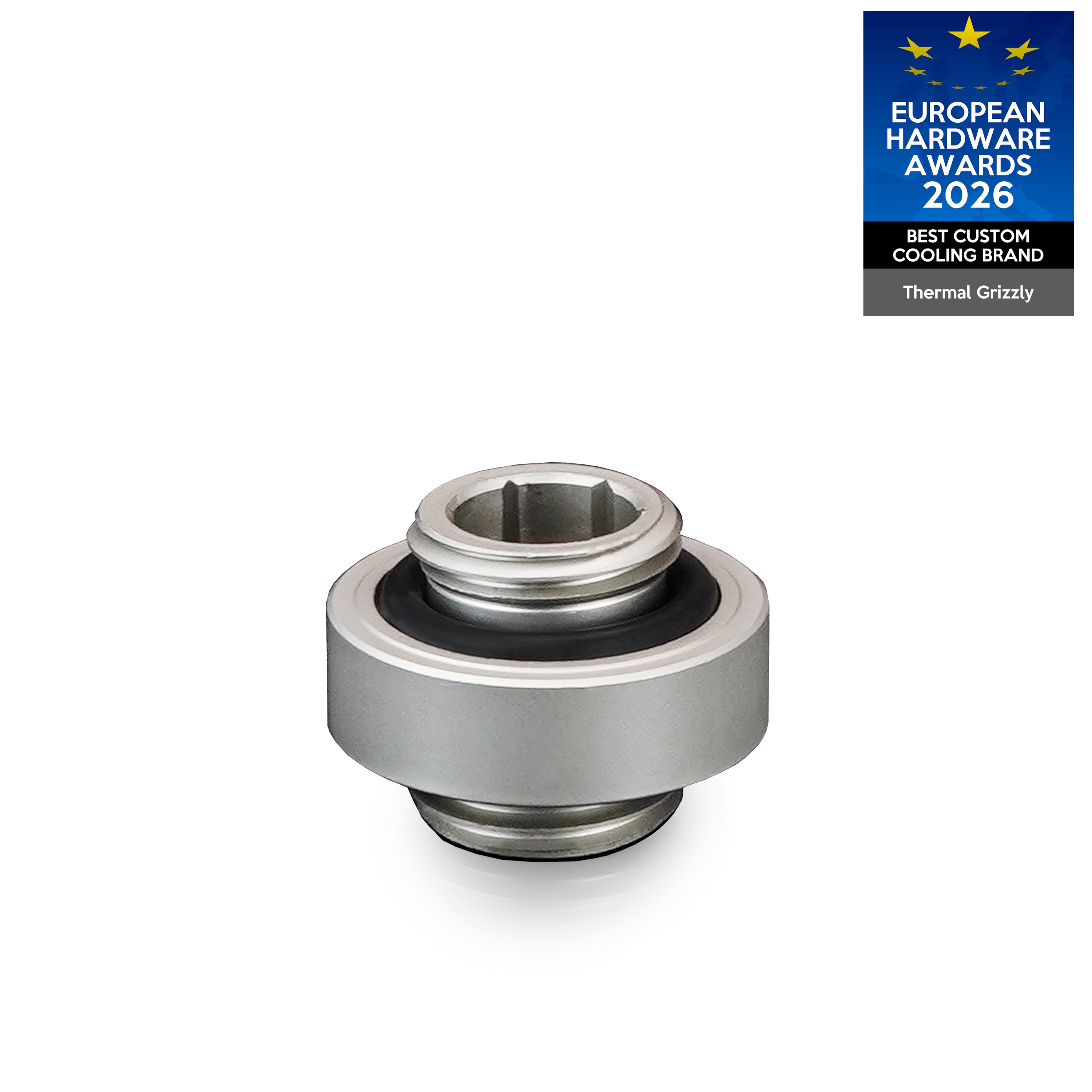

DeltaMate Extender - MM7R Matt Nickel, 2x male thread

Product information "DeltaMate Extender - MM7R - Matt Nickel - 1 pc."

The DeltaMate extender fittings are water-cooling fittings for the individual components of a custom water-cooling system. In the usual Thermal Grizzly quality, the extender fittings are precision-machined from brass. As an alloy of copper and zinc, brass offers the advantage of being anodically compatible with other metals while also being harder and more corrosion-resistant than copper.

General information

The sealing rings (O-rings) are made of highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of DeltaMate fittings allows installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings enables seamless integration of the individual products.

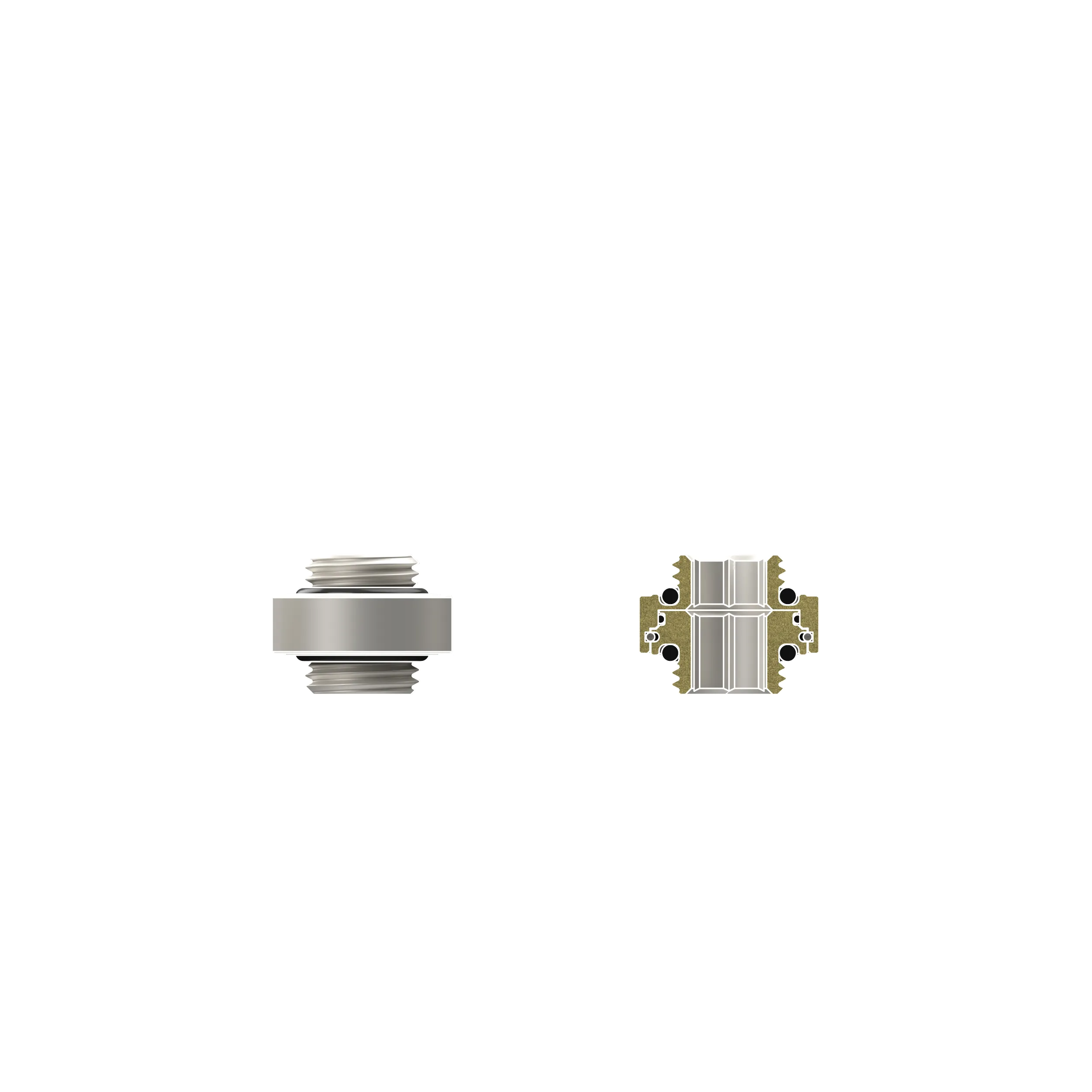

The DeltaMate Extender - MM7R features two G1/4" male threads and offers a high-quality finish in the form of a matt nickel coating, which is also easy to clean. As an extension fitting, the extender is used between two water-cooling components with female threads (for example, a GPU block and a flow sensor).

Properties

Used for a close connection between two parts with female-thread ports.
The swivel joint provides full rotational freedom.
The internal hex connections allow both sides to be installed together or independently of each other.
Uniform outer diameter across all DeltaMate fittings for seamless integration.
Robust design allows installation using an 8 mm hex key.
