KryoSheet

The KryoSheet Graphene Thermal Pads are an excellent alternative to thermal pastes and have an adaptable surface with very high thermal conductivity. Compared to Carbonaut pads, KryoSheet offers significantly higher thermal conductivity. The KryoSheet in sizes 75 × 72 mm comes with Kapton Insulation Sheet.

$40.83

Content: 3468 mm² ($1.18 / 100 mm²)

Prices incl. VAT plus shipping costs

Size
Thickness
EAN: 4260711991288
MPN: TG-KS-75-72

Product information "KryoSheet"


The graphene thermal pads of the Thermal Grizzly KryoSheet series can be used excellently as an alternative to thermal pastes from the upper performance segment. Similar to the Carbonaut pads, they have an adaptable surface with very high thermal conductivity. Compared to Carbonaut pads, KryoSheet offers significantly higher thermal conductivity as a high-end product. This increased thermal conductivity is not only due to the choice of material, but also due to the innovative manufacturing process. KryoSheet does not contain any liquid components and is therefore not subject to ordinary aging as is the case with traditional thermal paste. Drying out is not possible.

Properties

  • Outstanding thermal conductivity
  • Easy to use
  • Consistently high performance
  • Extreme durability
  • Attention: Electrically conductive! Follow the instructions!
1-Content_KryoSheet_US
2-Content_KryoSheet

Outstanding and consistent thermal conductivity

The KryoSheet graphene pads have a molecular structure stacked in the Z-direction. This optimized structure allows for outstanding and consistent thermal conductivity. This is due to a specially developed manufacturing process in which the hexagonal crystal structure of the graphite is broken up along the basal plane in order to be able to exploit the anisotropy of the thermal conductivity of the graphite. As a side effect of this complex manufacturing process, however, the electrical conductivity is also increased and the stability of the KryoSheet pads is influenced, so that the pads can only be used according to instructions!

Product information "KryoSheet"


The graphene thermal pads of the Thermal Grizzly KryoSheet series can be used excellently as an alternative to thermal pastes from the upper performance segment. Similar to the Carbonaut pads, they have an adaptable surface with very high thermal conductivity. Compared to Carbonaut pads, KryoSheet offers significantly higher thermal conductivity as a high-end product. This increased thermal conductivity is not only due to the choice of material, but also due to the innovative manufacturing process. KryoSheet does not contain any liquid components and is therefore not subject to ordinary aging as is the case with traditional thermal paste. Drying out is not possible.

Properties

  • Outstanding thermal conductivity
  • Easy to use
  • Consistently high performance
  • Extreme durability
  • Attention: Electrically conductive! Follow the instructions!

Outstanding and consistent thermal conductivity

Z-direction. This optimized structure allows for outstanding and consistent thermal conductivity. This is due to a specially developed manufacturing process in which the hexagonal crystal structure of the graphite is broken up along the basal plane in order to be able to exploit the anisotropy of the thermal conductivity of the graphite. As a side effect of this complex manufacturing process, however, the electrical conductivity is also increased and the stability of the KryoSheet pads is influenced, so that the pads can only be used according to instructions!

KryoSheet is available in multiple sizes

The KryoSheet 75x72 mm is compatible with:

AMD CPUs:

  • AMD EPYC

3-Content_KryoSheet

Note:

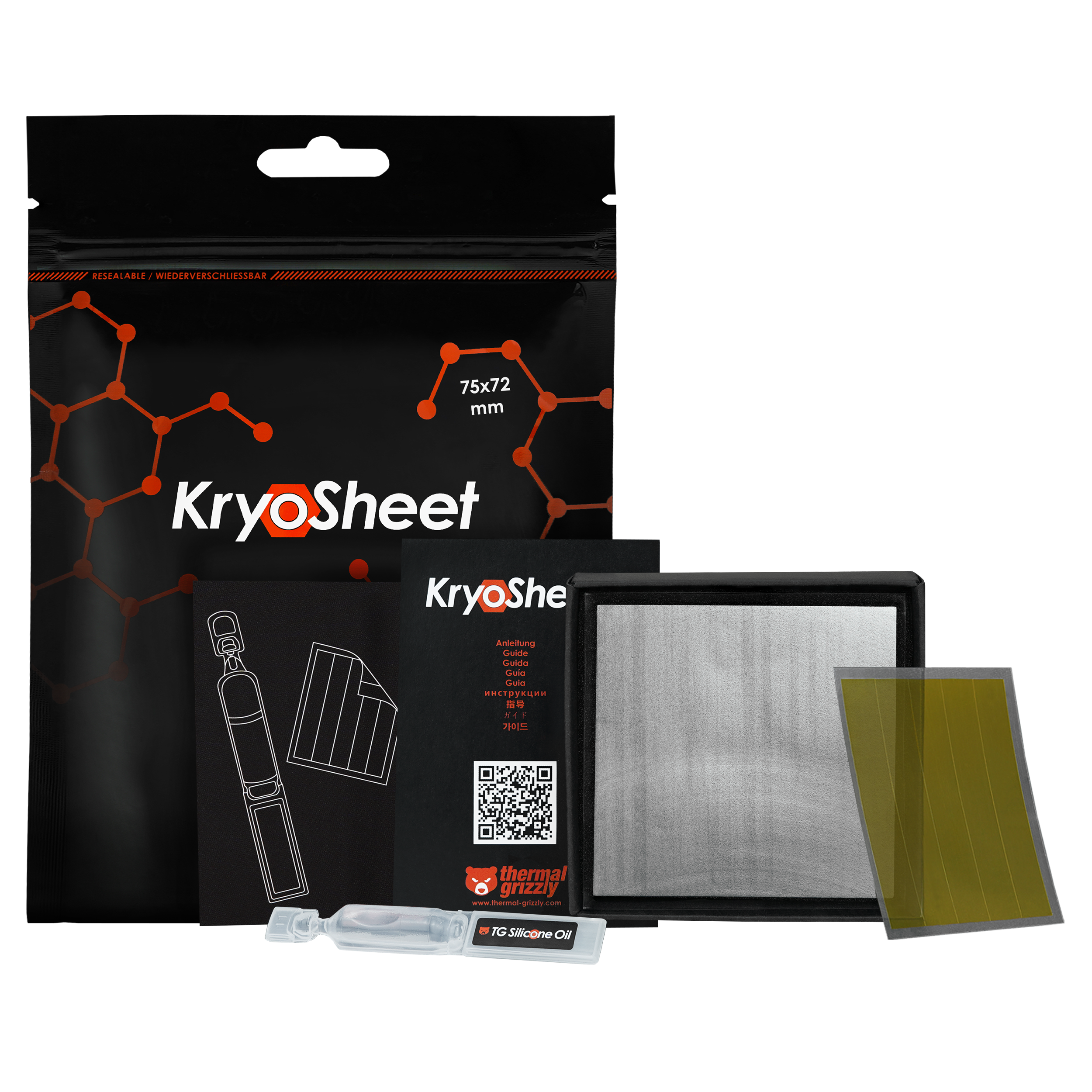

The KryoSheet in sizes 75 × 72 mm comes with Kapton Insulation Sheet. The Kapton Insulation Sheet is used to protect the chip and is glued around the chip on the electronic components (SMDs). Multiple use of KryoSheet is not recommended!

When disassembling the cooler and handling the KryoSheet after use, micro-cracks may occur in the structure of the graphene pads, which can affect performance.


KryoSheet is available in multiple sizes

The KryoSheet 75x72 mm is compatible with:

AMD CPUs:

  • AMD EPYC

Note:

The KryoSheet in sizes 75 × 72 mm comes with Kapton Insulation Sheet. The Kapton Insulation Sheet is used to protect the chip and is glued around the chip on the electronic components (SMDs). Multiple use of KryoSheet is not recommended!

When disassembling the cooler and handling the KryoSheet after use, micro-cracks may occur in the structure of the graphene pads, which can affect performance.


Electrically insulating: No
Operating temperature: -250°C to +150°C
Size: 75 x 72 mm
Thickness: 0.2 mm
Color: anthracite
