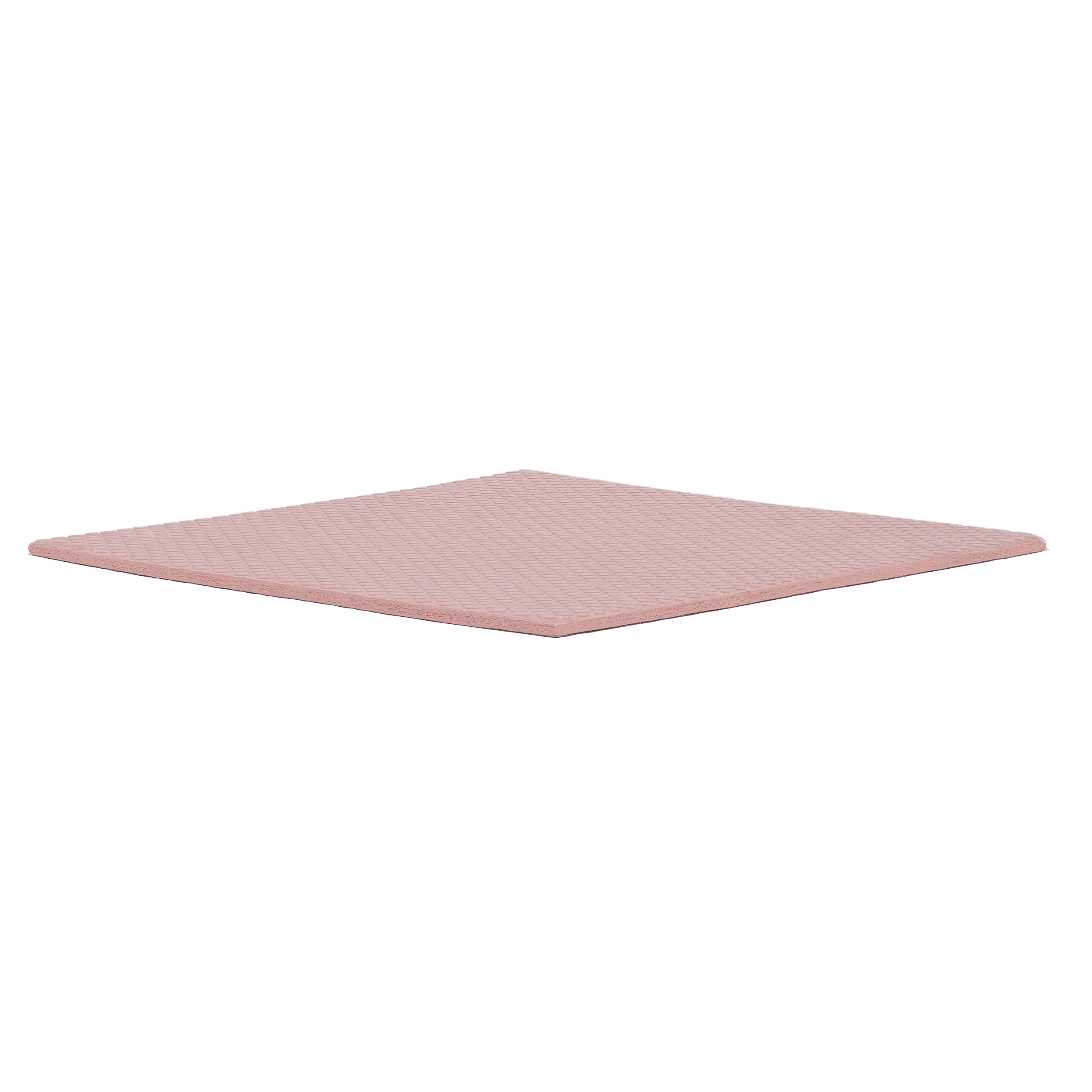

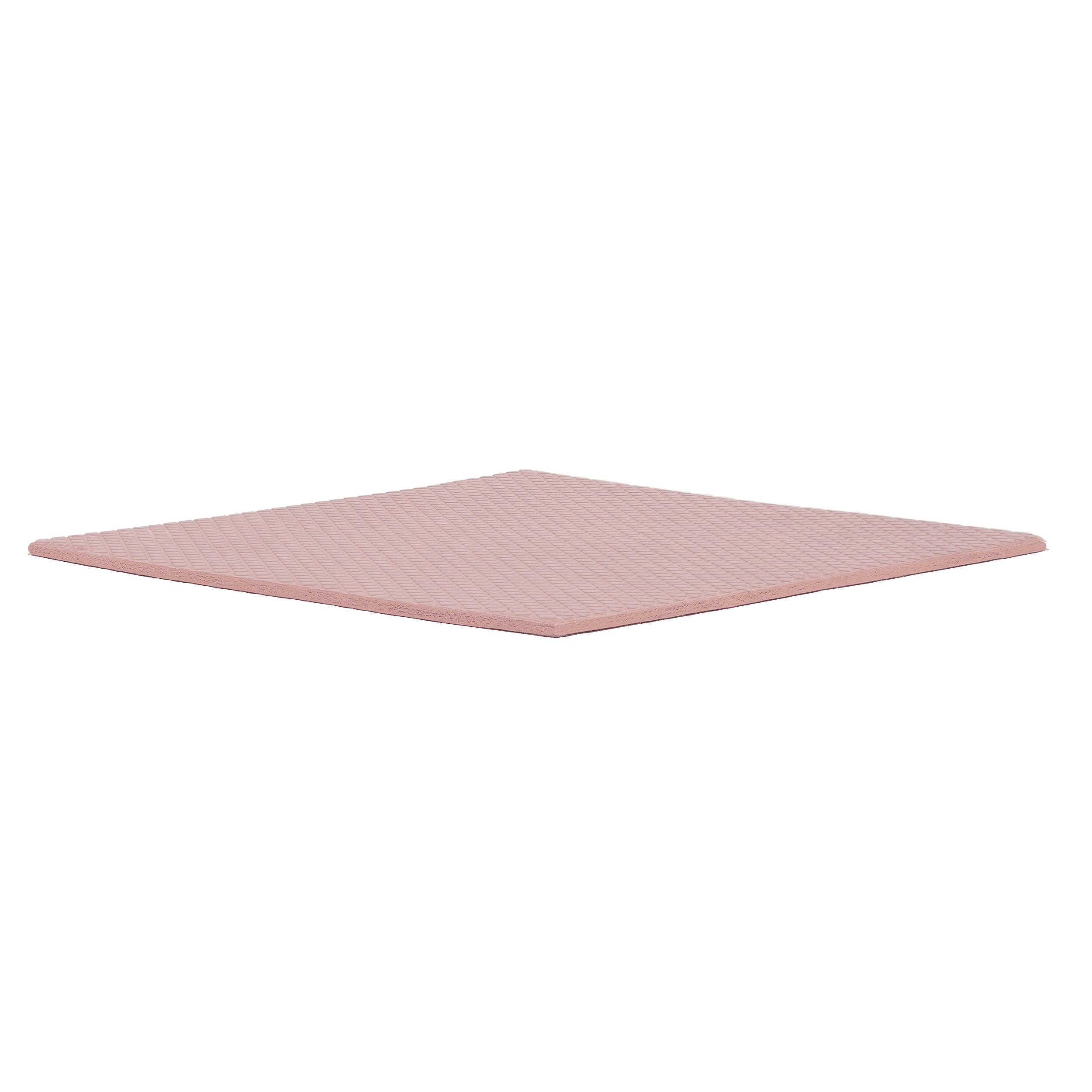

Minus Pad 8

The high-performance heat-conducting pads of the minus pad 8 series have a very elastic and adaptable surface with very high thermal conductivity. Even the smallest component differences can thus be compensated very well.

$15.15

Content: 10000 mm² ($0.15 / 100 mm²)

Prices incl. VAT plus shipping costs

Size
Thickness
Content
EAN: 4260711990113
MPN: TG-MP8-100-100-15-1R

Product information "Minus Pad 8"

The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses.

Properties

  • High thermal conductivity
  • High compressibility
  • Electrical insulation
1-Content_MP8_Matrix_US
2-Content_MP_8

Flexible, efficient and reliable

The easy to process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer. The lightest of touches is enough to attach them optimally.

All pads are ecofriendly and RoHS-compliant.

The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.

Product information "Minus Pad 8"

The high performance thermal pads of the Thermal Grizzly Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between components. Available in a variety of different sizes and thicknesses.

Properties

  • High thermal conductivity
  • High compressibility
  • Electrical insulation

Flexible, efficient and reliable

The easy to process and flexible minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus, the pads ensure a constant, optimal heat transfer. The lightest of touches is enough to attach them optimally.

All pads are ecofriendly and RoHS-compliant.


The minus pads 8 are available in the sizes of 30x30mm, 120x20mm, 100x100mm as well as in the thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.

ThermalPads_Comparison_US_MOBILE
Degree of hardness: Shore 00-60
Electrically insulating: Yes(8KV/mm ASTM D149)
Flammability: V-0
Operating temperature: -100°C to +250°C
Size: 100 x 100 mm
Thickness: 1.5 mm
Color: pink
