Mycro Pro

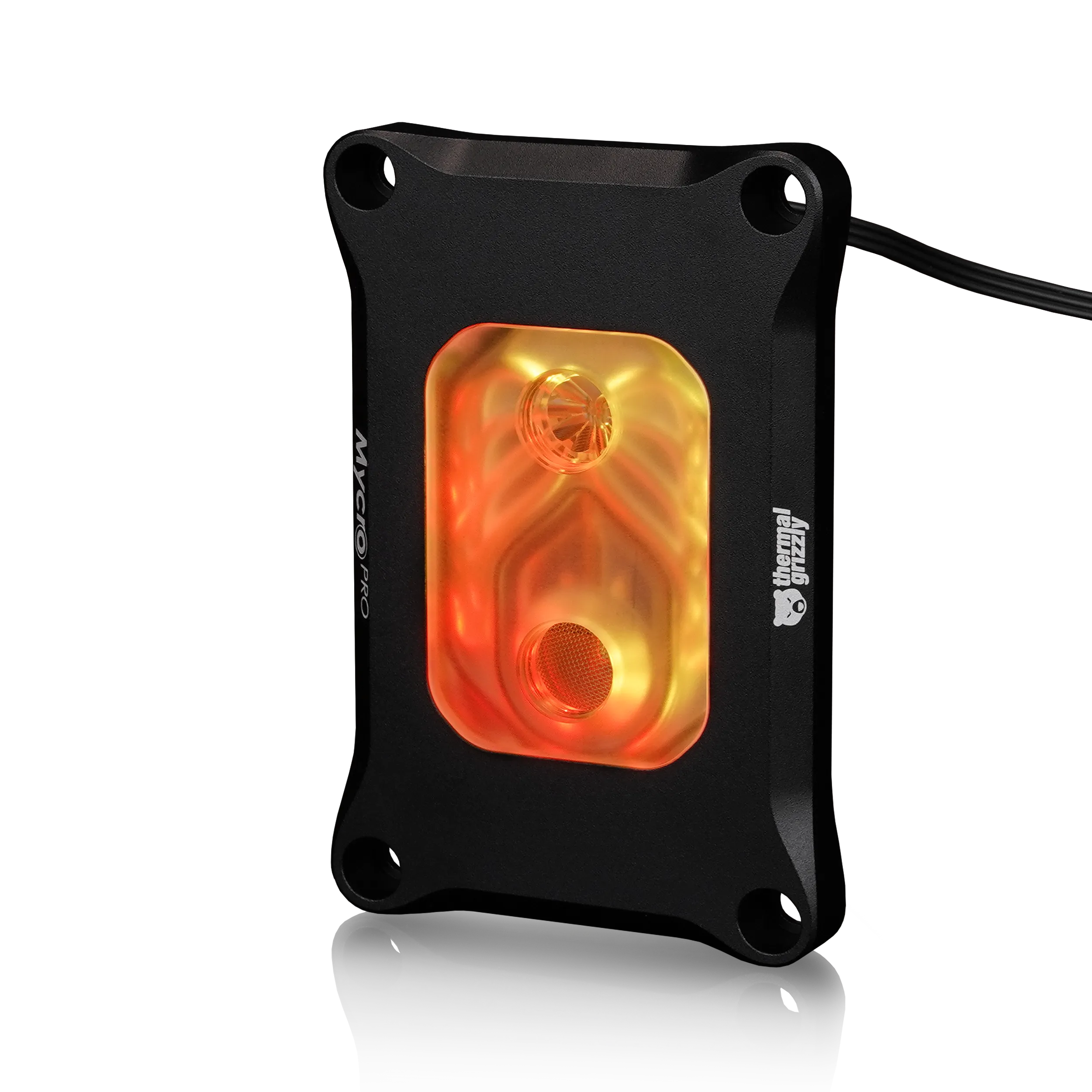

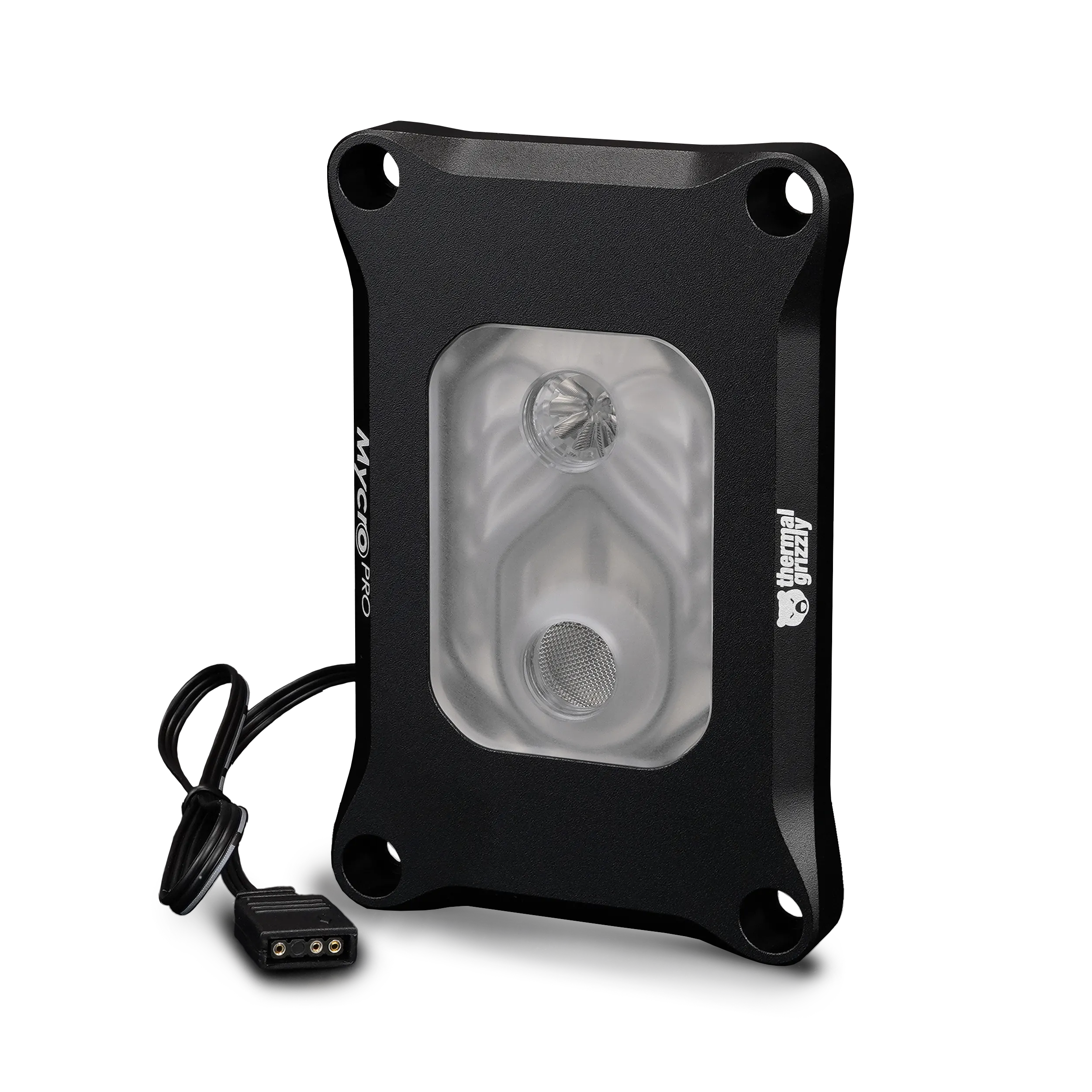

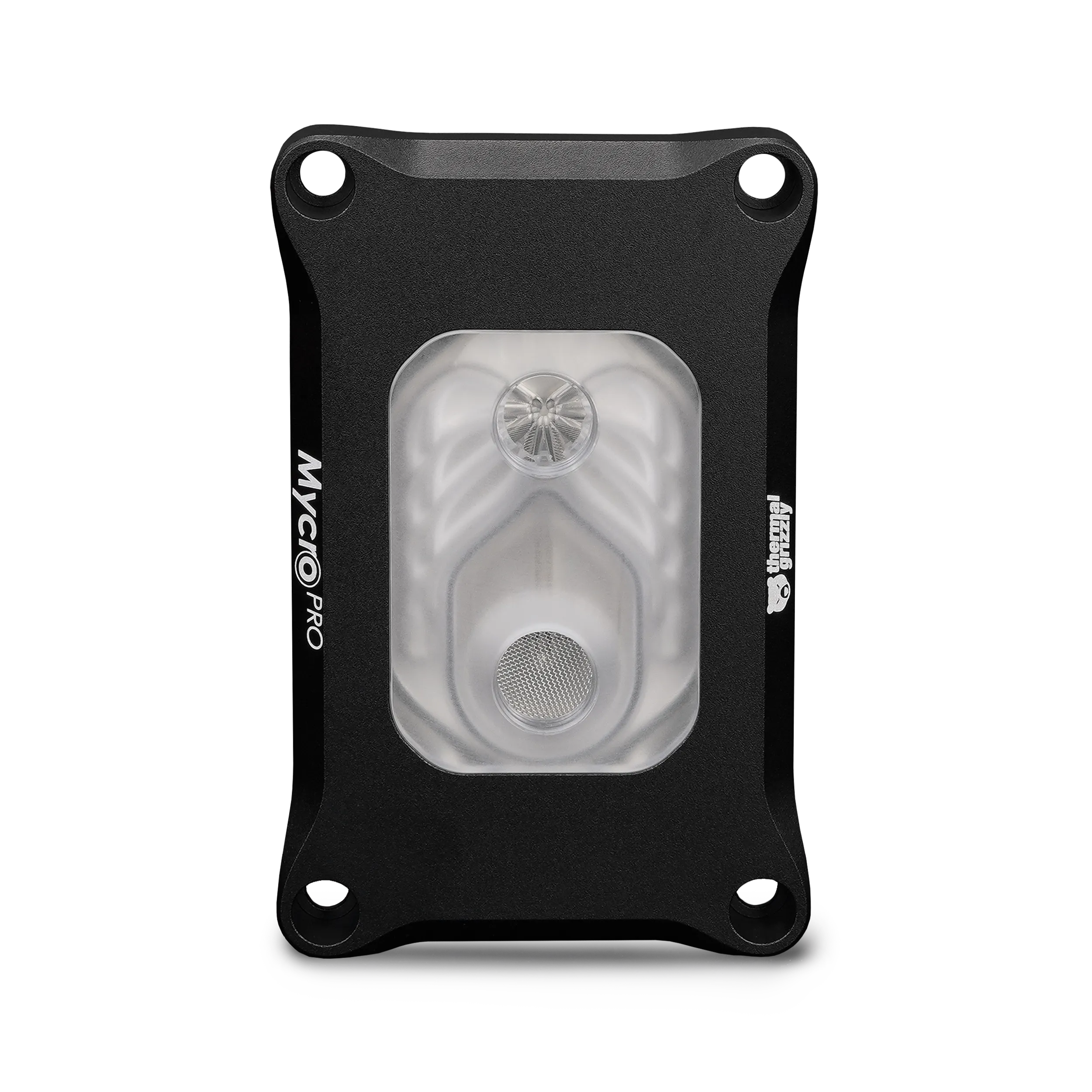

The Thermal Grizzly AM5 Mycro Pro RGB is a CPU water block for AMD’s AM5 socket (backward compatible with AM4), featuring Ultra High Performance cold plates, a flow-optimized design, and an integrated filter.

$163.68

Content: 1 pcs.

Prices incl. VAT plus shipping costs

Lighting
CPU-Type
EAN: 4260711992728
MPN: TG-MY-P-RGB-AMD-AM5

Product information "AMD AM5 Mycro Pro RGB"

Thermal Grizzly’s AM5 Mycro Pro RGB is a CPU water block for AMD’s AM5 socket that is backward compatible with the AM4 socket. The cooler consists of a nickel-plated copper cold plate, a cooler plate made of tempered acrylic glass, a jet plate for flow optimization, and a cover made of anodized aluminum. The G1/4" threads ensure compatibility with a wide range of water-cooling products, such as the Thermal Grizzly DeltaMate fittings.

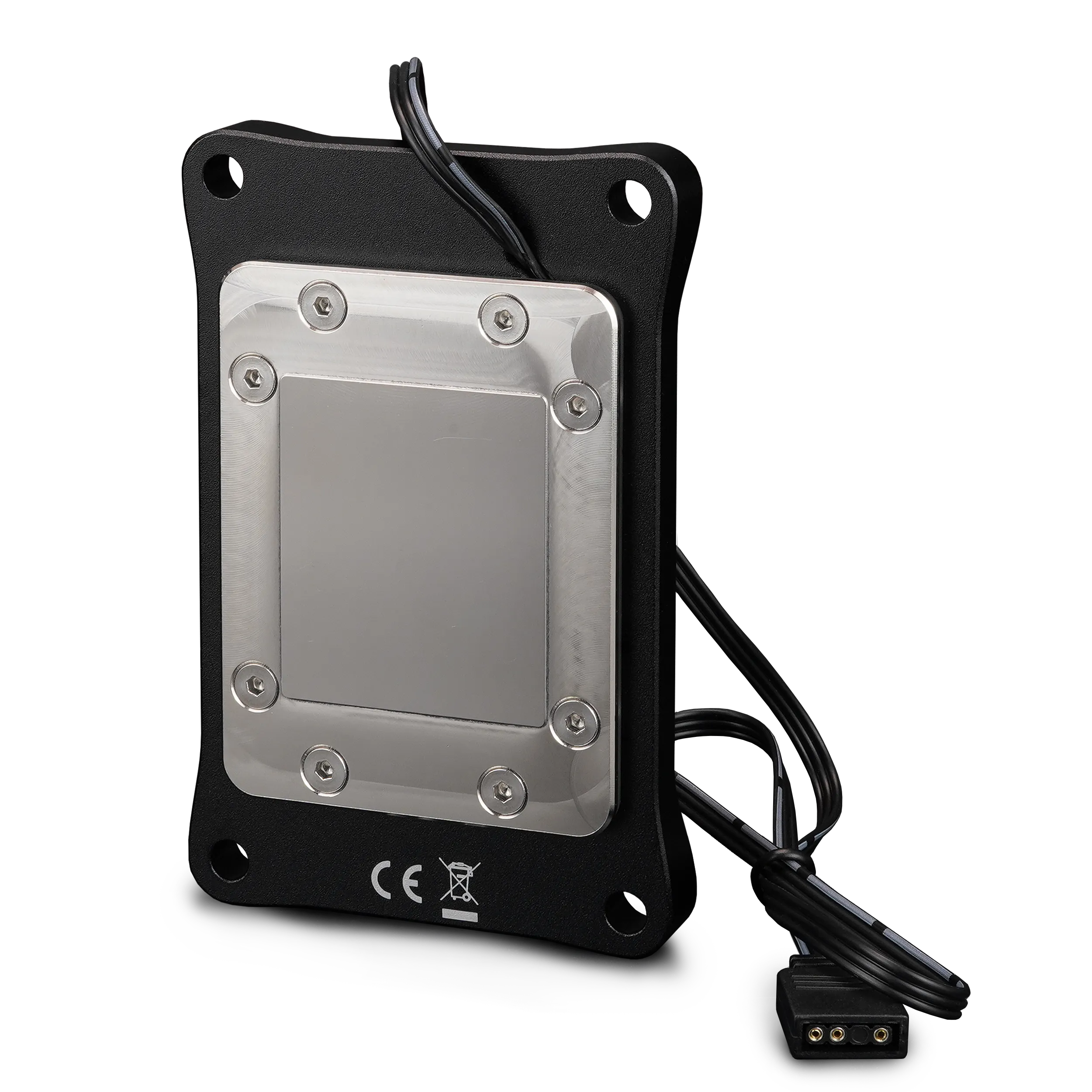

Ultra High Performance Cold Plate

Thermal Grizzly’s Ultra High Performance cold plates for CPU and GPU coolers are milled with minimal and highly optimized slot and fin widths. In the case of the AM5 Mycro Pro RGB, both the slot and fin width on the nickel-plated copper cooling plate measure 0.2 mm. A total of 68 microfins are located on the cold plate of the CPU water block. This high number of thin fins provides a very large surface area, allowing the coolant to dissipate heat quickly and efficiently. The cooler design milled into the acrylic glass, including a jet plate, is optimized for flow and delivers outstanding cooling performance in combination with the highly optimized cooling fins.

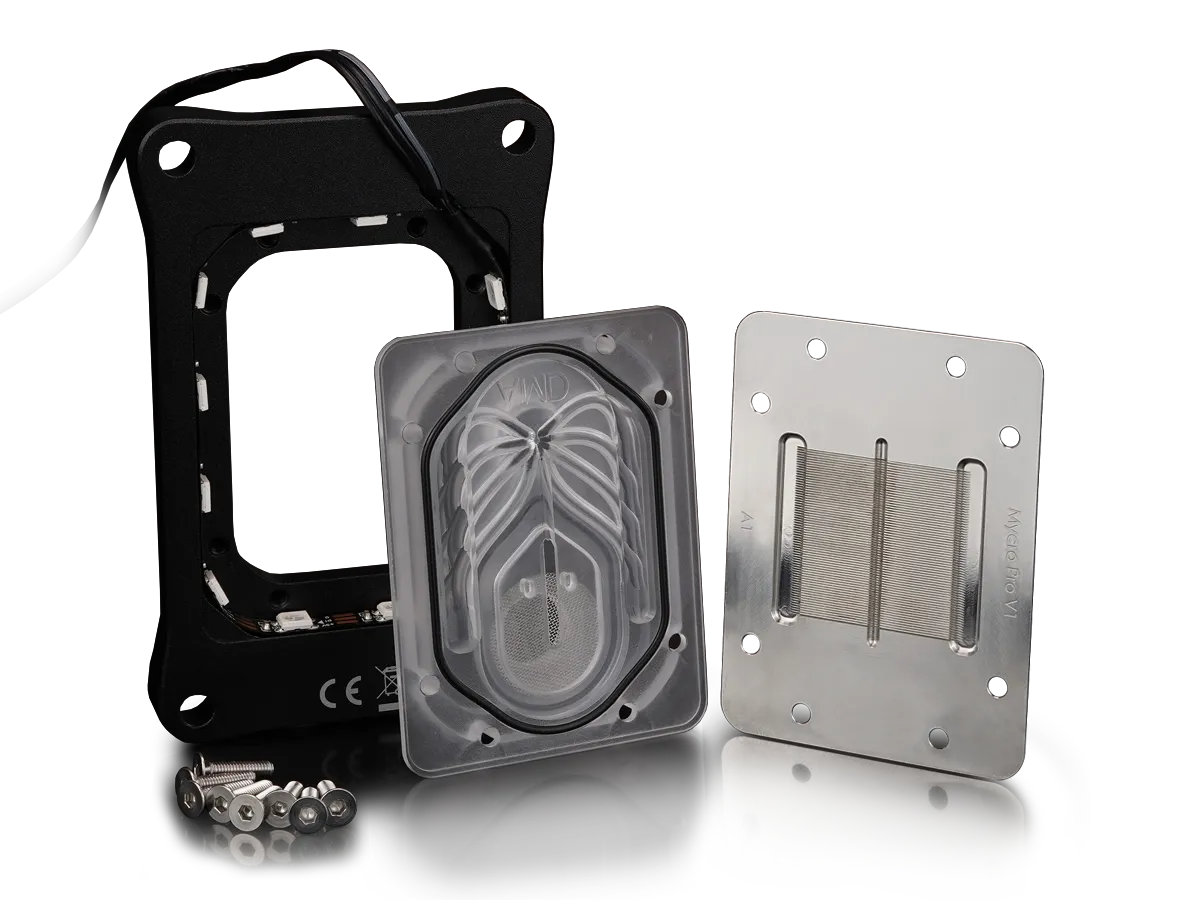

1-AMD_MycroPRO_PremiumContent

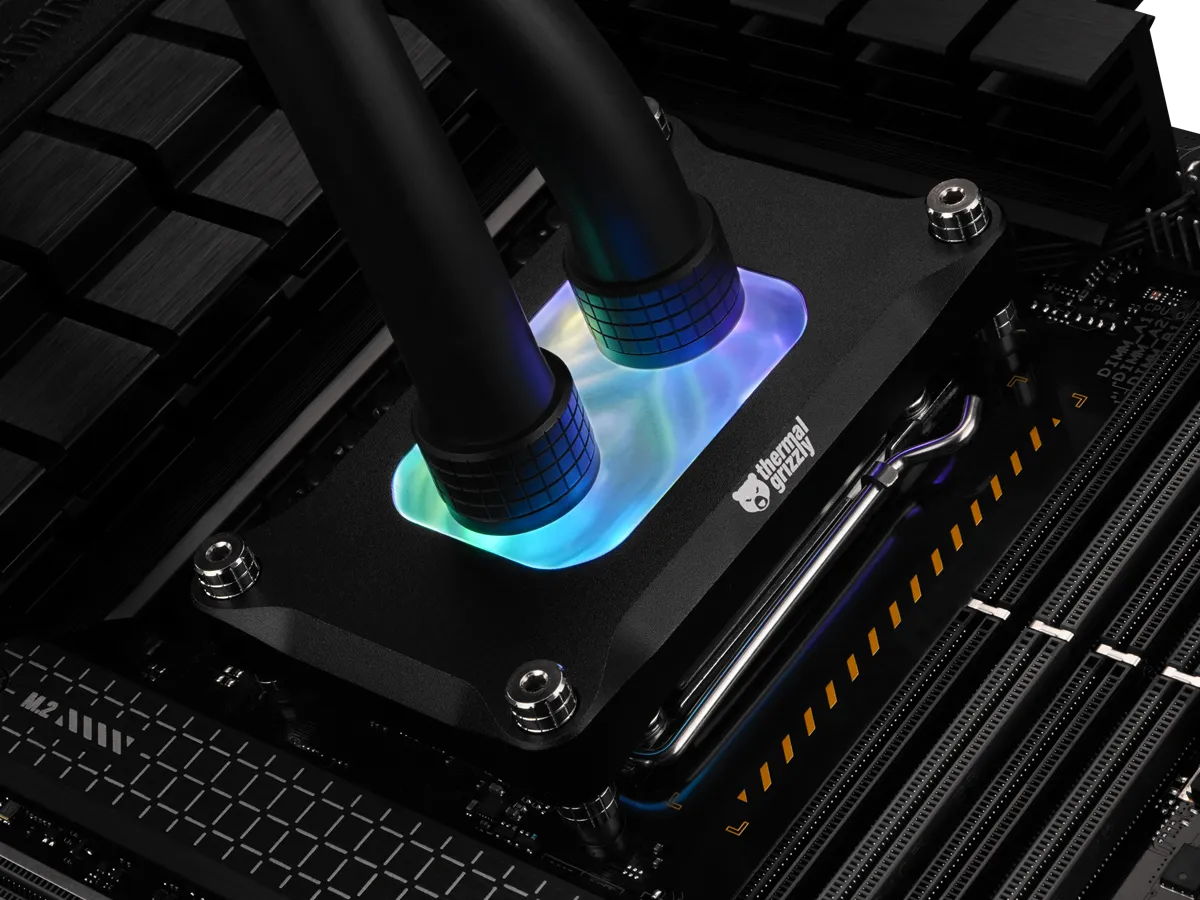

2-AMD_MycroPRO_PremiumContent

Properties

  • High-performance CPU water block for AMD AM5 socket
  • Fine-Mesh Filter at the Inlet Port
  • Nickel-plated copper cold plate with ultra-high-performance microfins (0.2 mm)
  • Metal housing with RGB-illuminated viewing window and internal layout
  • Inlet and outlet ports with standard G1/4" threads
  • Compatibility list available online

Integrated filter for consistently high cooling performance

The integrated filter captures particles present in the water-cooling loop. These may include production residues, for example from radiators. To prevent the microfins in the copper cooler from becoming clogged, these particles are filtered out directly at the inlet port. Contamination of the microfins can impair the flow of the coolant and thereby reduce cooling performance. This may result in higher CPU temperatures. The filter helps delay this effect and can be cleaned if necessary.

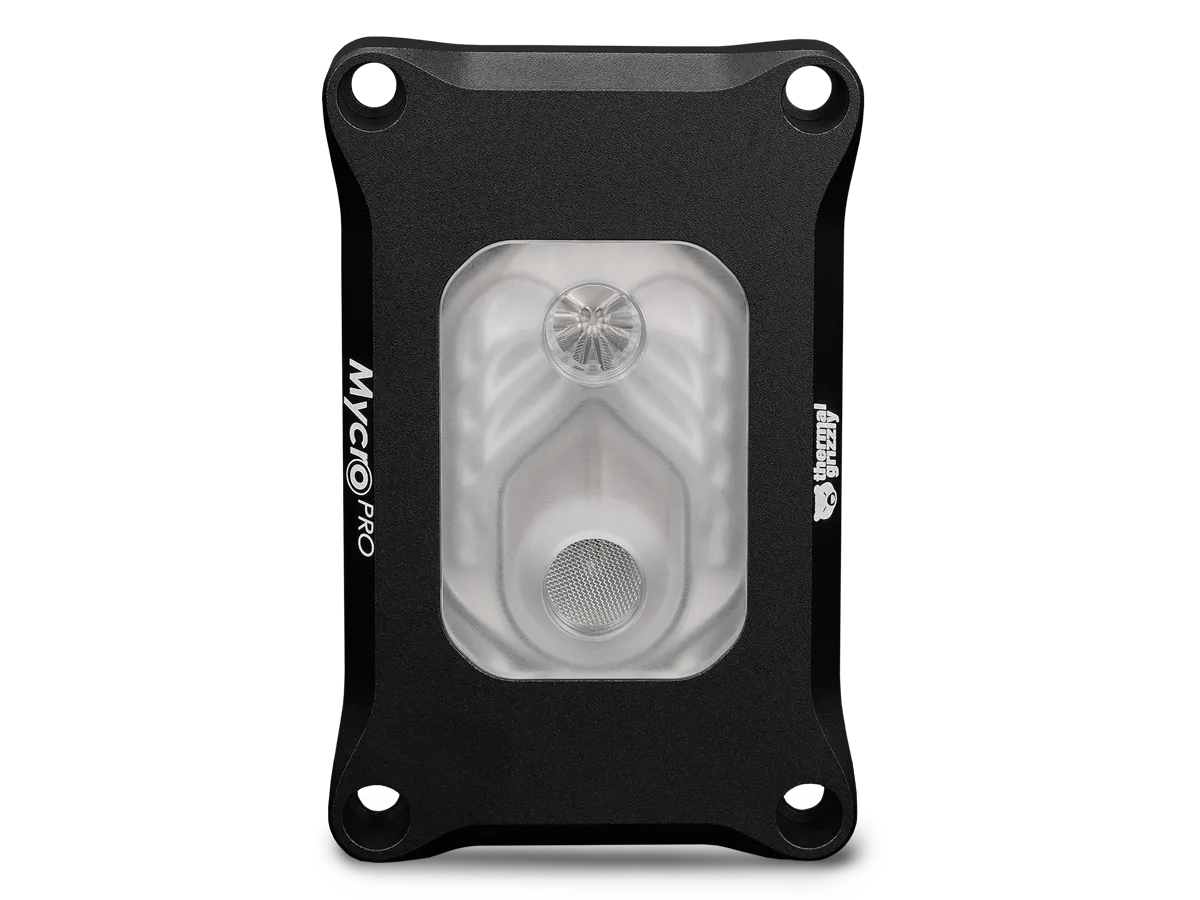

3-AMD_MycroPRO_PremiumContent

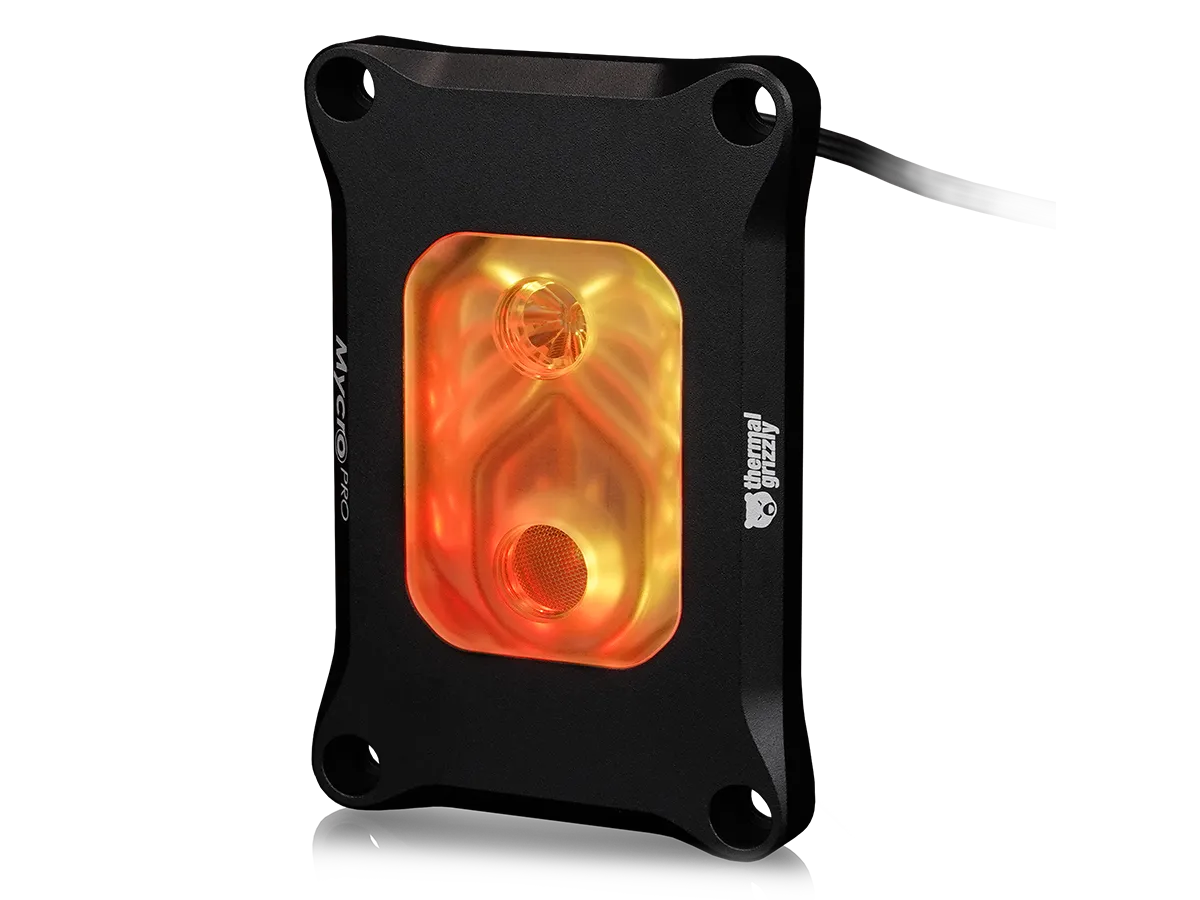

4-AMD_MycroPRO_PremiumContent

Ports and RGB Lighting

The AM5 Mycro Pro RGB is integrated into a custom water-cooling loop via one inlet and one outlet, each featuring G1/4-inch threads in the acrylic glass. A fine-mesh filter in the form of a sieve is located at the inlet port. After milling, the acrylic glass undergoes an annealing process that relieves internal stresses, reducing the risk of stress cracks over long periods of use. Beneath the cover is RGB LED lighting that accentuates the clean design when illumination is desired. The RGB LEDs can be controlled via a 3-pin ARGB header (+5V/DATA/GND) through the motherboard. The sealing rings used (O-rings) are made of highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation.

Product-Specific Notes

  • The AM5 Mycro Pro RGB is not compatible with the AM5 High Performance Heatspreader. To use both products together, the AM5 Adapter & Offset Mounting Kit is required.
  • The G1/4-inch threads of the inlet and outlet ports are each 6 mm deep.
  • The AM5 Mycro Pro RGB is not compatible with Direct-Die.


General Notes on Water-Cooling Products

  • Do NOT use in combination with water-cooling components made of aluminum where the coolant comes into contact with aluminum, such as radiators with aluminum tubing.
  • We recommend suitable coolants that contain biocides and corrosion inhibitors and are free of particles that could restrict water flow or clog the loop.
  • The custom water-cooling system should be tested for leaks with an air pressure tester for at least 1 hour before filling.
  • After filling, the system should be regularly inspected during the first 24 hours for any potential coolant leaks.

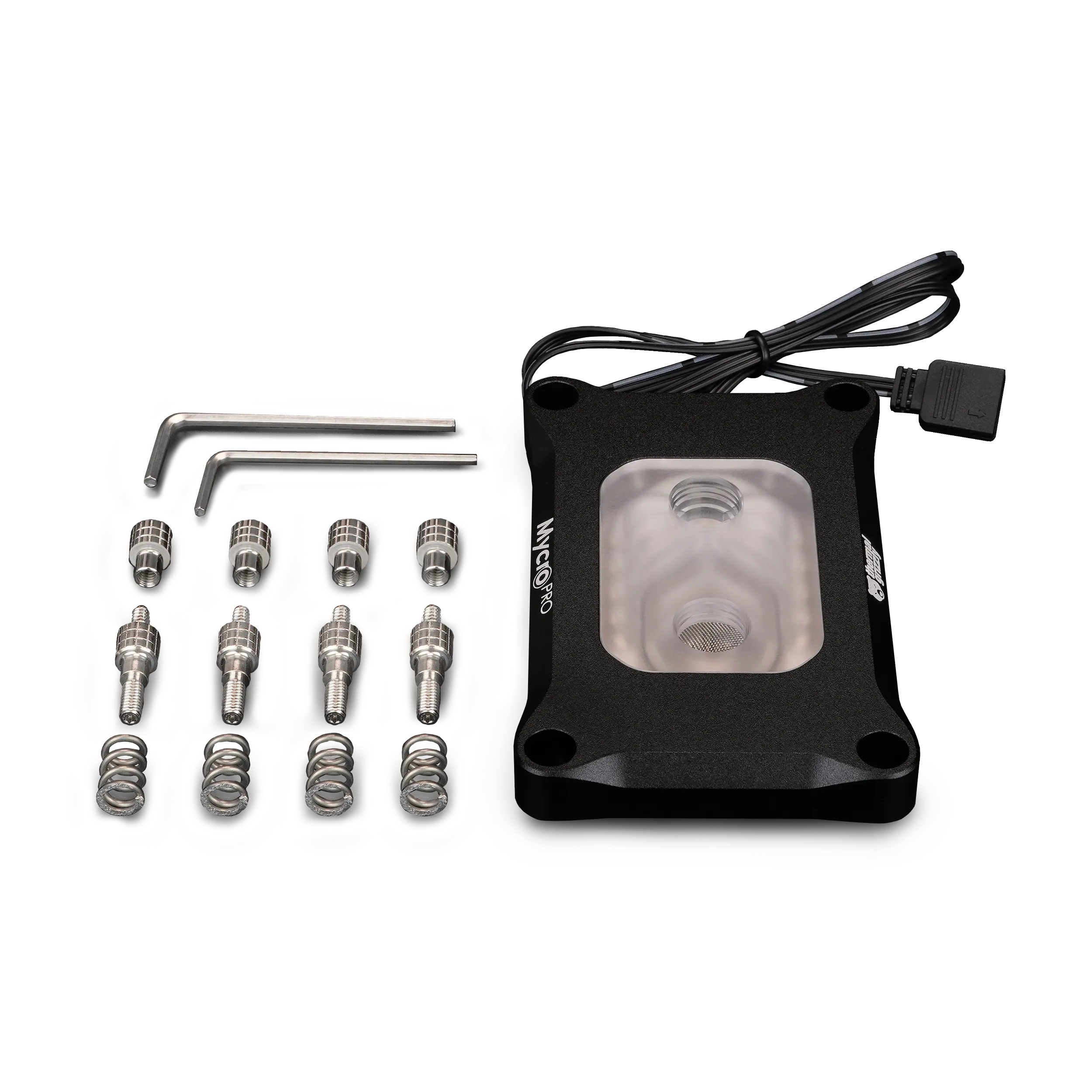

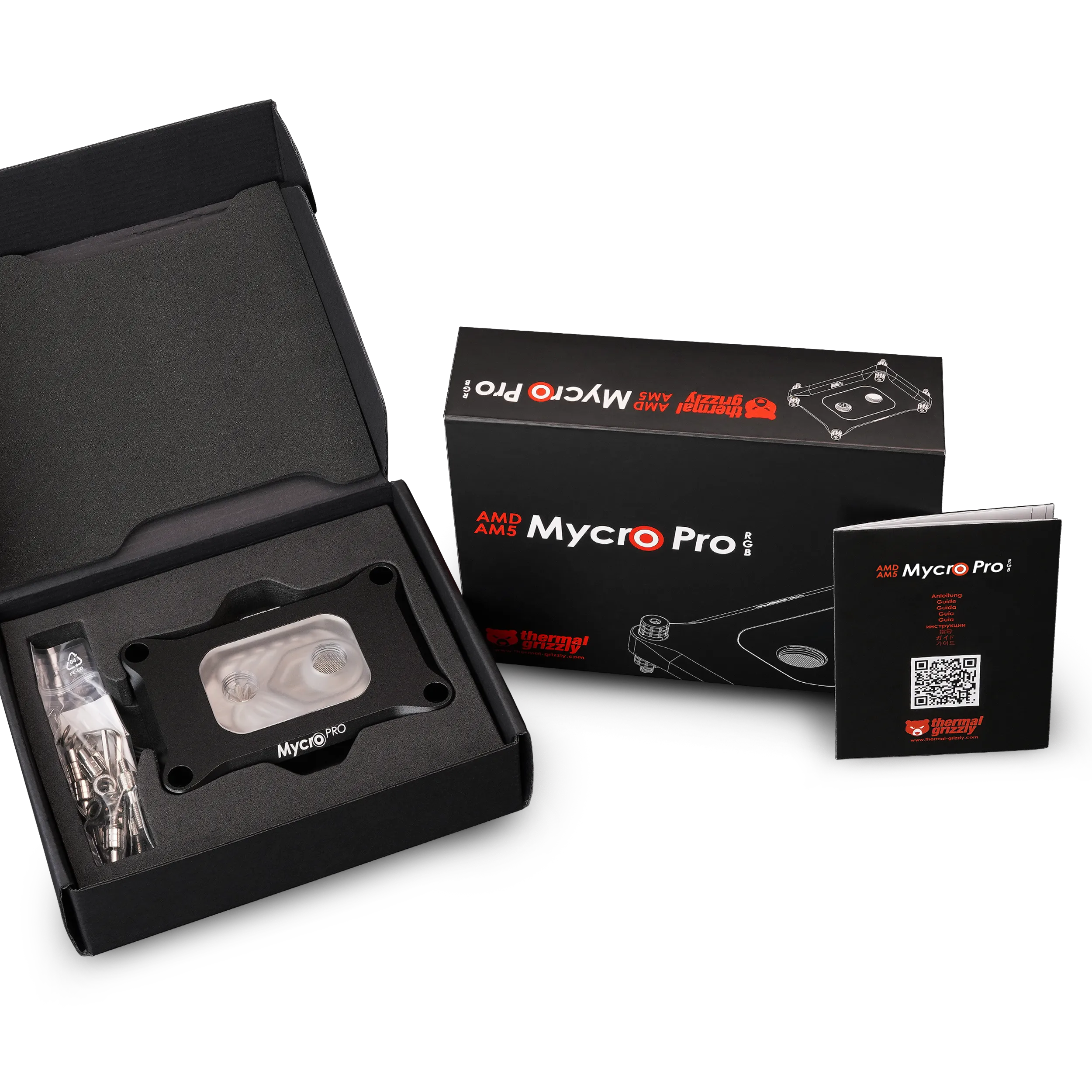

Scope of delivery

  • 1x AMD AM5 Mycro Pro RGB
  • 1x Pressure test certificate for 600 mbar
  • 1x Allen Key 2 mm
  • 1x Allen Key 2.5 mm
  • Mounting Kit:
    • 4x Thumb Nuts
    • 4x Standoff #6-32 Screws
    • 4x Steel Springs
    • 4x Polyamid M4 Washers

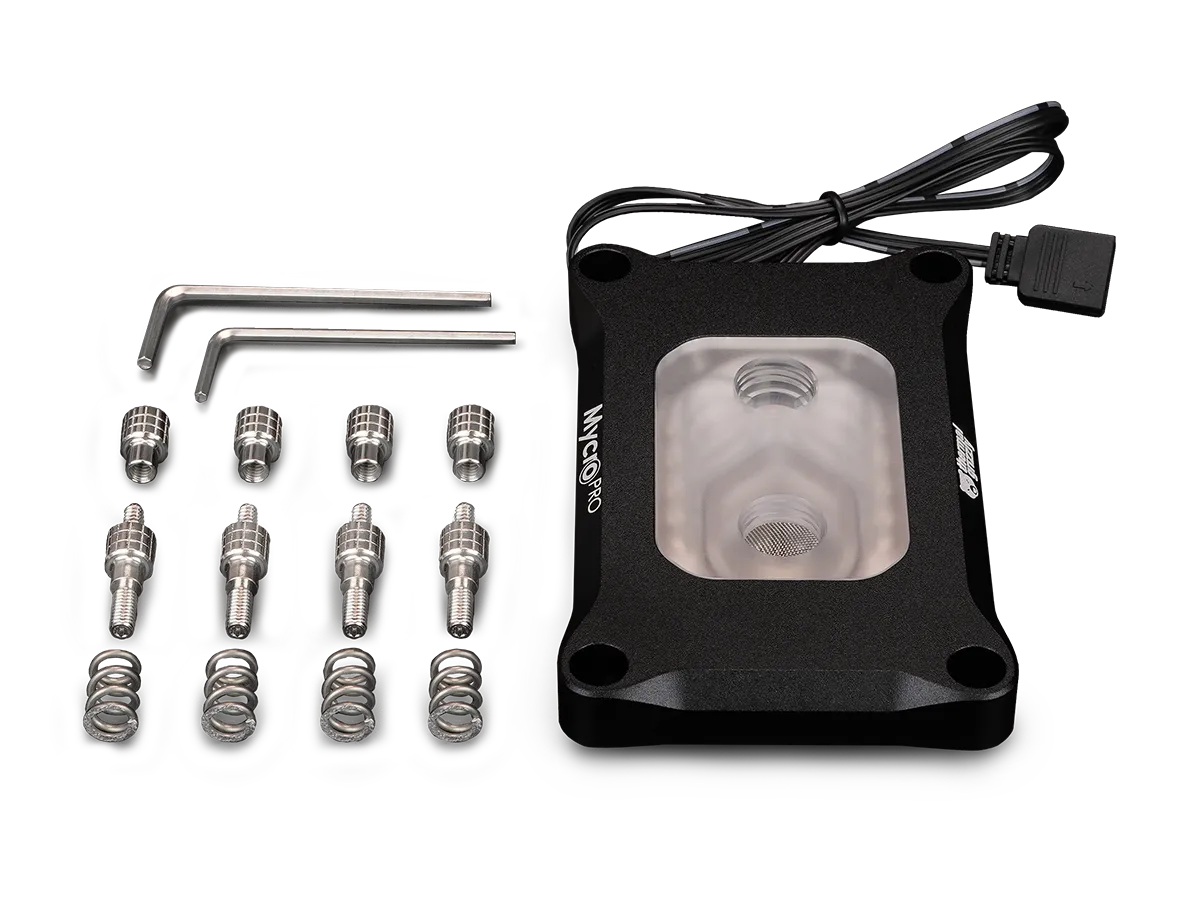

5-AMD_MycroPRO_PremiumContent

Product information "AMD AM5 Mycro Pro RGB"

Thermal Grizzly’s AM5 Mycro Pro RGB is a CPU water block for AMD’s AM5 socket that is backward compatible with the AM4 socket. The cooler consists of a nickel-plated copper cold plate, a cooler plate made of tempered acrylic glass, a jet plate for flow optimization, and a cover made of anodized aluminum. The G1/4" threads ensure compatibility with a wide range of water-cooling products, such as the Thermal Grizzly DeltaMate fittings.

Ultra High Performance Cold Plate

Thermal Grizzly’s Ultra High Performance cold plates for CPU and GPU coolers are milled with minimal and highly optimized slot and fin widths. In the case of the AM5 Mycro Pro RGB, both the slot and fin width on the nickel-plated copper cooling plate measure 0.2 mm. A total of 68 microfins are located on the cold plate of the CPU water block. This high number of thin fins provides a very large surface area, allowing the coolant to dissipate heat quickly and efficiently. The cooler design milled into the acrylic glass, including a jet plate, is optimized for flow and delivers outstanding cooling performance in combination with the highly optimized cooling fins.

1-AMD_MycroPRO_PremiumContent
2-AMD_MycroPRO_PremiumContent

Properties

  • High-performance CPU water block for AMD AM5 socket
  • Fine-Mesh Filter at the Inlet Port
  • Nickel-plated copper cold plate with ultra-high-performance microfins (0.2 mm)
  • Metal housing with RGB-illuminated viewing window and internal layout
  • Inlet and outlet ports with standard G1/4" threads
  • Compatibility list available online

Integrated filter for consistently high cooling performance

The integrated filter captures particles present in the water-cooling loop. These may include production residues, for example from radiators. To prevent the microfins in the copper cooler from becoming clogged, these particles are filtered out directly at the inlet port. Contamination of the microfins can impair the flow of the coolant and thereby reduce cooling performance. This may result in higher CPU temperatures. The filter helps delay this effect and can be cleaned if necessary.

3-AMD_MycroPRO_PremiumContent
4-AMD_MycroPRO_PremiumContent

Ports and RGB Lighting

The AM5 Mycro Pro RGB is integrated into a custom water-cooling loop via one inlet and one outlet, each featuring G1/4-inch threads in the acrylic glass. A fine-mesh filter in the form of a sieve is located at the inlet port. After milling, the acrylic glass undergoes an annealing process that relieves internal stresses, reducing the risk of stress cracks over long periods of use. Beneath the cover is RGB LED lighting that accentuates the clean design when illumination is desired. The RGB LEDs can be controlled via a 3-pin ARGB header (+5V/DATA/GND) through the motherboard. The sealing rings used (O-rings) are made of highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation.

Product-Specific Notes

  • The AM5 Mycro Pro RGB is not compatible with the AM5 High Performance Heatspreader. To use both products together, the AM5 Adapter & Offset Mounting Kit is required.
  • The G1/4-inch threads of the inlet and outlet ports are each 6 mm deep.
  • The AM5 Mycro Pro RGB is not compatible with Direct-Die.


General Notes on Water-Cooling Products

  • Do NOT use in combination with water-cooling components made of aluminum where the coolant comes into contact with aluminum, such as radiators with aluminum tubing.
  • We recommend suitable coolants that contain biocides and corrosion inhibitors and are free of particles that could restrict water flow or clog the loop.
  • The custom water-cooling system should be tested for leaks with an air pressure tester for at least 1 hour before filling.
  • After filling, the system should be regularly inspected during the first 24 hours for any potential coolant leaks.


Scope of delivery

  • 1x AMD AM5 Mycro Pro RGB
  • 1x Pressure test certificate for 600 mbar
  • 1x Allen Key 2 mm
  • 1x Allen Key 2.5 mm
  • Mounting Kit:
    • 4x Thumb Nuts
    • 4x Standoff #6-32 Screws
    • 4x Steel Springs
    • 4x Polyamid M4 Washers
5-AMD_MycroPRO_PremiumContent
Downloads "Mycro Pro"
Color: black
Connector type: 3-pin
Lighting: digital aRGB LEDs
Material: Aluminum, acrylic, nickel-plated copper
Socket manufacturer: AMD
Threading: G1/4" female
