DeltaMate Quick Disconnect
Product information "DeltaMate Quick Disconnect Female - M - Gloss Nickel"
DeltaMate Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.
General information

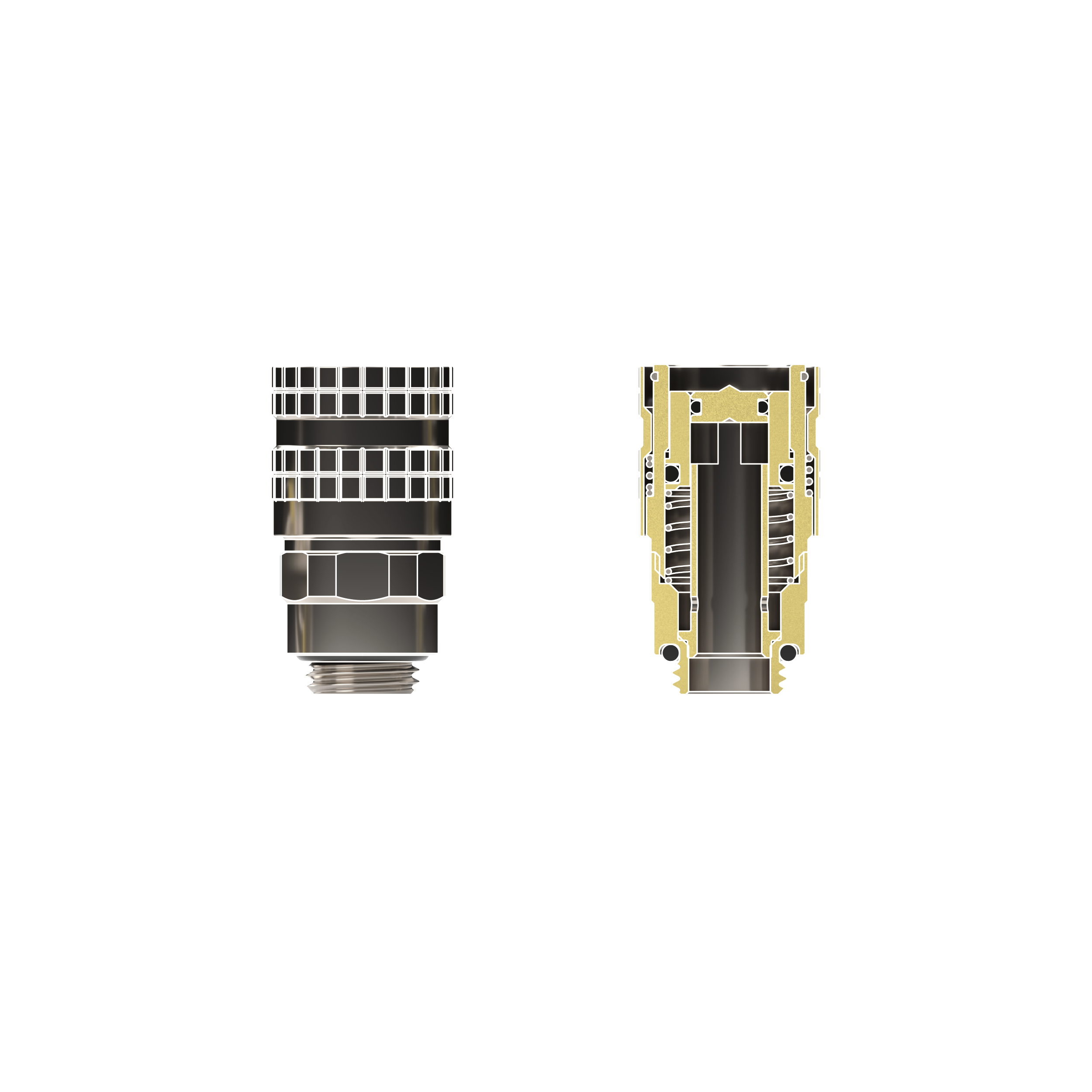

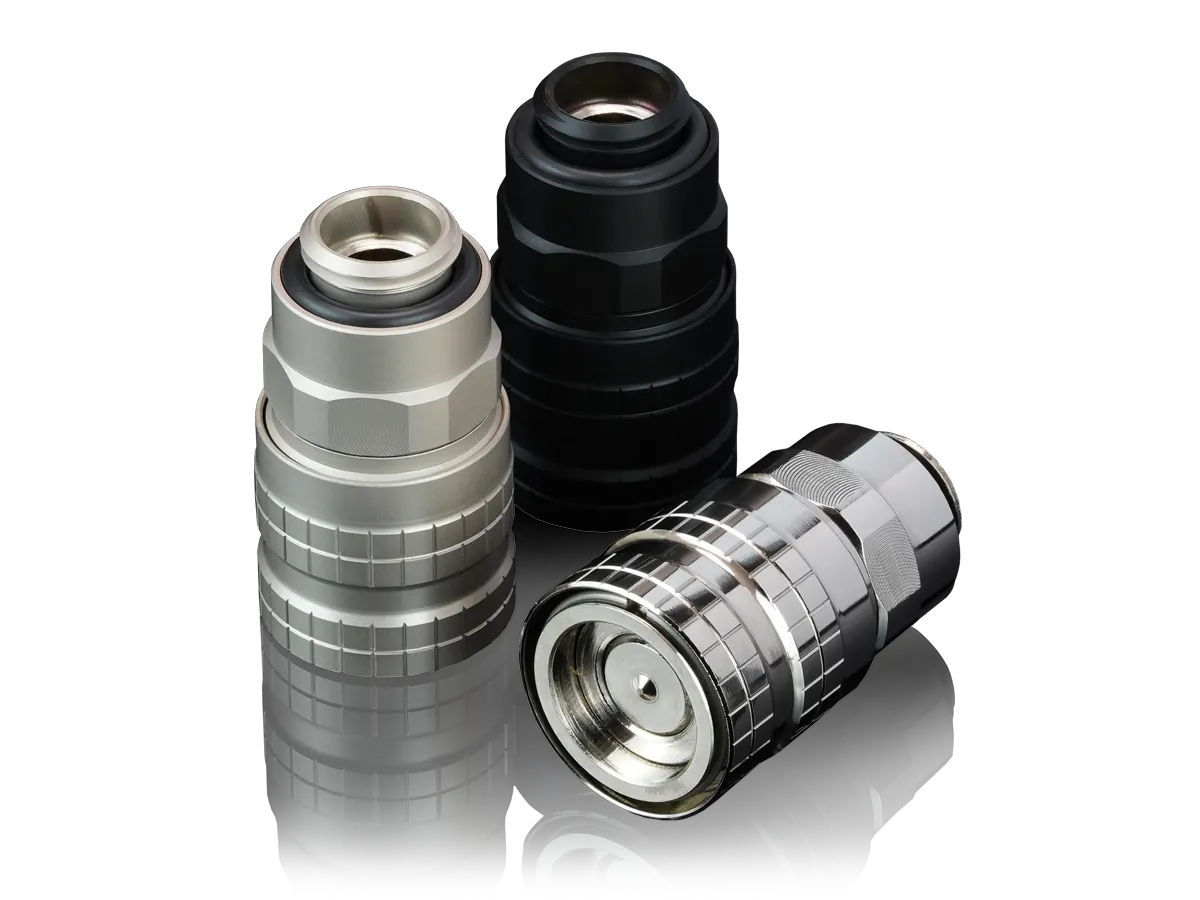

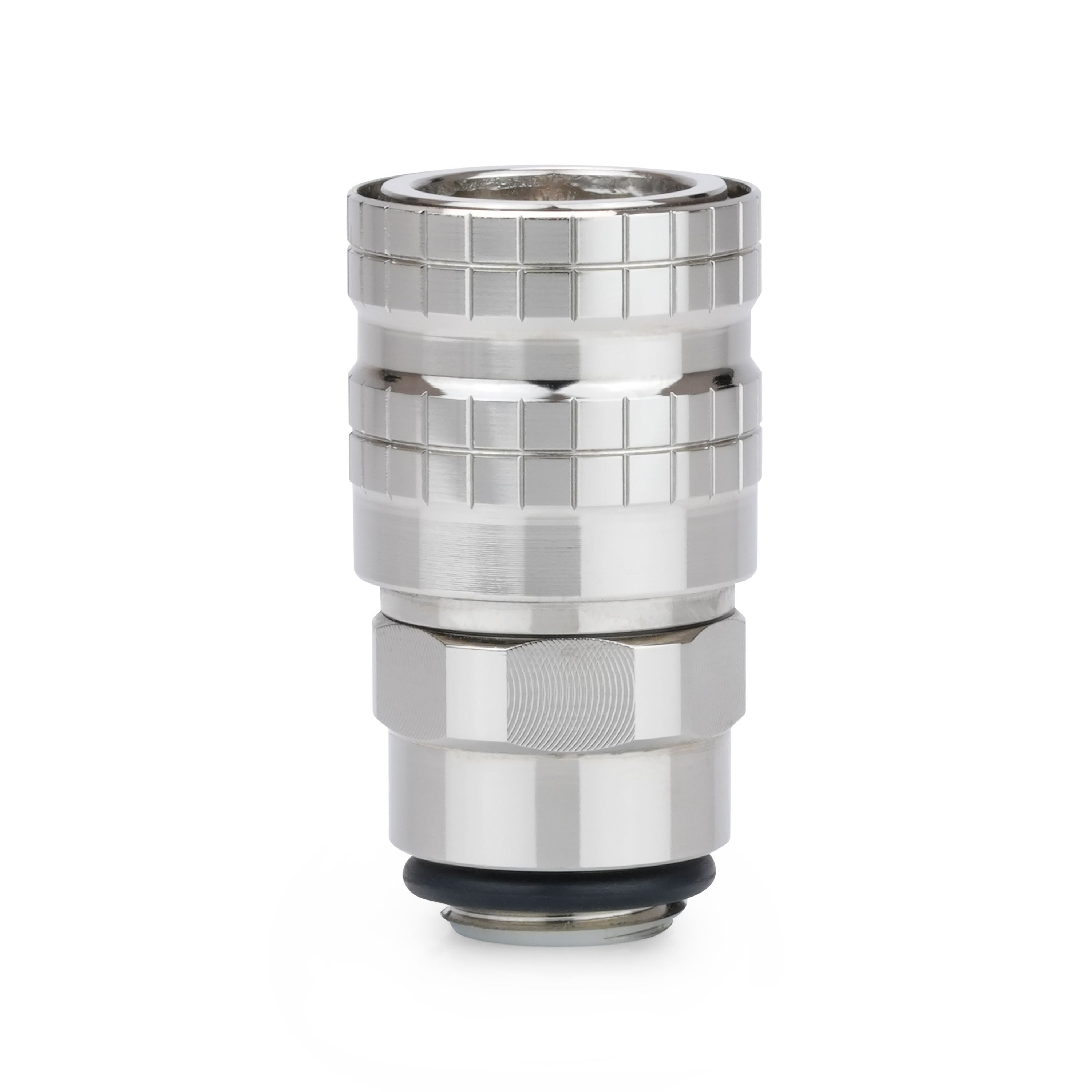

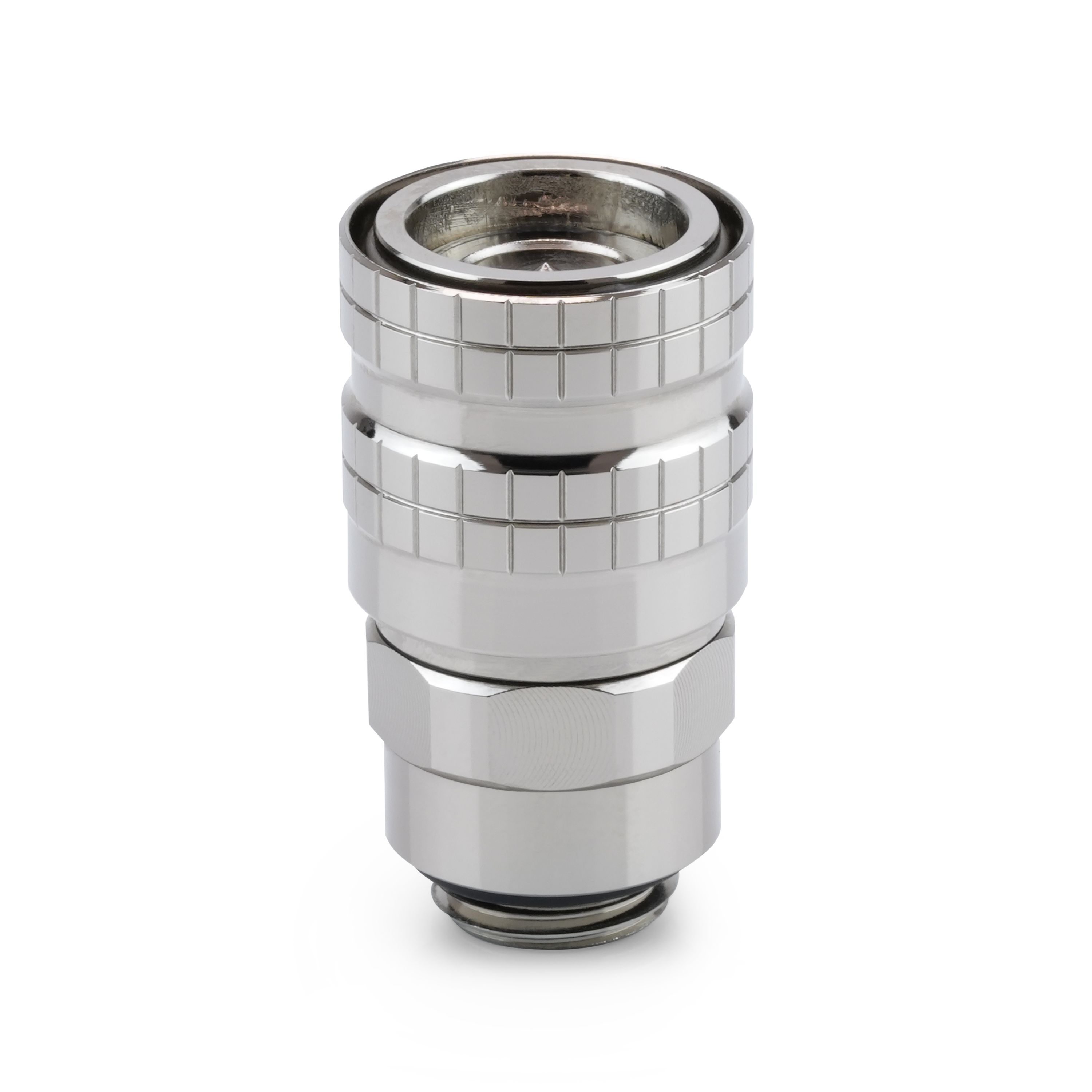

The DeltaMate Quick Disconnect (QDC) are drip-free quick-release couplings with an integrated shutoff function and vacuum-assisted anti-leak design. The internal geometry of the QDCs is optimized for high flow and minimizes flow resistance. The DeltaMate Quick Disconnect Female - M fitting features a female QDC connector and a G1/4" male thread. Each QDC coupling requires one fitting with a male QDC connector and one fitting with a female QDC connector. For an elegant finish, the fittings are coated with a glossy nickel finish.
Properties
- True zero-spill quick disconnect
- Integrated shutoff and vacuum-assisted anti-leak design
- Push-to-connect, slide-to-release locking mechanism
- Available in G1/4” male and female variants for full loop compatibility
- High-flow internal geometry minimizes restriction while maintaining reliable sealing
- Precision-machined brass construction for durability and seamless integration
| Color: | nickel gloss |
|---|---|
| Material: | EPDM rubber, brass |
| Threading: | G1/4" male |
