Pre-Order! The WireView Pro II is a device for measuring the power consumption of graphics cards. The 2nd Pro generation offers additional monitoring features in the form of per-pin power measurement, as well as an extended warranty and a TFT-IPS display.

Pre-Order, delivery time: 4-5 weeks

$140.28

Content: 1 pcs.

Prices incl. VAT plus shipping costs

Alignment
EAN: 4260711992490
MPN: TG-WV-P2-H19N

Important:

The WireView Pro II is available for pre-order in the Thermal Grizzly Shop.

Shipping of the second batch of the WireView Pro II started in January 2026, further deliveries will follow in mid-March.


Important Information on Compatibility Checking!

Before purchasing a WireView Pro II, it should be verified whether the graphics card in use is compatible. To do so, the following steps can be carried out:

  1. Check the compatibility list in the download section of the product page. The compatibility list is designed based on a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.
  2. Using the technical drawing in the download section of the product page, check whether the WireView Pro II is compatible with the graphics card, the case (clearances to the side panel, etc.), and, if applicable, the CPU cooler.
The WireView Pro II is available in two variants. The choice of variant primarily depends on the routing of the power cable from the power supply, as the display on the WireView Pro II can be rotated by 180° in the settings.

Depending on the orientation of the 12VHWPR or 12V-2x6 connector on the graphics card, either the “Normal (N)” or the “Reverse (R)” variant is required to route the power cable toward the graphics card cooler. The description assumes a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.


Product information "WireView Pro II"

The WireView Pro II has been specifically developed for the demanding use of modern high-end graphics cards with the 12V-2x6 connector and represents the most advanced iteration of the WireView Pro. As a patented development by Thermal Grizzly, it is protected by European patent EP4250057. Current is not only measured as a total value, but also per each individual pin and wire of the 12V-2x6 connector. This enables immediate identification of potential contact issues between the cable and graphics card. The WireView Pro II has been purpose-built to enable precise monitoring of the 12V-2x6 connector, allowing early detection of load distribution problems and helping to prevent possible damage to the graphics card and the 12V-2x6 connector.

Note:

Detailed information about the extended warranty, compatibility and technical drawings with dimensions of the WireView Pro II are available in the download section.

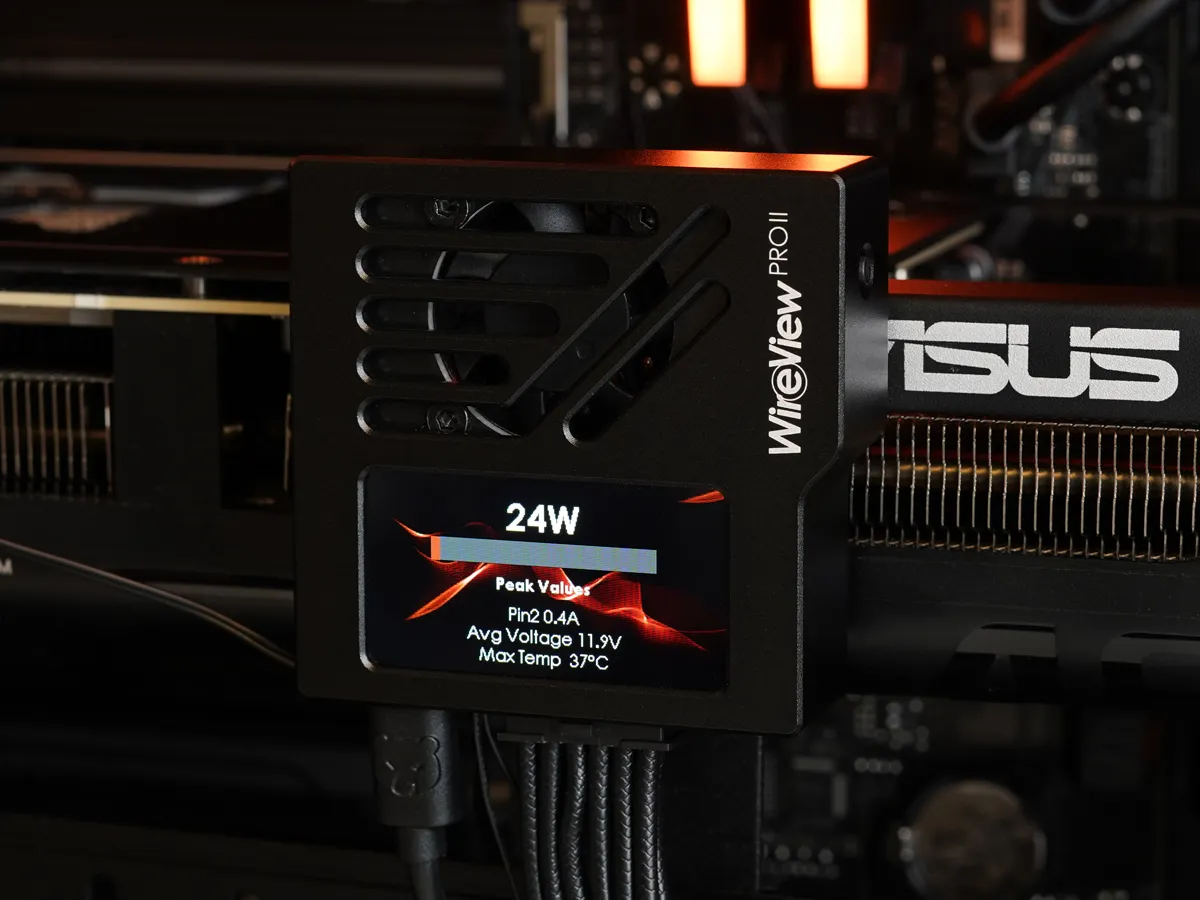

Monitoring

All safety-relevant parameters such as currents (A), voltages (V), temperatures (°C), and power consumption (W) are continuously measured. Thermal Grizzly has defined threshold values which should not be exceeded during regular operation, since doing so would increase the risk of thermal damage to the connector. When a threshold is exceeded, a visual warning appears on the display and an audible alarm is triggered. Optionally, automatic system shutdown can be initiated via the included splitter cable. The preset threshold values can be adjusted through the configuration menu.

More information about the optional software can be found here.

Cooling

Due to unavoidable contact resistances at plug connections which result in power loss, additional heat is generated during the operation of high-performance GPUs. To ensure controlled heat dissipation, a semi-passive fan has been integrated, which operates silently at idle and activates automatically with increasing power draw and temperature. The CNC-machined aluminum housing features ventilation openings and serves as an active heatsink. Optimized openings in the rear PCB guide airflow around all heat-relevant components including the graphics card power connector.

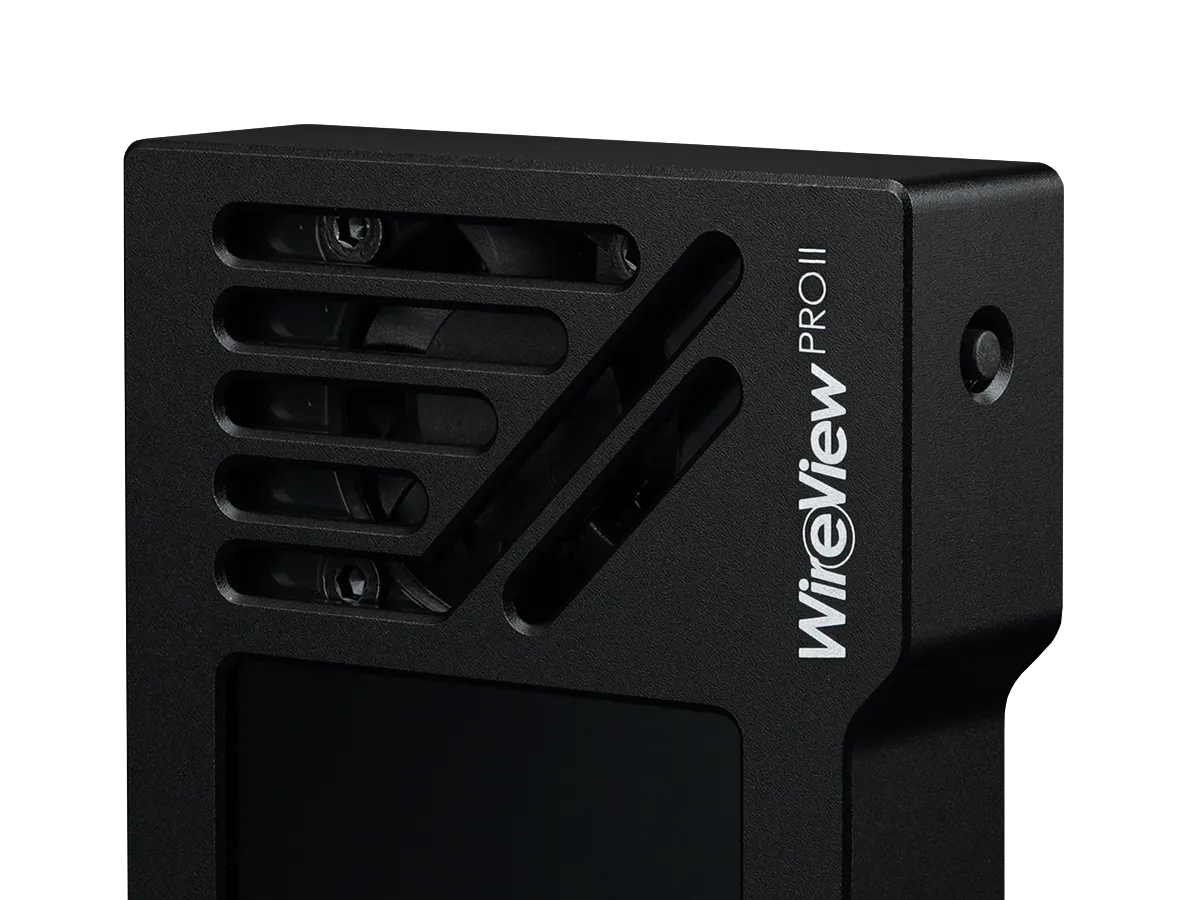

2_Content_WVPro2
3_Content_WVPro2

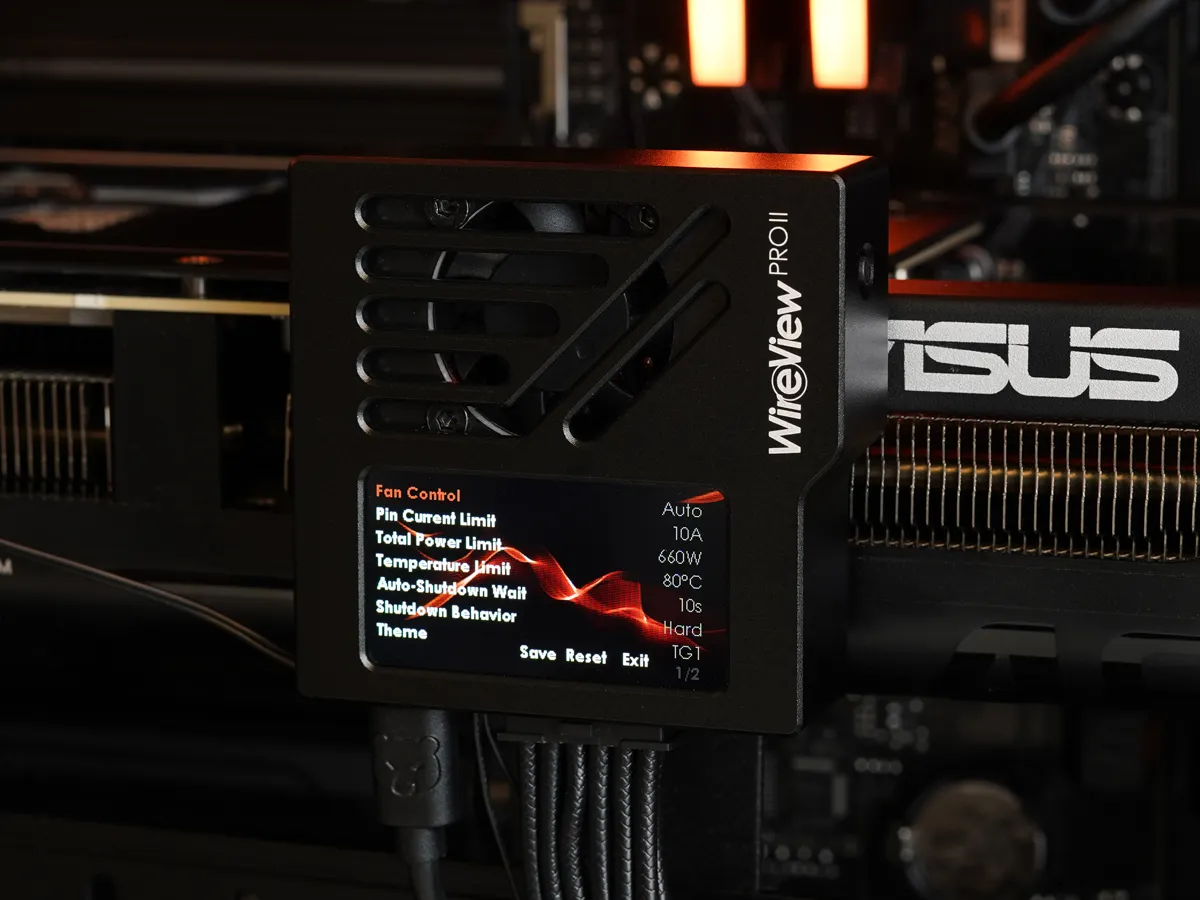

User-Friendliness

The WireView Pro II is available in two connector orientations, making it compatible with almost any graphics card with a 12V 2x6 connector. The downward-facing connector orientation enables clean cable management, and the device simultaneously acts as a 90° adapter. The integrated TFT-IPS display offers multiple views that can be configured directly on the device. The device is fully functional as a hardware solution and is additionally complemented by software (WireView2-SW-1.0.3), which is available in the product’s download section.

Automatic Data Logging

An integrated memory logs relevant operating data at regular intervals to enable traceability of potential error events. Logged values include per pin current measurements, total power consumption and the PCB temperature near the 12V-2x6 output connector (T-Out). A data record is stored every 60 seconds. The memory supports approximately 340 days of continuous usage or around 3-4 years of typical operation before the older entries are automatically overwritten. The collected data supports both failure analysis and the continued development of safer plug connections within the community.

4_Content_WVPro2

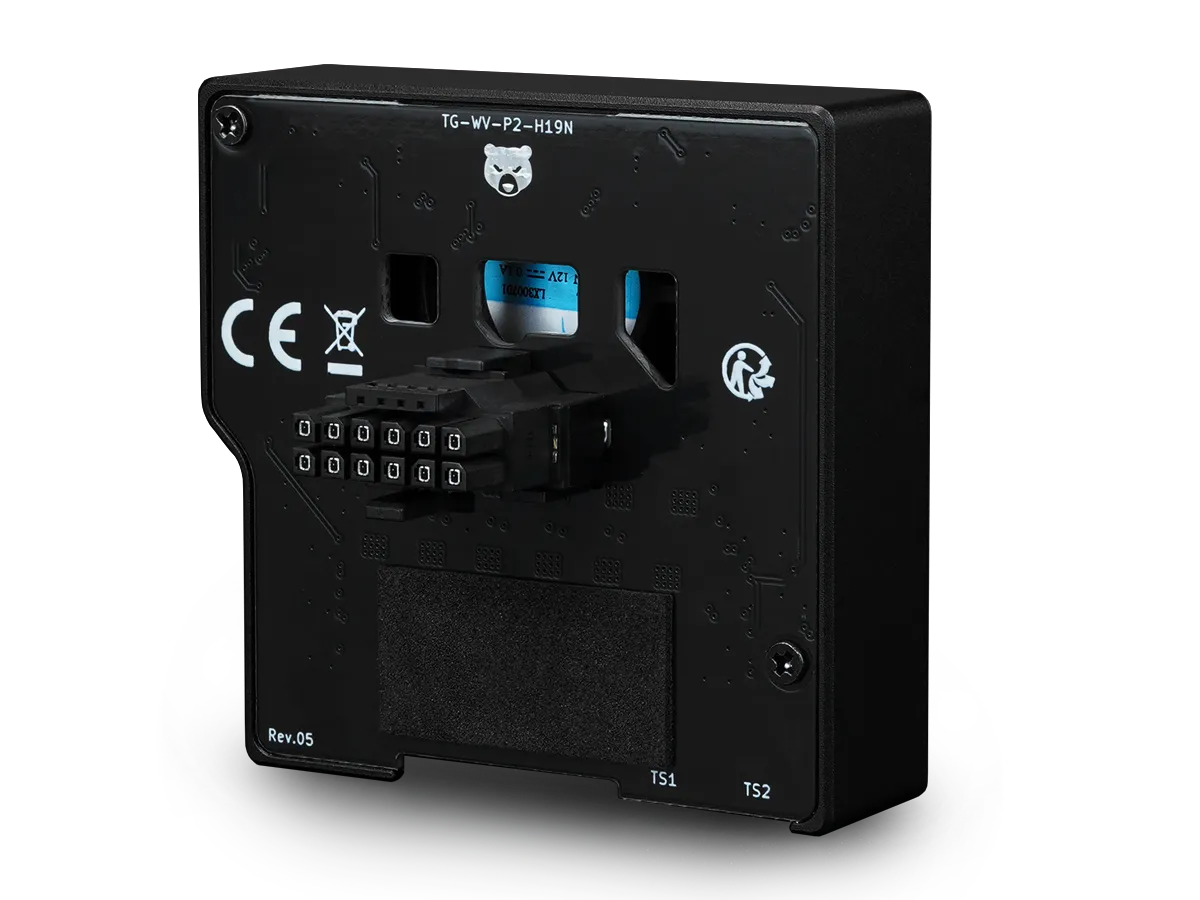

5_Content_WVPro2

Extended Warranty and Clarity for the End User

To ensure a high level of operational safety, the WireView Pro II includes an extended warranty that goes beyond statutory warranty and the standard manufacturer guarantee. Should damage occur to the 12VHPWR or 12V-2x6 connector of the graphics card despite the integrated protective mechanisms, repairs will be performed by Thermal Grizzly or an equivalent replacement will be provided if a repair is not possible. This protection also applies after the original graphics card warranty has expired. It is required for any warranty claim that the device is used properly, in accordance with the user manual and within the operating parameters defined by the GPU manufacturer. The extended warranty period is 2 years from the date of purchase.

This guaranteed protection package provides maximum transparency and safety. The customer invests in state-of-the-art monitoring technology and can rely on Thermal Grizzly to offer fast and straightforward support in case of damage, ensuring maximum performance without unnecessary risk.

Features WireView Pro II

  • Enhanced version of the WireView Pro with additional functionality
  • Per-pin current monitoring for highest precision
  • Extended warranty covering the GPU connector for 2 years
  • Automatic data logging for failure case analysis
  • Custom-designed 12V-2x6 connector for optimal compatibility
  • Normal or reversed plug orientation options
  • Plug-and-play usability without the need for custom configuration
  • 90-degree cable routing for optimized cable management
  • CNC-machined aluminum housing with active cooling functionality
  • Semi-passive 30-mm fan controlled by temperature and power load
  • Temperature monitoring at the input and output of the 12V-2x6 connector
  • Two external 10k NTC temperature sensors included
  • USB-C for user-performed firmware updates
  • USB-C to USB-2.0 adapter cable for internal PC integration
  • 320x170-pixel TFT-IPS color display

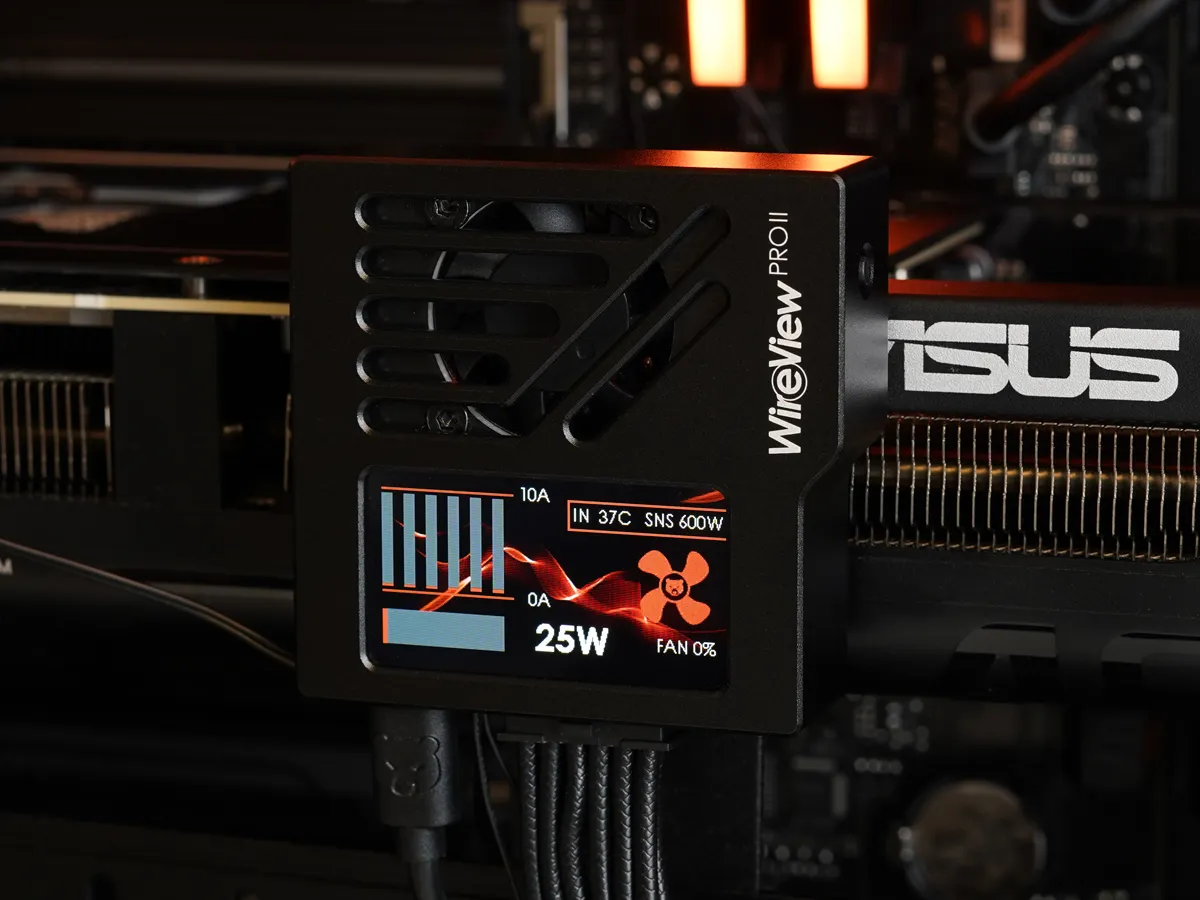

  • Main View: per-pin monitoring, power consumption, connector detection, fan %, output temperature
  • Simple View: total power, highest-current pin, voltage, hottest sensor

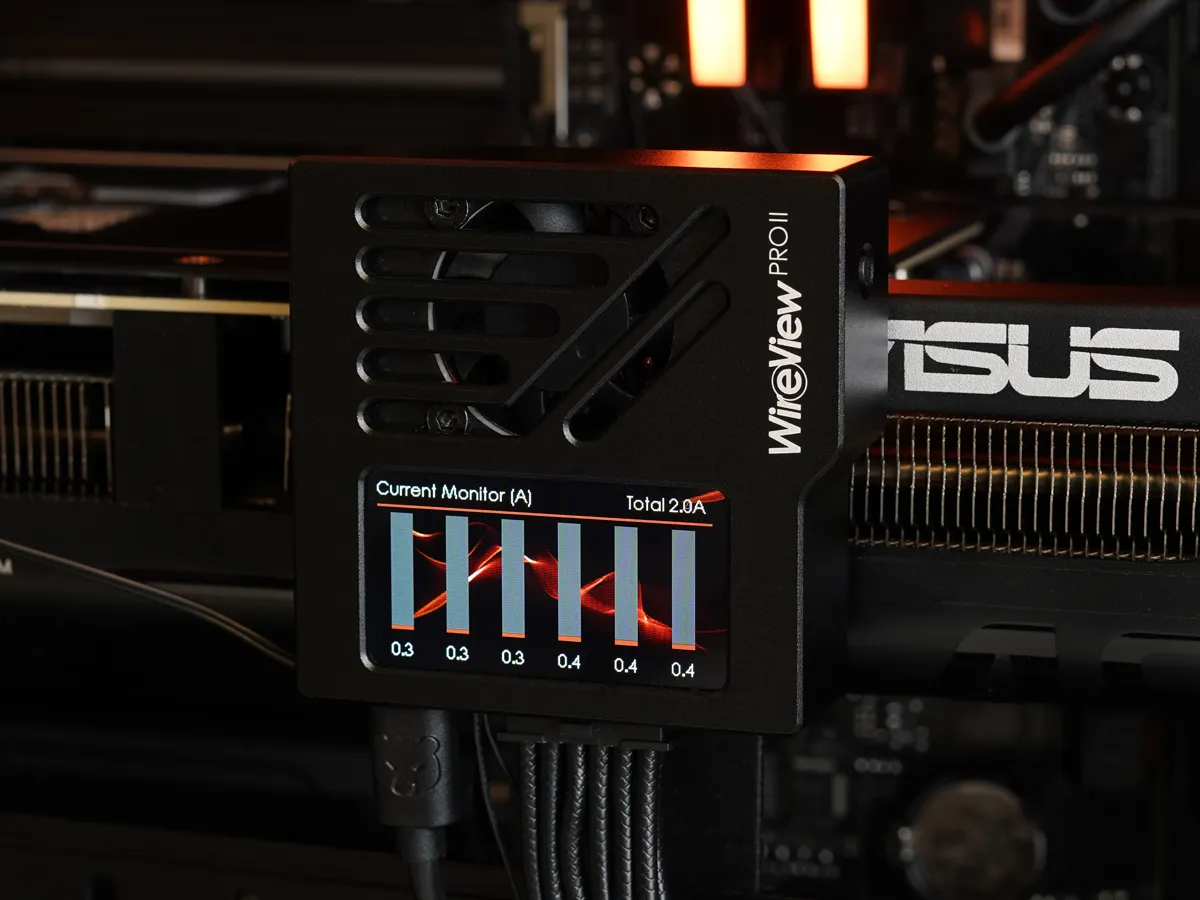

  • Current Monitor: per-pin current in amps with visual limit display
  • Voltage Monitor: per-pin voltage and average value
  • Power Monitor: per-pin and total power

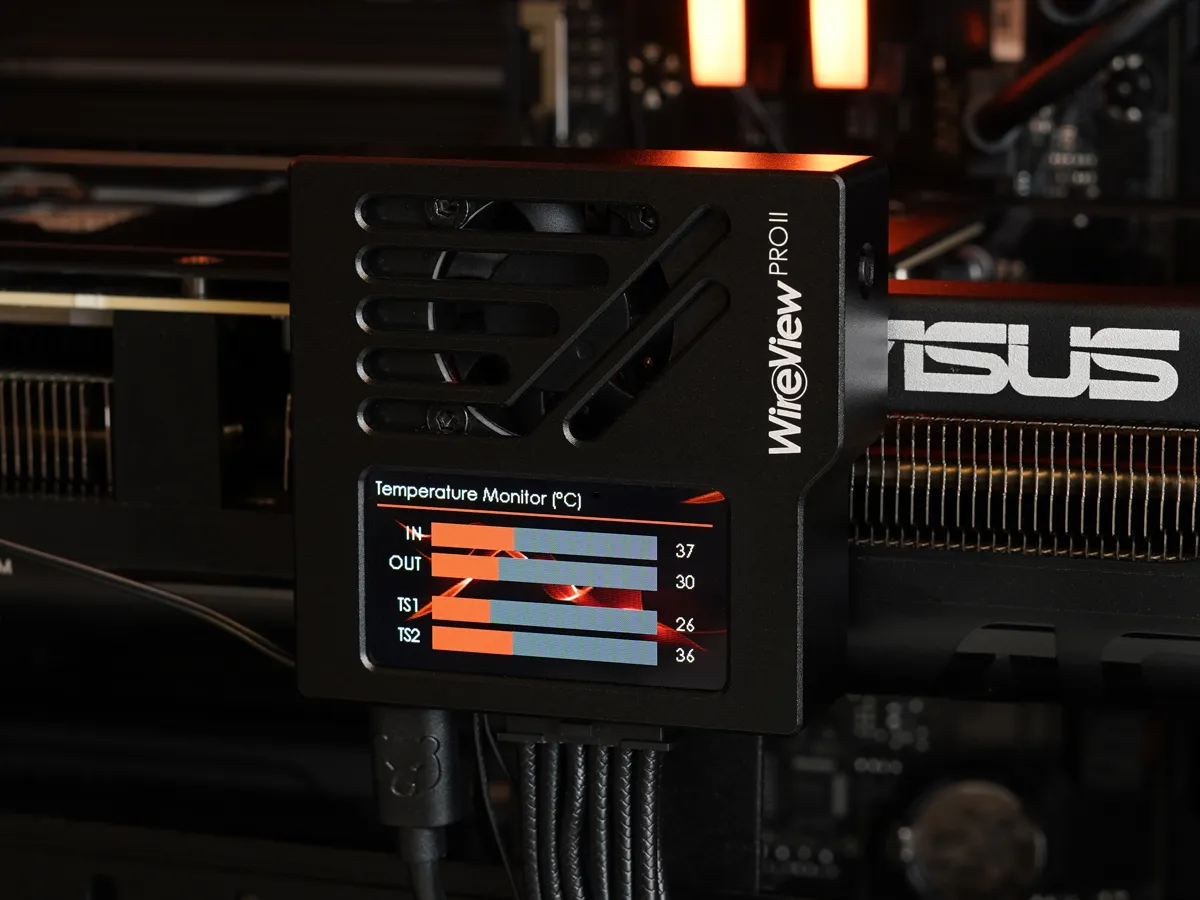

  • Temperature Monitor: display of all 4 temperature sensors
  • Audible and visual warnings if limits are exceeded
  • Extensive configuration options for the display
  • Global settings for alarms, cycle mode, design, and fan control
6_Content_WVPro2

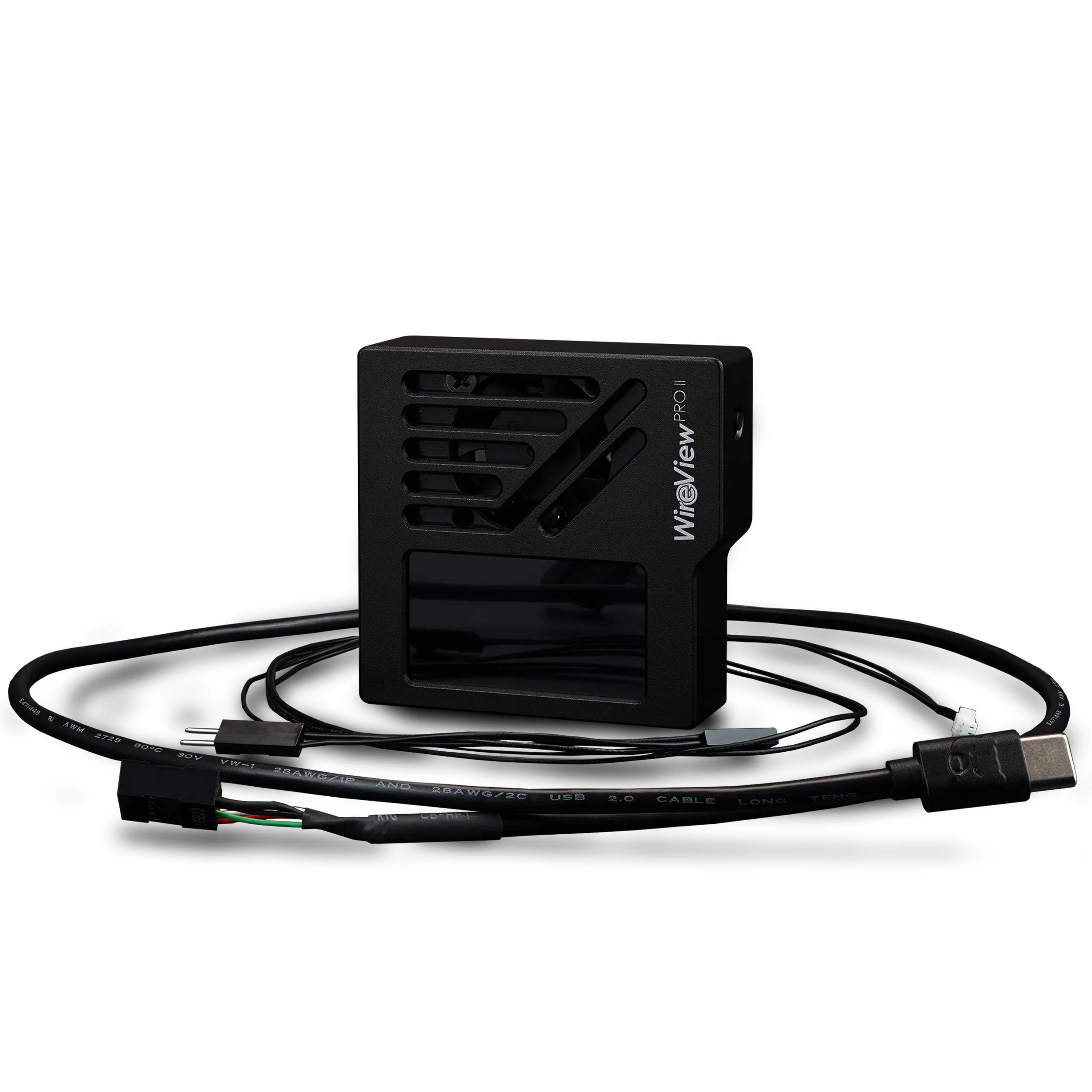

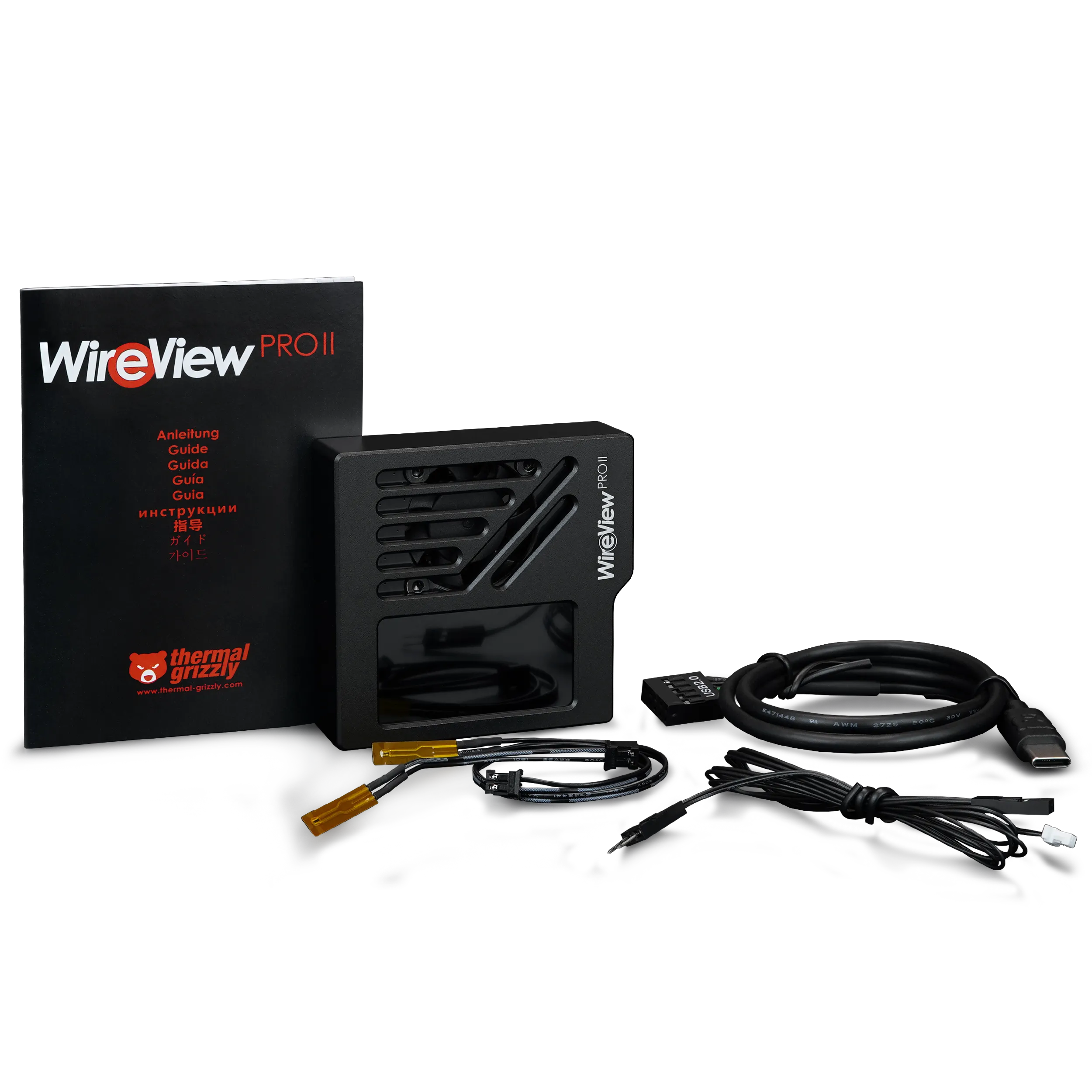

Scope of Delivery

  • WireView Pro II
  • USB-C to USB 2.0 internal connection cable (30 cm)
  • Y-splitter cable for power function via motherboard

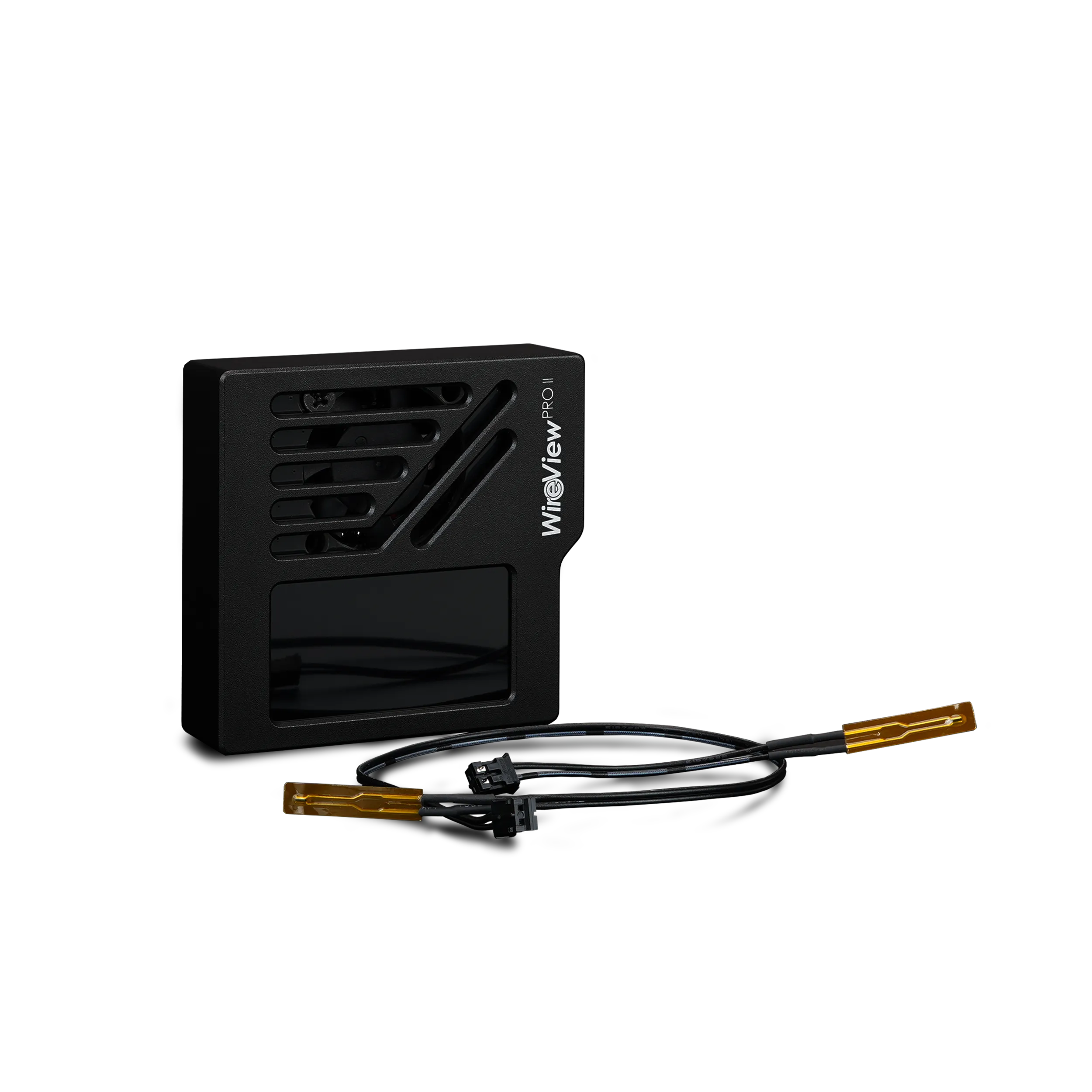

  • Short temperature sensor (5 cm)
  • Long temperature sensor (20 cm)

Important:

The WireView Pro II is available for pre-order in the Thermal Grizzly Shop.

Shipping of the second batch of the WireView Pro II started in January 2026, further deliveries will follow in mid-March.

Important Information on Compatibility Checking!

Before purchasing a WireView Pro II, it should be verified whether the graphics card in use is compatible. To do so, the following steps can be carried out:

  1. Check the compatibility list in the download section of the product page. The compatibility list is designed based on a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.
  2. Using the technical drawing in the download section of the product page, check whether the WireView Pro II is compatible with the graphics card, the case (clearances to the side panel, etc.), and, if applicable, the CPU cooler.
The WireView Pro II is available in two variants. The choice of variant primarily depends on the routing of the power cable from the power supply, as the display on the WireView Pro II can be rotated by 180° in the settings.

Depending on the orientation of the 12VHWPR or 12V-2x6 connector on the graphics card, either the “Normal (N)” or the “Reverse (R)” variant is required to route the power cable toward the graphics card cooler. The description assumes a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.


Product information "WireView Pro II"

The WireView Pro II has been specifically developed for the demanding use of modern high-end graphics cards with the 12V-2x6 connector and represents the most advanced iteration of the WireView Pro. As a patented development by Thermal Grizzly, it is protected by European patent EP4250057. Current is not only measured as a total value, but also per each individual pin and wire of the 12V-2x6 connector. This enables immediate identification of potential contact issues between the cable and graphics card. The WireView Pro II has been purpose-built to enable precise monitoring of the 12V-2x6 connector, allowing early detection of load distribution problems and helping to prevent possible damage to the graphics card and the 12V-2x6 connector.

Note:

Detailed information about the extended warranty, compatibility and technical drawings with dimensions of the WireView Pro II are available in the download section.


Monitoring

All safety-relevant parameters such as currents (A), voltages (V), temperatures (°C), and power consumption (W) are continuously measured. Thermal Grizzly has defined threshold values which should not be exceeded during regular operation, since doing so would increase the risk of thermal damage to the connector. When a threshold is exceeded, a visual warning appears on the display and an audible alarm is triggered. Optionally, automatic system shutdown can be initiated via the included splitter cable. The preset threshold values can be adjusted through the configuration menu.

More information about the optional software can be found here.

2_Content_WVPro2

Cooling

Due to unavoidable contact resistances at plug connections which result in power loss, additional heat is generated during the operation of high-performance GPUs. To ensure controlled heat dissipation, a semi-passive fan has been integrated, which operates silently at idle and activates automatically with increasing power draw and temperature. The CNC-machined aluminum housing features ventilation openings and serves as an active heatsink. Optimized openings in the rear PCB guide airflow around all heat-relevant components including the graphics card power connector.

3_Content_WVPro2

User-Friendliness

The WireView Pro II is available in two connector orientations, making it compatible with almost any graphics card with a 12V 2x6 connector. The downward-facing connector orientation enables clean cable management, and the device simultaneously acts as a 90° adapter. The integrated TFT-IPS display offers multiple views that can be configured directly on the device. The device is fully functional as a hardware solution and is additionally complemented by software (WireView2-SW-1.0.3), which is available in the product’s download section.

4_Content_WVPro2

Automatic Data Logging

An integrated memory logs relevant operating data at regular intervals to enable traceability of potential error events. Logged values include per pin current measurements, total power consumption and the PCB temperature near the 12V-2x6 output connector (T-Out). A data record is stored every 60 seconds. The memory supports approximately 340 days of continuous usage or around 3-4 years of typical operation before the older entries are automatically overwritten. The collected data supports both failure analysis and the continued development of safer plug connections within the community.

5_Content_WVPro2

Extended Warranty and Clarity for the End User

To ensure a high level of operational safety, the WireView Pro II includes an extended warranty that goes beyond statutory warranty and the standard manufacturer guarantee. Should damage occur to the 12VHPWR or 12V-2x6 connector of the graphics card despite the integrated protective mechanisms, repairs will be performed by Thermal Grizzly or an equivalent replacement will be provided if a repair is not possible. This protection also applies after the original graphics card warranty has expired. It is required for any warranty claim that the device is used properly, in accordance with the user manual and within the operating parameters defined by the GPU manufacturer. The extended warranty period is 2 years from the date of purchase.

This guaranteed protection package provides maximum transparency and safety. The customer invests in state-of-the-art monitoring technology and can rely on Thermal Grizzly to offer fast and straightforward support in case of damage, ensuring maximum performance without unnecessary risk.

Features WireView Pro II

  • Enhanced version of the WireView Pro with additional functionality
  • Per-pin current monitoring for highest precision
  • Extended warranty covering the GPU connector for 2 years
  • Automatic data logging for failure case analysis
  • Custom-designed 12V-2x6 connector for optimal compatibility
  • Normal or reversed plug orientation options
  • Plug-and-play usability without the need for custom configuration
  • 90-degree cable routing for optimized cable management
  • CNC-machined aluminum housing with active cooling functionality
  • Semi-passive 30-mm fan controlled by temperature and power load
  • Temperature monitoring at the input and output of the 12V-2x6 connector
  • Two external 10k NTC temperature sensors included
  • USB-C for user-performed firmware updates
  • USB-C to USB-2.0 adapter cable for internal PC integration
  • 320x170-pixel TFT-IPS color display
  • Main View: per-pin monitoring, power consumption, connector detection, fan %, output temperature
  • Simple View: total power, highest-current pin, voltage, hottest sensor
  • Current Monitor: per-pin current in amps with visual limit display
  • Voltage Monitor: per-pin voltage and average value
  • Power Monitor: per-pin and total power
  • Temperature Monitor: display of all 4 temperature sensors
  • Audible and visual warnings if limits are exceeded
  • Extensive configuration options for the display
  • Global settings for alarms, cycle mode, design, and fan control
6_Content_WVPro2

Scope of Delivery

  • WireView Pro II
  • USB-C to USB 2.0 internal connection cable (30 cm)
  • Y-splitter cable for power function via motherboard
  • Short temperature sensor (5 cm)
  • Long temperature sensor (20 cm)
Alignment: Normal
Color: black
Connector type: 2-pin JST PH 1.0mm (motherboard power button), 2x2-pin JST PH 2.0mm (temperature sensors, 10k NTC, B3435 Standard), 12V-2x6-Pin, USB-C
Display: 320x170 pixel TFT-IPS colour display
Material: Aluminum
Measurement tolerance: ±4 %

Compatibility WireView PRO II

As of February 12, 2026

WireView Pro II Normal WireView Pro II Reversed
Gainward GeForce RTX 5090 Phantom
Gainward GeForce RTX 5090 Phantom GS
INNO3D GeForce RTX 5090 X3
INNO3D GeForce RTX 5090 X3 OC
INNO3D GeForce RTX 5090 iCHILL X3
MSI GeForce RTX 5090 32G Suprim SOC
MSI GeForce RTX 5090 32G Suprim Liquid SOC
MSI GeForce RTX 5090 32G Gaming Trio OC
MSI GeForce RTX 5090 32G Vanguard
MSI GeForce RTX 5090 32G Vanguard SOC
MSI GeForce RTX 5090 32G Ventus 3X OC
PNY GeForce RTX 5090 Overclocked Triple Fan
PNY RTX 5090 ARGB Epic-X RGB Triple Fan
Palit 5090 GameRock
Phantom Waterblock Alphacool Core Geforce RTX 5090 Gamerock 		ASUS TUF Gaming GeForce RTX 5090 OC
ASUS TUF Gaming GeForce RTX 5090
ASUS ROG Astral GeForce RTX 5090 OC
ASUS ROG Astral GeForce RTX 5090
ASUS ROG Astral LC GeForce RTX 5090 OC
ASUS ROG Astral LC GeForce RTX 5090
ASUS ROG Astral GeForce RTX 5090 White OC
ASUS ROG Astral GeForce RTX 5090 White
BYKSKI Geforce RTX 5090 ROG Astral Waterblock
EK-Quantum Vector³ TUF GeForce RTX 5090
GIGABYTE GeForce RTX 5090 Windforce OC 32G
GIGABYTE AORUS GeForce RTX 5090 Master 32G
GIGABYTE AORUS GeForce RTX 5090 Master ICE 32G
GIGABYTE AORUS GeForce RTX 5090 Xtreme Waterforce 32G
GIGABYTE AORUS GeForce RTX 5090 Xtreme WATERFORCE WB
GIGABYTE GeForce RTX™ 5090 GAMING OC 32G
Watercool Heatkiller V Waterblock ASUS 5090 TUF Gaming OC
Zotac Gaming GeForce RTX 5090 Solid OC
Zotac Gaming GeForce RTX 5090 Solid
Zotac Gaming GeForce RTX 5090 Solid OC White Edition
Zotac Gaming GeForce RTX 5090 AMP Extreme INFINITY
WireView Pro II Normal WireView Pro II Reversed
INNO3D GeForce RTX 5080 X3
INNO3D GeForce RTX 5080 X3 OC
INNO3D GeForce RTX 5080 X3 Gaming OC
MSI GeForce RTX 5080 16G Inspire 3X
MSI GeForce RTX 5080 16G Inspire 3X OC
MSI GeForce RTX 5080 16G Gaming Trio
MSI GeForce RTX 5080 16G Gaming Trio OC
MSI GeForce RTX 5080 16G Ventus 3X OC WHITE
MSI GeForce RTX 5080 16G Shadow 3X OC
MSI GeForce RTX 5080 16G Vanguard SOC
MSI GeForce RTX 5080 16G SUPRIM SOC 		ASUS Prime GeForce RTX 5080 OC
ASUS ProArt GeForce RTX 5080 OC Edition
ASUS ROG Astral GeForce RTX 5080
ASUS ROG Astral GeForce RTX 5080 Hatsune Miku Edition
ASUS ROG Astral GeForce RTX 5080 OC
ASUS ROG Astral GeForce RTX 5080 White
ASUS ROG Astral GeForce RTX 5080 White OC
ASUS TUF Gaming GeForce RTX 5080
ASUS TUF Gaming GeForce RTX 5080 OC
GIGABYTE GeForce RTX 5080 Windforce OC SFF 16G
GIGABYTE GeForce RTX 5080 Windforce SFF 16G
Manli Gallardo GeForce RTX 5080 OC
Zotac Gaming GeForce RTX 5080 AMP Extreme INFINITY
Zotac Gaming GeForce RTX 5080 AMP Extreme INFINITY ULTRA
Zotac Gaming GeForce RTX 5080 Solid
Zotac Gaming GeForce RTX 5080 Solid CORE
Zotac Gaming GeForce RTX 5080 Solid CORE OC
Zotac Gaming GeForce RTX 5080 Solid OC
Zotac Gaming GeForce RTX 5080 Solid OC White Edition
WireView Pro II Normal WireView Pro II Reversed
INNO3D GeForce RTX 5070 Ti X3
INNO3D GeForce RTX 5070 Ti X3 OC
INNO3D GeForce RTX 5070 Ti X3 OC White
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC
MSI GeForce RTX 5070 Ti 16G Gaming Trio OC
MSI GeForce RTX 5070 Ti 16G Gaming Trio OC White
MSI GeForce RTX 5070 Ti 16G Vanguard SOC
MSI GeForce RTX 5070 Ti 16G Inspire 3X OC
MSI GeForce RTX 5070 Ti 16G Shadow 3X OC
MSI GeForce RTX 5070 Ti 16G Gaming Trio OC Plus
MSI GeForce RTX 5070 Ti 16G Inspire 3X OC Plus 		ASUS Prime GeForce RTX 5070 Ti OC
ASUS TUF Gaming GeForce RTX 5070 Ti OC
ASUS ROG Strix GeForce RTX 5070 Ti OC
ASUS ROG Strix GeForce RTX 5070 Ti
ASUS TUF Gaming GeForce RTX 5070 Ti OC White
ASUS ProArt GeForce RTX 5070 Ti OC
GIGABYTE GeForce RTX 5070 Ti Windforce OC SFF 16G
GIGABYTE GeForce RTX 5070 Ti Eagle OC ICE SFF 16G
GIGABYTE GeForce RTX 5070 Ti Windforce SFF 16G
KFA2 GeForce RTX 5070 Ti HOF Gaming White Edition
Zotac Gaming GeForce RTX 5070 Ti Solid SFF
Zotac Gaming GeForce RTX 5070 Ti Solid Core OC White Edition
Zotac Gaming GeForce RTX 5070 Ti AMP Extreme INFINITY
Zotac Gaming GeForce RTX 5070 Ti Solid Core OC
Zotac Gaming GeForce RTX 5070 Ti Solid SFF OC
Zotac Gaming GeForce RTX 5070 Ti Solid OC
Zotac Gaming GeForce RTX 5070 Ti AMP Extreme INFINITY ULTRA
Zotac Gaming GeForce RTX 5070 Ti Solid Core
WireView Pro II Normal WireView Pro II Reversed
GIGABYTE GeForce RTX 4090 GAMING
HEATKILLER V PRO for RTX 4090 FE Waterblock
Manli Gallardo GeForce RTX 4090
MSI RTX 4090 Suprim X 24GB
MSI GeForce RTX 4090 GAMING X TRIO
NVIDIA GeForce RTX 4090 Founders Edition
Palit GeForce RTX 4090 GameRock
Zotac Gaming GeForce RTX 4090 Trinity
Zotac Gaming GeForce RTX 4090 AMP Extreme AIRO 		ASUS ROG Strix GeForce RTX 4090 OC
ASUS ROG Strix GeForce RTX 4090
ASUS TUF Gaming GeForce RTX 4090
ASUS TUF Gaming GeForce RTX 4090 OC
WireView Pro II Normal WireView Pro II Reversed
Manli Gallardo GeForce RTX 4080
NVIDIA GeForce RTX 4080 Founders Edition
NVIDIA GeForce RTX 4080 SUPER Founders Edition
Not compatible to WireView Pro II Normal or Reversed
ASUS GeForce RTX 5080 Noctua OC Edition
ASUS ROG Matrix GeForce RTX 4090
ASUS TUF Gaming GeForce RTX 4090 OG OC
EK-Quantum Vector² FE RTX 4080 Waterblock
GIGABYTE AORUS GeForce RTX 5070 Ti Master 16G
GIGABYTE AORUS GeForce RTX 5080 Master 16G
GIGABYTE AORUS GeForce RTX 5080 Master ICE 16G
GIGABYTE GeForce RTX 5070 Ti Gaming OC 16G
GIGABYTE GeForce RTX 5080 Gaming OC 16G
INNO3D GeForce RTX 5090 iCHILL Frostbite
MSI GeForce RTX 5090 (SUprim / Vanguard / Gaming Trio PCB) mit AC-Wasserblock
NVIDIA GeForce RTX 5080 Founders Edition
NVIDIA GeForce RTX 5090 Founders Edition
Palit GeForce RTX 5080 GamingPro
Watercool HEATKILLER V für ASUS TUF Gaming GeForce RTX 5090
Zotac Gaming RTX 5090 ArcticStorm AIO
This website uses cookies to ensure the best experience possible. More information …
