WireView Pro II GPU

The WireView Pro II - Noctua Edition is a monitoring and current measurement device for modern graphics cards with a 12V-2x6 connector. The Noctua Edition retains the full functionality of the WireView Pro II and adds a Noctua NF-A4x10 PWM fan, an optimized cooling system and a Noctua-specific display design.

$222.18

Content: 1 pieces

Prices incl. VAT plus shipping costs

Alignment

Normal

Reversed

Wired

Variant

Black

White

Noctua

EAN: 4260711993855

MPN: TG-WV-P2-H19N-NF

Important Information on Compatibility Checking!

Before purchasing a WireView Pro II - Noctua Edition, it should be verified whether the graphics card in use is compatible. To do so, the following steps can be carried out:

Check the compatibility list in the download section of the product page. The compatibility list is designed based on a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.
Using the technical drawing in the download section of the product page, check whether the WireView Pro II - Noctua Edition is compatible with the graphics card, the case (clearances to the side panel, etc.), and, if applicable, the CPU cooler.

The WireView Pro II - Noctua Edition is available in two variants. The choice of variant primarily depends on the routing of the power cable from the power supply, as the display on the WireView Pro II - Noctua Edition can be rotated by 180° in the settings.

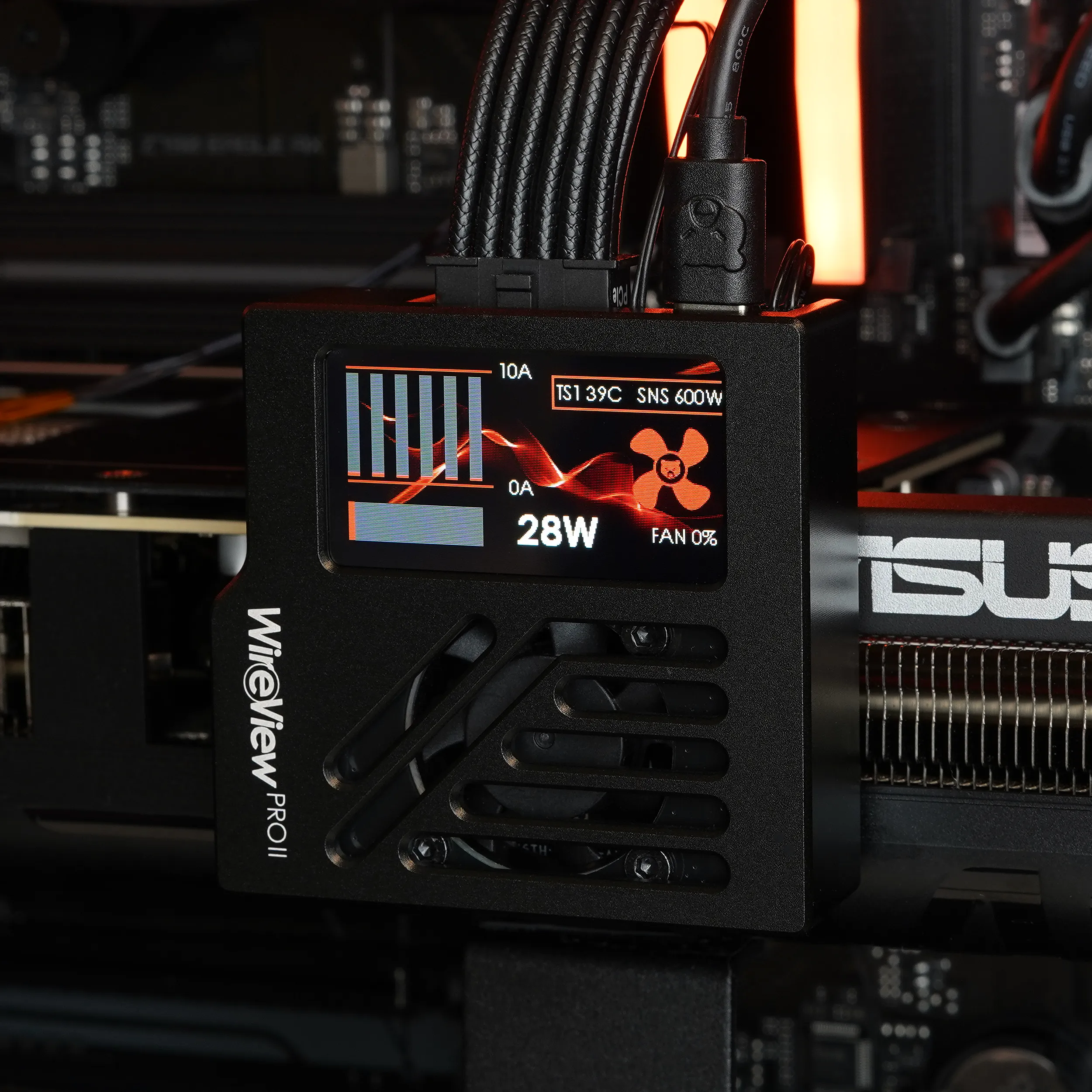

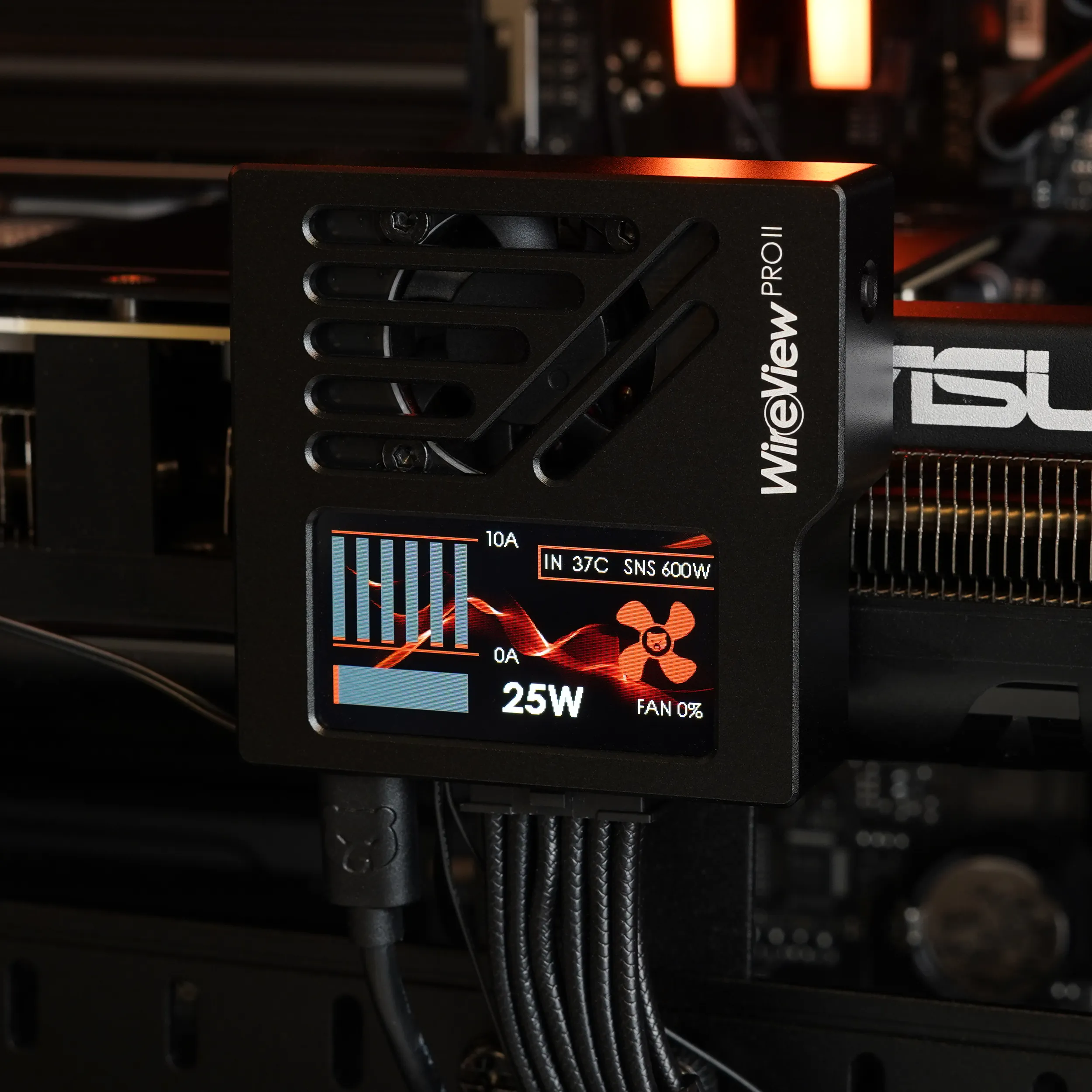

Depending on the orientation of the 12VHWPR or 12V-2x6 connector on the graphics card, either the “Normal (N)” or the “Reversed (R)” variant is required to route the power cable toward the graphics card cooler. The description assumes a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.

Product information "WireView Pro II - Noctua Edition"

The WireView Pro II - Noctua Edition has been developed for precise monitoring of the power supply to high-performance graphics cards with a 12V-2x6 connector. In addition to total power consumption, the current in each individual 12-volt wire is measured separately. This enables early detection of unusual load distribution and potential contact issues.

The Noctua Edition retains the full functionality of the WireView Pro II and combines it with a specially adapted cooling solution. A Noctua NF-A4x10 PWM fan, a Noctua-optimized fan grille and the enlarged CNC-machined aluminum housing provide efficient, quiet cooling.

As a patented development by Thermal Grizzly, the WireView Pro II is protected by European patent EP4250057.

Note

Detailed information about the extended warranty, compatibility and technical drawings with dimensions of the WireView Pro II are available in the download section.

Monitoring

The WireView Pro II - Noctua Edition continuously monitors currents, voltages, temperatures and power consumption. Alongside the overall readings, the device measures the current load on each individual pin, enabling early detection of irregularities in load distribution.

If defined thresholds are exceeded, a visual warning appears on the display and an audible alarm is triggered. Automatic system shutdown can also be configured via the included splitter cable. The preset threshold values can be adjusted through the configuration menu.

More information about the optional software can be found here.

Monitoring

More information about the optional software can be found here.

Cooling

The cooling system of the WireView Pro II has been specially adapted for the Noctua Edition. A Noctua NF-A4x10 PWM fan provides active cooling in a semi-passive operating mode. At low loads, the fan remains switched off and activates automatically depending on temperature and power consumption. The fan grille is specifically designed to match the fan, supporting efficient airflow with minimal noise. The enlarged CNC-machined aluminum housing also supports passive heat dissipation. An additional cooling plate, combined with a thermal pad, improves heat transfer from the relevant components to the housing. The Noctua Edition combines high-performance cooling with particularly quiet operation.

Noctua conducted internal cooling tests under extreme conditions. In a test system without a case fan, the temperature inside the case was measured at over 40 °C. In the tests, the Noctua Edition was able to dissipate the heat generated by the WireView Pro II more effectively than the standard version—both passively and actively with fans running—while active operation with spinning fans was quieter than with the standard version. More information and tests on the cooling performance of the WireView Pro II Noctua Edition can be found in the linked article.

User-Friendliness

The WireView Pro II - Noctua Edition is available in Normal and Reversed connector orientations. Depending on the orientation of the graphics card’s power connector, this allows the 12V-2x6 cable to be routed neatly toward the bottom of the case. The WireView Pro II also acts as a 90° adapter. The integrated TFT-IPS color display offers multiple views to display the measured values. The Noctua Edition features a specially adapted default display design with Noctua’s signature brown design elements. The default design can be replaced with other available designs or designs customized using the software.

The WireView Pro II - Noctua Edition is fully functional without additional software. The optional WireView Pro II software can be used to adjust settings and analyze stored measurement data, among other functions.

Automatic Data Logging

Integrated memory logs relevant operating data at regular intervals. These include the measured currents in the individual 12-volt wires, total power consumption and the temperature near the 12V-2x6 output connector.

The stored data allows operating behavior to be analyzed retrospectively and can be particularly useful when investigating potential error events.

Extended Warranty and Clarity for the End User

The Noctua Edition also comes with the WireView Pro II’s extended warranty. Should damage occur to the graphics card’s 12VHPWR or 12V-2x6 connector despite proper use and the integrated protective mechanisms, Thermal Grizzly will carry out repairs or provide an equivalent replacement if repair is not possible, in accordance with the extended warranty terms and conditions.

The extended warranty period is 2 years from the date of purchase. The full terms and conditions are available in the product’s download section.

Features WireView Pro II - Noctua Edition

Per-pin current measurement for precise monitoring of load distribution
Continuous measurement of current, voltage, temperature and power consumption
Audible and visual warnings if thresholds are exceeded
Optional automatic system shutdown via the included splitter cable
Individually adjustable thresholds and alarms
Extended warranty covering the GPU connector for two years in accordance with the warranty terms and conditions
Automatic logging of operating data for subsequent failure analysis
Custom-designed 12V-2x6 connector
Available in Normal (N) and Reversed (R) connector orientations
90° cable routing for optimized cable management
Noctua NF-A4x10 PWM fan
Noctua-optimized fan grille
Enlarged CNC-machined aluminum housing
Semi-passive fan control based on temperature and power consumption
Additional passive heat dissipation via a cooling plate and thermal pad
Temperature monitoring at the input and output of the 12V-2x6 connector
Two external 10 kΩ NTC temperature sensors included

TFT-IPS color display with 320 × 170 pixels
On-screen display can be rotated by 180°
Main View: per-pin readings, power consumption, connector detection, fan control in percent and output temperature
Simple View: total power consumption, highest-current pin, voltage and hottest sensor
Current Monitor: per-pin current in amps with visual threshold indication
Voltage Monitor: per-pin voltage and average value
Power Monitor: per-pin power and total power
Temperature Monitor: readings from all four temperature sensors
Configurable display views and automatic view switching via Cycle Mode
Noctua-specific default design with brown design elements
Replaceable display design with preset options or designs customized using the software
USB-C for firmware updates
USB-C to USB 2.0 connection cable for internal PC integration
Optional software for device configuration and for reading and exporting stored measurement data
Standalone operation without additional software
Plug-and-play usability without prior configuration

Scope of Delivery

WireView Pro II - Noctua Edition
USB-C to USB 2.0 internal connection cable (60 cm)
Y-splitter cable for power function via motherboard
Short temperature sensor (5 cm)
Long temperature sensor (20 cm)

WireView Pro II

Will WireView Pro II fit my graphics card, including with a water block or in a vertical mounting position?

WireView Pro II Normal/Reversed and the Noctua Edition plug directly into the graphics card. Before installation, check the connector orientation, compatibility list and drawing for the corresponding version on the product page. The Noctua Edition has a larger housing. The cooler, backplate or recessed sockets can prevent full insertion. If you use a water block, you must check the modified setup. Approval for the original cooler is not sufficient for this. Models that are not listed are neither automatically approved nor ruled out. WireView Pro II Wired connects via a permanently attached 40 cm cable and is mounted separately using the included brackets. It can be used universally with graphics cards that have a 12VHPWR or 12V-2x6 connector, including the NVIDIA RTX 5080 and RTX 5090 Founders Edition. The flexible mounting options also suit water blocks and vertically installed GPUs. For all versions, connectors must latch fully and cables must be routed without strain and with a sufficient bend radius. Check the clearance to the case, fans and other components. Keep ventilation openings clear and cables away from moving parts. If in doubt, send us the model numbers and photos of the connector area.

Which connector version do I need, and what do Normal and Reversed mean?

Normal and Reversed refer to the mechanical connector orientation of the directly attached WireView Pro II models and the Noctua Edition. Compare your graphics card's latch and sense contacts with the images, compatibility list and dimensional drawing for the corresponding version. The list assumes a horizontally installed graphics card with cables routed toward the bottom of the case. For vertical installation, you must check cable routing and space separately. The display can be rotated by 180°, so its orientation does not determine the connector version required. With WireView Pro II Wired, there is no need to choose between Normal and Reversed. The plug on the permanently attached cable connects to the graphics card, while the measurement unit is mounted separately. Make sure the connectors latch fully and route the cable without tight bends or sideways pulling. Use the documentation for your Pro II version, as older WireView generations have a different physical design. If anything is unclear, the exact model name and photos of the connector area will help us.

How do I connect WireView Pro II to PC software and update the firmware?

Connect WireView Pro II to the PC through its USB-C port using a suitable data cable, for example the supplied cable for an internal USB 2.0 header. This also applies to Wired and the Noctua Edition. Use the latest official WireView Pro II software from the downloads section of the relevant product page. It allows you to read and export measurements, change settings and perform approved firmware updates according to the instructions. The measurement and monitoring functions also work without the software running continuously. Completely remove older software versions from your computer before using a new version to avoid conflicts. Do not interrupt the USB connection or power supply during an update. Check all settings afterward, as they may have been reset. If you have problems, tell us the software and firmware versions and the exact message shown.

How are complaints and warranty claims handled, including cases involving overheated or partially melted connectors?

Describe the problem as precisely as possible and include proof of purchase and photos or a short video. Specify the exact WireView version and, for connection problems, also provide the GPU, power supply and cable type. We will assess whether technical assistance, repair or replacement is appropriate. Returns, cost coverage and any advance replacement are arranged on a case-by-case basis. Direct any statutory warranty claims to your seller. WireView Pro II, Wired and the Noctua Edition are covered by the extended GPU connector warranty for two years from the purchase date, subject to the published terms. Requirements include proof of purchase, operation according to the instructions and within the GPU manufacturer's specifications, and active protection functions with the required default settings. The full eligibility, operating and documentation requirements are available in the downloads section of the product page. The warranty is not a blanket promise to cover every type of GPU damage. If connectors are partially melted, overheated or damaged, shut down the PC immediately and disconnect the power supply from the mains. Allow the parts to cool. For our diagnosis, avoid removing melted connectors from the graphics card if possible, and do not force apart connections that have melted together. Stop using damaged or discolored connections. Document the graphics card, cable and WireView with photos. Do not clean, repair or dispose of the parts before they have been assessed. We will discuss the next steps with you.

How is the fan controlled, and what should I do about excessive noise?

On all WireView Pro II versions, fan speed is controlled according to device temperature and power consumption. In the intended semi-passive mode, it may stop temporarily. Keep ventilation openings clear and check whether a cable is touching the fan. If you notice scraping noises, intermittent operation or unusually loud bearing noise, send us a video that includes the temperature display. The standard and Wired versions use a 30 mm fan. The Noctua Edition has a Noctua NF-A4x10 PWM fan and an adapted cooling system. On Wired, mounting the device on a case intake fan can help with cooling, so its own fan needs to start less often. WireView Pro II has a modular design. After consulting customer service, you can replace the fan yourself. Make sure the spare part and procedure match your version. A video tutorial is available on the Thermal Grizzly YouTube channel.

What do warnings such as Current Imbalance mean, and how should I respond?

Warnings are shown on the display and accompanied by an audible signal. Current Imbalance means that the load is distributed unevenly across the six 12 V wires. WireView Pro II monitors the currents but does not actively balance them. Small differences are possible. Significant or increasing differences should be investigated. Below 6 A, a greater imbalance is normally not associated with increased risk. Above 6 A, Thermal Grizzly considers a difference of at least 40% between pins to be an elevated imbalance. This threshold was established through in-house testing and does not correspond to an official standard. The exact alarm trigger depends on the firmware version and device settings. Do not simply raise warning thresholds to hide a message. Switch off the PC and disconnect the power supply from the mains. Check all connections: at the power supply, at the input of WireView Pro II and at the graphics card. For Normal/Reversed and the Noctua Edition, the device sits directly on the GPU. For Wired, the plug on the permanently attached cable connects there. Unplug undamaged connections and fully insert them again. Then compare the readings under a similar load. Reconnecting can often improve the situation. If it persists, first test a different cable between the power supply and WireView that is approved for your power supply. The permanently attached Wired cable stays on the device. If there is no improvement, send us the readings, firmware version and details of the GPU, power supply and cable. Do not continue using damaged or unusually hot connections.

Which power supplies, cables and adapters can I use, and what power limits apply?

WireView Pro II is generally compatible with 12VHPWR and 12V-2x6 power cables. Only use cables approved for your power supply model and your graphics card's power requirements. For Normal/Reversed and the Noctua Edition, the connector version must also match the graphics card. For Wired, the power supply cable connects to the input of the measurement unit. The permanently attached 40 cm cable runs from there to the graphics card. Fully insert all connections until the latch engages. Avoid sideways pulling and tight bends immediately next to the connector. For multi-input adapters, all inputs required by the manufacturer must be connected to power. During operation, the lowest permissible limit of all cables, adapters, power supplies and GPU connectors involved applies. A higher warning threshold, display scale or power limit does not increase load capacity. On graphics cards with multiple power connectors, each connector must be considered separately. Operate the GPU within the manufacturer's specifications and observe the extended warranty terms. Total power alone does not prove that the individual contacts are carrying a safe load. For unusual configurations or an increased power limit, send us the GPU model, operating mode and details of the power supply and cabling for assessment.

What should I do if the display stays black, flickers or shows visual errors?

Check the display brightness and automatic display-off setting. Then switch off the PC and disconnect the power supply from the mains. Check that all power connections are fully seated. For a complete restart, disconnect the device from the graphics card and all connected cables, including USB. For Wired, disconnect the permanently attached cable only from the graphics card. It remains attached to the measurement unit. After removal, wait briefly and reconnect the device. WireView Pro II also starts with only USB-C connected. To check the display function, you can also power the removed device using a standard USB-C charger. This also applies to Wired and the Noctua Edition. For a data connection to the PC software, however, you need a suitable USB data cable. Disconnecting the power supply restarts the device but does not restore factory settings. For a reset, follow the WireView Pro II instructions. If flickering, pixel defects or display errors persist, send us a short video along with the serial number, firmware version and system details. The device has a modular design. We will discuss with you whether replacing the display, carrying out another repair or replacing the device makes sense. A video tutorial on replacing the display is available on the Thermal Grizzly YouTube channel.

Which variants of WireView Pro II are available, and are further models planned?

WireView Pro II is available as a directly attached device in Normal and Reversed connector orientations, and as a Wired version with a permanently attached connecting cable. The Noctua Edition offers the features of WireView Pro II with a Noctua NF-A4x10 PWM fan, an adapted fan grille, a larger aluminum housing and additional heat transfer to the housing. It also plugs directly into the graphics card. Its preset Noctua display theme can be changed. Information on available versions, further models and confirmed release dates is available in the Thermal Grizzly shop and on our official channels. For products that have not yet been announced, we cannot confirm a fixed date or specific features.

How do I connect the automatic shutdown function?

Switch off the PC and disconnect the power supply from the mains. Connect the designated port on WireView Pro II to the motherboard's power-switch pins using the supplied Y-splitter cable. Connect the case power button through the splitter as described in the instructions. This also applies to Wired and the Noctua Edition. Follow the pin assignments in the instructions for your version and in the motherboard manual. Then check the warning and shutdown settings and test the function according to the instructions. Automatic shutdown requires the cable connection to the motherboard. A USB connection alone is not sufficient. Even with the shutdown function enabled, all power connectors must be fully latched and free of strain.

Why does the GPU fail to start or cause black screens and crashes with WireView Pro II?

Switch off the PC and disconnect the power supply from the mains. Check all connections from the power supply through WireView Pro II to the graphics card. For Normal/Reversed and the Noctua Edition, the connector version and installation clearance must be suitable. The cooler or backplate must not prevent full insertion. For Wired, check the plug of the permanently attached cable at the GPU. Poor contact at the sense pins can prevent startup. Unplug undamaged connections and fully insert them again. All latches must engage and cables must be routed without strain. For multi-input adapters, all required inputs must be supplied with power. If the problem persists, first test a different cable between the power supply and WireView that is approved for your power supply. To narrow down the cause, you can also connect the GPU directly to the power supply using a suitable cable. If it only works without WireView, send us your system details, the exact device version, serial number and photos of the connectors. Do not retest connections that are damaged, discolored or were previously unusually hot.

How do I operate or reset WireView Pro II, and how do I interpret the readings?

All versions can be used as supplied without manual calibration. The device is operated using its buttons or the WireView Pro II software. In each settings menu, “Save” saves your changes. “Reset” restores the factory settings for that menu. Refer to the Device & Display Guide in the downloads section. Make a note of your settings before performing a reset. A firmware update can also reset them. Only change calibration values after consulting our support team. The device displays the currents of the six 12 V wires in amperes, the voltage in volts and the resulting calculated power in watts. Only the graphics card connector supplied through WireView is measured. Power drawn through the PCIe slot is not included. Differences from GPU software readings are therefore not automatically a measurement error. The GPU's total power consumption or a wall-plug power meter is not suitable for calibration. IN and OUT are measured by internal sensors on the device's circuit board. For Wired, the measurement unit is separate from the GPU. These readings therefore do not equal a temperature measured directly at the remote GPU connector. TS1 and TS2 show the readings of the connected external sensors at their respective positions. MAX is the highest sensor reading currently measured. Do not insert external sensors into electrical contacts. If warnings recur, send us readings under a comparable load and details of the GPU, power supply, cable and sensor positions.

What is included with each version, and how can I obtain missing parts?

All versions include the ordered WireView device, a 60 cm USB-C cable for an internal USB 2.0 header, a Y-splitter cable for the motherboard power function, and two external temperature sensors with 5 cm and 20 cm cables. These shared package contents also apply to the Noctua Edition. Wired additionally includes the permanently attached 40 cm cable with three cable combs, a parallel and a perpendicular mounting bracket, and a bracket for 120 mm fans. The mounting hardware includes five M4 × 6 mm screws and three M3 × 6 mm screws to DIN 7984, three knurled nuts and three washers each in M4 and M3, two hex keys in 2 mm and 2.5 mm sizes, and a T4 key. If a part is missing, send us proof of purchase, the item number and a photo of the complete package contents. We will review the case and arrange the missing items with you.

Downloads "WireView Pro II GPU"

Compatibility WireView PRO II

As of February 18, 2026

WireView Pro II Normal	WireView Pro II Reversed
Gainward GeForce RTX 5090 Phantom Gainward GeForce RTX 5090 Phantom GS INNO3D GeForce RTX 5090 X3 INNO3D GeForce RTX 5090 X3 OC INNO3D GeForce RTX 5090 iCHILL X3 MSI GeForce RTX 5090 32G Suprim SOC MSI GeForce RTX 5090 32G Suprim Liquid SOC MSI GeForce RTX 5090 32G Gaming Trio OC MSI GeForce RTX 5090 32G Vanguard MSI GeForce RTX 5090 32G Vanguard SOC MSI GeForce RTX 5090 32G Ventus 3X OC PNY GeForce RTX 5090 Overclocked Triple Fan PNY RTX 5090 ARGB Epic-X RGB Triple Fan Palit 5090 GameRock Phantom Waterblock Alphacool Core Geforce RTX 5090 Gamerock	ASUS TUF Gaming GeForce RTX 5090 OC ASUS TUF Gaming GeForce RTX 5090 ASUS ROG Astral GeForce RTX 5090 OC ASUS ROG Astral GeForce RTX 5090 ASUS ROG Astral LC GeForce RTX 5090 OC ASUS ROG Astral LC GeForce RTX 5090 ASUS ROG Astral GeForce RTX 5090 White OC ASUS ROG Astral GeForce RTX 5090 White BYKSKI Geforce RTX 5090 ROG Astral Waterblock DeltaMate GPU Block - ROG Astral RTX 5090 EK-Quantum Vector³ TUF GeForce RTX 5090 GIGABYTE GeForce RTX 5090 Windforce OC 32G GIGABYTE AORUS GeForce RTX 5090 Master 32G GIGABYTE AORUS GeForce RTX 5090 Master ICE 32G GIGABYTE AORUS GeForce RTX 5090 Xtreme Waterforce 32G GIGABYTE AORUS GeForce RTX 5090 Xtreme WATERFORCE WB GIGABYTE GeForce RTX™ 5090 GAMING OC 32G Watercool Heatkiller V Waterblock ASUS 5090 TUF Gaming OC Zotac Gaming GeForce RTX 5090 Solid OC Zotac Gaming GeForce RTX 5090 Solid Zotac Gaming GeForce RTX 5090 Solid OC White Edition Zotac Gaming GeForce RTX 5090 AMP Extreme INFINITY

WireView Pro II Normal

WireView Pro II Reversed

Gainward GeForce RTX 5090 Phantom
Gainward GeForce RTX 5090 Phantom GS
INNO3D GeForce RTX 5090 X3
INNO3D GeForce RTX 5090 X3 OC
INNO3D GeForce RTX 5090 iCHILL X3
MSI GeForce RTX 5090 32G Suprim SOC
MSI GeForce RTX 5090 32G Suprim Liquid SOC
MSI GeForce RTX 5090 32G Gaming Trio OC
MSI GeForce RTX 5090 32G Vanguard
MSI GeForce RTX 5090 32G Vanguard SOC
MSI GeForce RTX 5090 32G Ventus 3X OC
PNY GeForce RTX 5090 Overclocked Triple Fan
PNY RTX 5090 ARGB Epic-X RGB Triple Fan
Palit 5090 GameRock
Phantom Waterblock Alphacool Core Geforce RTX 5090 Gamerock

ASUS TUF Gaming GeForce RTX 5090 OC
ASUS TUF Gaming GeForce RTX 5090
ASUS ROG Astral GeForce RTX 5090 OC
ASUS ROG Astral GeForce RTX 5090
ASUS ROG Astral LC GeForce RTX 5090 OC
ASUS ROG Astral LC GeForce RTX 5090
ASUS ROG Astral GeForce RTX 5090 White OC
ASUS ROG Astral GeForce RTX 5090 White
BYKSKI Geforce RTX 5090 ROG Astral Waterblock
DeltaMate GPU Block - ROG Astral RTX 5090
EK-Quantum Vector³ TUF GeForce RTX 5090
GIGABYTE GeForce RTX 5090 Windforce OC 32G
GIGABYTE AORUS GeForce RTX 5090 Master 32G
GIGABYTE AORUS GeForce RTX 5090 Master ICE 32G
GIGABYTE AORUS GeForce RTX 5090 Xtreme Waterforce 32G
GIGABYTE AORUS GeForce RTX 5090 Xtreme WATERFORCE WB
GIGABYTE GeForce RTX™ 5090 GAMING OC 32G
Watercool Heatkiller V Waterblock ASUS 5090 TUF Gaming OC
Zotac Gaming GeForce RTX 5090 Solid OC
Zotac Gaming GeForce RTX 5090 Solid
Zotac Gaming GeForce RTX 5090 Solid OC White Edition
Zotac Gaming GeForce RTX 5090 AMP Extreme INFINITY

WireView Pro II Normal	WireView Pro II Reversed
INNO3D GeForce RTX 5080 X3 INNO3D GeForce RTX 5080 X3 OC INNO3D GeForce RTX 5080 X3 Gaming OC MSI GeForce RTX 5080 16G Expert OC MSI GeForce RTX 5080 16G Inspire 3X MSI GeForce RTX 5080 16G Inspire 3X OC MSI GeForce RTX 5080 16G Gaming Trio MSI GeForce RTX 5080 16G Gaming Trio OC MSI GeForce RTX 5080 16G Ventus 3X OC WHITE MSI GeForce RTX 5080 16G Shadow 3X OC MSI GeForce RTX 5080 16G Vanguard SOC MSI GeForce RTX 5080 16G SUPRIM SOC	ASUS Prime GeForce RTX 5080 OC ASUS ProArt GeForce RTX 5080 OC Edition ASUS ROG Astral GeForce RTX 5080 ASUS ROG Astral GeForce RTX 5080 Hatsune Miku Edition ASUS ROG Astral GeForce RTX 5080 OC ASUS ROG Astral GeForce RTX 5080 White ASUS ROG Astral GeForce RTX 5080 White OC ASUS TUF Gaming GeForce RTX 5080 ASUS TUF Gaming GeForce RTX 5080 OC DeltaMate GPU Block - ROG Astral RTX 5080 GIGABYTE GeForce RTX 5080 Windforce OC SFF 16G GIGABYTE GeForce RTX 5080 Windforce SFF 16G Manli Gallardo GeForce RTX 5080 OC Zotac Gaming GeForce RTX 5080 AMP Extreme INFINITY Zotac Gaming GeForce RTX 5080 AMP Extreme INFINITY ULTRA Zotac Gaming GeForce RTX 5080 Solid Zotac Gaming GeForce RTX 5080 Solid CORE Zotac Gaming GeForce RTX 5080 Solid CORE OC Zotac Gaming GeForce RTX 5080 Solid OC Zotac Gaming GeForce RTX 5080 Solid OC White Edition

WireView Pro II Normal

WireView Pro II Reversed

INNO3D GeForce RTX 5080 X3
INNO3D GeForce RTX 5080 X3 OC
INNO3D GeForce RTX 5080 X3 Gaming OC
MSI GeForce RTX 5080 16G Expert OC
MSI GeForce RTX 5080 16G Inspire 3X
MSI GeForce RTX 5080 16G Inspire 3X OC
MSI GeForce RTX 5080 16G Gaming Trio
MSI GeForce RTX 5080 16G Gaming Trio OC
MSI GeForce RTX 5080 16G Ventus 3X OC WHITE
MSI GeForce RTX 5080 16G Shadow 3X OC
MSI GeForce RTX 5080 16G Vanguard SOC
MSI GeForce RTX 5080 16G SUPRIM SOC

ASUS Prime GeForce RTX 5080 OC
ASUS ProArt GeForce RTX 5080 OC Edition
ASUS ROG Astral GeForce RTX 5080
ASUS ROG Astral GeForce RTX 5080 Hatsune Miku Edition
ASUS ROG Astral GeForce RTX 5080 OC
ASUS ROG Astral GeForce RTX 5080 White
ASUS ROG Astral GeForce RTX 5080 White OC
ASUS TUF Gaming GeForce RTX 5080
ASUS TUF Gaming GeForce RTX 5080 OC
DeltaMate GPU Block - ROG Astral RTX 5080
GIGABYTE GeForce RTX 5080 Windforce OC SFF 16G
GIGABYTE GeForce RTX 5080 Windforce SFF 16G
Manli Gallardo GeForce RTX 5080 OC
Zotac Gaming GeForce RTX 5080 AMP Extreme INFINITY
Zotac Gaming GeForce RTX 5080 AMP Extreme INFINITY ULTRA
Zotac Gaming GeForce RTX 5080 Solid
Zotac Gaming GeForce RTX 5080 Solid CORE
Zotac Gaming GeForce RTX 5080 Solid CORE OC
Zotac Gaming GeForce RTX 5080 Solid OC
Zotac Gaming GeForce RTX 5080 Solid OC White Edition

WireView Pro II Normal	WireView Pro II Reversed
INNO3D GeForce RTX 5070 Ti X3 INNO3D GeForce RTX 5070 Ti X3 OC INNO3D GeForce RTX 5070 Ti X3 OC White MSI GeForce RTX 5070 Ti 16G Ventus 3X OC MSI GeForce RTX 5070 Ti 16G Gaming Trio OC MSI GeForce RTX 5070 Ti 16G Gaming Trio OC White MSI GeForce RTX 5070 Ti 16G Vanguard SOC MSI GeForce RTX 5070 Ti 16G Inspire 3X OC MSI GeForce RTX 5070 Ti 16G Shadow 3X OC MSI GeForce RTX 5070 Ti 16G Gaming Trio OC Plus MSI GeForce RTX 5070 Ti 16G Inspire 3X OC Plus	ASUS Prime GeForce RTX 5070 Ti OC ASUS TUF Gaming GeForce RTX 5070 Ti OC ASUS ROG Strix GeForce RTX 5070 Ti OC ASUS ROG Strix GeForce RTX 5070 Ti ASUS TUF Gaming GeForce RTX 5070 Ti OC White ASUS ProArt GeForce RTX 5070 Ti OC GIGABYTE GeForce RTX 5070 Ti Windforce OC SFF 16G GIGABYTE GeForce RTX 5070 Ti Eagle OC ICE SFF 16G GIGABYTE GeForce RTX 5070 Ti Windforce SFF 16G KFA2 GeForce RTX 5070 Ti HOF Gaming White Edition Zotac Gaming GeForce RTX 5070 Ti Solid SFF Zotac Gaming GeForce RTX 5070 Ti Solid Core OC White Edition Zotac Gaming GeForce RTX 5070 Ti AMP Extreme INFINITY Zotac Gaming GeForce RTX 5070 Ti Solid Core OC Zotac Gaming GeForce RTX 5070 Ti Solid SFF OC Zotac Gaming GeForce RTX 5070 Ti Solid OC Zotac Gaming GeForce RTX 5070 Ti AMP Extreme INFINITY ULTRA Zotac Gaming GeForce RTX 5070 Ti Solid Core

WireView Pro II Normal

WireView Pro II Reversed

INNO3D GeForce RTX 5070 Ti X3
INNO3D GeForce RTX 5070 Ti X3 OC
INNO3D GeForce RTX 5070 Ti X3 OC White
MSI GeForce RTX 5070 Ti 16G Ventus 3X OC
MSI GeForce RTX 5070 Ti 16G Gaming Trio OC
MSI GeForce RTX 5070 Ti 16G Gaming Trio OC White
MSI GeForce RTX 5070 Ti 16G Vanguard SOC
MSI GeForce RTX 5070 Ti 16G Inspire 3X OC
MSI GeForce RTX 5070 Ti 16G Shadow 3X OC
MSI GeForce RTX 5070 Ti 16G Gaming Trio OC Plus
MSI GeForce RTX 5070 Ti 16G Inspire 3X OC Plus

ASUS Prime GeForce RTX 5070 Ti OC
ASUS TUF Gaming GeForce RTX 5070 Ti OC
ASUS ROG Strix GeForce RTX 5070 Ti OC
ASUS ROG Strix GeForce RTX 5070 Ti
ASUS TUF Gaming GeForce RTX 5070 Ti OC White
ASUS ProArt GeForce RTX 5070 Ti OC
GIGABYTE GeForce RTX 5070 Ti Windforce OC SFF 16G
GIGABYTE GeForce RTX 5070 Ti Eagle OC ICE SFF 16G
GIGABYTE GeForce RTX 5070 Ti Windforce SFF 16G
KFA2 GeForce RTX 5070 Ti HOF Gaming White Edition
Zotac Gaming GeForce RTX 5070 Ti Solid SFF
Zotac Gaming GeForce RTX 5070 Ti Solid Core OC White Edition
Zotac Gaming GeForce RTX 5070 Ti AMP Extreme INFINITY
Zotac Gaming GeForce RTX 5070 Ti Solid Core OC
Zotac Gaming GeForce RTX 5070 Ti Solid SFF OC
Zotac Gaming GeForce RTX 5070 Ti Solid OC
Zotac Gaming GeForce RTX 5070 Ti AMP Extreme INFINITY ULTRA
Zotac Gaming GeForce RTX 5070 Ti Solid Core

WireView Pro II Normal	WireView Pro II Reversed
GIGABYTE GeForce RTX 4090 GAMING GIGABYTE AORUS GeForce RTX 4090 Xtreme Waterforce 24G HEATKILLER V PRO for RTX 4090 FE Waterblock INNO3D GeForce RTX™ 4090 iCHILL X3 Manli Gallardo GeForce RTX 4090 MSI RTX 4090 Suprim X 24GB MSI GeForce RTX 4090 GAMING X TRIO MSI GeForce RTX 4090 SUPRIM LIQUID X 24G NVIDIA GeForce RTX 4090 Founders Edition Palit GeForce RTX 4090 GameRock Zotac Gaming GeForce RTX 4090 Trinity Zotac Gaming GeForce RTX 4090 AMP Extreme AIRO	ASUS ROG Strix GeForce RTX 4090 OC ASUS ROG Strix GeForce RTX 4090 ASUS TUF Gaming GeForce RTX 4090 ASUS TUF Gaming GeForce RTX 4090 OC

WireView Pro II Normal

WireView Pro II Reversed

GIGABYTE GeForce RTX 4090 GAMING
GIGABYTE AORUS GeForce RTX 4090 Xtreme Waterforce 24G
HEATKILLER V PRO for RTX 4090 FE Waterblock
INNO3D GeForce RTX™ 4090 iCHILL X3
Manli Gallardo GeForce RTX 4090
MSI RTX 4090 Suprim X 24GB
MSI GeForce RTX 4090 GAMING X TRIO
MSI GeForce RTX 4090 SUPRIM LIQUID X 24G
NVIDIA GeForce RTX 4090 Founders Edition
Palit GeForce RTX 4090 GameRock
Zotac Gaming GeForce RTX 4090 Trinity
Zotac Gaming GeForce RTX 4090 AMP Extreme AIRO

ASUS ROG Strix GeForce RTX 4090 OC
ASUS ROG Strix GeForce RTX 4090
ASUS TUF Gaming GeForce RTX 4090
ASUS TUF Gaming GeForce RTX 4090 OC

WireView Pro II Normal	WireView Pro II Reversed
Manli Gallardo GeForce RTX 4080 NVIDIA GeForce RTX 4080 Founders Edition NVIDIA GeForce RTX 4080 SUPER Founders Edition

Not compatible to WireView Pro II Normal or Reversed
ASUS GeForce RTX 5080 Noctua OC Edition ASUS ROG Matrix GeForce RTX 4090 ASUS TUF Gaming GeForce RTX 4090 OG OC EK-Quantum Vector² FE RTX 4080 Waterblock GIGABYTE AORUS GeForce RTX 5070 Ti Master 16G GIGABYTE AORUS GeForce RTX 5080 Master 16G GIGABYTE AORUS GeForce RTX 5080 Master ICE 16G GIGABYTE GeForce RTX 5070 Ti Gaming OC 16G GIGABYTE GeForce RTX 5080 Gaming OC 16G INNO3D GeForce RTX 5090 iCHILL Frostbite MSI GeForce RTX 5090 (Suprim / Vanguard / Gaming Trio PCB) mit AC-Wasserblock NVIDIA GeForce RTX 5080 Founders Edition NVIDIA GeForce RTX 5090 Founders Edition Palit GeForce RTX 5080 GamingPro Watercool HEATKILLER V for ASUS TUF Gaming GeForce RTX 5090 Zotac Gaming RTX 5090 ArcticStorm AIO

Not compatible to WireView Pro II Normal or Reversed

ASUS GeForce RTX 5080 Noctua OC Edition
ASUS ROG Matrix GeForce RTX 4090
ASUS TUF Gaming GeForce RTX 4090 OG OC
EK-Quantum Vector² FE RTX 4080 Waterblock
GIGABYTE AORUS GeForce RTX 5070 Ti Master 16G
GIGABYTE AORUS GeForce RTX 5080 Master 16G
GIGABYTE AORUS GeForce RTX 5080 Master ICE 16G
GIGABYTE GeForce RTX 5070 Ti Gaming OC 16G
GIGABYTE GeForce RTX 5080 Gaming OC 16G
INNO3D GeForce RTX 5090 iCHILL Frostbite
MSI GeForce RTX 5090 (Suprim / Vanguard / Gaming Trio PCB) mit AC-Wasserblock
NVIDIA GeForce RTX 5080 Founders Edition
NVIDIA GeForce RTX 5090 Founders Edition
Palit GeForce RTX 5080 GamingPro
Watercool HEATKILLER V for ASUS TUF Gaming GeForce RTX 5090
Zotac Gaming RTX 5090 ArcticStorm AIO
