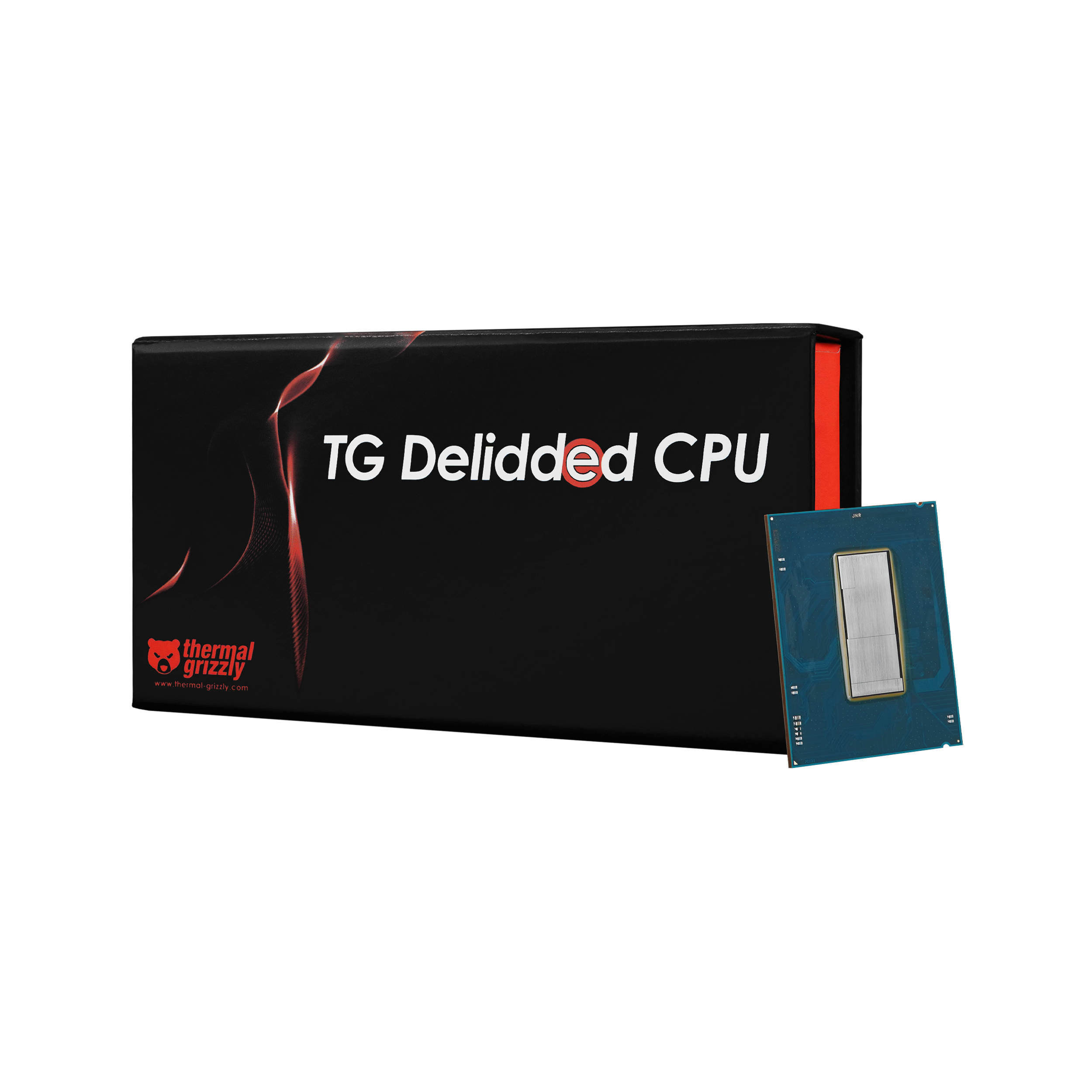

Intel TG Delidded CPU
The TG Delidded CPU is a processor that has been delidded by our trained specialists and subsequently validated. Delidding (to delid: “to remove the lid”) or “head removal” of a CPU is the process of removing the processor’s heatspreader. While delidding combined with appropriate direct-die cooling solutions can significantly reduce load temperatures, the process voids the manufacturer’s warranty. For the TG Delidded CPU, Thermal Grizzly provides its own warranty in addition to the legally required reseller guarantee.
- Delidded processor
- Thermal Grizzly warranty
- Includes test protocol (temperature screenshot on USB stick)
- Optimal for TG direct-die cooling solutions

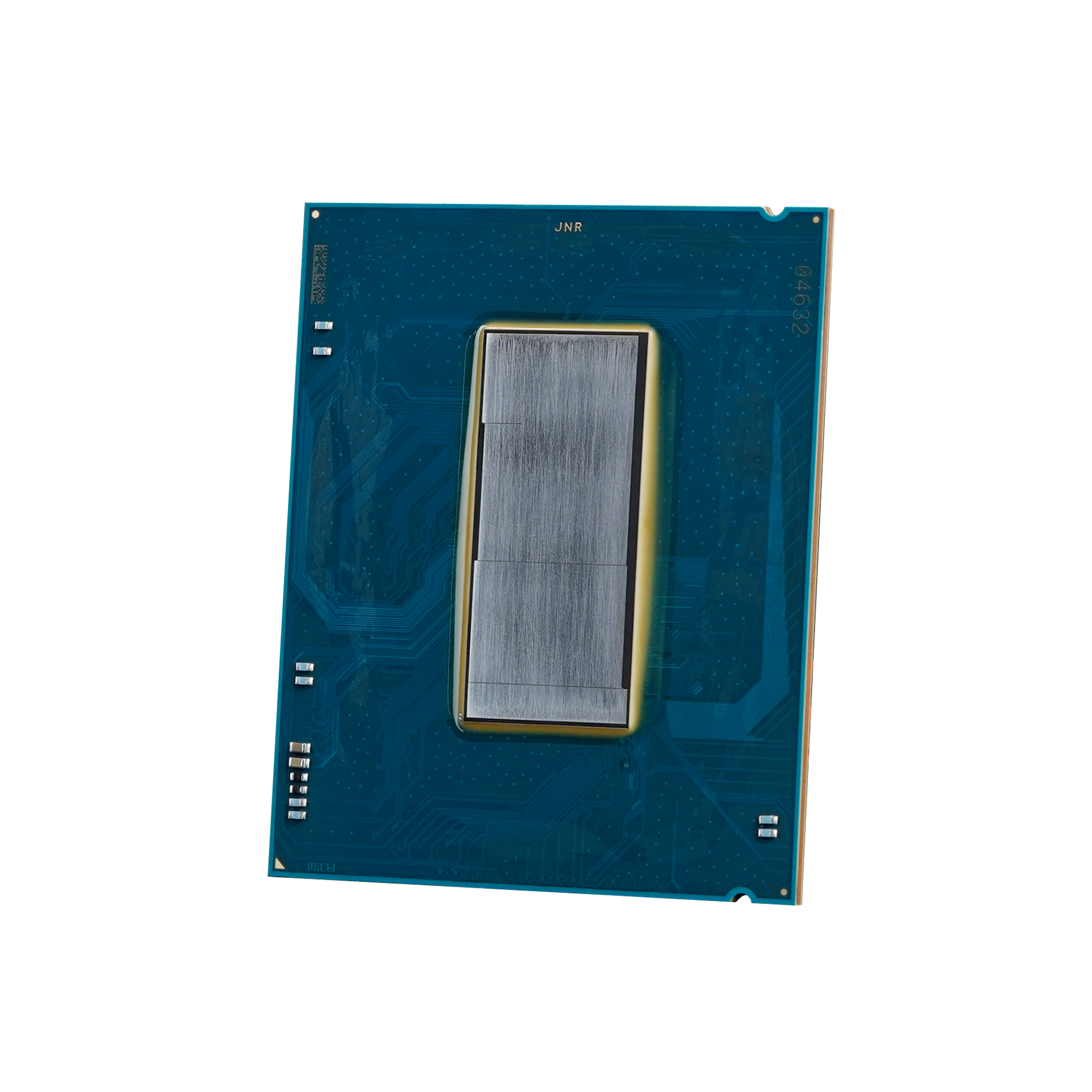

After delidding, the TG Delidded CPU is cleaned. Only the dies are lightly sanded to roughen the surface and improve the adhesion of liquid metal. Special care is taken not to damage any components – it is purely a superficial treatment that also improves thermal performance. After preparation, the CPU undergoes a functional test. The measured temperature is documented via screenshot and stored on a USB stick included with the CPU. The USB stick also contains a microscope image of the delidded processor.
For best possible temperatures, we recommend using Conductonaut Extreme on the CPU die or chiplets in combination with our direct-die cooling solutions (Mycro Direct-Die, Mycro Direct-Die Pro, High Performance Heatspreader). The exposed electronic components (SMDs) on the CPU package should be protected with TG Kapton Insulation Sheet or TG Shield when using liquid metal.
⚠️ Attention: Important Notice Regarding Warranty Loss!
The stock heatspreader included in the package must not be used under any circumstances. Using it will void the Thermal Grizzly warranty.
Liquid metal and other thermal interface materials cannot fully bridge the height difference between the CPU chiplets and the original heatspreader, which can result in processor damage.
More information can be found in the video by der8auer.
More information about the provided warranty can be found here.
If you experience problems with our products or have questions regarding warranty and guarantee, you can contact the Thermal Grizzly customer service team at any time. The best way to reach us is via the contact form in the Thermal Grizzly shop.
Note:
The CPU is cleaned after delidding. Testing the CPU with Conductonaut Extreme may leave residues on the silicon of the chiplets.
During the delidding process, minor cosmetic imperfections (small cracks/chips) may occur on the PCB or dies. These do not affect functionality, as validated by the testing process.

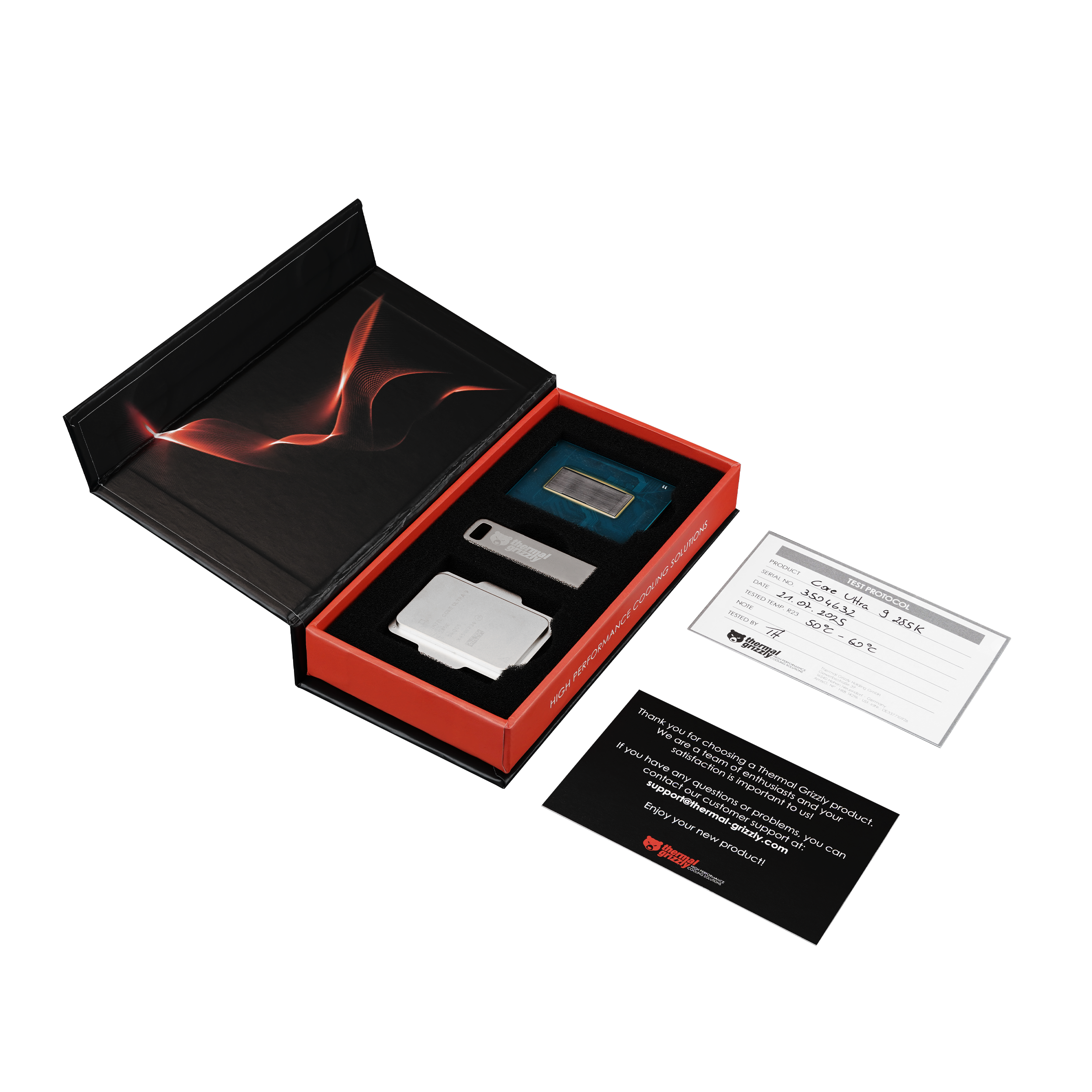

Scope of Delivery
- TG Delidded CPU
- Heatspreader of the processor
- USB stick
