Intel Mycro Direct-Die Pro RGB V1 water cooler

Mycro Direct-Die Pro

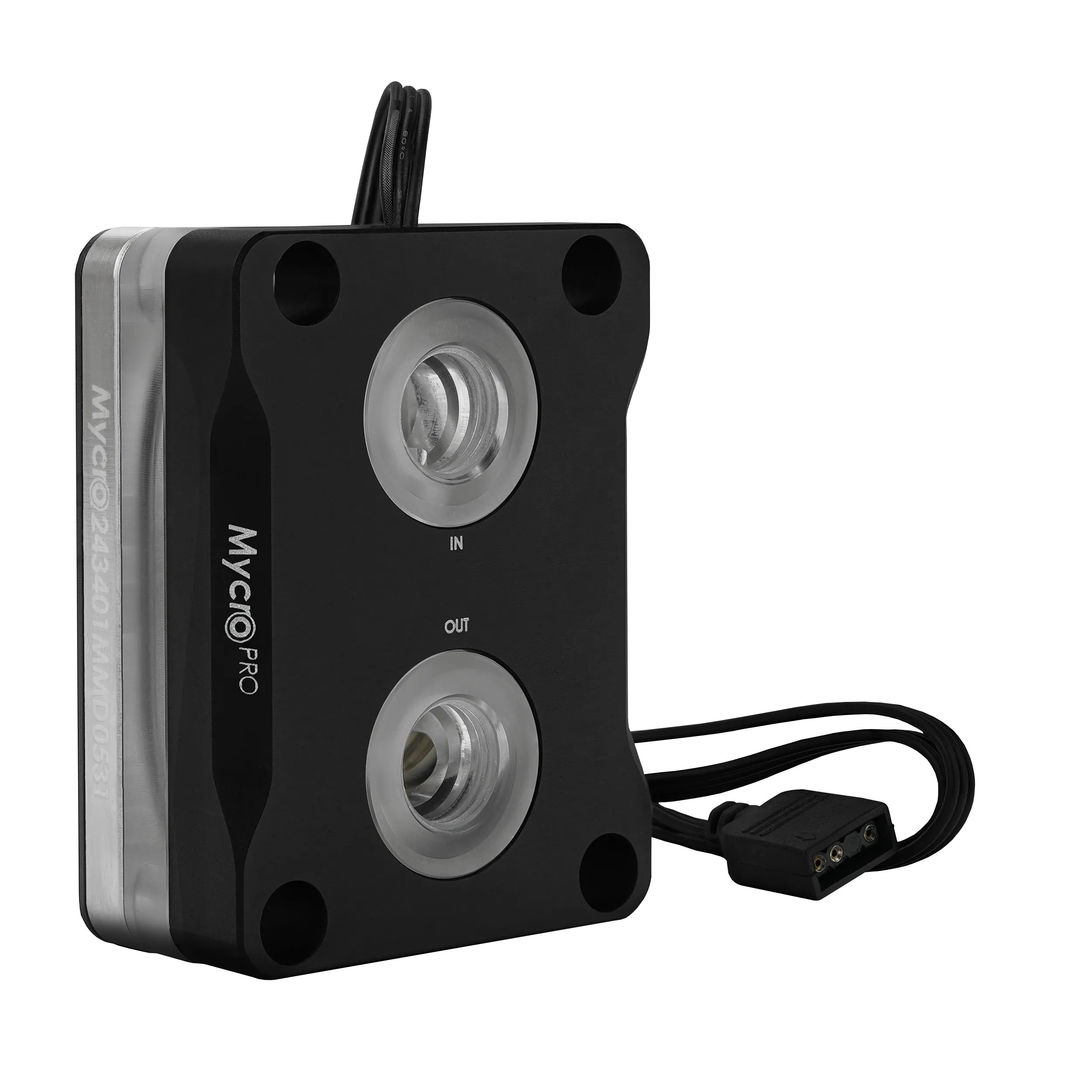

The Intel Mycro Direct-Die Pro RGB V1 is a water cooler optimized for the Intel LGA1700 platform with a nickel-plated copper base plate and RGB lighting. Compared to the standard version, the Pro version offers more cooling fins and a lower flow resistance. The direct-die cooler rests directly on the chip of the delidded Intel CPU. An up-to-date list of all verified compatible processors is available online.

$183.57

Content: 1 pcs.

Prices incl. VAT plus shipping costs

Lighting

RGB

CPU-Type

AMD AM5

Intel LGA 1700

Intel LGA 1851

EAN: 4260711991011

MPN: TG-MY-DD-P-RGB-i-V1

Product information "Intel Mycro Direct-Die Pro"

The Intel Mycro Direct-Die Pro RGB V1 is equipped with a jet system on the cooler surface and the cooling channel slot width has been optimized. The coldplate of the cooler is made of nickel-plated copper and is mounted directly on the CPU chip. To do this, the Integrated Loading Mechanism (ILM) of the mainboard is removed and the processor must be delidded. The nickel-plating of the cooler plate creates a barrier layer so that gallium-based liquid metal cannot diffuse into the copper and multiple applications of liquid metal are generally not necessary.

Properties

Water cooler for direct-die mounting
Microfin cooler made of nickel-plated copper
Replaces SAM and heatspreader
Acrylic and aluminum cover
G1/4-inch connections
CPU compatibility list available online
For delidded CPUs only! Caution: voids warranty!

Acrylic glass tempering and RGB lighting

Between the cold plate and the anodized aluminum cover is acrylic glass, which undergoes a annealing process after milling to relieve internal stresses. This reduces the risk of stress cracks during long-term use.

RGB LEDs are located under the aluminum lid, controllable via a 3-pin ARGB header (+5V/DATA/GND) on the motherboard. These LEDs illuminate the acrylic under the lid and the G1/4-inch fittings on the lid.

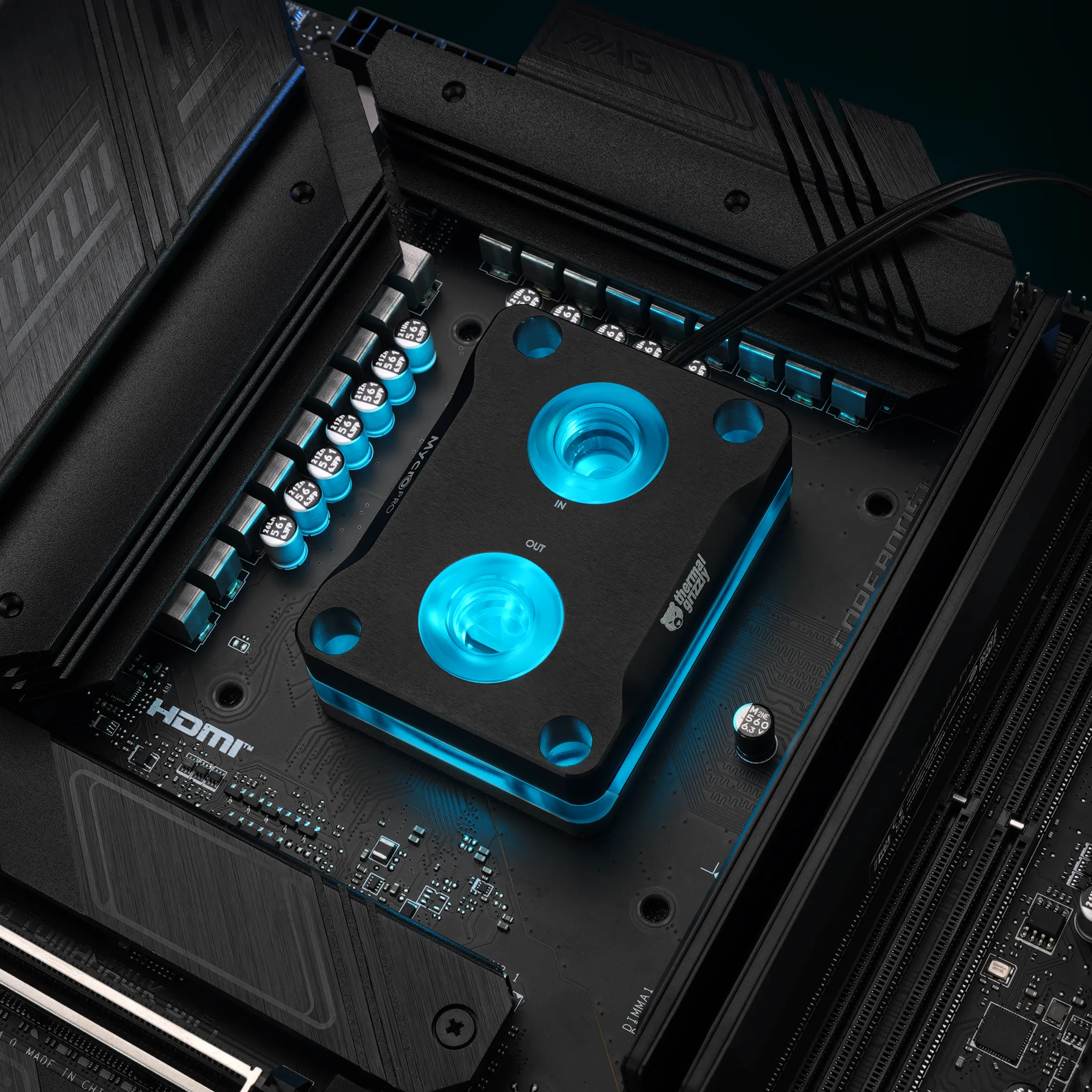

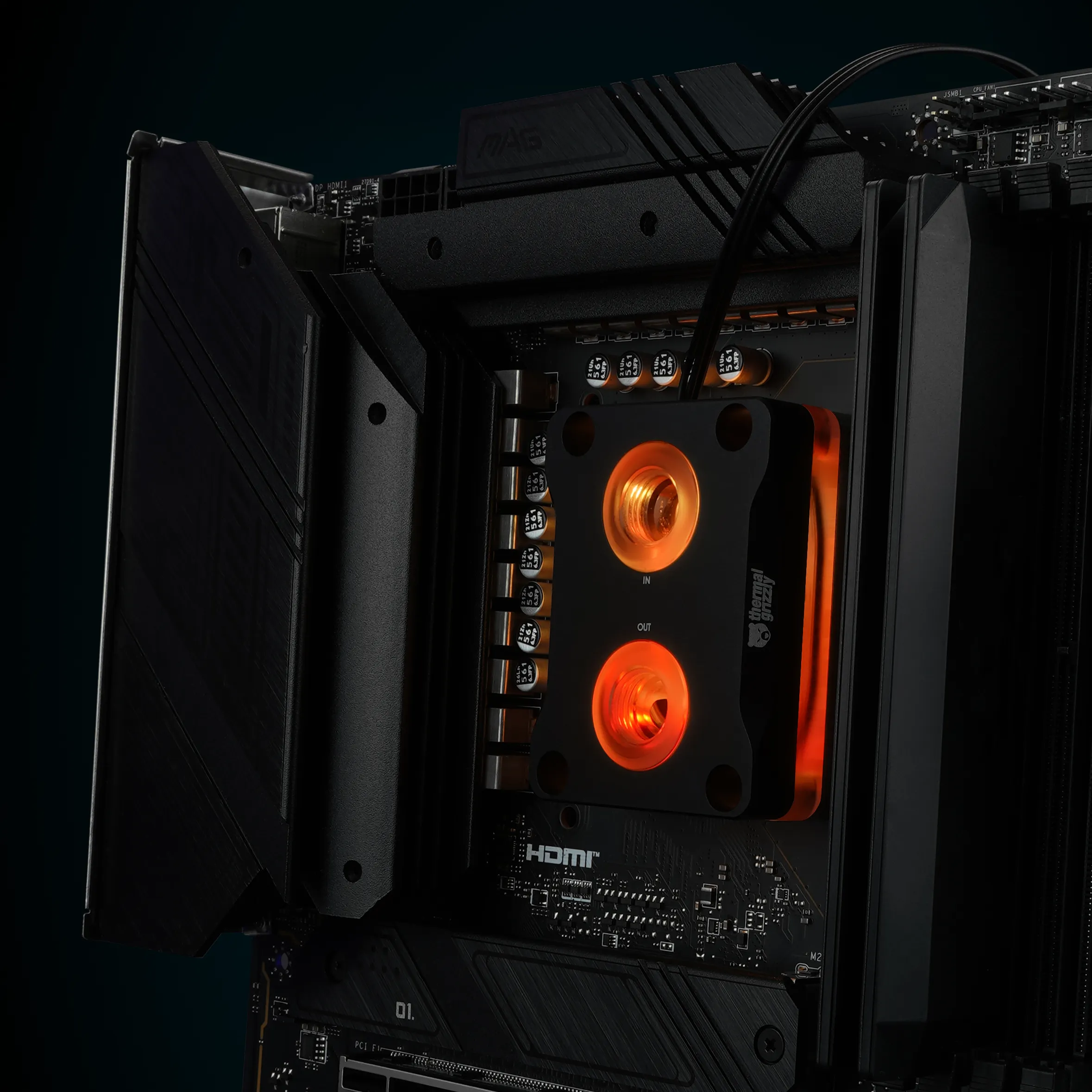

Intel Mycro Direct-Die Pro installed on motherboard

Direct die cooling

optimized microfin structure

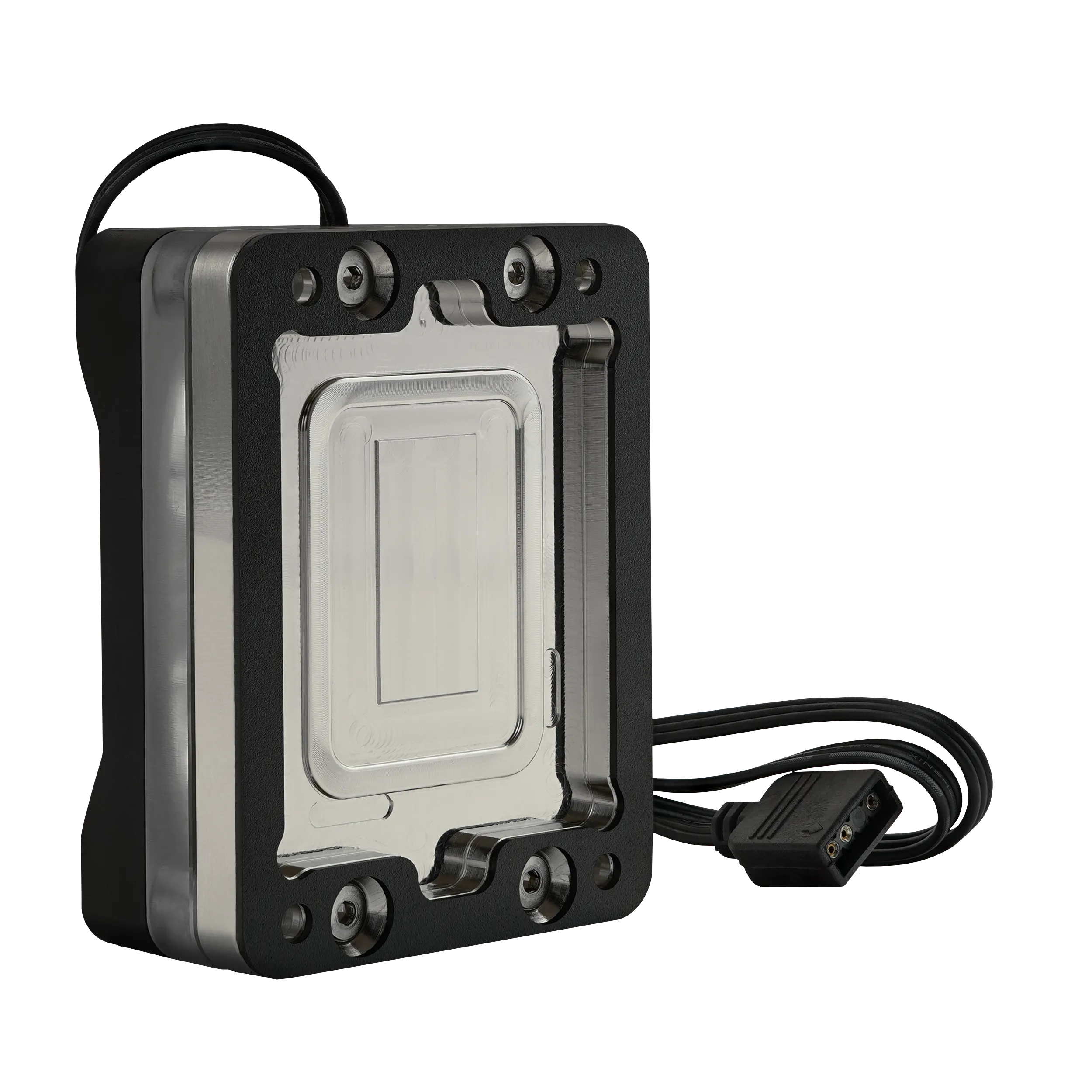

Nickel-plated copper cold plate

addressable RGB lighting

Attention:

Removing the heatspreader (“delidding”) of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty! Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer!

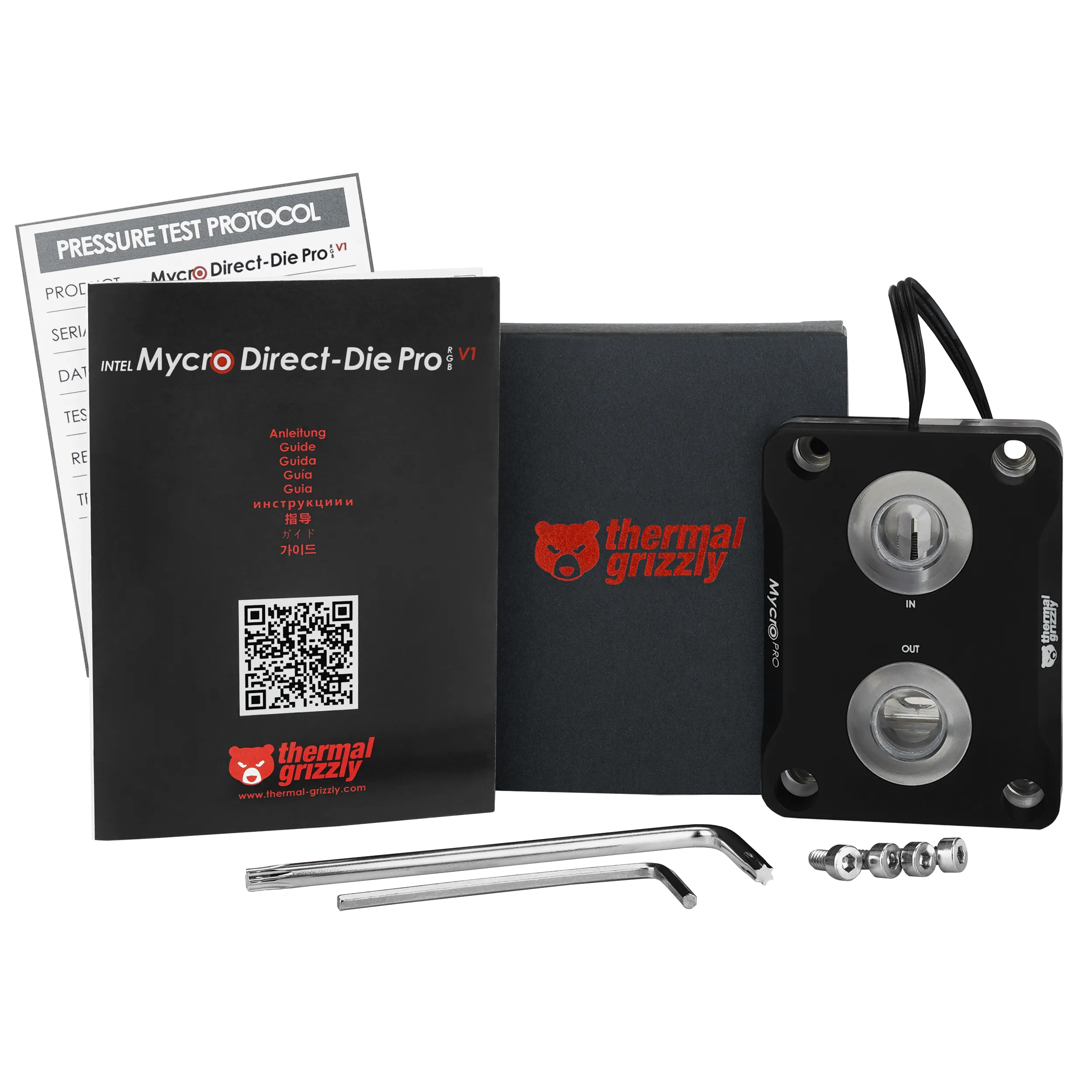

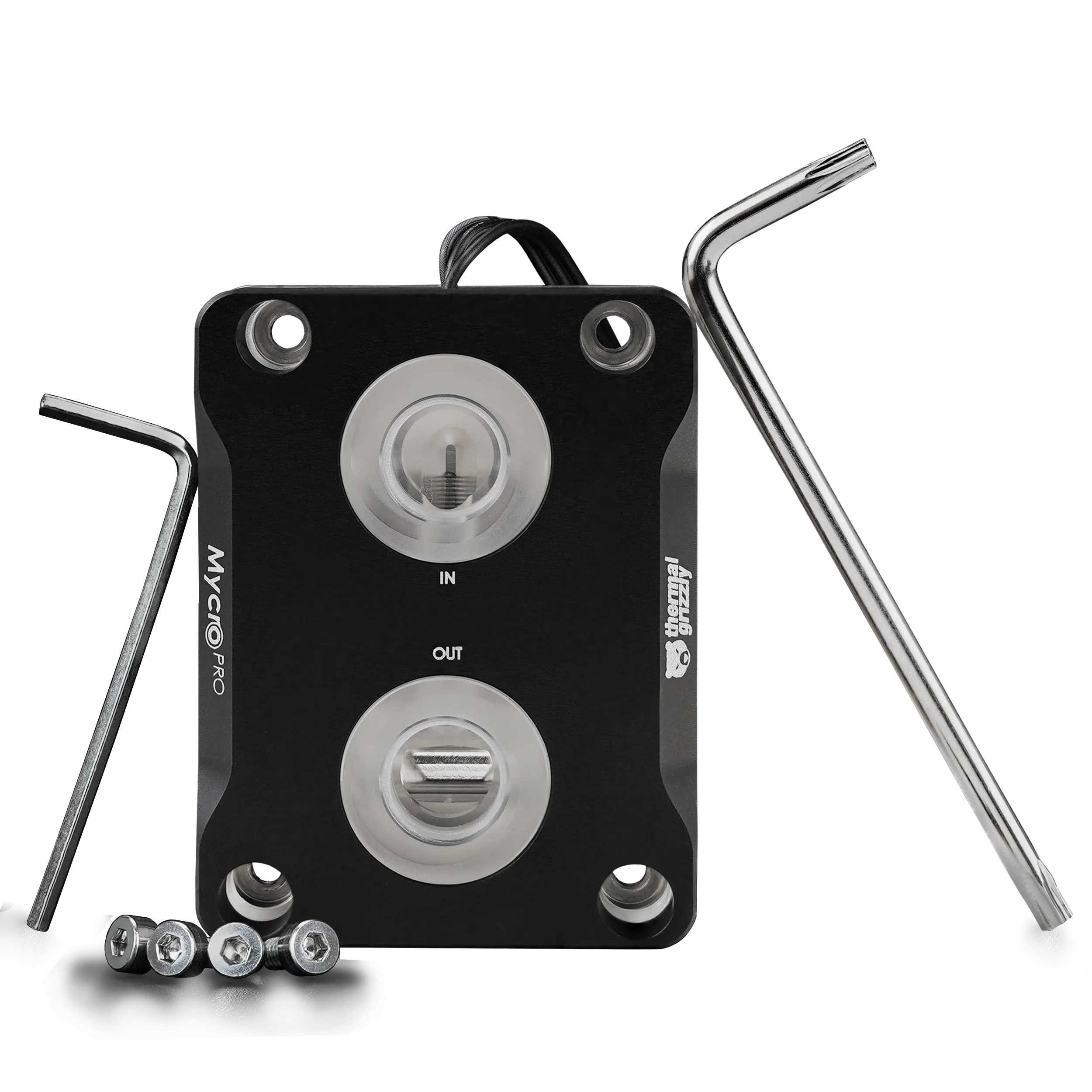

Scope of Delivery

1x Intel Mycro Direct-Die Pro RGB V1
1x Pressure test protocol to 600 mbar
4x Pan head screws UNC thread 3/8"
1x Hexagon socket wrench 5/64"
1x Torx T20 angle wrench

Compatibility Note:

The Intel Mycro Direct-Die Pro RGB V1 is compatible with the following processors:

Intel 12th Gen CPUs
Intel 13th Gen CPUs
Intel 14th Gen CPUs

KryoSheet Usage Note

The Intel Mycro Direct-Die Pro RGB V1 has been extensively tested internally in various scenarios. During development, the focus was placed on ensuring stable operation of the processor and memory. The Intel Mycro Direct-Die Pro RGB V1 is mounted in such a way that the cooler’s outer edges do not rest on the motherboard. In our test series, KryoSheet combined with the Intel Mycro Direct-Die Pro RGB V1 did not provide significant improvements in temperature and posed issues with contact pressure. Therefore, we do not recommend thermal pads, as their additional thickness significantly affects contact pressure, which can impact performance.
